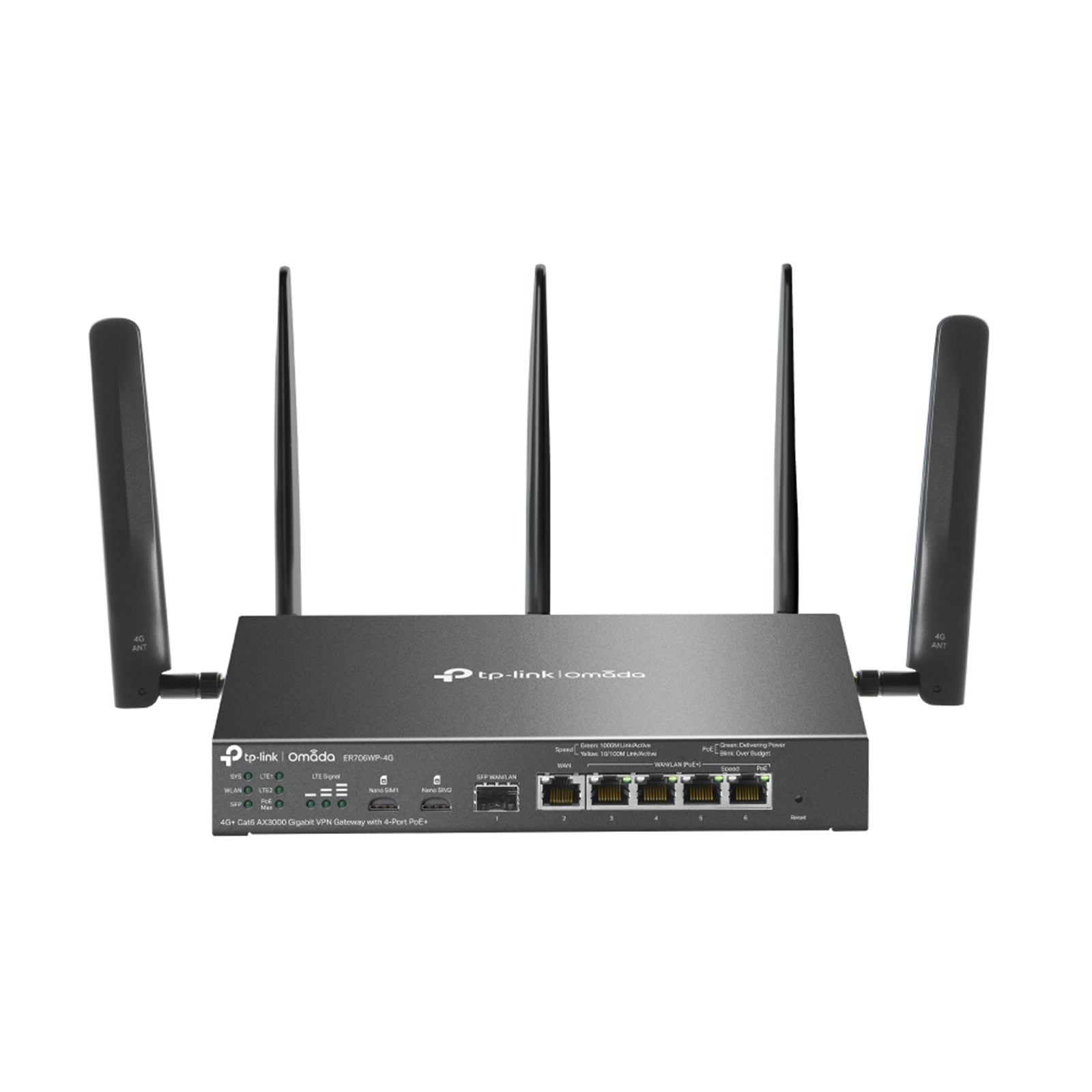

TP-Link Omada ER706WP-4G 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE

TP-Link Omada ER706WP-4G AX3000 4G+ Cat6 Gigabit VPN Gateway with 4-Port PoE+

The TP-Link Omada ER706WP-4G is a powerful AX3000 4G+ Cat6 Gigabit VPN Gateway designed for high-speed connectivity, secure networking, and flexible deployment. With dual Nano SIM support, PoE+ output, and centralized Omada management, it delivers an all-in-one solution for modern networks.

Key Features

• 4G+ Cat6 Connectivity*
• Insert a Nano SIM card to enjoy downlink speeds of up to 300 Mbps and uplink speeds of up to 50 Mbps
• Supports 2x Nano SIM cards (4G+ Cat6)

• Not compatible with AT&T's Text & Data plans** in the US

• AX3000 Dual-Band WiFi 6*

• 5 GHz: Up to 2402 Mbps (HE160)

• 2.4 GHz: Up to 574 Mbps

• High-Speed Wired Networking

• 1× Gigabit SFP WAN/LAN port
• 1× Gigabit WAN port
• 4× Gigabit WAN/LAN ports

• 5 Gigabit Ethernet ports total for high-speed wired connectivity

• 4-Port PoE+ Power Supply

• 4 PoE+ output ports

• 45 W total PoE budget

• High-Gain Detachable Antennas

• 3× dual-band detachable WiFi antennas
• 2× omnidirectional detachable LTE antennas

• Designed to extend and concentrate WiFi and LTE signals

• High-Security VPN

• Supports IPSec, SSL, WireGuard, OpenVPN, PPTP, and L2TP VPN

• Centralized Omada Management

• Cloud access and Omada app support
• Compatible with Omada Cloud-Based Controller, Hardware Controllers (OC300, OC200), and Software Controller

• Zero-Touch Provisioning and unified configuration

• Omada Mesh Support

• Seamlessly connects to EAPs that support mesh technology

4G Network Specifications (EU)

4G Network Type

• 4G LTE-FDD Bands
• B1/B3/B5/B7/B8/B20/B28/B32

• Frequencies: 2100/1800/850/2600/900/800/700/1450 MHz

• 4G LTE-TDD Bands

• B38/B40/B41

• Frequencies: 2600/2300/2500 MHz

• 3G Bands (DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA)

• B1/B3/B5/B8
• Frequencies: 2100/1800/850/900 MHz

Carrier Aggregation (EU)
- B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
- B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
- B5+B5/B7/B38/B40/B41
- B7+B7/B8/B20/B28/B32
- B8+B32/B38/B40/B41
- B20+B32/B38/B40
- B28+B32/B38/B40/B41
- B38+B38
- B40+B40
- B41+B41

Security & Protection

Deep Packet Inspection (DPI)
- Application control via DPI
- Updated application library

IDS/IPS
- Signature-based IPS/IDS threat detection

Access Control & Filtering
- Source/Destination IP-based access control
- Web Group Filtering
- URL Filtering

Web Security & ARP Protection
- ARP Inspection
- Sending GARP packets
- ARP Scanning
- IP-MAC Binding

Attack Defense
- TCP/UDP/ICMP flood defense
- Block TCP scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN

Hardware Specifications

Antenna Configuration

• WiFi Antennas
• Three dual-band detachable antennas
• 5 GHz: 5.5 dBi

• 2.4 GHz: 4.5 dBi

• LTE Antennas

• Two 4.0 dBi omnidirectional detachable antennas

Wireless Features

• WiFi Performance
• 2.4 GHz: 574 Mbps

• 5 GHz: 2402 Mbps (HE160)

• Advanced Wireless Features

• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit (based on SSID/Client)

• Airtime Fairness

• Wireless Security & SSIDs

• Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 total (8 per radio)
• Guest Network support

Performance

Basic Network Functions

• WAN Connection Types
• Static IP
• Dynamic IP
• PPPoE (supports MRU configuration)
• PPTP
• L2TP

• MAC Clone / Modify WAN address

• DHCP

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP & VLAN

• Multi-IP Interfaces
• Multi-Net DHCP

• 802.1Q VLAN

• IPTV

• IGMP v2/v3 Proxy
• Custom Mode

• Bridge Mode

• SMS

• Receive / Send SMS

• IPv6 Support

• Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non-Address mode

Advanced Routing & Bandwidth Management

• Advanced Routing
• Static Routing
• Policy Routing
• RIP

• OSPF

• Bandwidth Control

• IP-based bandwidth control

• Load Balance

• Intelligent Load Balance
• Application-Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT & Session Control

• NAT Features
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

• Session Limit

• IP-based session limit

Comprehensive VPN Support

• GRE

• Available only in Standalone Mode

• SSL VPN

• 50 tunnels

• IPsec VPN

• 100 IPsec VPN tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive negotiation modes
• DES, 3DES, AES128, AES192, AES256 encryption
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384, SHA2-512 authentication
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

• PPTP VPN

• PPTP VPN Server
• PPTP VPN Client (10)
• 50 tunnels

• PPTP with MPPE encryption

• L2TP VPN

• L2TP VPN Server
• L2TP VPN Client (10)
• 50 tunnels

• L2TP over IPsec

• OpenVPN

• OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN tunnels
• “Certificate + Account” mode

• Full Mode

• WireGuard VPN

• 20 tunnels

Authentication & Captive Portal

• Authentication Modes
• Web Authentication
• No Authentication

• Simple Password

• Hotspot & External Services

• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Server
• External Portal Server
• LDAP

Omada Management & Cloud Features

• Omada App

• Yes

• Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300, OC200)

• Omada Software Controller

• Cloud Access

• Yes

• Dynamic DNS Services

• Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization

Management & Maintenance

• Web Management Interface (HTTP/HTTPS)
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronization
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• Zero-Touch Provisioning

Additional Management Features

• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

Default Network Services

• Web Server
• Manage and configure device through HTTP/HTTPS

• Port: 80/443, Protocol: TCP

• TDP Server

• Device discovery

• Port: 20003, Protocol: UDP

• DHCP Server

• Handle DHCP packets

• Port: 67, Protocol: UDP

• DNS

• Handle DNS packets
• Port: 53, Protocol: TCP/UDP

Certifications

• CE
• FCC
• RoHS

Package Contents

• ER706WP-4G
• Power Adapter
• Quick Installation Guide

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/8.1/10/11
• MAC OS
• NetWare
• UNIX
• Linux

Environmental Specifications

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

* Actual speeds may vary.
* Not compatible with AT&T's Text & Data plans in the US.
** WiFi speed values are based on theoretical maximums.
