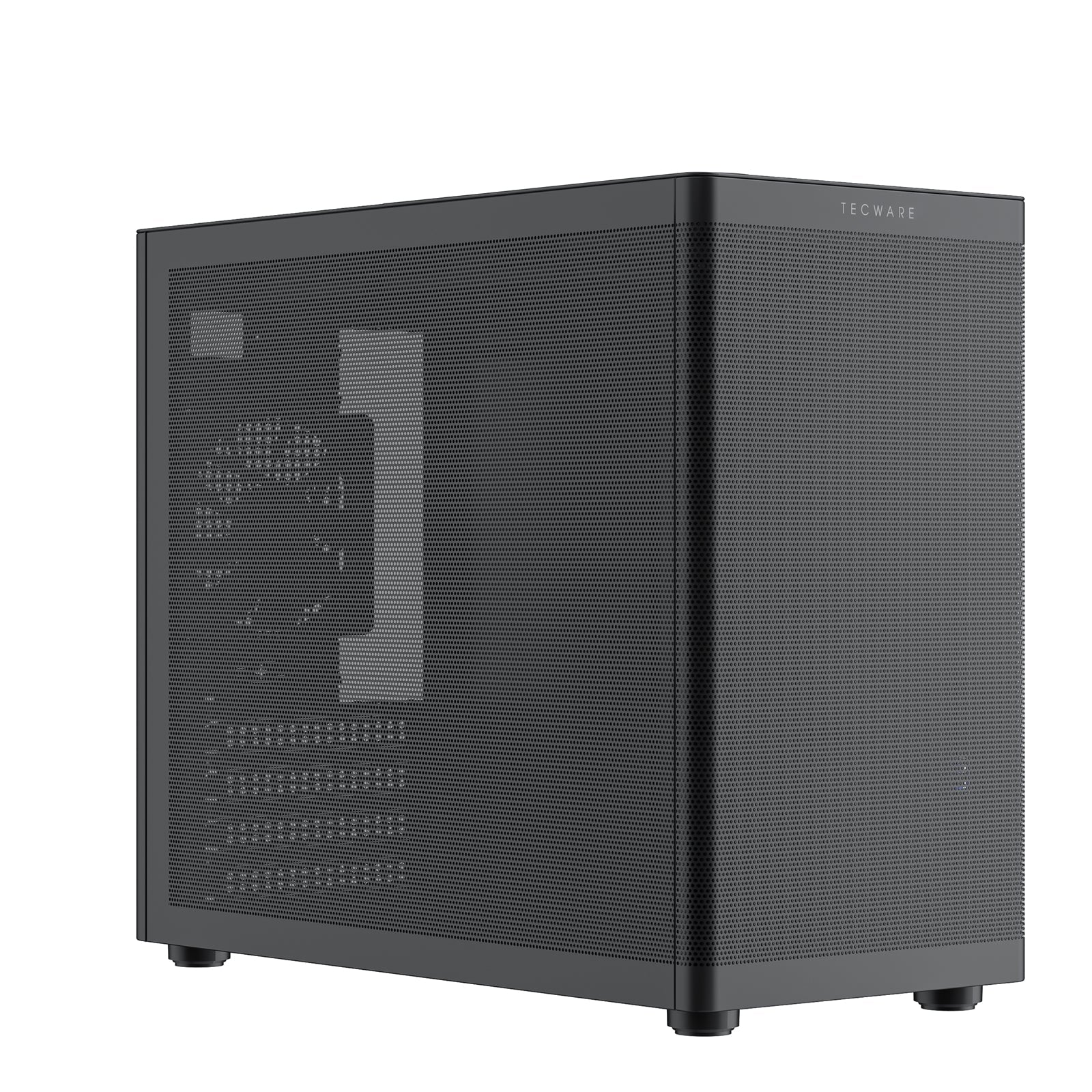

TecWare Fusion 3 mATX Compact Mesh Case (TWCA-FUS3-BK)
The TecWare Fusion 3 mATX Compact Mesh Case is a high-performance, space-saving chassis designed for efficient airflow in compact PC builds. With a top-mounted PSU layout, mesh intake front, and pre-installed fans, it is optimized for SFF systems without sacrificing cooling or hardware support.
Key Features
- Compact design with mesh intake for maximum airflow
- Top-mounted PSU layout for efficient space management
- Pre-installed fans:
- 2 × 120mm (top)
- 1 × 90mm (rear)
- Supports mATX and ITX motherboards
- Front panel USB-C and USB 3.0 connectivity
Case Specifications
| Category | Details |
|---|---|
| Form Factor | Micro ATX |
| Motherboard Support | Micro ATX, Mini-ITX |
| PSU Support | ATX / SFX |
| PSU Location | Top-mounted |
| Body Material | Steel, Plastic, Mesh |
| Front Bezel Material | Mesh |
| Side Panel | Steel (non-tempered glass) |
| Internal Cable Management | Approx. 15–20mm depth |
Storage & Expansion
| Category | Details |
|---|---|
| Drive Bays | 1 × 3.5" HDD |
| 1 × 2.5" SSD | |
| Expansion Slots | 4 × Full Size |
Cooling Support
| Position | Fan Support |
|---|---|
| Top | 2 × 120mm (Included) |
| Rear | 1 × 90mm (Included), supports 80mm |
| Bottom | Up to 2 × 120mm (1 × 120mm if HDD installed) |
Front I/O Ports
- 1 × USB 3.0
- 1 × USB-C
- 1 × HD Audio
Clearance & Compatibility
| Category | Maximum Size |
|---|---|
| GPU Length | 280mm |
| CPU Cooler Height | 140mm |
| PSU Length | 150mm |
Appearance & Build
| Category | Details |
|---|---|
| Front Bezel Color | Black (Mesh) |
| Body Color | Black |
| PSU Included | No |
Dimensions & Weight
| Category | Details |
|---|---|
| Dimensions | 168 × 302 × 350 mm (W × H × D) |
| Weight | Approx. 3.5kg |
