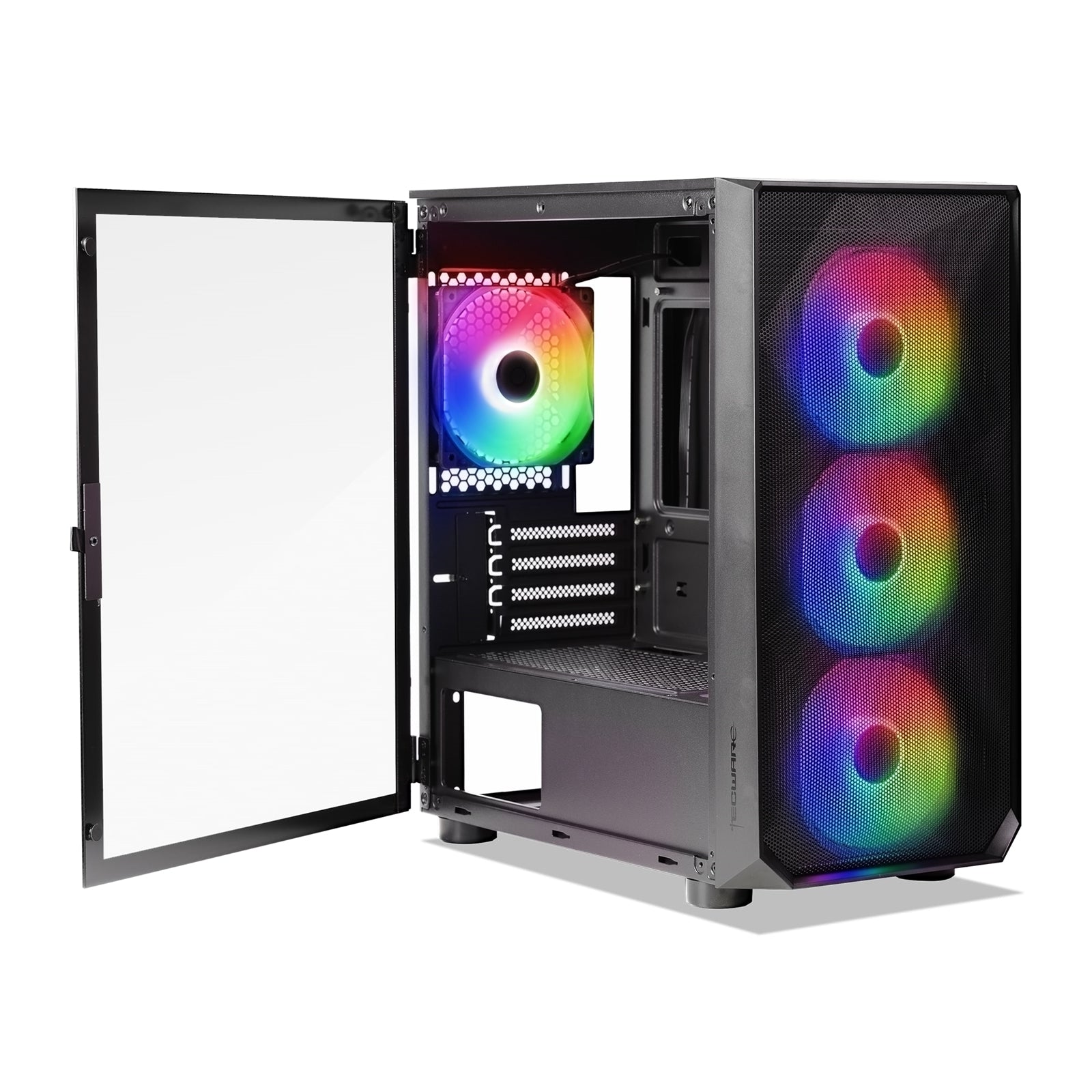

Tecware Forge M Omni Micro-ATX Case (TWCA-FORGEM-BKOL)
The Tecware Forge M Omni (TWCA-FORGEM-BKOL) is a sleek, secure micro-ATX chassis designed for gamers, PC builders, and professionals. Combining a high-airflow mesh front, tempered glass side panel, and key-lockable security, it delivers both style and peace of mind. With multiple pre-installed fans and extensive cooling support, it’s ready for powerful builds right out of the box.
Key Features
- MicroATX & Mini-ITX compatible for versatile builds
- High-airflow polyhedral mesh front for improved cooling
- Hinged, key-lockable tempered glass side panel for security and easy access
- Pre-installed 4 x 120 mm fans for immediate cooling performance
- Support for up to 6 fans and multiple radiators for advanced thermal setups
- Magnetic top and bottom PSU filters for easy maintenance
- 22 mm cable management space for a clean internal layout
Specifications
Physical & Structural
| Item | Details |
|---|---|
| Model | TWCA-FORGEM-BKOL (Forge M Omni, key-lockable) |
| Form Factor Support | MicroATX, Mini-ITX |
| Weight | Around 4.9 kg |
| Construction Materials | Polyhedral mesh front, tempered glass side panel (hinged, key-lockable) |
| Filters | Top magnetic filter, bottom PSU filter |
| Cable Management Space | 22 mm |
| Dimensions | ~379 x 205 x 429 mm |
Cooling & Fans
| Item | Details |
|---|---|
| Included Fans | 4 x 120 mm black fans (3 front intake, 1 rear exhaust) |
| Maximum Fans | Supports up to 6 fans total (front, top, rear) |
| Airflow Design | Full mesh front and multiple vents for high air intake and efficient thermal performance |
Motherboard & Internal Clearance
| Item | Details |
|---|---|
| Motherboard Support | Micro ATX, Mini ITX |
| GPU Clearance | Up to approximately 315 mm length |
| CPU Cooler Clearance | Up to approximately 160 mm height |
| PSU Compatibility | Supports PSUs up to ~180 mm length (with HDD cage) |
Drive Bays & Expansion
| Item | Details |
|---|---|
| 3.5" Internal Bays | 1 x 3.5 |
| 3.5"/2.5" Removable Cage | 1 x 3.5/2.5 |
| 2.5" Mounted Bays | 2 x 2.5 |
| Expansion Slots | 7 x PCIe slots |
Radiator & Cooling Support
| Position | Supported Radiator Sizes |
|---|---|
| Front | 120 mm / 240 mm |
| Rear | 120 mm |
| Top | 120 mm / 240 mm (if fans not installed) |
Front I/O
| Item | Details |
|---|---|
| USB Ports | 2 x USB 3.0 SuperSpeed ports |
| Audio | HD Audio (headphone/microphone combo) |
Security & Maintenance
- Key-lockable tempered glass side panel with hinge mechanism for secure yet convenient access
- Magnetic top dust filter and bottom PSU filter for straightforward cleaning and maintenance
