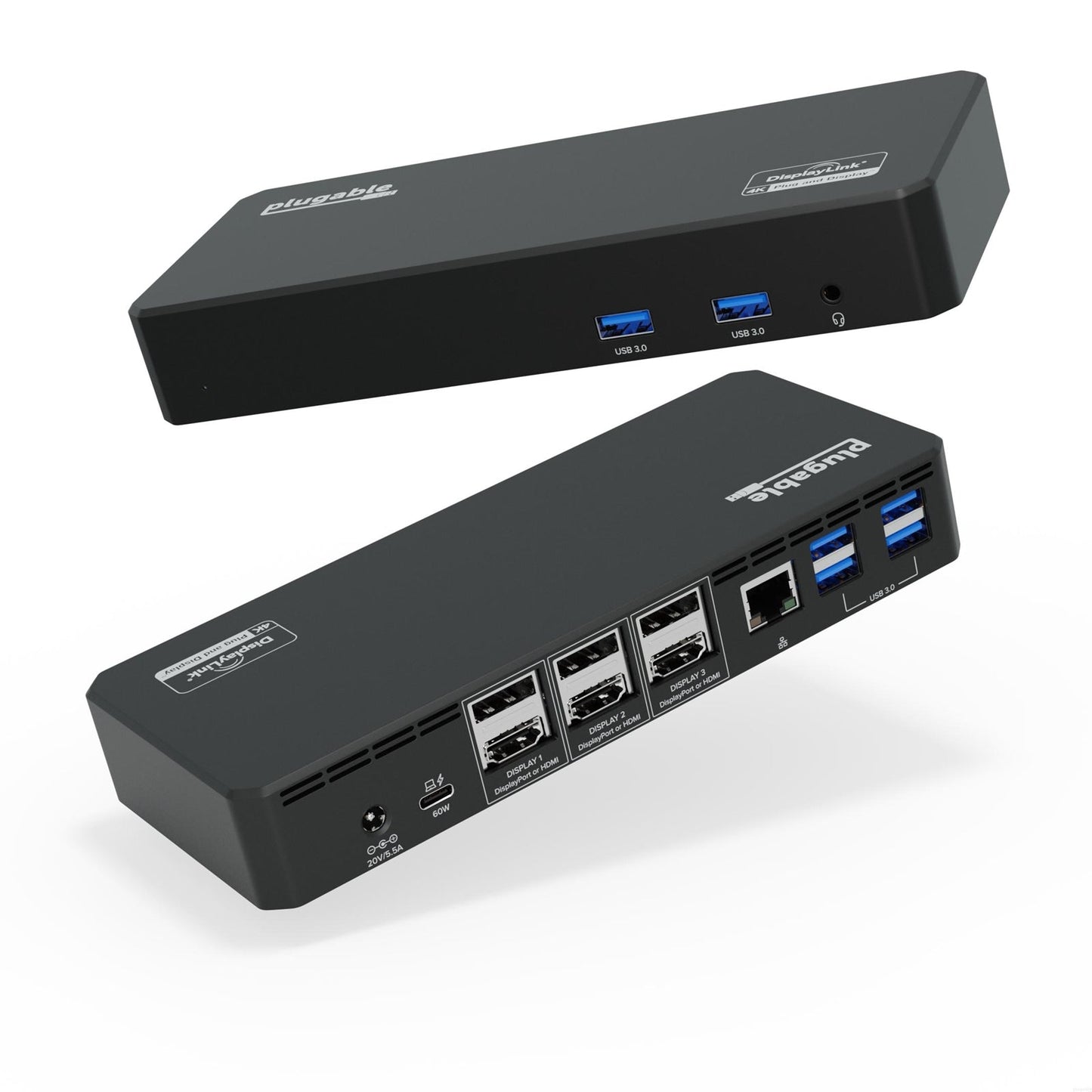

Plugable USB-C Triple 4K HDMI & DisplayPort Docking Station (UD-6950PDZ)
Instantly transform your Windows, macOS, or ChromeOS laptop into a powerful multi-monitor desktop with the Plugable USB-C Triple 4K HDMI and DisplayPort Docking Station. Connect a single USB-C cable to unlock triple 4K displays, expanded connectivity, and laptop charging.
Get Connected
This USB-C docking station adds the essential ports you need to your setup:
- Connect up to three 4K displays via HDMI or DisplayPort
- Six USB 3.0 ports for a wide range of downstream devices
- Gigabit Ethernet for a reliable wired internet connection
- 3.5mm TRRS audio jack for headphones or headset
Triple 4K Display Support
Ditch extra adapters and enjoy flexible display options:
- 3x HDMI ports and 3x DisplayPort ports for maximum versatility
- Connect up to three external displays at 4K 60Hz
- Works with USB-C, USB4, and Thunderbolt systems
- Supports triple display even on systems that typically only support one external display, including M1, M2, and M3 Mac models
For full functionality on Mac, manual DisplayLink driver installation is required.
HDMI or DisplayPort for Each Display
With a single USB-C cable to the dock, overcome the limited number of display outputs on your laptop:
- Three pairs of DisplayPort and HDMI outputs
- Each output pair supports one display up to 4K (3840 x 2160) at 60Hz
- Use the video cables included with your monitors—no external video adapters or one-way adapter cables needed
60W USB-C Power Delivery
Leave your original power adapter in your bag:
- Provides up to 60W of USB-C Power Delivery to charge compatible laptops
- 60W is typically sufficient for most supported systems
- Some high-power laptops may still benefit from using their original power adapter if they require higher charging rates
A Powerful Performer
Beyond triple 4K displays, the UD-6950PDZ adds a full suite of connectivity:
- Up to three 4K 60Hz displays in any combination of HDMI and DisplayPort
- Six USB 3.0 ports for peripherals and accessories
- Gigabit Ethernet for stable network performance
- 3.5mm combo audio jack for input and output
For systems like M1, M2, and M3 MacBooks that only natively support one external display, this dock uses DisplayLink technology to enable multiple displays. A DisplayLink driver download is required.
Compatibility
This triple display docking station works with a wide range of modern systems:
Supported Operating Systems
- Windows: 10 and 11+
- macOS: 11+ (Intel and Apple Silicon M1, M2, M3 Macs with USB Type-C)
- ChromeOS: 100+ (Intel or AMD-based Chromebooks)
Supported Ports
- USB-C with DisplayPort Alternate Mode and Power Delivery
- USB4
- Thunderbolt 3
- Thunderbolt 4
Important Notes
- DisplayLink driver installation is required
- HDCP-protected content (e.g., from Netflix, iTunes) is not supported for streaming copy-protected video
Specifications
| Feature | Details |
|---|---|
| Product Type | Docking station (Desktop form factor) |
| Host Connection | USB-C (compatible with USB 3.2 Gen 1, USB4, Thunderbolt 3, Thunderbolt 4) |
| Chipset | DisplayLink DL-6950 |
| Power Delivery | Up to 60W to host via included power adapter |
| Power Input | Dock can accept up to a 100W power adapter for 82W pass-through (user-supplied) |
| Video Support | Up to three external displays at 4K (3840 x 2160) at 60Hz each |
| OS Compatibility | Windows 10/11+, macOS 11+, ChromeOS 100+ |
| Audio | 3.5mm combination analog audio input/output (TRRS) |
| USB Ports | Six USB 3.0 ports |
| Network | Wired Gigabit Ethernet port |
| Manufacturer Warranty | 2 Years |
In the Box
- 1x USB-C 4K Docking Station (UD-6950PDZ)
- 1x USB-C Cable
- 1x Power Adapter
- 1x Quick Start Guide
