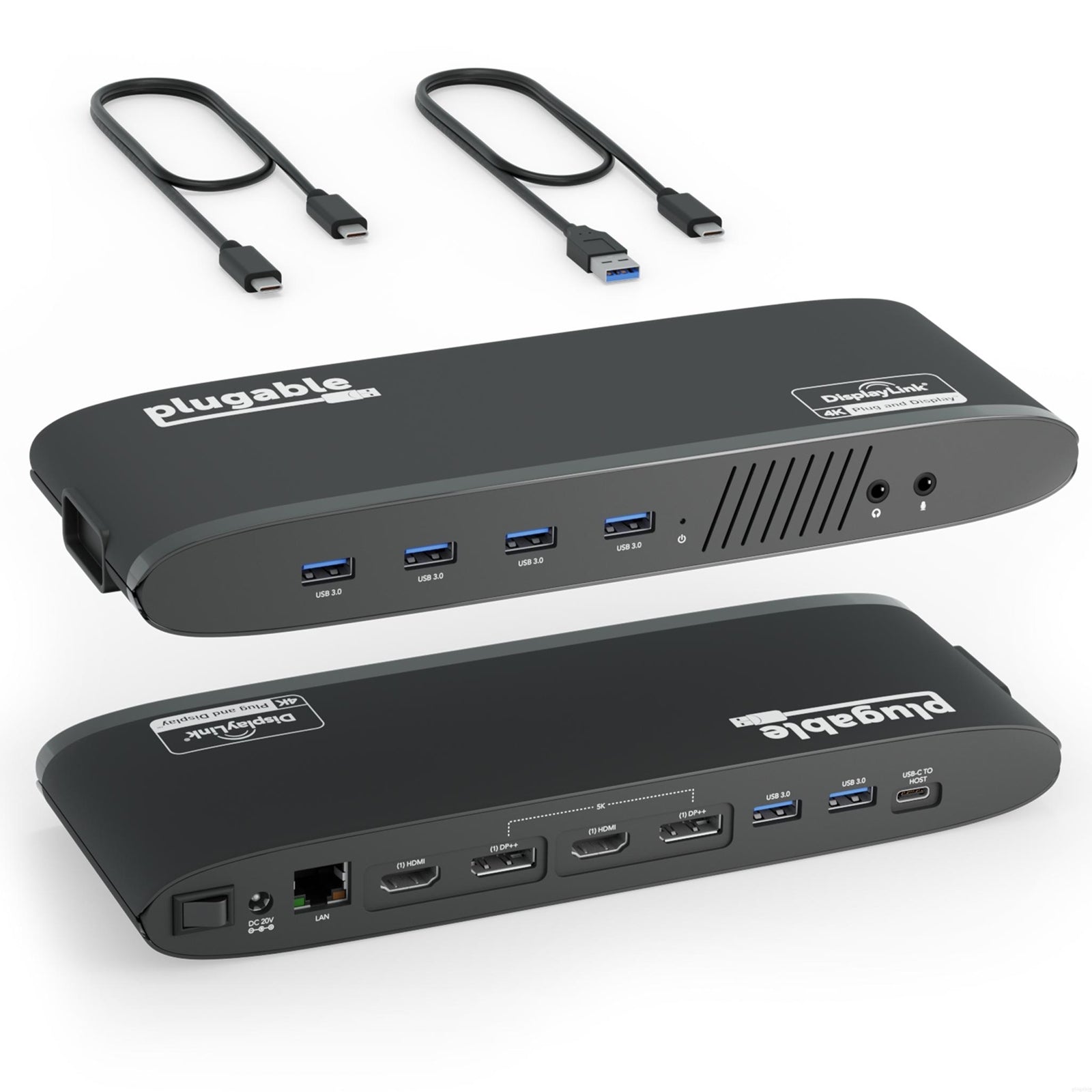

Plugable USB 3.0 Dual 4K Horizontal Docking Station (UD-6950H)
Designed for users who want a one-stop upgrade for their USB 3.0 or USB-C laptop, the Plugable USB 3.0 Dual 4K Horizontal Docking Station (UD-6950H) lets you add dual 4K displays and connect all your peripherals through a single cable. Quickly dock and undock from your workspace while gaining 12 extra ports to boost your productivity.
Key Features
Expandability
- Supports dual 4K external displays via DisplayPort 1.2 or HDMI 2.0
- Adds six USB 3.0 ports, Gigabit Ethernet, and audio input/output
- Connect multiple peripherals—keyboard, mouse, external drives, and more—through one cable to your laptop
- Ideal for web and productivity software such as email, web applications, and office tools
Dual 4K Displays
- Supports up to 4K resolution on two independent displays
- Compatible with common resolutions including:
- 3840x2160 (4K)
- 3840x1080
- 2560x1440
- 1920x1080 (1080p)
- Note: To achieve 4K @ 60Hz, each connected monitor and cable must support the desired resolution and refresh rate
System & Software Requirements
- Works with modern systems featuring USB 3.0 Type-A or USB-C ports
- Requires DisplayLink USB Graphics driver installation
- Recommended hardware specifications:
- CPU:
- Intel: 6th Generation Intel Core i3 or Intel Core i7
- AMD: A10 @ 2.0GHz or better
- GPU:
- Intel HD 520 / AMD Radeon HD 8650 / Nvidia GeForce 7xxM or better
- RAM: 8GB or more
- Most modern Windows systems meet these requirements.
Operating System Compatibility
- Windows: 11, 10, 8.x, 7
- macOS: 10.14 or later (with driver installation)
- ChromeOS: 100.x or later
Not supported:
- Linux/Unix
- ARM-based Windows operating systems (such as Surface RT)
Important:
- This USB docking station does not charge the host computer.
- Suggested use: web and productivity software
- Not recommended for: gaming, full-screen video playback, 2D/3D graphics tools, or video editing software
Ports & Connectivity
Get your ports back with a dock that acts as the central hub for your workstation:
- 2x DisplayPort++ / HDMI
- Connect two 4K displays at 60Hz refresh rate
- 6x USB 3.0 ports
- Add keyboard, mouse, thumb drives, external SSDs, and more
- 1x 3.5mm Headphone Jack
- For music, calls, and video conferencing
- 1x 3.5mm Microphone Jack
- For external microphones and video chat
- 1x Gigabit Ethernet Port
- For fast, reliable wired network connectivity
- 1x Power Switch
- Turns the functionality of the dock on and off (does not power the computer, only the dock)
High-Resolution Display Support
Expand your screen real estate and streamline your workflow with dual high-resolution displays.
- Supports two high-resolution monitors up to 4K 60Hz (3840x2160 @ 60Hz) when connected to displays that support the desired resolution
-
Backwards compatible with lower specifications, with behavior depending on monitor and standard:
-
DisplayPort 1.2: up to 4K 60Hz
- DisplayPort 1.1: up to 4K 30Hz
- HDMI 2.0: up to 4K 60Hz
- HDMI 1.4: up to 4K 30Hz
No more grainy visuals or cramped screens—manage more windows, tabs, and applications side by side.
Dynamic Design
The UD-6950H combines performance with a flexible, space-saving layout.
- Utilizes DisplayLink graphic technology, allowing connection to:
- USB 3.0 laptops
- USB-C laptops
- Horizontal, lay-flat design lets you:
- Slip the dock under your monitor
- Save valuable desk space
- Front-facing USB and audio ports offer easy access for devices you plug and unplug every day
Software Compatibility Notes
DisplayLink technology is ideal for most productivity workflows, but is not suitable for:
- Gaming
- HDCP (copy-protected) content playback from:
- Blu-ray
- Netflix
- Amazon Prime Video
- iTunes
- Hulu
- Other similar services
Power & Charging
- This dock does not provide power to the connected laptop or tablet
- Your laptop will still require its own external charger
- The power button on the back controls only the docking station, not the laptop
Technical Specifications
| Feature | Details |
|---|---|
| Model | Plugable USB 3.0 Dual 4K Horizontal Docking Station (UD-6950H) |
| Video Outputs | 2x DisplayPort++ / HDMI (up to dual 4K @ 60Hz, dependent on display) |
| USB Ports | 6x USB 3.0 |
| Network | 1x Gigabit Ethernet |
| Audio | 1x 3.5mm headphone jack, 1x 3.5mm microphone jack |
| Power Control | 1x Power switch (dock only) |
| OS Compatibility | Windows 11/10/8.x/7, macOS 10.14+, ChromeOS 100+ |
| Not Compatible With | Linux/Unix, ARM-based Windows (e.g., Surface RT) |
| Charging | Does not charge the host computer |
| Graphics Technology | DisplayLink USB Graphics |
In the Box
- 1x USB 3.0 4K Display Horizontal Docking Station
- 1x Power Adapter
- 1x USB 3.0 A-to-C Cable
- 1x USB 3.0 C-to-C Cable
- 1x Quick Start Guide
