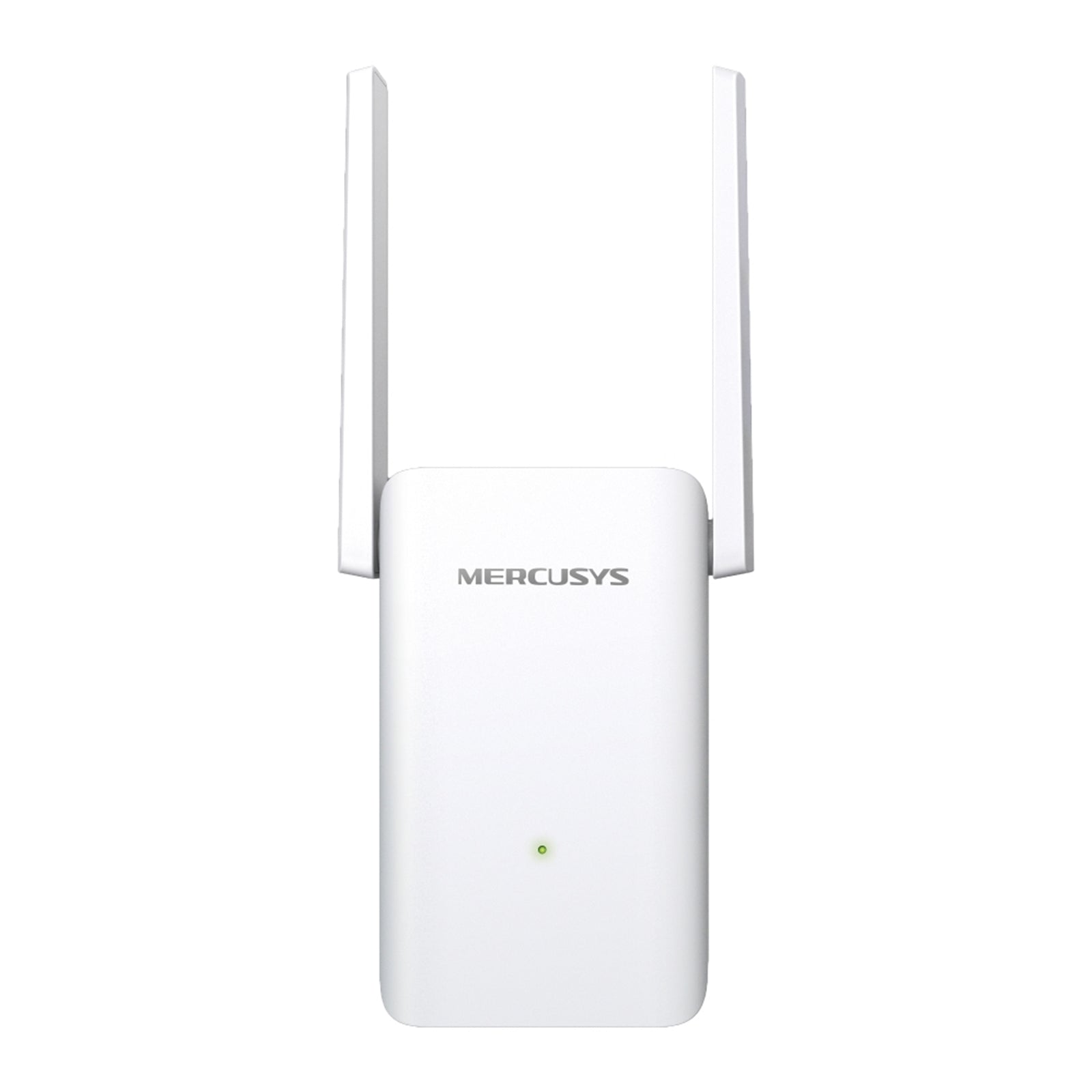

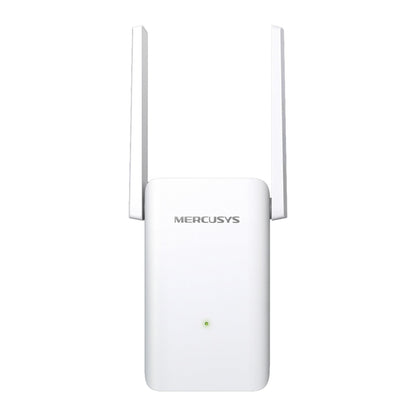

Mercusys ME80X AX3000 Wi‑Fi 6 Range Extender
Boost your home or office network with the Mercusys ME80X AX3000 Wi‑Fi 6 Range Extender, delivering dual-band Wi‑Fi 6 speeds and flexible deployment options.
Key Features
- AX3000 Dual-Band Wi‑Fi 6 Speeds
- Up to 3000 Mbps combined
- 2402 Mbps on 5 GHz
-
574 Mbps on 2.4 GHz
-
Wi‑Fi 6 Technology
-
Designed to improve speed, efficiency, and capacity for your wireless network.
-
Gigabit Wired Connection
-
1 Gigabit Ethernet port for fast wired connections to PCs, IPTV devices, and game consoles.
-
Universal Compatibility
-
Works with any router to extend Wi‑Fi coverage to where you need it most.
-
Easy One‑Touch Setup
-
Press the WPS button to expand Wi‑Fi coverage in seconds.
-
Built‑In Access Point Mode
-
Supports Range Extender (RE) mode and Access Point (AP) mode.
-
App Management
- Set up in minutes and manage your Wi‑Fi at home or away via iOS or Android devices.
Wireless Specifications
| Feature | Details |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac/ax (5 GHz), IEEE 802.11b/g/n/ax (2.4 GHz) |
| Frequency | 2.4 GHz and 5 GHz |
| Wi‑Fi Speeds | 574 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz |
| Wireless Security | WEP, WPA, WPA2, WPA3‑PSK |
Reception Sensitivity
5 GHz:
- 11a 6 Mbps: -97 dBm
- 11a 54 Mbps: -78 dBm
- 11ax HE20 MCS0: -96 dBm
- 11ax HE20 MCS11: -66 dBm
- 11ax HE40 MCS0: -93 dBm
- 11ax HE40 MCS11: -62 dBm
- 11ax HE80 MCS0: -90 dBm
- 11ax HE80 MCS11: -60 dBm
- 11ax HE160 MCS11: -58 dBm
2.4 GHz:
- 11g 6 Mbps: -96 dBm
- 11g 54 Mbps: -78 dBm
- 11ax HE20 MCS0: -96 dBm
- 11ax HE20 MCS11: -66 dBm
- 11ax HE40 MCS0: -93 dBm
- 11ax HE40 MCS11: -62 dBm
Hardware
| Feature | Details |
|---|---|
| Dimensions | 138.6 × 100.3 × 68.4 mm |
| Interfaces | 1 × Gigabit Ethernet Port |
| Button | WPS / Reset Button |
| Antenna | 2 × External Antennas |
| Power | 13 W |
Network Services (Enabled by Default)
| Service | Function | Port | Protocol |
|---|---|---|---|
| Web Server | Device configuration and management | 80/443 | HTTP/HTTPS |
| DHCP Server | IP address assignment | 67 | UDP/DHCP |
| SSH for App | App connectivity | 20001 | TCP/ssh |
| TMPD for App | Manage and configure device via app | 20001 | UDP/tmpd |
| TDP Server for App | Device discovery for app | 20002 | UDP |
Package Contents
- Wi‑Fi Range Extender ME80X
- Quick Installation Guide
Environment
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Operating Humidity: 10% ~ 90% Non‑Condensing
The Mercusys ME80X AX3000 Wi‑Fi 6 Range Extender combines high‑speed dual‑band Wi‑Fi, flexible modes, and simple app‑based management to help you extend and optimize your wireless coverage.
