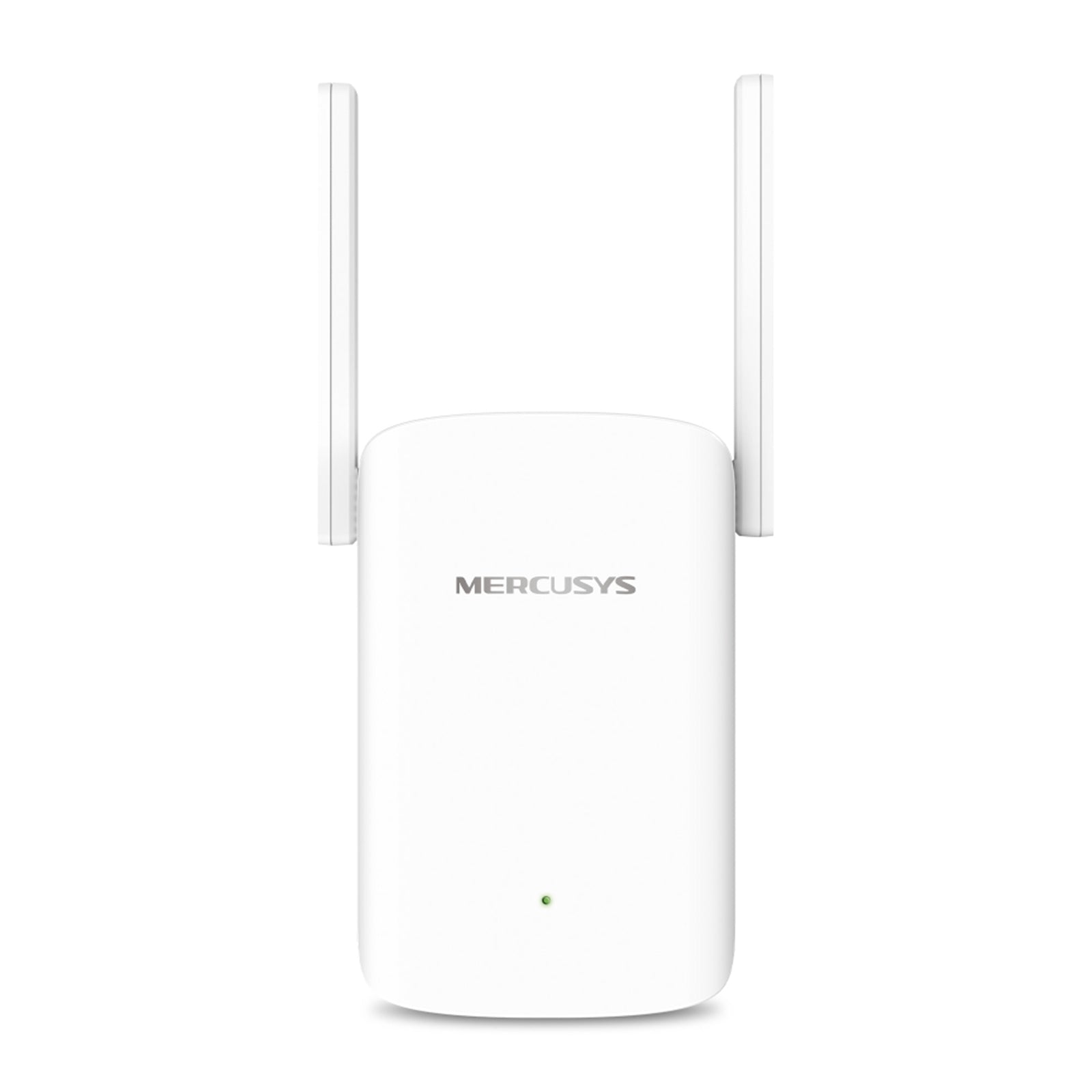

Mercusys ME60X AX1500 Wi‑Fi 6 Range Extender
Boost your home network with the Mercusys ME60X AX1500 Wi‑Fi 6 Range Extender. Designed to extend coverage and enhance performance, it delivers fast dual-band speeds and flexible deployment options.
Key Features
AX1500 Dual-Band Wi‑Fi 6 Performance
- Dual-band speeds up to 1500 Mbps
- 1201 Mbps on 5 GHz
- 300 Mbps on 2.4 GHz
- Wi‑Fi 6 technology improves network speed, efficiency, and capacity
Extended Coverage & Easy Setup
- Works with any router to extend Wi‑Fi to where you need it most
- Easy one-touch setup
- Press the WPS button to expand your Wi‑Fi coverage in seconds
Flexible Connectivity
- Gigabit wired connection
- Provides speedy wired connections for PCs, IPTVs, and game consoles
- Built-in Access Point Mode
- Supports both Range Extender (RE) mode and Access Point (AP) mode
Simple App Management
- Manage your network with the app
- Set up in minutes and manage your Wi‑Fi at home or away
- Control from your iOS or Android devices
Specifications
Wireless
| Item | Details |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11ax HE80 MCS0: -88 dBm; 11ax HE80 MCS11: -58 dBm; 11a 6 Mbps: -94 dBm; 11a 54 Mbps: -76 dBm; 11ac VHT80 MCS0: -91 dBm; 11ac VHT80 MCS9: -63 dBm |
| 2.4 GHz: 11g 6 Mbps: -95 dBm; 11g 54 Mbps: -77 dBm; 11n HT40: -72 dBm | |
| Wireless Security | WPA, WPA2, WPA3-PSK |
Hardware
| Item | Details |
|---|---|
| Dimensions (W x D x H) | 84.7 × 39 × 112 mm (without plug) |
| Interfaces | 1 × Gigabit Ethernet port |
| Button | WPS / Reset button |
| Antenna Type | 2 × external antennas |
| Power Consumption | 10 W |
Others
| Item | Details |
|---|---|
| Certifications | RoHS |
| Package Contents | Wi‑Fi Range Extender ME60X; Quick Installation Guide |
Environment
| Item | Details |
|---|---|
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% ~ 90% non‑condensing |
