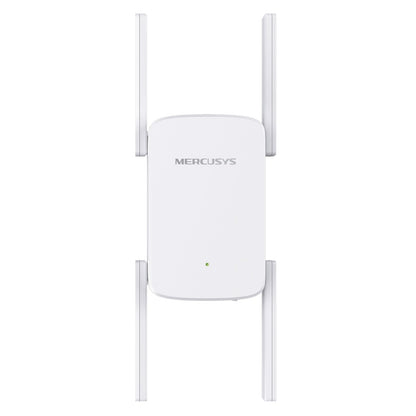

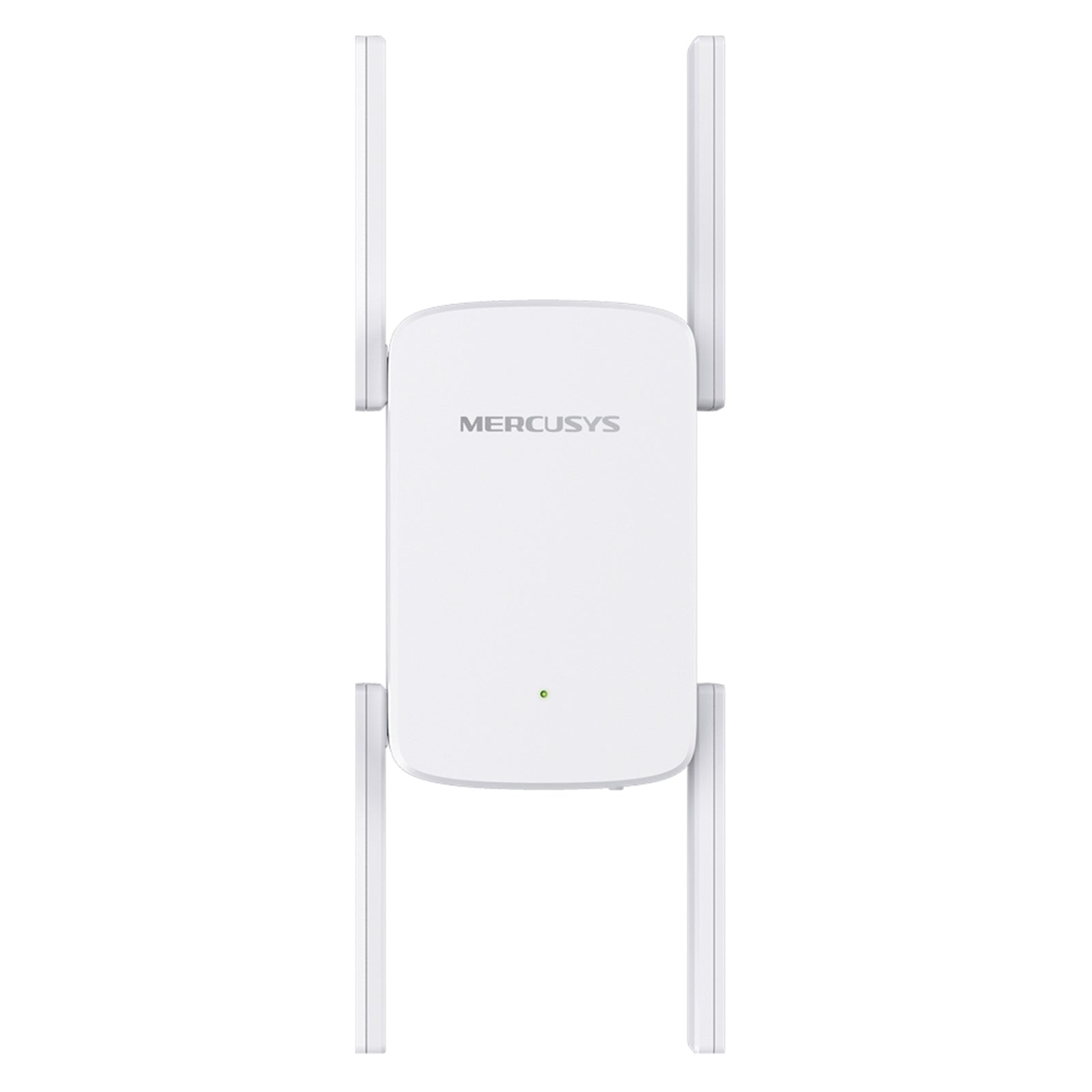

Mercusys ME50G AC1900 Wi‑Fi Range Extender
Extend fast, reliable Wi‑Fi to every corner of your home with the Mercusys ME50G AC1900 Wi‑Fi Range Extender. Designed for high-speed dual-band coverage, it helps eliminate dead zones and keeps more devices connected at once.
Key Features
Fast AC1900 Dual Band Wi‑Fi
- Dual band speeds up to 1900 Mbps
- 1300 Mbps on 5 GHz
- 600 Mbps on 2.4 GHz
Strong, Stable Coverage
- Four adjustable high-gain antennas help create a stable extended Wi‑Fi network
- Extends Wi‑Fi signals to areas your router cannot reach
- Works with any router to boost Wi‑Fi across your home
3x3 MU‑MIMO for More Devices
- 3x3 MU-MIMO allows more devices to connect simultaneously
Gigabit Wired Connection
- 1× Gigabit Ethernet port
- Provides speedy wired connections for PCs, IPTVs, and game consoles
Easy Setup & App Control
- Easy one-touch setup: press the WPS button to expand coverage in seconds
- MERCUSYS app control:
- Set up in minutes
- Manage your Wi‑Fi at home or away via iOS or Android devices
Dual Working Modes
- Range Extender (RE) mode
- Built-in Access Point (AP) mode
- Connect a gigabit Ethernet cable to switch to a dual-band Wi‑Fi access point
Advanced Performance Features
-
Adaptive Path Selection
Automatically chooses the fastest connection path to the router to keep your network running at top speed. -
High Speed Mode
Uses both Wi‑Fi bands for super-fast connections, ideal for HD streaming and gaming. -
Built-In Access Point Mode
Connect a wired internet connection via Ethernet cable to turn the ME50G into a dual band Wi‑Fi access point.
EasyMesh Whole Home Coverage
- Compatible with EasyMesh
- Can be used to set up a whole home mesh network with one Wi‑Fi name and password
- Works with other access points that support EasyMesh from multiple vendors
- Enables flexible, scalable, and seamless mesh Wi‑Fi throughout your home
Note: EasyMesh compatibility is referenced with model MR1500X.
Wireless Specifications
| Category | Details |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz; IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 600 Mbps at 2.4 GHz; 1300 Mbps at 5 GHz |
| Reception Sensitivity (5 GHz) | 11g 6 Mbps: -95.5 dBm; 11g 54 Mbps: -77.5 dBm; 11n VHT20 MCS8: -71.5 dBm; 11n VHT40 MCS9: -67 dBm; 11n VHT80 MCS9: -63 dBm |
| Reception Sensitivity (2.4 GHz) | 11g 6 Mbps: -96 dBm; 11g 54 Mbps: -78 dBm; 11n VHT20 MCS8: -72 dBm; 11n VHT40 MCS9: -67.5 dBm |
| Transmission Power | < 20 dBm |
| Wireless Security | WPA, WPA2, WPA3-PSK |
Hardware Specifications
| Category | Details |
|---|---|
| Dimensions (with plug) | 84.7 × 76.3 × 112 mm |
| Dimensions (without plug) | 84.7 × 39 × 112 mm |
| Interfaces | 1 × Gigabit Ethernet Port |
| Button | WPS / Reset Button |
| Antenna Type | 4 × External Antennas |
| Power Consumption | 12 W |
Certifications
- RoHS
Package Contents
- Wi‑Fi Range Extender (ME50G)
- Quick Installation Guide
Operating Environment
- Operating Temperature: 0°C–40°C (32°F–104°F)
- Operating Humidity: 10%–90% Non‑Condensing
