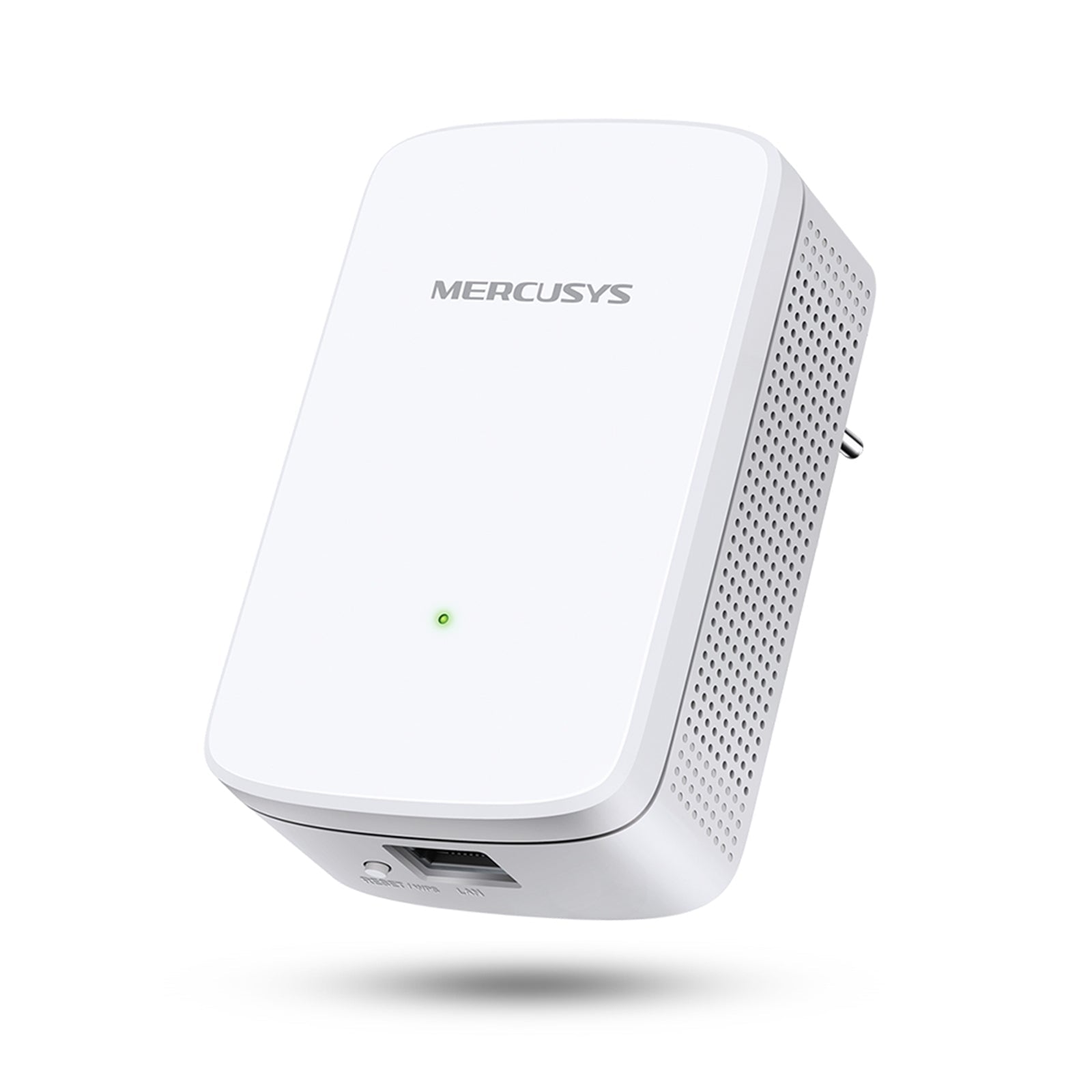

Mercusys 300 Mbps Wi‑Fi Range Extender (ME10)
Eliminate Wi‑Fi dead zones and enjoy stable wireless coverage throughout your space with the Mercusys 300 Mbps Wi‑Fi Range Extender.
Key Features
Eliminate Wi‑Fi Dead Zones
Boosts Wi‑Fi signals to previously unreachable or hard‑to‑wire areas for reliable, extended coverage.
300 Mbps Daily Wi‑Fi
Enjoy fast and stable extended Wi‑Fi speeds of up to 300 Mbps, suitable for everyday online activities.
Easy One‑Touch Setup
Expand your Wi‑Fi coverage in seconds: - Simply press the WPS button to connect to your router.
Smart Signal Indicator
A multicolor LED helps you find the optimal location for the extender, ensuring the best Wi‑Fi extension.
Fast Wired Connection
Includes a 10/100 Mbps Ethernet port to provide wired connections for:
- PCs
- IPTVs
- Game consoles
Broad Compatibility
Works with any router or wireless access point.
Specifications
Wireless
| Feature | Details |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 – 2.5 GHz |
| Wi‑Fi Speeds | Up to 300 Mbps |
| Reception Sensitivity | 2.4 GHz: 11B 1M < -94 dBm; 11N HT40 MCS7 < -72 dBm |
| Transmission Power | ≤ 20 dBm |
| Wireless Security | WPA‑PSK / WPA2‑PSK |
Hardware
| Feature | Details |
|---|---|
| Dimensions | 101 × 60 × 36 mm |
| Interfaces | 10/100 Mbps RJ45 port |
| Button | RESET/WPS button |
| Power | ≤ 3.2 W |
Other
| Feature | Details |
|---|---|
| Certifications | CE, RoHS |
| Package Contents | Wi‑Fi Range Extender (ME10), Quick Installation Guide |
Environment
| Condition | Range |
|---|---|
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% ~ 90% Non‑Condensing |
