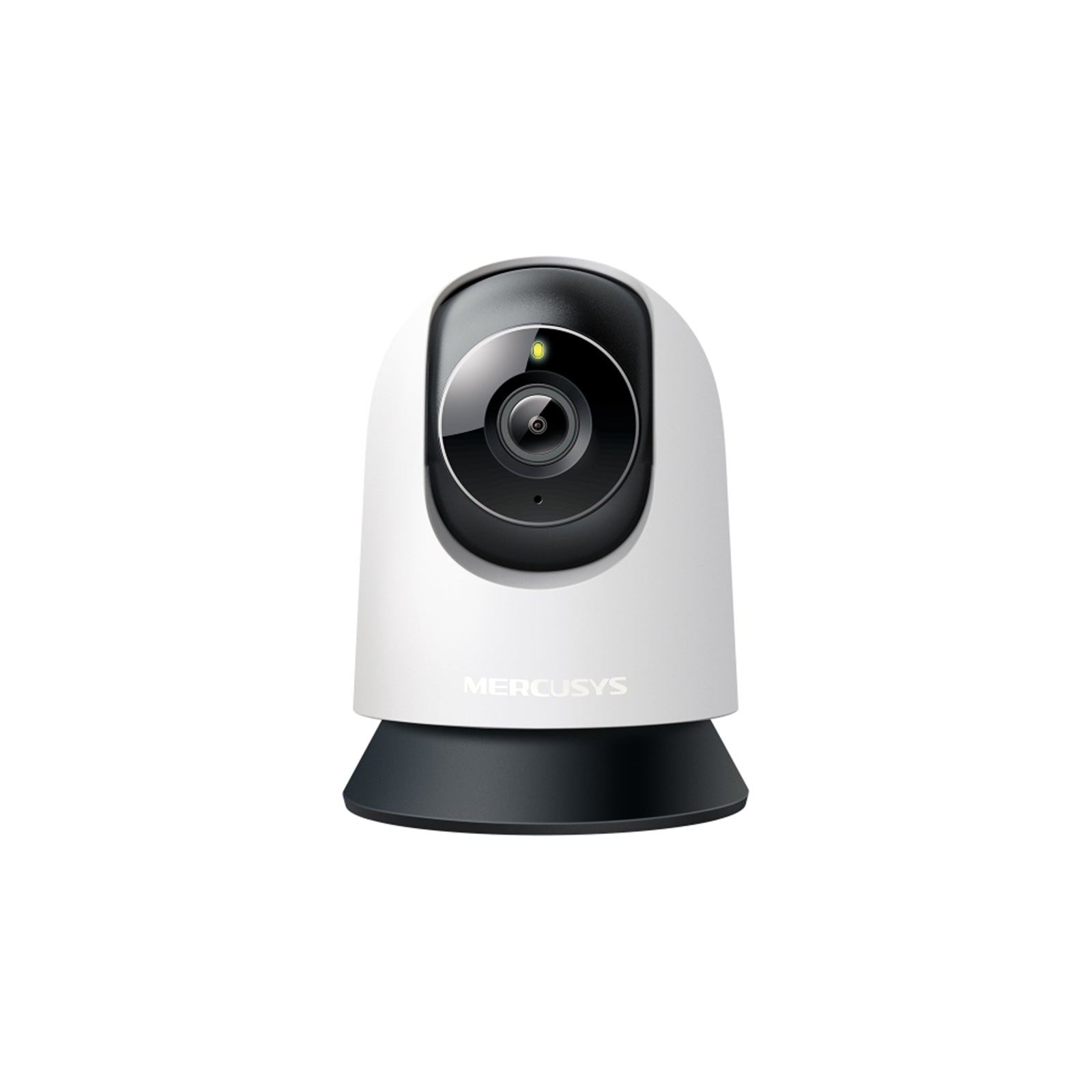

Mercusys MC210 Pan/Tilt Home Security Wi‑Fi Camera
The Mercusys MC210 Pan/Tilt Home Security Wi‑Fi Camera delivers clear, high‑definition monitoring with flexible placement and smart detection features for everyday home security.
High-Definition 2K 3MP Video
- 2K 3MP high‑definition video
- 2304 x 1296 px maximum resolution
- Provides clear, detailed footage for enhanced visibility
Pan/Tilt for Wide-Area Coverage
- 360° horizontal pan coverage
- Pan mechanical range: 340° (360° pan coverage)
- 110° tilt coverage
- Tilt mechanical range: 70° (110° tilt coverage)
Easily monitor a wide area for more complete room coverage.
Smart Detection & Alerts
- Smart motion tracking 24/7 to keep moving subjects in view
- AI detection for:
- Motion detection
- Person detection
- Baby crying detection
- Instant system notifications for detected events
- Activity Zones supported
- Only works with Motion Detection
Night Vision up to 40 ft
- Advanced night vision for around‑the‑clock monitoring
- 850 nm IR LED with up to 40 ft / 12 m night vision range
- Monitors even in complete darkness
Two-Way Audio & Siren
- Built‑in microphone and speaker
- Real‑time 2‑way audio communication
- Siren volume: 88 dB
- Level measured at 4 in / 10 cm distance
Hear, speak, and respond instantly.
Flexible Storage Options
- Free local storage:
- MicroSD card slot (supports up to 512 GB)
- Cloud storage:
- MERCUSYS Camera Care Cloud Storage Services (subscription required)
Choose between local microSD storage and cloud recording.
Privacy & Smart Voice Control
- Customizable Block Zone:
- Tailor privacy zones to block unwanted views
- Voice control:
- Compatible with Google Assistant
- Compatible with Amazon Alexa
Enjoy hands‑free operation and personalized privacy settings.
Technical Specifications
Camera
| Item | Detail |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS (Not Starlight Sensor) |
| Lens Focal Length | 4 mm |
| Aperture | F2.0 |
| Field of View (Diagonal) | 87° |
| Field of View (Horizontal) | 74° |
| Field of View (Vertical) | 40° |
Motion Range
| Item | Detail |
|---|---|
| Pan Mechanical Range | 340° (360° Pan Coverage) |
| Tilt Mechanical Range | 70° (110° Tilt Coverage) |
Night Vision
| Item | Detail |
|---|---|
| IR LED | 850 nm |
| Night Vision | 40 ft / 12 m |
Interface & Buttons
| Item | Detail |
|---|---|
| Button | 1 × RESET button |
| Storage Slot | 1 × MicroSD card slot (up to 512 GB) |
Video & Audio
| Item | Detail |
|---|---|
| Maximum Resolution | 2304 x 1296 px |
| Frame Rate | 15/20/25/30 fps (15 fps by default) |
| Digital Zoom | Supports 10.8× zoom |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | No |
| Audio Input & Output | Built‑in microphone and speaker |
| Audio Communication | 2‑way audio |
| Siren Volume | 88 dB (measured at 4 in / 10 cm distance) |
Storage
| Item | Detail |
|---|---|
| Local Storage | MicroSD card slot (supports up to 512 GB) |
| Cloud Storage | MERCUSYS Camera Care Cloud Storage Services (Subscription required) |
Software – Security, Detection & Notifications
| Item | Detail |
|---|---|
| Sensor | No |
| AI Detection | Motion detection, Person Detection, Baby Crying Detection |
| Activity Zones | Yes (only works with Motion Detection) |
| Output Notification | System Notification |
Network
| Item | Detail |
|---|---|
| Network Connectivity | Connect via Wi‑Fi |
| Wireless Speeds | 11 Mbps (802.11b), 54 Mbps (802.11g), 72.2 Mbps (802.11n) |
| Max Distance Between Hub & Camera/Doorbell | No |
| RTSP | Yes |
| ONVIF | Yes |
Power
| Item | Detail |
|---|---|
| Power Source | 9V DC Power Adapter |
| Input Voltage | 100–240 VAC, 50/60 Hz, 0.3 A |
| Output Voltage | 9.0 V / 0.6 A |
General
| Item | Detail |
|---|---|
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | No |
| Mounting Options | Tabletop, Ceiling‑Mounted |
Environmental
| Item | Detail |
|---|---|
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | 10% ~ 90% RH, Non‑condensing |
| Storage Humidity | 0% ~ 90% RH, Non‑condensing |
| Charging Temperature | No |
Dimensions
| Item | Detail |
|---|---|
| Size (W × D × H) | 78.4 × 78.4 × 105.6 mm (3.09 × 3.09 × 4.16 in) |
Certifications
| Item | Detail |
|---|---|
| Certifications | CE, NCC, BSMI, NTRA, KC, RCM, ONVIF |
Package Contents
- Pan/Tilt Home Security Wi‑Fi Camera (MC210) × 1
- Power Adapter × 1
- Mounting Anchors × 2
- Mounting Screws × 2
- Mounting Template Sticker × 1
- Quick Start Guide × 1
