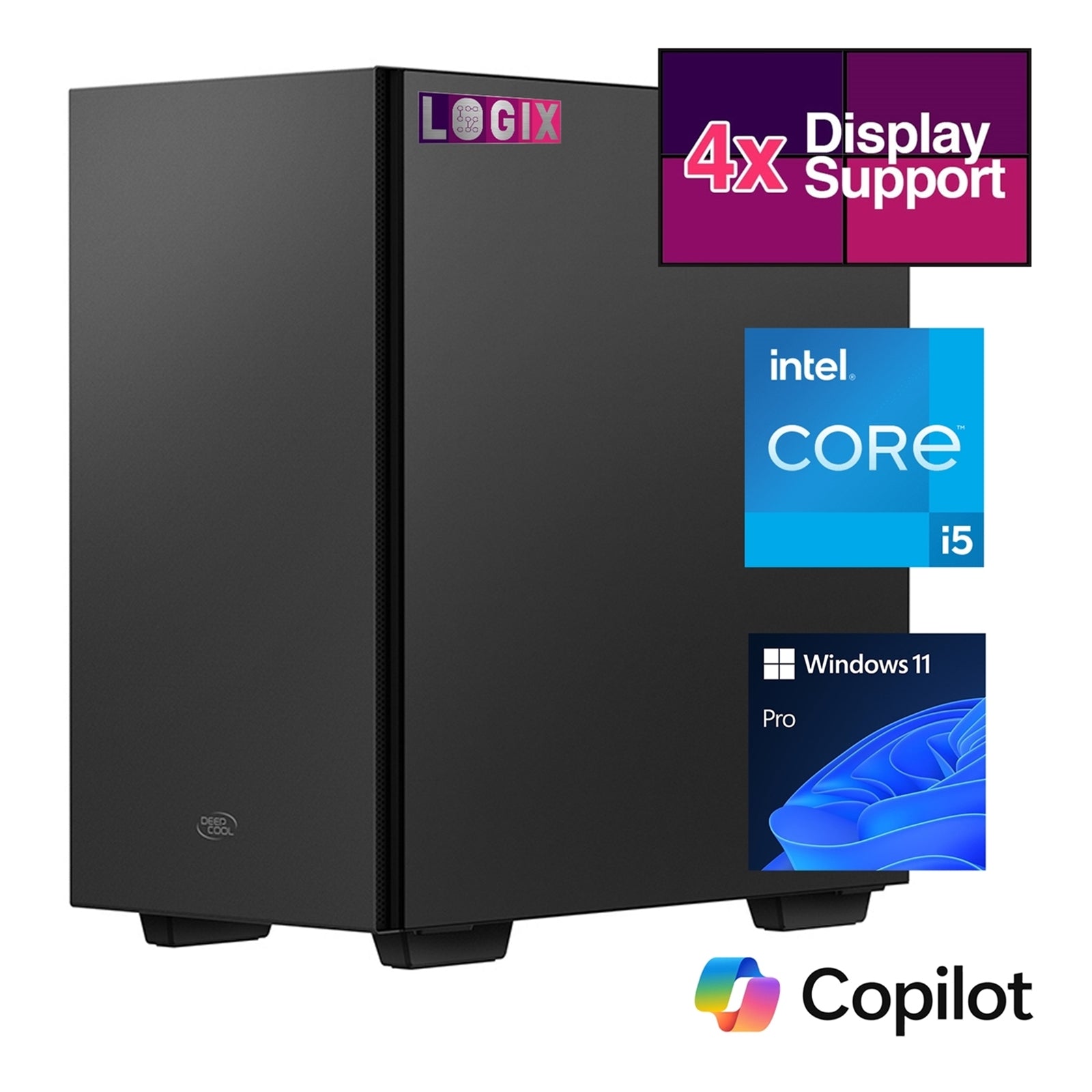

LOGIX CCT‑V5M7 CCTV & Professional Workstation PC
The LOGIX CCT‑V5M7 is more than a security monitoring station — it’s a quiet, versatile, and robust PC designed to adapt to your daily workflow. From CCTV management and video meetings to large file handling and multi‑display multitasking, it delivers reliable performance, future‑proof flexibility, and enterprise‑grade stability.
All‑in‑One Powerhouse for Home, Business & CCTV
Purpose‑built for demanding users, the LOGIX CCT‑V5M7 combines home office productivity with advanced CCTV monitoring capabilities. Housed in a DeepCool MACUBE 110 micro tower designed for quiet operation and strong airflow, it delivers full‑day performance without intrusive noise, making it ideal for both living and working environments.
Built for CCTV, Ready for Business
- Supports up to 16 CCTV cameras
- Output to up to 4 monitors
- Resolution support up to 8K (7680 x 4320)
Whether you’re running multiple security feeds or switching to reports, spreadsheets, and remote meetings, this system is engineered to handle surveillance, monitoring, and recording alongside everyday business workloads.
12th Gen Intel Performance & Fast DDR5 Memory
Powered by a 12th Gen Intel Core i5‑12400F processor with 6 cores and 12 threads (2.50GHz base, up to 4.40GHz Turbo), the LOGIX CCT‑V5M7 delivers smooth, responsive performance for multi‑app workflows.
- 16GB Kingston DDR5 5600MT/s system memory
- Single 16GB DIMM with Intel XMP profile support
- Upgradeable to 64GB DDR5 (additional memory slot available)
This high‑speed DDR5 memory ensures fast data handling and responsive multitasking, with the option to expand as your workload grows.
High‑Speed NVMe Storage & Flexible Expansion
A 500GB Kingston PCIe 4.0 NVMe M.2 SSD provides rapid boot times and fast access to your applications and data.
- Kingston NV3 500GB NVMe M.2 SSD
- PCIe Gen4 x4
- Read: up to 3000 MB/s
- Write: up to 1300 MB/s
- 320 TBW, 1,500,000 hours MTBF
Storage expansion is straightforward, with multiple bays available to accommodate larger CCTV archives or business data:
- 2 x 3.5" / 2.5" internal bays
- 2 x 2.5" internal bays
No additional drives or optical drive are fitted as standard, leaving expansion entirely under your control.
Powerful NVIDIA RTX Graphics & Multi‑Monitor Support
The LOGIX CCT‑V5M7 is equipped with a Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 8GB graphics card, delivering the power and flexibility required for multi‑display CCTV monitoring and professional workloads.
- 8GB GDDR6, 2560 CUDA cores
- Core clock: 1792 MHz
- Memory clock: 14000 MHz, 128‑bit bus
- Digital max resolution: 7680 x 4320 (8K)
- Up to 4 simultaneous displays
Graphics outputs:
- 2 x DisplayPort 1.4a
- 2 x HDMI 2.1
Perfect for multi‑monitor setups from 720p through to 8K resolutions.
Enterprise‑Grade Security & Reliability Features
The Intel Core i5‑12400F supports a range of hardware‑level security and management technologies designed to enhance system integrity and control:
- Intel Standard Manageability (ISM)
- Intel Control‑Flow Enforcement Technology
- Intel AES New Instructions (AES‑NI)
- Intel Secure Key
- Intel OS Guard
- Intel Trusted Execution Technology
- Execute Disable Bit
- Intel Boot Guard
- Mode‑based Execute Control (MBEC)
- Intel Virtualization Technology
Connectivity & Networking
Stay connected with a wide range of front and rear I/O options and robust wired networking:
Front I/O:
- 2 x USB 3.0
- 1 x HD audio (mic/audio)
Rear I/O (Motherboard):
- 1 x HDMI port
- 1 x DisplayPort
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ‑45 (Realtek GbE LAN, 1 Gbps)
- 3 x audio jacks
Additional Networking:
- 1 x Realtek GbE LAN chip (1 Gbps/100 Mbps) on motherboard
- 1 x TP‑Link TG‑3468 Gigabit PCI Express Network Adapter
Legacy Connectivity:
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D‑Sub port
Robust Power & Cooling
Power is supplied by a DeepCool PF500 500W PSU featuring:
- 120mm silent hydraulic bearing fan
- 80 PLUS White efficiency
- Flat black cables
- UK plug
PSU connectors:
- 1 x 24‑pin (20+4) main power
- 1 x 8‑pin (4+4) EPS 12V
- 2 x PCIe 6+2 pin
- 6 x SATA (via 2 cables)
- 2 x 4‑pin peripheral (via 2 cables)
The DeepCool MACUBE 110 micro tower offers efficient airflow and expansion:
- Front: 3 x 120mm or 2 x 140mm fans
- Top: 2 x 120mm or 2 x 140mm fans
- Rear: 1 x 120mm DC fan (pre‑installed)
Case dimensions: 400mm (D) x 225mm (W) x 431mm (H)
Package weight: 6.9 kg
Ready to Use Out of the Box
The LOGIX CCT‑V5M7 comes preinstalled with Microsoft Windows 11 Pro 64‑bit (English), fully updated and free from unwanted bloatware. Simply connect your displays and peripherals and you’re ready to start working.
Included peripherals:
- Logitech MK120 wired keyboard (with waterproof silicone cover)
- Logitech MK120 optical mouse
No card reader or optical drive is fitted, keeping the system clean and focused.
Hand‑Built in the UK with 3‑Year Warranty
Each LOGIX CCT‑V5M7 is hand‑built in the UK using branded, quality components from recognized manufacturers, delivering durability and peace of mind.
- 3‑year parts and labour warranty
- Collect and return service (UK mainland only)
If a problem arises, your system is either collected and repaired or a replacement part is supplied, minimizing downtime and hassle.
Key Features (Summary)
- Processor: Intel Core i5‑12400F, 6 cores / 12 threads, 2.50GHz base, up to 4.40GHz Turbo, 18MB cache
- Memory: 16GB Kingston DDR5 5600MT/s (1 x 16GB, expandable to 64GB DDR5)
- Storage: 500GB Kingston PCIe 4.0 NVMe M.2 SSD, with 2 x 3.5"/2.5" + 2 x 2.5" bays free for expansion
- Graphics: Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 8GB, 2 x HDMI 2.1, 2 x DisplayPort 1.4a, up to 8K resolution, 4‑monitor support
- Motherboard: Gigabyte H610M K V2 DDR5, PCIe 4.0, Gen3 x4 M.2, GbE LAN, Smart Fan 6
- Case: DeepCool MACUBE 110 micro tower, black, home & business, 2 x USB 3.0, solid side panel
- Networking: Realtek 1Gbps GbE LAN + TP‑Link TG‑3468 Gigabit PCIe network adapter
- Power Supply: DeepCool PF500 500W, 80 PLUS White, silent 120mm fan, UK plug
- Operating System: Windows 11 Pro 64‑bit (installed and up to date)
- Display/CCTV Support: Up to 4 monitors and up to 16 CCTV camera feeds in resolutions up to 8K
- Peripherals: Logitech MK120 wired keyboard with waterproof silicone cover & mouse
- Warranty: 3 years parts & labour with collect and return (UK mainland only)
- Build Location: Hand‑built in the UK
Technical Specifications
| Category | Specification |
|---|---|
| Operating System | Microsoft Windows 11 Pro 64‑bit English OEI DVD (installed and up to date) |
| Processor | Intel Core i5‑12400F, 6 cores / 12 threads, 2.50GHz base, up to 4.40GHz Turbo, 18MB cache, Alder Lake, LGA 1700 |
| Security Technologies | ISM, Control‑Flow Enforcement, AES‑NI, Secure Key, OS Guard, Trusted Execution, Execute Disable Bit, Boot Guard, MBEC, Intel VT |
| Memory | Kingston 16GB (1 x 16GB) DDR5 5600MT/s, CL46, 1.1V, Intel XMP support |
| Memory Capacity | Upgradeable to 64GB DDR5 (additional memory slot available) |
| SSD | Kingston NV3 500GB NVMe M.2, PCIe Gen4 x4, up to 3000 MB/s read, 1300 MB/s write, 320 TBW, 1,500,000 hours MTBF |
| Storage Bays | 2 x internal 3.5" (or 2.5"), 2 x internal 2.5" |
| Additional Drives | No additional drive fitted |
| Optical Drive | None fitted |
| Graphics Card | Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 8GB GDDR6, 2560 CUDA cores |
| GPU Clocks | Core 1792 MHz (reference 1777 MHz), memory 14000 MHz |
| GPU Bus/Memory | PCIe 4.0, 128‑bit memory bus |
| Max Resolution | 7680 x 4320 (8K), up to 4 simultaneous displays |
| GPU Outputs | 2 x DisplayPort 1.4a, 2 x HDMI 2.1 |
| Motherboard | Gigabyte H610M K V2 DDR5, Intel Socket 1700, PCIe 4.0, Gen3 x4 M.2, GbE LAN |
| Motherboard Storage | 1 x M.2 Socket 3 (PCIe 3.0 x4/x2 SSD), 2 x SATA 6Gb/s connectors |
| Rear I/O (Board) | 1 x HDMI, 1 x DisplayPort, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x RJ‑45, 3 x audio jacks |
| Internal Headers | 24‑pin ATX, 8‑pin ATX 12V, CPU/system fan headers, M.2, SATA, front panel & audio, USB 3.2 Gen1, USB 2.0, TPM header, Clear CMOS jumper |
| Front I/O (Case) | 2 x USB 3.0, 1 x audio, power, reset |
| Legacy Ports | 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x D‑Sub |
| Networking | 1 x Realtek GbE LAN (1 Gbps/100 Mbps), 1 x TP‑Link TG‑3468 Gigabit PCIe adapter |
| Power Supply | DeepCool PF500 500W, 120mm silent hydraulic bearing fan, 80 PLUS White, non‑modular, UK plug, flat black cables |
| PSU Connectors | 1 x 24‑pin (20+4), 1 x 8‑pin (4+4) EPS, 2 x PCIe 6+2 pin, 6 x SATA, 2 x 4‑pin peripheral |
| Chassis | DeepCool MACUBE 110, black micro tower, 2 x USB 3.0, solid side panel |
| Cooling Support | Front: 3 x 120mm / 2 x 140mm; Top: 2 x 120mm / 2 x 140mm; Rear: 1 x 120mm (pre‑installed) |
| Dimensions (Case) | 400mm (D) x 225mm (W) x 431mm (H) |
| Card Reader | Not fitted |
| Peripherals | Logitech MK120 wired keyboard (with waterproof silicone cover) & mouse |
| CCTV/Display Support | Up to 4 monitors / 16 CCTV camera feeds in up to 8K resolution |
| Warranty | 3 years parts & labour, collect and return (UK mainland only) |
| Build Location | Hand‑built in the UK |
