LOGIX Intel i7-14700 2.10GHz (5.30GHz Boost) 20 Core 28 threads. 32GB Kingston RAM, 1TB Kingston NVMe, Wi-Fi 6, Windows 11 Home + FREE Keyboard & Mouse

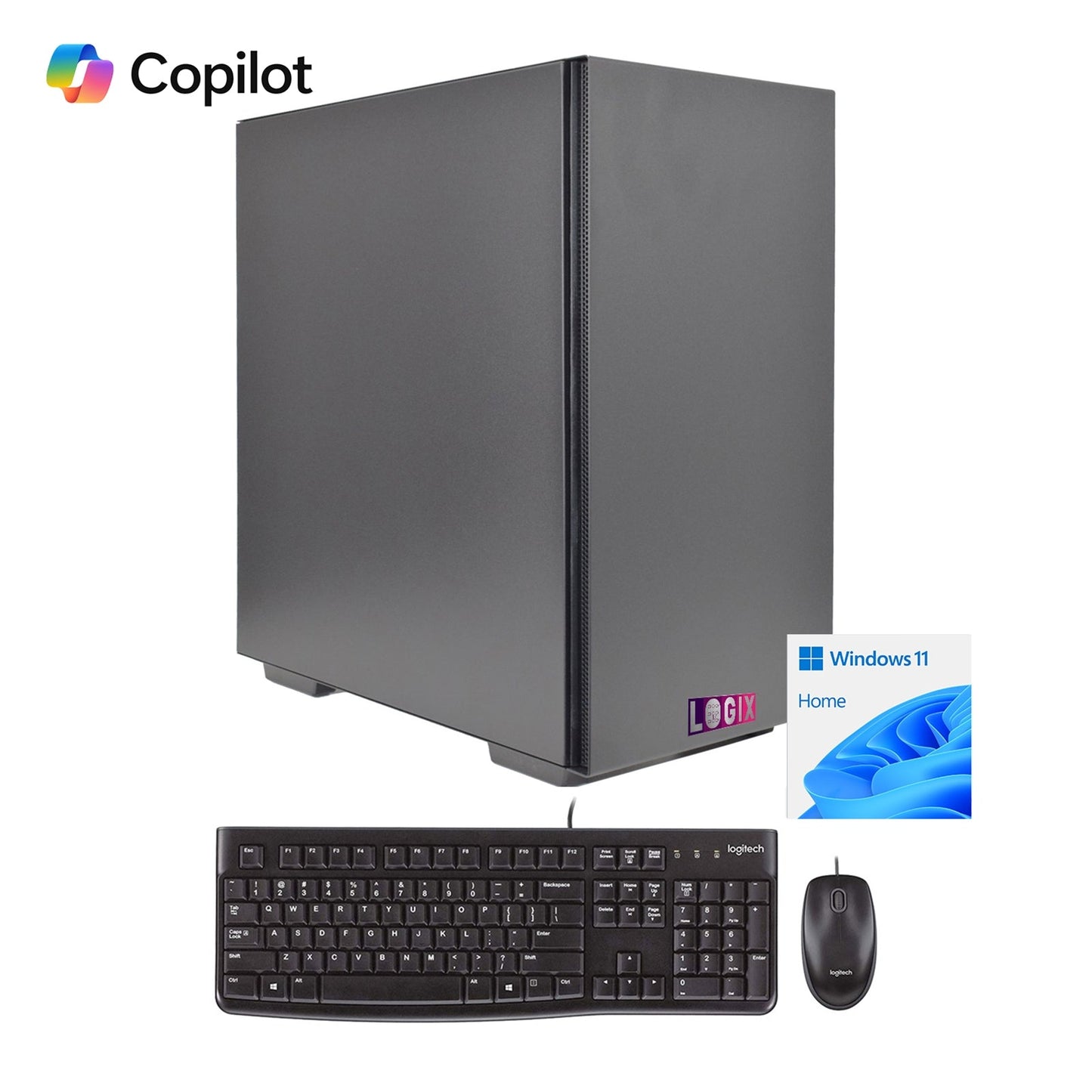

LOGIX DC-716WH Desktop PC

High‑Performance Compact PC for Home and Business

The LOGIX DC-716WH is designed for demanding home and business users who need power, reliability, and a compact footprint. From resource-intensive applications and 4K streaming to gaming and everyday school or office tasks, this desktop delivers consistent, all-day performance.

Power and Performance

• Processor: 14th Gen Intel Core i7-14700
• 20 cores / 28 threads
• Base clock: 2.10GHz
• Turbo boost: up to 5.30GHz
• 33MB cache

• Raptor Lake, Socket LGA 1700

• Memory: Kingston Fury Beast 32GB DDR4

• 2 x 16GB DIMM, Black heatsink
• 3200MHz (PC4-25600), CL16
• 1.35V, Intel XMP profile support

• Upgradeable to 64GB DDR4 (additional memory slot available)

• Storage: Kingston NV2 1TB PCIe 4.0 NVMe M.2 SSD

• PCIe Gen4 x4 NVMe (2280)
• Read up to 6000MB/s
• Write up to 4000MB/s

• 320 TBW, MTBF 1,500,000 hours

• Graphics: Intel UHD Graphics 770

• 32 execution units
• Base frequency: 300MHz
• Max dynamic frequency: 1.50GHz
• Outputs: eDP 1.4b, DP 1.4a, HDMI 2.1
• Max resolution (HDMI): 4096 x 2160 @ 60Hz
• Max resolution (DP): 7680 x 4320 @ 60Hz
• Uses Intel on-chip graphics (no separate graphics card fitted)

Compact, Quiet, and Professional

Housed in the DeepCool MACUBE 110 micro tower case, this system offers efficient cooling and discreet, near-silent operation—ideal for home offices and professional environments.

• Solid-side micro tower chassis
• Fits easily on or under most desks
• Pre-installed rear 120mm DC fan
• Multiple fan support:
• Front: 3 x 120mm or 2 x 140mm
• Top: 2 x 120mm or 2 x 140mm
• Rear: 1 x 120mm (pre-installed)

Case I/O Ports:

• Front:
• 2 x USB 3.0
• HD mic/audio

Chassis Dimensions & Weight:

• 470mm (D) x 288mm (W) x 470mm (H)
• Package weight: 6.9kg

Connectivity & Expansion

Built on the Gigabyte B760M DS3H AX DDR4 micro ATX motherboard, the LOGIX DC-716WH provides extensive connectivity and upgrade options.

Motherboard Highlights

• Intel Socket 1700, supports 12th/13th Gen processors (installed: 14th Gen i7-14700)
• 1 x PCIe 4.0 x16 slot (CPU)
• 2 x PCIe 3.0 x1 slots (chipset)
• 2 x PCIe 4.0 M.2 (Socket 3, M key, type 2280)
• 4 x SATA 6Gb/s connectors
• RAID 0, 1, 5, 10 support for SATA storage
• Smart Fan 6, Q-Flash Plus

Storage Expansion

• 2 x 3.5"/2.5" combo bays
• 2 x 2.5" bays
• 2 x M.2 (PCIe 4.0 x4/x2) on motherboard
• No additional hard drive or optical drive fitted as standard

Ports & Interfaces

Front Connections

• 2 x USB 3.0
• 1 x HD mic/audio

Rear I/O (Motherboard)

• 2 x USB 2.0/1.1
• 3 x USB 3.2 Gen 1
• 1 x USB Type-C (USB 3.2 Gen 2 support)
• 1 x RJ-45 LAN port
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x DisplayPort
• 3 x audio jacks

Internal Headers

• 1 x 24-pin ATX main power
• 1 x 8-pin ATX 12V power
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x TPM header (for GC-TPM2.0 SPI modules)
• 1 x serial port header
• 1 x parallel port header
• 1 x S/PDIF Out header
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Networking

Stay connected with fast wired and wireless networking:

• Wired: Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: WiFi 6E 802.11ax

Power Supply

• DeepCool PF500 500W PSU
• 120mm silent hydraulic bearing fan
• 80 PLUS White
• Non-modular, flat black cables
• UK plug

Connectors:

• 1 x 24-pin (20+4) main power
• 1 x EPS 12V 8-pin (4+4)
• 2 x PCIe 6+2 pin
• 6 x SATA (via 2 cables)
• 2 x 4-pin peripheral (via 2 cables)

Security & Reliability Features (Intel Platform)

Intel platform technologies for manageability and protection (eligibility/support as listed):

• Intel vPro Enterprise / Intel vPro Essentials eligibility
• Intel Threat Detection Technology (TDT)
• Intel Active Management Technology (AMT)
• Intel Standard Manageability (ISM)
• Intel One-Click Recovery
• Intel Hardware Shield eligibility
• Intel Control-Flow Enforcement Technology
• Intel Total Memory Encryption & Multi-Key
• Intel AES New Instructions
• Intel Secure Key
• Intel OS Guard
• Intel Trusted Execution Technology
• Intel Boot Guard
• Intel Stable IT Platform Program (SIPP)

Operating System & Software

• Operating System: Microsoft Windows 11 Home 64-bit (English OEI DVD)
• Installed, up to date, and bloatware-free

Included Peripherals

• Logitech MK120 wired keyboard (with waterproof silicone cover)
• Logitech MK120 wired mouse

Ready to use straight out of the box—just connect, power on, and start working or relaxing.

Warranty & Support

• 3-year warranty – parts and collection/return included (UK mainland only)

Hand-built in the UK using components from world-renowned brands, the LOGIX DC-716WH is designed for longevity, reliability, and strong performance now and into the future.

At a Glance: Key Features

• DeepCool MACUBE 110 micro tower case with quiet, efficient cooling
• 14th Gen Intel Core i7-14700 processor (20 cores, 28 threads, up to 5.30GHz)
• Kingston 32GB DDR4 memory (upgradeable to 64GB)
• Kingston 1TB PCIe 4.0 NVMe SSD (up to 6000MB/s read, 4000MB/s write)
• Intel UHD Graphics 770 with 4K support
• Realtek 2.5GbE LAN and WiFi 6E 802.11ax
• Windows 11 Home preinstalled, with no unwanted bloatware
• Logitech MK120 keyboard and mouse included
• 3-year parts and collection warranty (UK mainland only)
