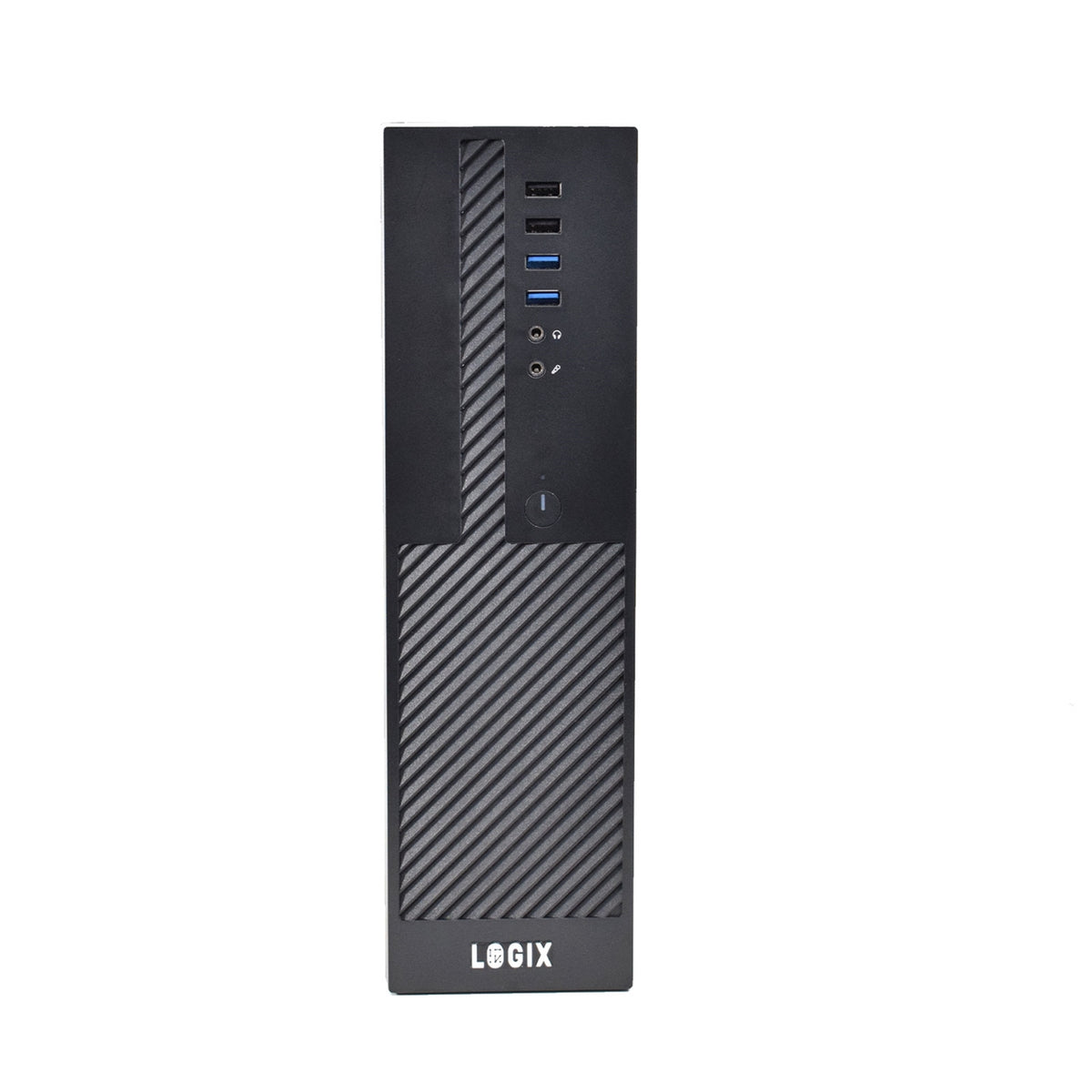

LOGIX S4-516P Compact Home & School PC
The LOGIX S4-516P is a powerful, compact desktop PC designed for home and school use. Built with quality Kingston and Gigabyte components and assembled in the UK, it delivers fast, reliable performance for everyday tasks such as homework, web browsing, streaming, and multitasking.
Pre-installed with Windows 11 Pro and completely bloatware-free, it’s ready to use straight out of the box. A wired-only network connection adds an extra layer of security, making it a smart choice for families and students. Quiet, stylish, and built to last, the LOGIX S4-516P offers solid performance without flashy extras.
Key Features
Compact & Stylish Case
- Discreet LOGIX small form factor chassis
- Saves space on or under a desk
- Purpose-built, robust construction with efficient cooling
Fast & Reliable Performance
- 14th Gen Intel Core i5-14400 processor
- 10 cores / 16 threads
- Base clock: 3.50GHz
- Turbo boost up to 4.70GHz
- Ideal for multitasking, streaming, and everyday computing
Smooth Multitasking
- 16GB Kingston DDR4 3200MHz RAM (2 x 8GB)
- Supports upgrades up to 64GB DDR4
- Plenty of memory for browsing, working, and entertainment
Superfast Storage
- 1TB Kingston PCIe 4.0 NVMe M.2 SSD
- Read speeds up to 6000MB/s, write speeds up to 4000MB/s
- Lightning-fast boot times and quick file access
- Much faster than traditional hard drives
Clean, Secure & Ready to Go
- Windows 11 Pro 64-bit pre-installed, up to date
- No bloatware – clean, fast user experience
- Wired-only Realtek 1Gbps LAN for added online security

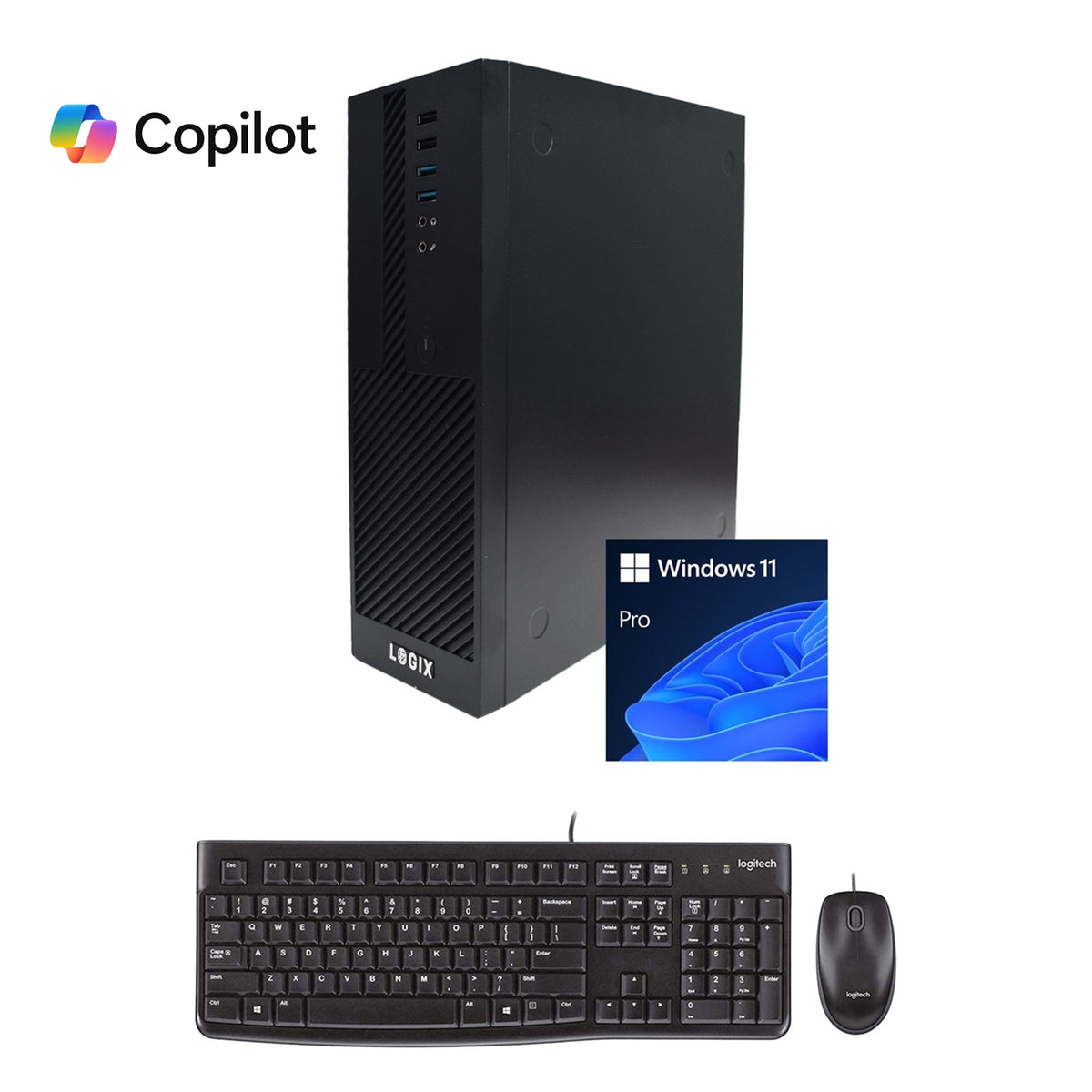

- Includes Logitech MK120 wired keyboard and mouse for instant plug-and-play setup
Built to Last
- Trusted component brands and high build standards
- Designed to be reliable and futureproof
- Backed by a 3-year warranty with parts and collection/return (UK mainland only)
Why It’s Great for Home Use
- Quiet & Compact – Fits neatly into a home office, bedroom, or study space.
- Family-Friendly – Reliable performance for homework, web use, and media.
- Secure & Stable – Wired-only internet connection helps reduce online threats.
- Professional Look – Clean, understated design with no flashy lights.
Technical Specifications
System Overview
| Component | Specification |
|---|---|
| Operating System | Microsoft Windows 11 Pro 64-bit English OEI DVD – installed and up to date, no bloatware |
| Processor | Intel Core i5-14400, 10 cores / 16 threads, 3.5GHz base, up to 4.7GHz Turbo, Raptor Lake Refresh, Socket LGA 1700, 20MB cache |
| Memory (RAM) | Kingston Technology 16GB DDR4 3200MHz (2 x 8GB), CL22, 1.20V, Intel XMP support, upgradeable to 64GB DDR4 |
| Storage | Kingston NV3 (SNV3S/1000G) 1TB NVMe M.2 SSD, PCIe 4.0, 2280, up to 6000MB/s read & 4000MB/s write, 160 TBW, 1,500,000 hours MTBF |
| Additional Drives | No additional hard drive fitted |
| Optical Drive | No optical drive fitted |
| Graphics | Intel UHD Graphics 730 (on-chip) |
Graphics & Display
| Feature | Specification |
|---|---|
| Base Frequency | 300 MHz |
| Max Dynamic Frequency | 1.40 GHz |
| Execution Units | 32 |
| Outputs | DisplayPort 1.4b, DisplayPort 1.4a, HDMI 2.1 |
| Max Resolution (DisplayPort) | 7680 x 4320 @ 60Hz |
| Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
| Dedicated Graphics Card | Not fitted – uses Intel on-chip graphics |
Motherboard
| Component | Specification |
|---|---|
| Model | Gigabyte H610M S2H V3 DDR4 Ultra Durable |
| Form Factor | Micro-ATX |
| Socket | Intel LGA 1700 |
| Memory Slots | 2 x DDR4 slots |
| M.2 Socket | 1 x M.2 (Socket 3, M key, type 2280/2260, PCIe 3.0 x4/x2 SSD support) |
| SATA Ports | 4 x SATA 6Gb/s connectors |
| LAN | GbE LAN with bandwidth management for improved latency and low ping |
| Display Ports | 1 x D-Sub, 2 x DisplayPort, 1 x HDMI |
Expansion Slots
| Type | Specification |
|---|---|
| PCIe x16 | 1 x PCI Express x16 (CPU, PCIe 4.0, running at x16) |
| PCIe x1 | 1 x PCI Express x1 (Chipset, PCIe 3.0, running at x1) |

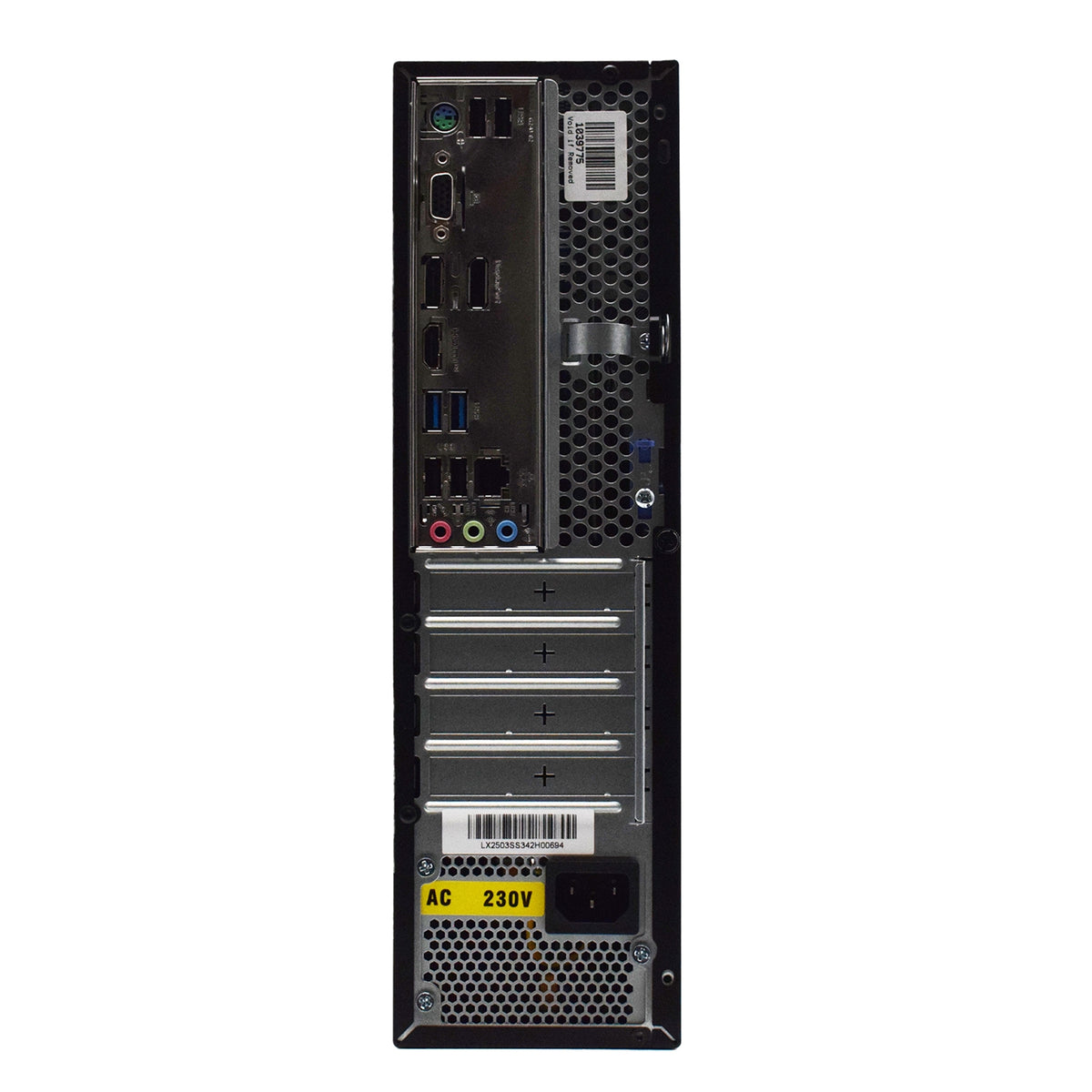

Rear I/O
| Port Type | Quantity |
|---|---|
| PS/2 keyboard/mouse | 1 |
| D-Sub | 1 |
| DisplayPort | 2 |
| HDMI | 1 |
| USB 3.2 Gen 1 | 2 |
| USB 2.0/1.1 | 4 |
| RJ-45 (Ethernet) | 1 |
| Audio jacks | 3 |
Internal I/O Headers
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header

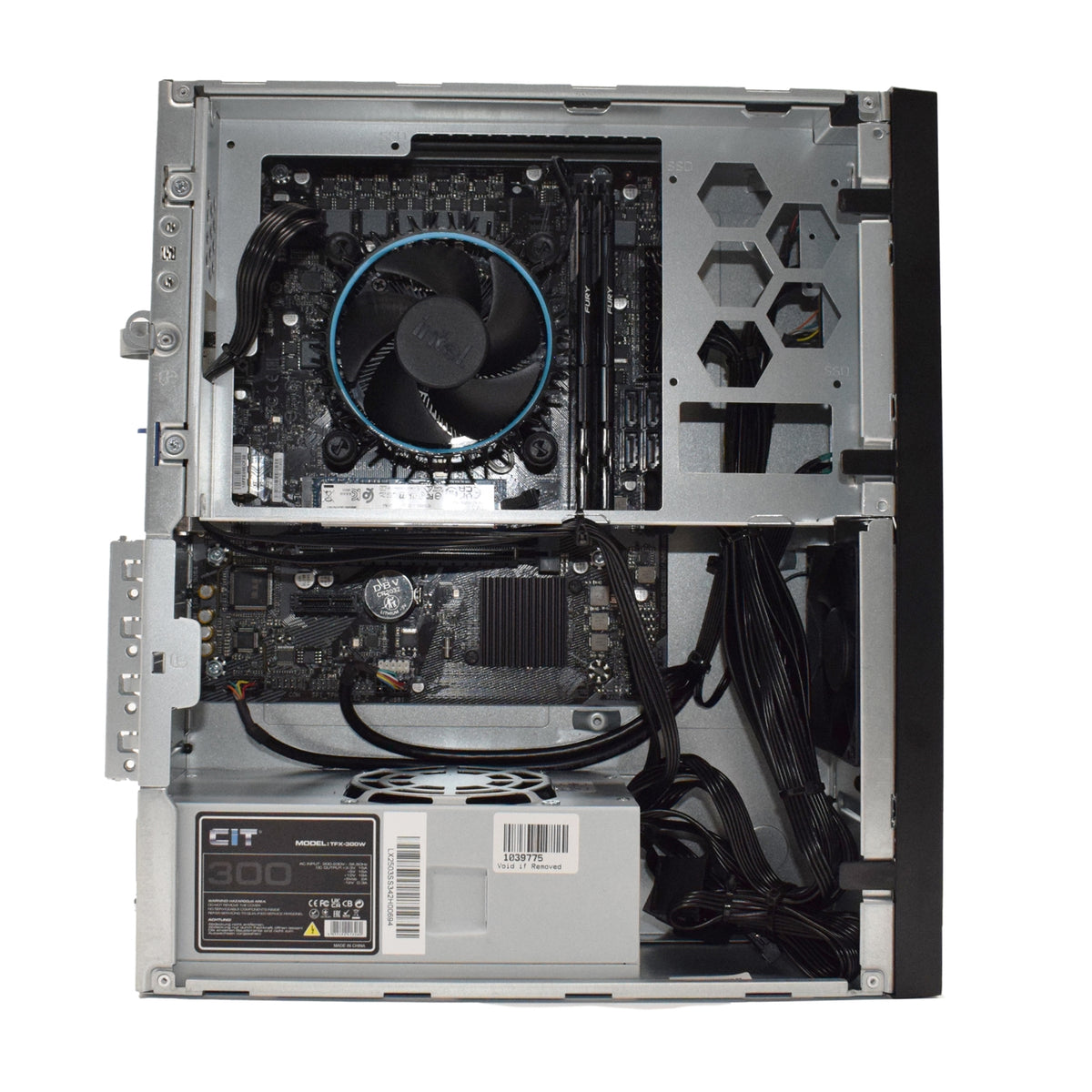

Chassis, Power & Cooling
| Component | Specification |
|---|---|
| Chassis | LOGIX Small Form Purpose Built Robust Chassis |
| Drive Bays | 5.25" x 0, 3.5" x 1, 2.5" x 2 |
| Front I/O | 2 x USB 3.0, 2 x USB 2.0, HD Mic, HD Audio, Power |
| Cooling | 1 x 80mm fan included |
| Power Supply | 300W TFX pre-fitted PSU |
| Dimensions | 321mm (W) x 95mm (H) x 283mm (D) |
| Package Weight | 6.9 kg |
Networking
| Feature | Specification |
|---|---|
| Wired LAN | Realtek 1Gbps GbE LAN with bandwidth management for improved latency and responsiveness |
| Wireless | Not fitted (wired-only connection) |
Included Peripherals
| Peripheral | Specification |
|---|---|
| Keyboard | Logitech MK120 Wired Keyboard |
| Mouse | Logitech MK120 Wired Mouse |
Warranty
| Coverage | Details |
|---|---|
| Warranty | 3 Years Parts & Labour, including Collect and Return (UK mainland only) |
The LOGIX S4-516P combines modern Intel processing power, fast Kingston memory and storage, and a compact LOGIX chassis to deliver a dependable, space-saving PC that’s ideal for home and school environments.
