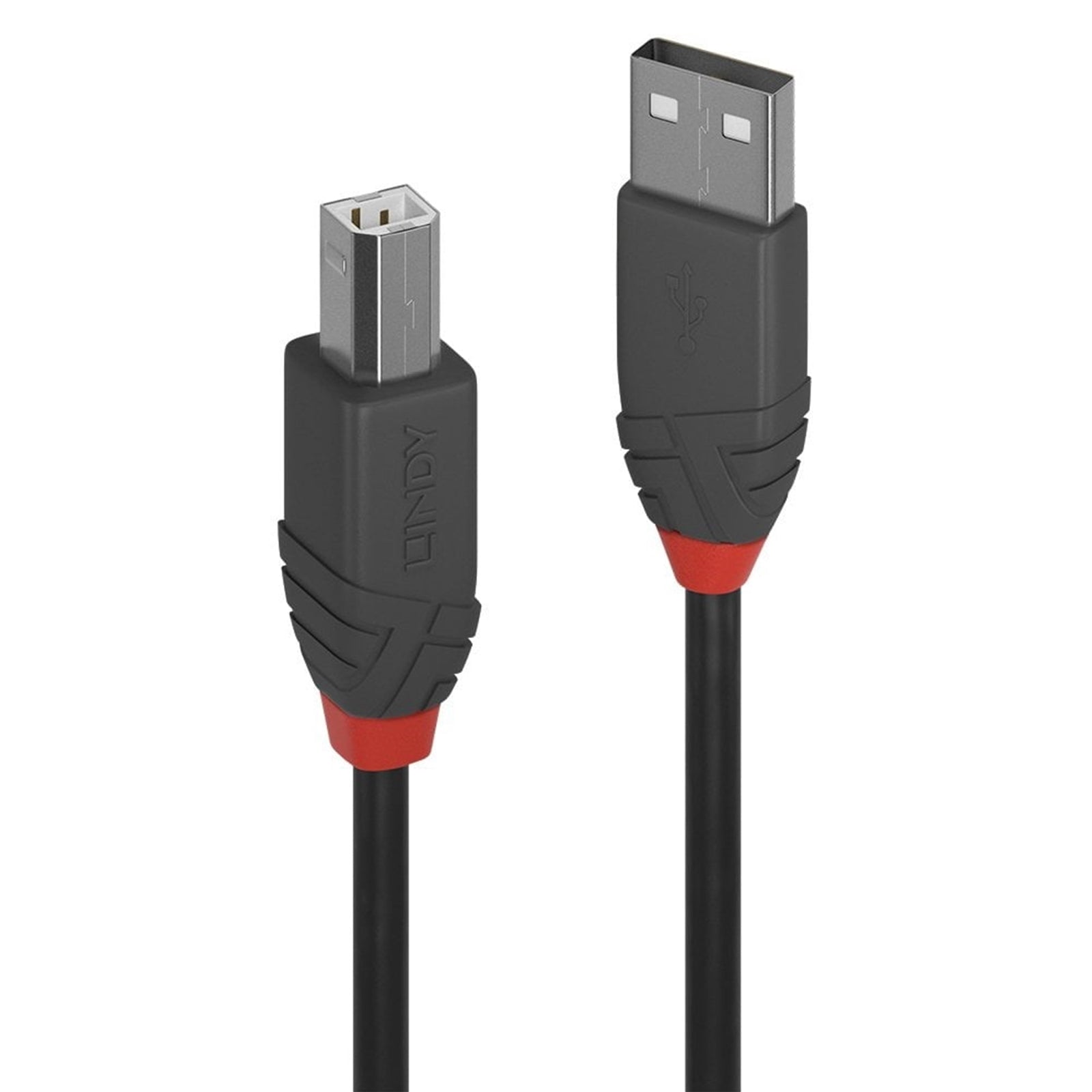

Lindy Anthra Line USB 2.0 Type A to B Cable – 3m
Professional-grade USB 2.0 Type A to B cable from the Lindy Anthra Line series, designed for high performance connections in commercial AV and IT installations.
Featuring double shielding, tinned copper conductors and premium gold plated contacts, this cable delivers reliable data transfer and long-term durability.
Key Features
- Professional choice for commercial AV and IT installations
- USB 2.0 Type A Male to Type B Male
- Supports data transfer speeds up to 480Mbps
- Double shielded cable with tinned copper conductors
- Robust PVC housing with nickel plated connectors
- 24K gold plated contacts for optimal signal integrity
- Corrosion resistant construction
- Length: 3m (9.84ft)
- 10 year warranty
- RoHS, REACH, UL certified
Connectors
- Connector A: USB 2.0 Type A Male
- Connector B: USB 2.0 Type B Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction: Copper
- Pin Plating: 24K Gold
Dimensions (approx.):
| Connector | Width x Depth x Height |
|---|---|
| USB A | 15.5 x 35 x 7.8mm (0.61 x 1.38 x 0.31in) |
| USB B | 11.8 x 35 x 10.2mm (0.47 x 1.38 x 0.40in) |
Cable Construction
| Specification | Detail |
|---|---|
| Length | 3m (9.84ft) |
| Standard | USB 2.0 |
| Colour | Black |
| Type | Round |
| Jacket Diameter | 4.4mm (0.17in) |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| Conductor Gauge | 26/28AWG |
| Shielding | Aluminium Magnesium Braid |
Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.
Performance & Environmental
| Specification | Detail |
|---|---|
| Supported Bandwidth | 480Mbps |
| Maximum Resolution | - |
| Nominal Attenuation | 5.8dB/km |
| Minimum Bend Radius | 16mm (0.63in) |
| Operating Temperature | 0°C – 60°C (32°F – 140°F) |
| Storage Temperature | 0°C – 60°C (32°F – 140°F) |
Data transfer speeds up to 480Mbps allow quick and effortless transfer of large data volumes.
Additional Information
- Packaging Type: Polybag
- Warranty: 10 years
- Certifications: RoHS, REACH, UL
