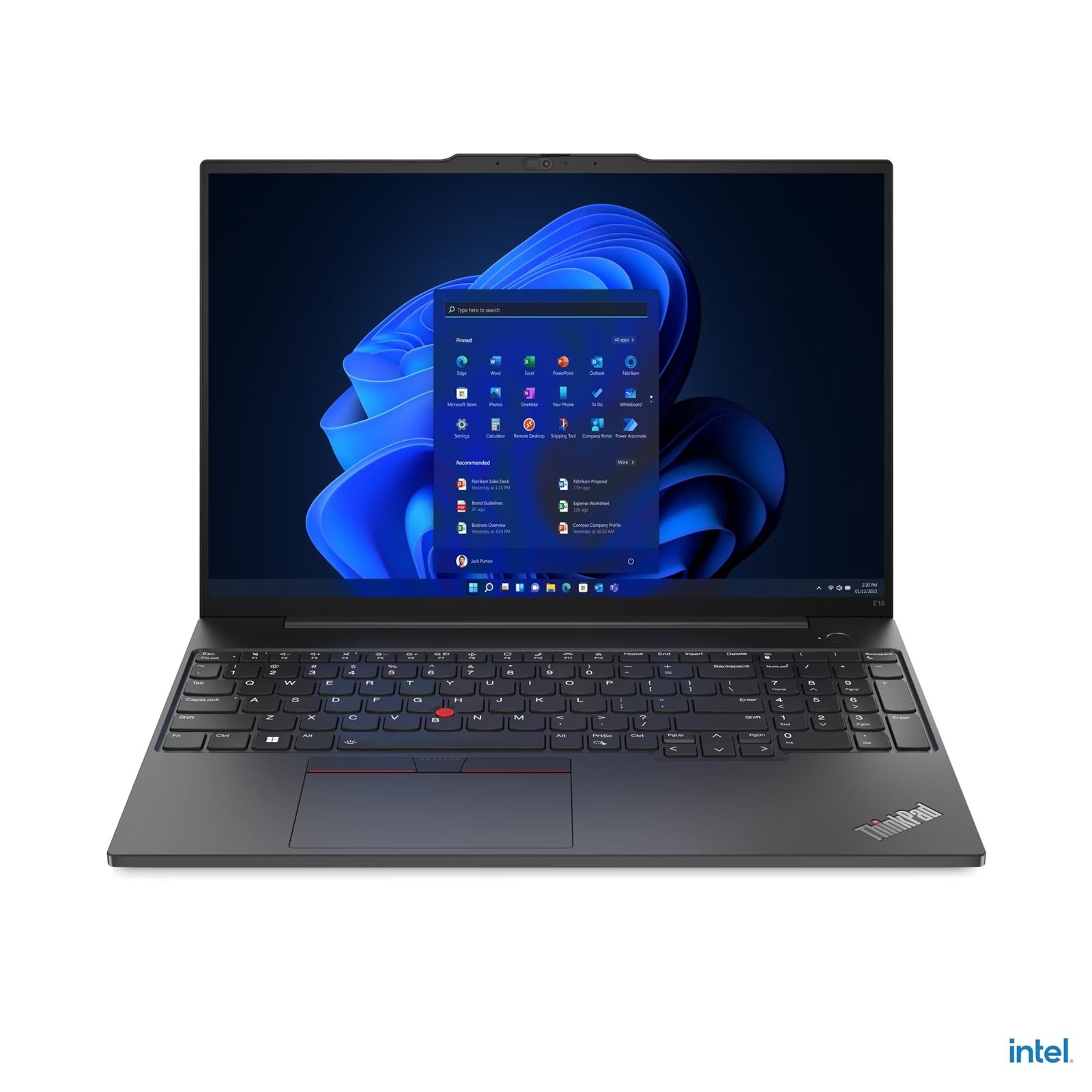

Lenovo ThinkPad E16 Gen 1 (Intel) – 16" Business Laptop
Performance
- Processor: Intel® Core™ i3-1315U, 6 cores (2 Performance + 4 Efficient) / 8 threads
- P-core: 1.2GHz base / up to 4.5GHz
- E-core: 0.9GHz base / up to 3.3GHz
- 10MB cache
- Graphics: Integrated Intel® UHD Graphics
- Chipset: Intel® SoC Platform
Memory
- Installed Memory: 8GB soldered DDR4-3200
- Memory Slots:
- One memory soldered to systemboard
- One DDR4 SO-DIMM slot, dual-channel capable
- Maximum Memory: Up to 40GB DDR4-3200
- (8GB soldered + 32GB SO-DIMM)
Storage
- Primary Storage: 256GB SSD M.2 2242 PCIe® 4.0 x4 NVMe® Opal 2.0
- Storage Slots:
- 1x M.2 2242 PCIe 3.0 x4
- 1x M.2 2242 PCIe 4.0 x4
- Maximum Storage Support: Up to two M.2 SSDs
- M.2 2242 SSDs up to 1TB each
- Optical Drive: None
- Card Reader: None
Audio & Camera
- Audio Chip: High Definition (HD) Audio, Synaptic® CX11880 codec
- Speakers: Stereo speakers, 2W x2, Dolby Atmos®
- Microphone: Dual-array (2x)
- Camera: HD 720p with privacy shutter
Battery & Power
- Battery: 57Wh
- Power Adapter: 65W USB-C® (3-pin)
Design & Display
- Display: 16" WUXGA (1920 x 1200) IPS, 300 nits, anti-glare, 45% NTSC
- Touchscreen: None
- Screen-to-Body Ratio: 90.7%
- Pen Support: Pen not supported
- Keyboard: Backlit, English (UK)
Dimensions & Weight
- Dimensions (W x D x H): 356.1 x 247.7 x 19.85 mm
- (14.02 x 9.75 x 0.78 inches)
- Weight: Starting at 1.77 kg (3.90 lbs)
Build & Color
- Case Color: Graphite Black
- Case Material:
- Top: Aluminium
- Bottom: PC-ABS
Software
- Operating System: Windows® 11 Pro, English
- Bundled Software: None
Connectivity & Ports
Wireless & Networking
- WLAN + Bluetooth: Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + Bluetooth® 5.1
- WWAN: Non-WWAN
- SIM Card: None
- Ethernet: 100/1000M (RJ-45)
- NFC: None
Ports
- 1x USB 2.0
- 1x USB 3.2 Gen 1 (Always On)
- 1x USB-C® 3.2 Gen 2
- Supports data transfer, Power Delivery 3.0, DisplayPort™ 1.4
- 1x Thunderbolt™ 4 / USB4® 40Gbps
- Supports data transfer, Power Delivery 3.0, DisplayPort™ 1.4
- 1x HDMI® 2.1 (up to 4K/60Hz)
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
Docking
- Various docking solutions supported via Thunderbolt™ or USB-C®
- For compatible options, visit: Docking for ThinkPad® E16 Gen 1 (Intel®)
Security & Privacy
- Security Chip: Discrete TPM 2.0, enabled
- Physical Locks: Kensington® Nano Security Slot (2.5 x 6 mm)
- Smart Card Reader: None
- Fingerprint Reader: None
- Other Security Features:
- Camera privacy shutter
- ThinkShield
Manageability
- System Management: Non-vPro®
Service & Warranty
- Base Warranty: 1-year, Courier or Carry-in
- Included Upgrade: None
Accessories
- Bundled Accessories: None
Certifications
- Green Certifications:
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered
- ErP Lot 6/26
- FSC certified package
- RoHS compliant
-
TCO Certified 9.0
-
Durability:
-
MIL-STD-810H military test passed
-
Other Certifications:
- TÜV Rheinland® Low Blue Light (Software Solution)
Key Specifications Overview
| Category | Details |
|---|---|
| Processor | Intel® Core™ i3-1315U, 6C (2P+4E) / 8T, up to 4.5GHz (P-core) |
| Graphics | Integrated Intel® UHD Graphics |
| Memory | 8GB DDR4-3200 (soldered), up to 40GB total |
| Storage | 256GB M.2 2242 PCIe 4.0 x4 NVMe Opal 2.0 |
| Display | 16" WUXGA (1920 x 1200) IPS, 300 nits, anti-glare |
| Keyboard | Backlit, English (UK) |
| Wireless | Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT 5.1 |
| Ports | USB 2.0, USB 3.2 Gen 1 (Always On), USB-C 3.2 Gen 2, Thunderbolt™ 4, HDMI 2.1, RJ-45, audio combo |
| Battery | 57Wh |
| Weight | Starting at 1.77 kg (3.90 lbs) |
| OS | Windows® 11 Pro, English |
| Color | Graphite Black |
| Material | Aluminium (top), PC-ABS (bottom) |
