Kingston FURY Beast DDR5 Memory 16GB Kit (2x8GB) – 5600MT/s
Upgrade your system with Kingston FURY Beast DDR5 memory, designed to deliver high-speed performance and low latency for demanding applications.

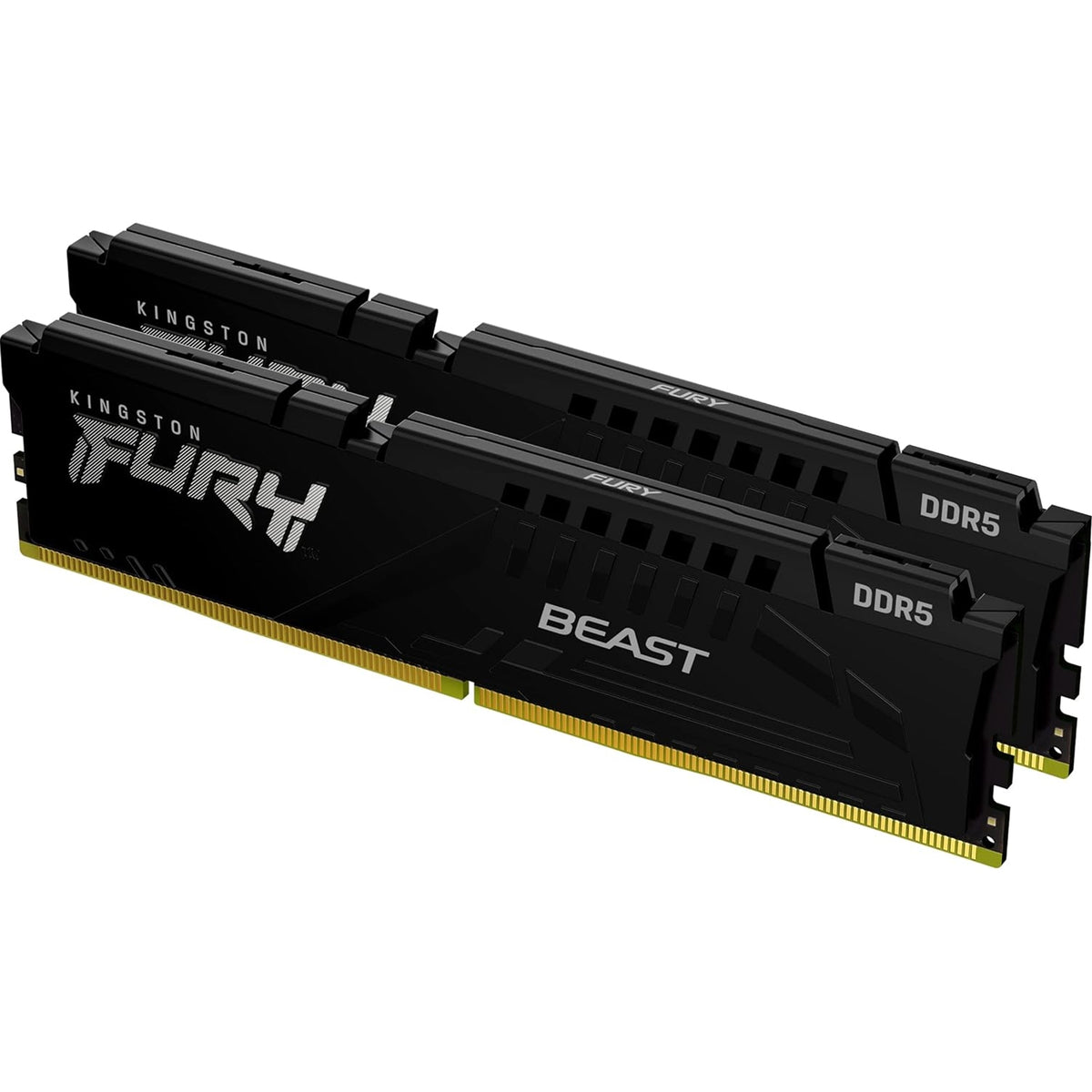

This kit (KF556C40BBK2-16) includes two 8GB DDR5-5600 CL40 SDRAM DIMMs, each built with four 1G x 16-bit FBGA components. The total kit capacity is 16GB.
Each module supports Intel Extreme Memory Profiles (Intel XMP) 3.0 and is tested to run at DDR5-5600 with low-latency timings of 40-40-40 at 1.25V. For broad compatibility, the SPD is programmed to JEDEC standard DDR5-4800 timings of 40-39-39 at 1.1V. Every 288‑pin DIMM features gold contact fingers and a black heatsink.
Key Features
- 16GB kit capacity (2x 8GB modules)
- DDR5-5600 memory speed
- Intel XMP 3.0 support per module kit
- Low-latency 40-40-40 at 1.25V (DDR5-5600)
- JEDEC standard DDR5-4800 SPD (40-39-39 at 1.1V)
- 288-pin DIMM with gold contact fingers
- Black heatsink included
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Kingston FURY Beast DDR5 Memory |
| Model | Kingston FURY KF556C40BBK2-16 |
| Kit Capacity | 16GB (2x 8GB) |
| Organization per Module | 1G x 64-bit (8GB) |
| Memory Type | DDR5 |
| Module Type | DIMM |
| Memory Speed | 5600MHz (DDR5-5600) |
| Data Rate | Up to 5600MT/s |
| Rank | 1Rx16 |
| Components per Module | Four 1G x 16-bit FBGA components |
| Pin Configuration | 288-pin |
| Registered/Unbuffered | Unbuffered |
| Error Correction | Non-ECC |
| Intel XMP Support | Intel Extreme Memory Profiles (Intel XMP) 3.0 |
| Tested Speed / Timing / Voltage | DDR5-5600, CL40-40-40, 1.25V |
| SPD Default (JEDEC) Speed / Timing / Voltage | DDR5-4800, 40-39-39, 1.1V |
| CAS Latency (CL) | CL40 |
| CL (IDD) | 40 cycles |
| Row Cycle Time (tRCmin) | 48ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns (min.) |
| Row Active Time (tRASmin) | 32ns (min.) |
| Heat Sink | Yes (Black) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
