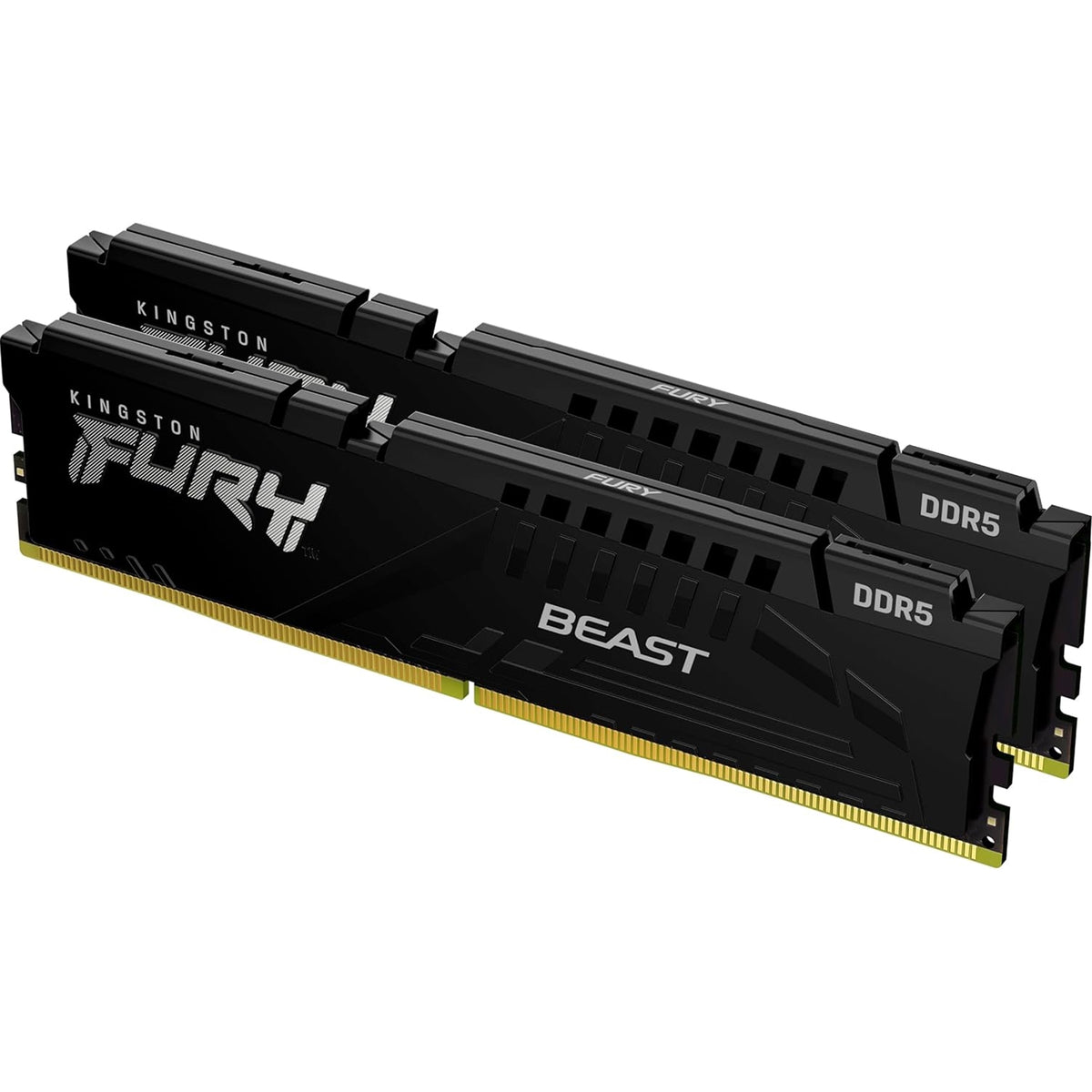

Kingston FURY Beast 64GB (2 x 32GB) DDR5-5600 CL36 Desktop Memory Kit
The Kingston FURY KF556C36BBEK2-64 is a high-performance 64GB DDR5 desktop memory kit designed for enthusiasts and power users who demand speed, stability, and advanced tuning support.
This kit includes two 32GB DDR5-5600 CL36 SDRAM DIMMs, each built using sixteen 2G x 8-bit FBGA components (4G x 64-bit, 2Rx8). Total kit capacity is 64GB.
High-Speed Performance
Each module is factory-tested to run at:
- DDR5-5600 (PC5-44800)
- Low latency: 36-38-38
- Voltage: 1.25V
The SPD is pre-programmed to JEDEC-standard:
- DDR5-4800
- Latency: 40-39-39
- Voltage: 1.1V
Advanced Tuning Support
Each module kit supports:
- AMD EXPO v1.0
- Intel Extreme Memory Profiles (Intel XMP) 3.0
Design & Reliability
- 288-pin DIMM with gold contact fingers
- On-Die ECC
- Height: 1.37" (34.9mm) with heatsink
Features
- Power Supply:
- VDD = 1.1V (Typical)
- VDDQ = 1.1V (Typical)
- VPP = 1.8V (Typical)
- VDDSPD = 1.8V to 2.0V
- Operating Temperature: 0°C to +85°C
- Storage Temperature: -55°C to +100°C
- UL Rating: 94 V-0
- Non-ECC
- Lifetime warranty
Specifications
| Attribute | Detail |
|---|---|
| Brand | Kingston |
| Series/Type | FURY Beast |
| Model | KF556C36BBEK2-64 |
| Total Capacity | 64GB Kit |
| Module Capacity | 32GB x 2 |
| Module Quantity | 2 Modules |
| Memory Type | DDR5 |
| Form Factor | DIMM |
| Pins | 288 Pin |
| Rank | 2R |
| Data Rate | 5600MT/s (PC5-44800) |
| Clock Rate | 2800MHz |
| CAS Latency | CL36 |
| Error Check | Non-ECC |
| CL (IDD) | 40 Cycles |
| Row Cycle Time (tRCmin) | 48ns (min.) |
| Refresh to Active/Refresh | 295ns (min.) |
| Row Active Time (tRASmin) | 32ns (min.) |
| Height (with heatsink) | 1.37" (34.9mm) |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| On-Die ECC | Yes |
| UL Rating | 94 V-0 |
| SKU | KF556C36BBEK2-64 |
| EAN/UPC Code | 740617331745 |
| Warranty | Lifetime |
