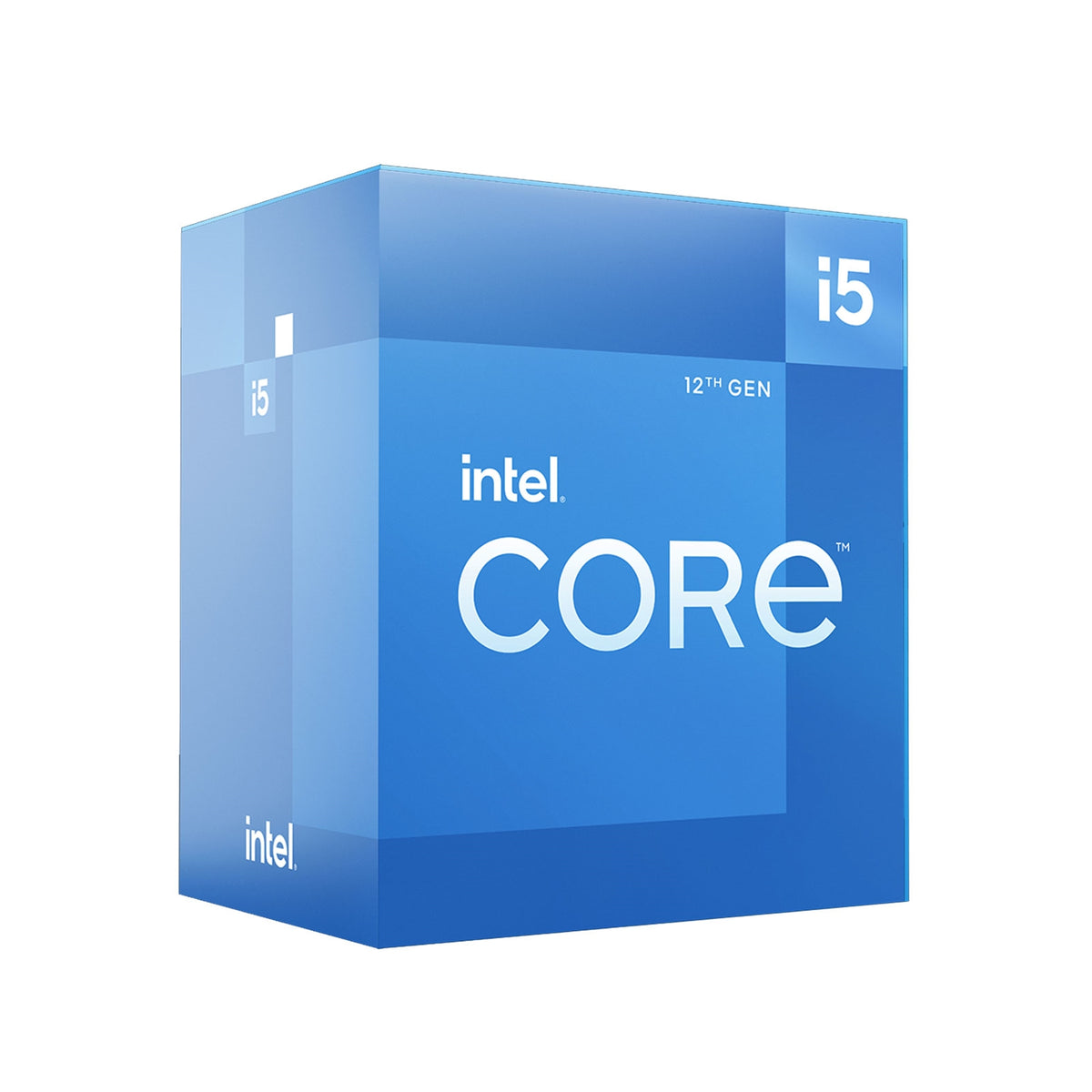

Intel BX8071512400F Alder Lake Processor
Experience responsive performance with the Intel BX8071512400F Alder Lake desktop processor, designed for LGA1700-based systems and modern PCI Express connectivity.
Key Features
- Chip Name: BX8071512400F Alder Lake
- Socket Compatibility: LGA1700
- Total Cores: 6
- Performance Cores: 6
- Efficient Cores: 0
- Total Threads: 12
- Integrated Graphics: No
- Heatsink Included: Yes
- Packaging: Retail
Performance Specifications
| Specification | Value |
|---|---|
| Total Cores | 6 |
| Performance Cores | 6 |
| Efficient Cores | 0 |
| Total Threads | 12 |
| Max Turbo Frequency | 4.40 GHz |
| Intel Turbo Boost Max Tech 3.0 Frequency | N/A |
| Performance-core Max Turbo Frequency | 4.40 GHz |
| Efficient-core Max Turbo Frequency | N/A |
| Performance-core Base Frequency | 2.50 GHz |
| Efficient-core Base Frequency | N/A |
| Cache | 18 MB |
| Total L2 Cache | 7.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 117 W |
Memory Support
| Specification | Value |
|---|---|
| Max Memory Size (dependent on memory type) | 128 GB |
Graphics
| Specification | Value |
|---|---|
| Processor Graphics | No |
| Graphics Base Frequency | N/A |
| Graphics Max Dynamic Frequency | N/A |
| Graphics Output | N/A |
| Execution Units | N/A |
| Max Resolution (HDMI) | N/A |
| Max Resolution (DP) | N/A |
| DirectX Support | N/A |
| OpenGL Support | N/A |
| Intel Quick Sync Video | N/A |
| Intel Clear Video HD Technology | N/A |
| Number of Displays Supported | N/A |
| OpenCL Support | N/A |
Expansion & Interface
| Specification | Value |
|---|---|
| Direct Media Interface (DMI) | N/A |
| PCI Express Revision | 5.0 and 4.0 |
| Max Number of PCI Express Lanes | 20 |
