GIGABYTE

Gigabyte X870E AORUS PRO X3D ICE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

Gigabyte X870E AORUS PRO X3D ICE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

£373.68 GBP
£373.68 GBP
Sale Sold out
Taxes included.
View full details

X870E AORUS PRO X3D ICE Motherboard

Key Features

  • X3D Turbo Mode 2.0
  • Incredible X3D performance unleashed by AI

  • DDR5 overclocking support up to 9000 MT/s

  • DriverBIOS

  • Wi‑Fi driver pre-install

  • Power-On & easy network launch

  • AMD Socket AM5

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

  • Robust Power Delivery

  • Digital Twin 18+2+2 phases VRM solution

  • High-Speed DDR5 Memory

  • Dual channel DDR5

  • 4 x DIMM slots with AMD EXPO™ memory module support

  • Advanced M.2 Design

  • M.2 EZ-Flex: high-efficiency heat dissipation and flexible patented baseplate for M.2 SSD

  • M.2 EZ-Latch Click & Plus: quick release and screwless design on M.2 slots and heatsinks

  • Connectivity & Networking

  • Fast Networking: 5GbE LAN & Wi‑Fi 7 with directional ultra-high gain antenna

  • Extended Connectivity: HDMI, Dual USB4 Type‑C with DP‑Alt, Front QC‑USB 65W

  • Thermal & PCB Engineering

  • Efficient Thermal: VRM Thermal Armor Advanced, M.2 Thermal Guard L & M.2 Thermal Guard Ext.

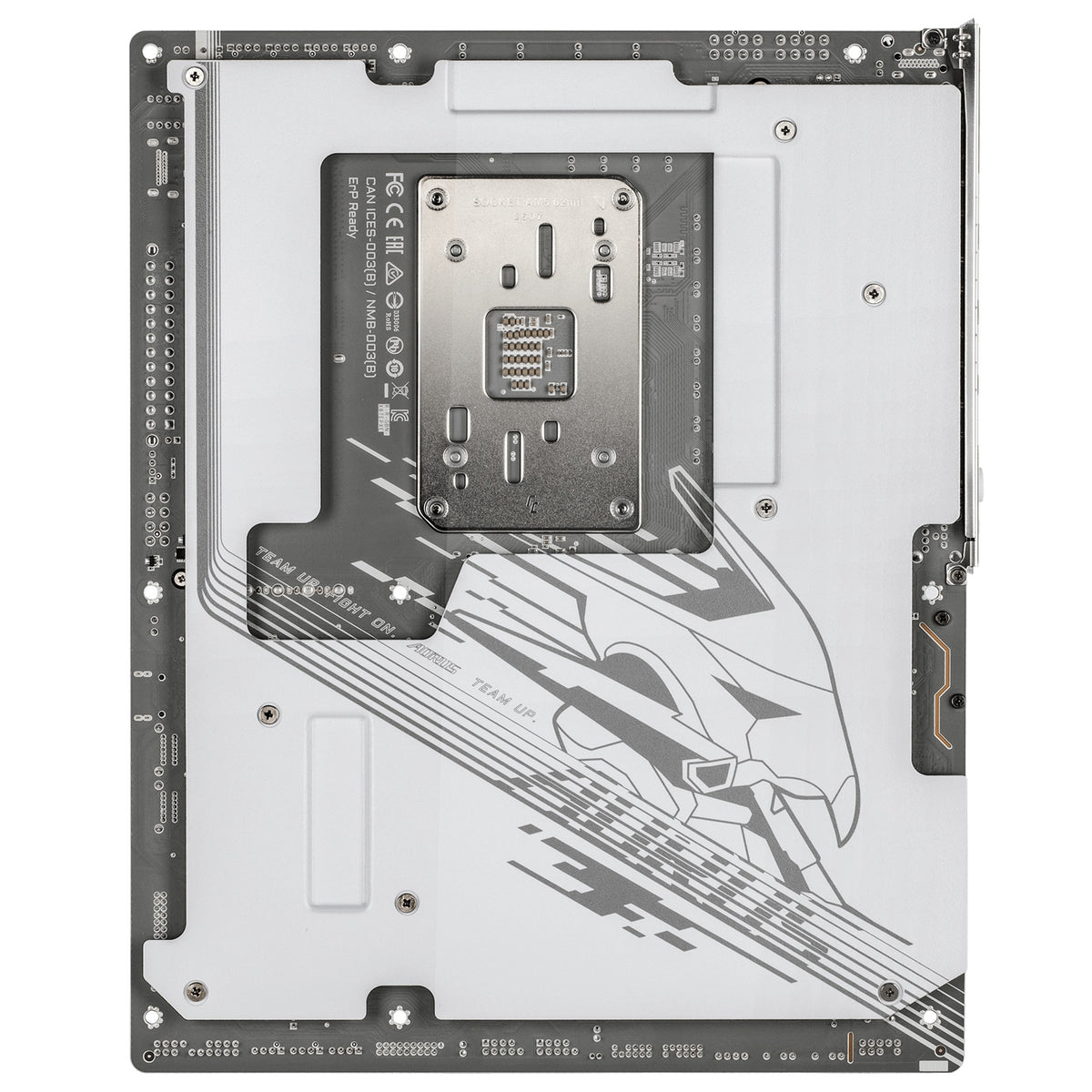

  • PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability

  • PCIe & Expansion

  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

  • User-Friendly Experience

  • Friendly UI: Multi-Theme, AIO Fan Control, and Q‑Flash Auto Scan in BIOS and software
  • WIFI EZ-Plug: quick and easy design for Wi‑Fi antenna installation

Specifications

CPU

Item Details
Socket AMD Socket AM5
CPU Support AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

Chipset

Item Details
Chipset AMD X870E

Memory

Item Details
Memory Type DDR5
Supported Speeds 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s
DIMM Slots 4 x DDR5 DIMM sockets
Max Capacity Up to 256 GB (64 GB per DIMM)
Architecture Dual channel memory architecture
Module Support Non‑ECC Un‑buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
Overclock Profiles AMD EXPO™ and XMP memory modules support

Onboard Graphics

Item Details
Integrated GPU Integrated Graphics Processor with AMD Radeon™ Graphics support

USB4® / Display Outputs via ASMedia USB4® Controller
- 2 x USB4® USB Type‑C® ports
- USB4 and DisplayPort video output
- Maximum resolution: 3840x2160 @ 240 Hz

HDMI Outputs via Integrated Graphics
- 1 x HDMI port
- Maximum resolution: 4096x2160 @ 60 Hz
- 1 x front HDMI port
- Maximum resolution: 1920x1080 @ 30 Hz

Audio

Item Details
Codec Realtek® ALC1220
Audio Type High Definition Audio
Channels 2 / 4 / 5.1 / 7.1‑channel
Digital Output Support for S/PDIF Out

LAN

Item Details
Controller Realtek® 5GbE LAN chip
Speeds 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps

Wireless Communication

Item Details
Module Qualcomm® Wi‑Fi 7 QCNCM865
Standards 802.11a / b / g / n / ac / ax / be
Frequency Bands 2.4 / 5 / 6 GHz carrier frequency bands
Bluetooth BLUETOOTH 5.4
Wireless Standard Support for 11be 320 MHz wireless standard

Expansion Slots

Item Details
CPU-Integrated Slot 1 x PCI Express x16 (PCIEX16)

PCIEX16 (CPU Integrated) Modes
- AMD Ryzen™ 9000 / 7000 Series: PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series‑Phoenix 1: PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series‑Phoenix 2: PCIe 4.0 x4 mode

Chipset Slots
- 1 x PCI Express x16 slot (PCIEX4), PCIe 4.0, running at x4
- 1 x PCI Express x16 slot (PCIEX2), PCIe 3.0, running at x2

Storage Interface

Item Details
M2A_CPU 1 x M.2 (Socket 3, M key, type 25110/22110/2580/2280 SSDs)

M2A_CPU Support
- AMD Ryzen™ 9000 / 7000 Series: PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series‑Phoenix 1: PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series‑Phoenix 2: PCIe 4.0 x4/x2 SSDs

Item Details
M2B_CPU 1 x M.2 (Socket 3, M key, type 22110/2280 SSDs)

M2B_CPU Support
- AMD Ryzen™ 9000 / 7000 Series: PCIe 5.0 x4/x2 SSDs

Item Details
M2C_SB / M2D_SB 2 x M.2 (Socket 3, M key, type 22110/2280)

M2C_SB & M2D_SB (Chipset)
- PCIe 4.0 x4/x2 SSDs

Item Details
SATA 4 x SATA 6 Gb/s connectors

RAID Support
- NVMe SSD: RAID 0, 1, 5, 10
- SATA: RAID 0, 1, 10

USB

CPU + ASMedia USB4® Controller
- 2 x USB4® USB Type‑C® ports on the back panel

CPU
- 1 x USB Type‑C® port on the back panel (USB 3.2 Gen 2)

Chipset + USB 3.2 Gen 1 Hub
- 4 x USB 3.2 Gen 1 ports via internal USB headers

Chipset
- 1 x USB Type‑C® header with USB 3.2 Gen 2x2 support (up to 65W PD 3.0 / QC 4+ fast charging)
- 1 x USB Type‑C® port on the back panel (USB 3.2 Gen 2)
- 5 x USB 3.2 Gen 2 Type‑A ports (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports via internal USB headers

Internal I/O Connectors

  • 1 x 24‑pin ATX main power connector
  • 2 x 8‑pin ATX 12V power connectors
  • 1 x PCIe power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x SATA 6 Gb/s connectors
  • 4 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type‑C® header (USB 3.2 Gen 2x2)
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 1 x HDMI port (Note)
  • 1 x Trusted Platform Module header (for GC‑TPM2.0 SPI V2 module only)
  • 2 x temperature sensor headers
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

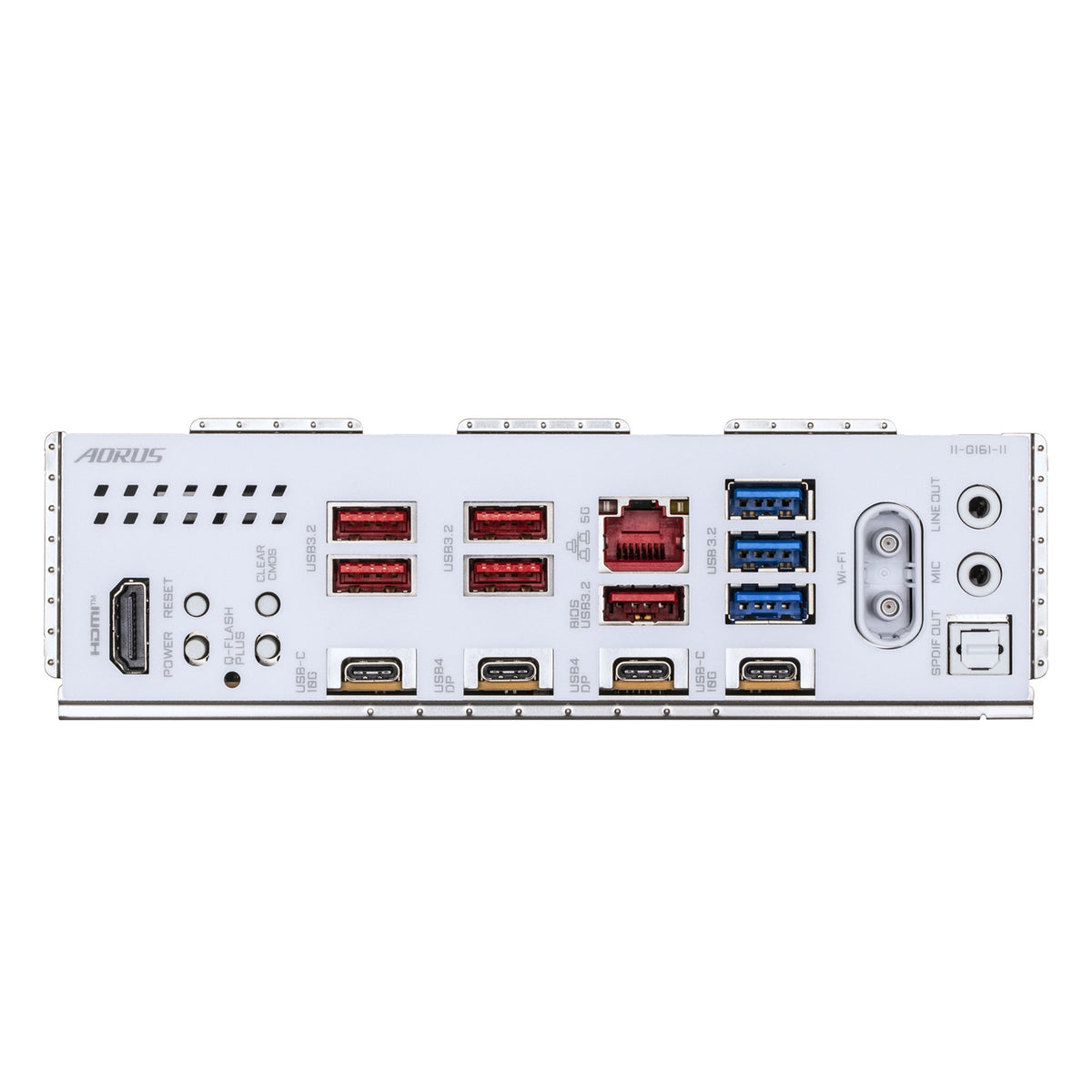

Back Panel Connectors

  • 1 x HDMI port (Note)
  • 1 x reset button
  • 1 x power button
  • 1 x Clear CMOS button
  • 1 x Q‑Flash Plus button
  • 5 x USB 3.2 Gen 2 Type‑A ports (red)
  • 2 x USB Type‑C® ports with USB 3.2 Gen 2 support
  • 2 x USB4® USB Type‑C® ports (DisplayPort (Note))
  • 1 x RJ‑45 LAN port
  • 3 x USB 3.2 Gen 1 ports
  • 2 x antenna connectors (2T2R)
  • 2 x audio jacks
  • 1 x optical S/PDIF Out connector

I/O Controller

Item Details
Controller iTE® I/O Controller Chip

H/W Monitoring

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control*
  • Noise detection

* Support for fan/pump speed control depends on the installed fan/pump.

BIOS

  • 1 x 512 Mbit flash
  • AMI UEFI BIOS (licensed)
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • Support for GIGABYTE Control Center (GCC)
  • Support for Q‑Flash
  • Support for Q‑Flash Plus
  • Support for Smart Backup

Bundled Software

  • Norton Internet Security (OEM version)
  • LAN bandwidth management software

Operating System Support

  • Windows 11 64‑bit

Form Factor

Item Details
Form Factor ATX
Dimensions 30.5 cm x 24.4 cm
