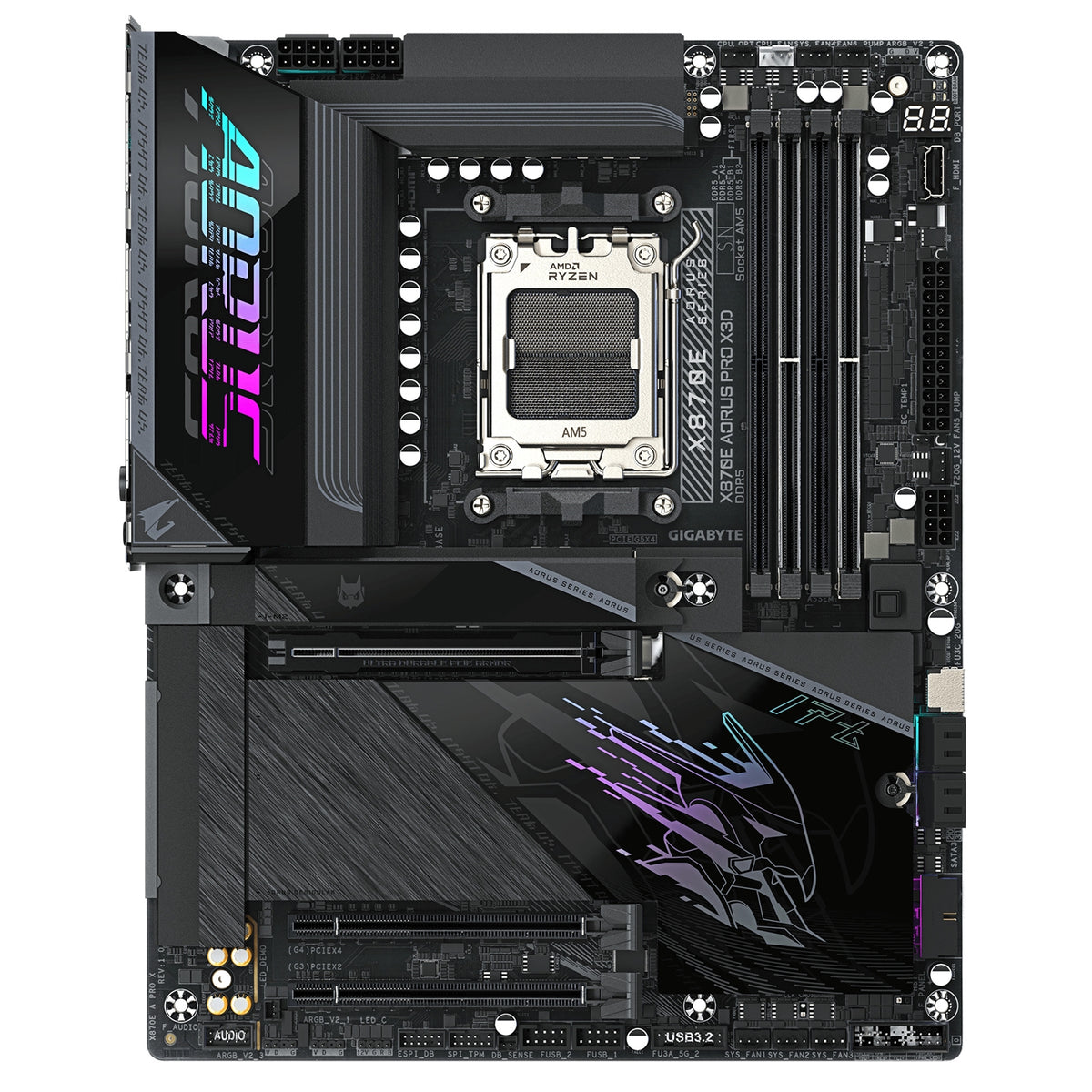

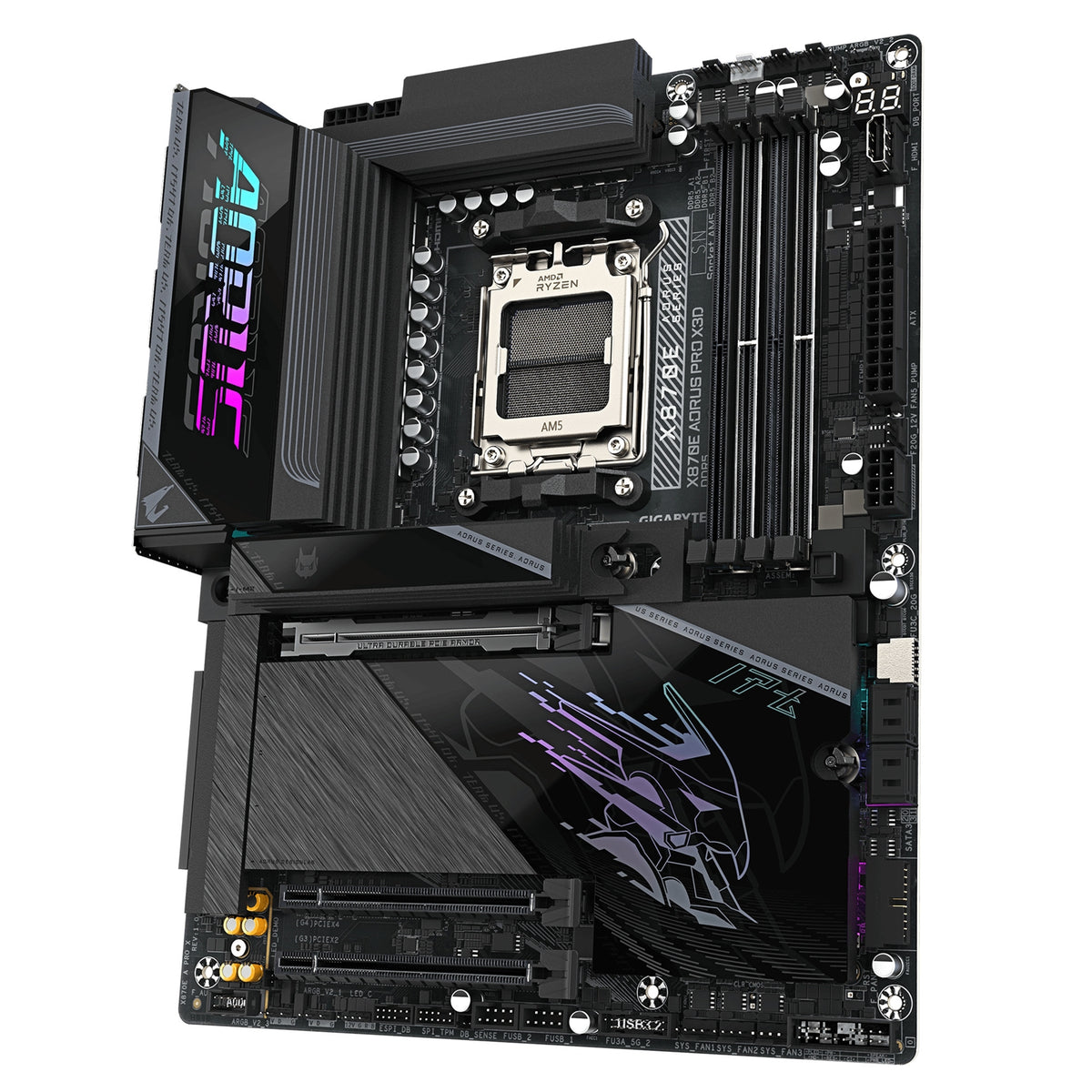

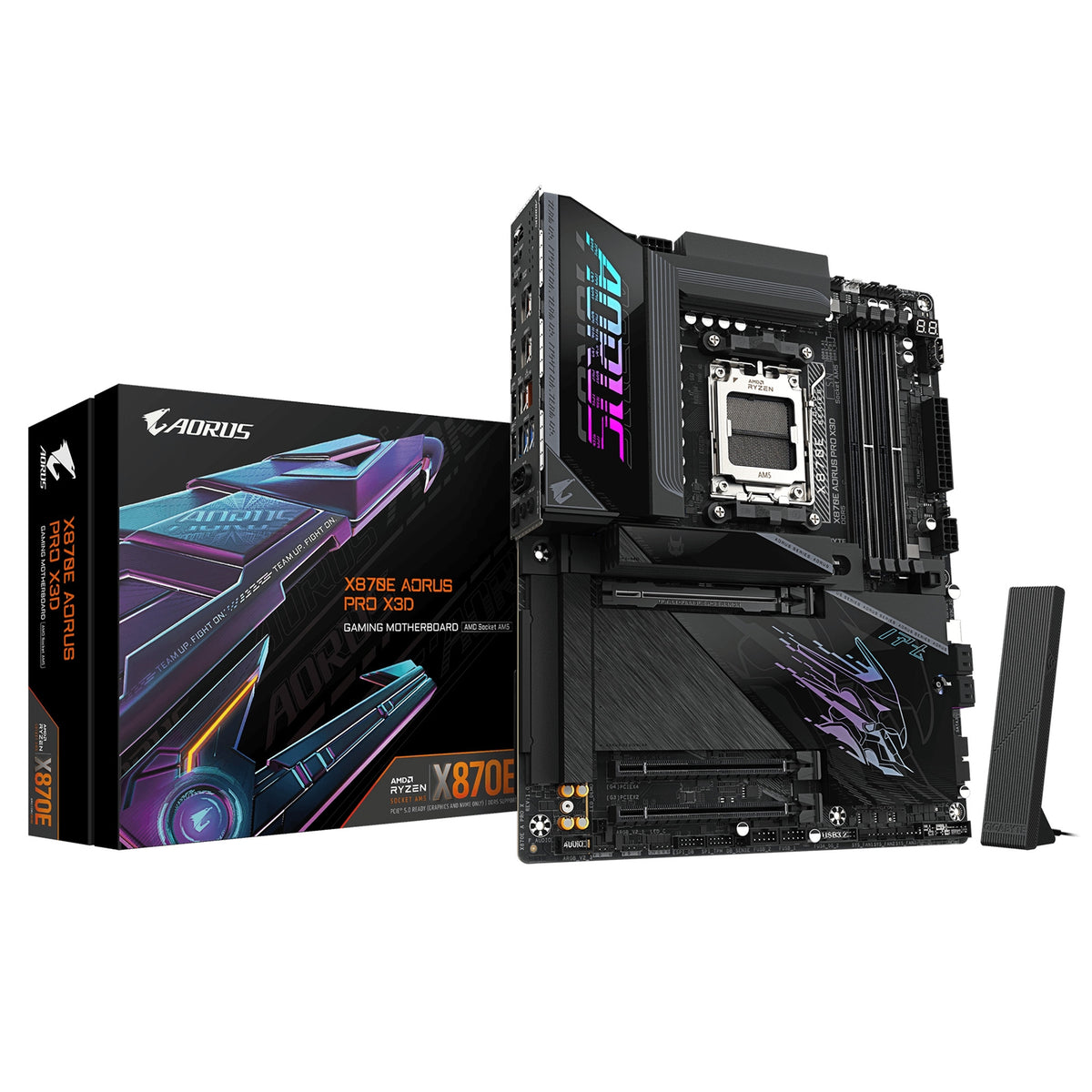

X870E AORUS PRO X3D Motherboard
Key Features
- X3D Turbo Mode 2.0
- AIDDR5 OC up to 9000 MT/s
-
Designed for incredible X3D performance
-
DriverBIOS Convenience
- Wi-Fi driver pre-install
-
Power-On & easy network launch
-
AMD Socket AM5 Support
- AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
-
AMD Ryzen™ 7000 Series Processors
-
Robust Power Design
-
Digital twin 18+2+2 phases VRM solution
-
High-Speed DDR5 Memory
- Dual Channel DDR5
-
4 x DIMM with AMD EXPO™ support
-
M.2 Design & Cooling
- M.2 EZ-Flex: high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
-
M.2 EZ-Latch Click & Plus: quick-release, screwless design for M.2 slots and heatsinks
-
User-Friendly Wi-Fi & BIOS
- WIFI EZ-Plug: quick, easy antenna installation
-
Friendly UI: multi-theme, AIO fan control, and Q-Flash auto scan in BIOS and software
-
Ultra-Fast Storage
-
4 x M.2 slots, including PCIe 5.0 x4
-
Enhanced Thermal & Stability

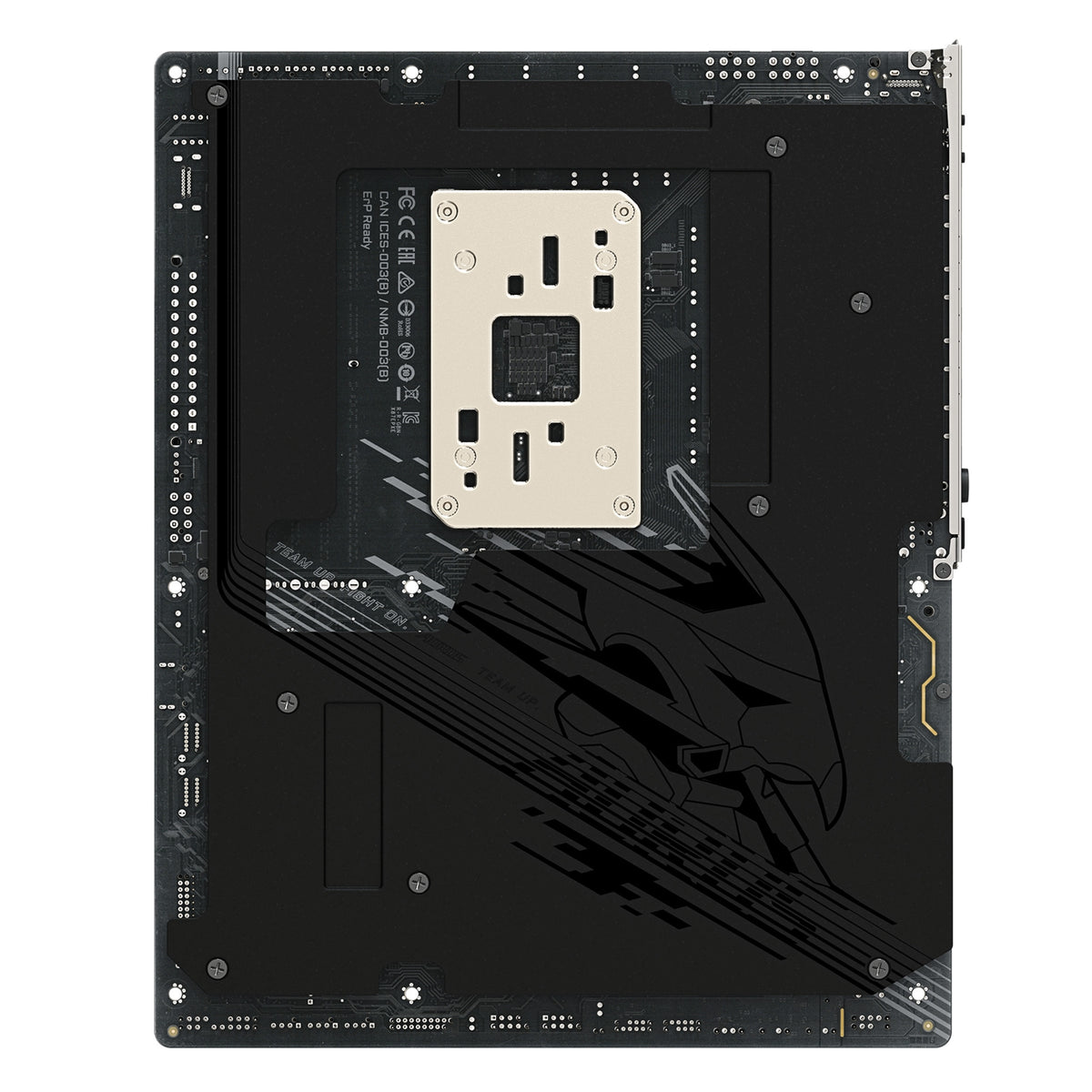

- PCB thermal plate with 14% thermal improvement and reinforced stability
-
Efficient thermal design with VRM Thermal Armor Advanced, M.2 Thermal Guard L & M.2 Thermal Guard Ext
-
High-Speed Networking
- 5GbE LAN
-

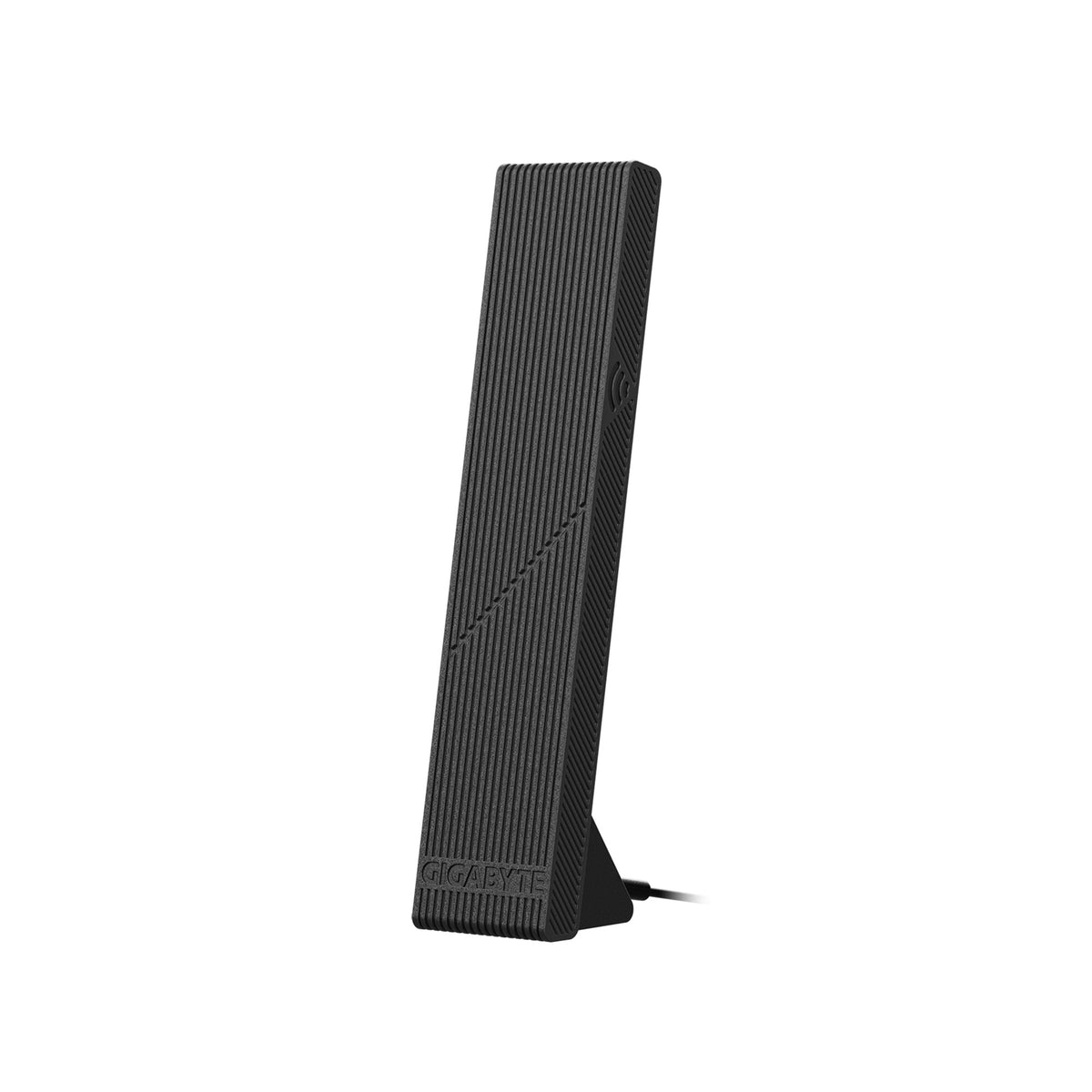

Wi-Fi 7 with directional ultra-high gain antenna
-
Extended Connectivity
- HDMI
- Dual USB4 Type-C with DP-Alt
-
Front QC-USB 65W
-
Reinforced Graphics Slot
- PCIe UD Slot X: PCIe 5.0 x16 with 10x strength for graphics card
Specifications
CPU
| Item | Details |
|---|---|
| Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
Chipset
| Item | Details |
|---|---|
| Chipset | AMD X870E |
Memory
| Item | Details |
|---|---|
| Memory Type | DDR5 |
| Supported Speeds | 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s |
| Slots | 4 x DDR5 DIMM sockets |
| Maximum Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| Module Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| Profile Support | AMD EXPO™ and XMP memory modules |
Onboard Graphics
| Item | Details |
|---|---|
| Integrated GPU | Integrated Graphics Processor with AMD Radeon™ Graphics support |
| USB4 Display | 2 x USB4® Type-C® ports (ASMedia USB4® Controller), supporting USB4 and DisplayPort, max 3840x2160@240 Hz |
| Rear HDMI | 1 x HDMI port, max 4096x2160@60 Hz |
| Front HDMI | 1 x front HDMI port, max 1920x1080@30 Hz |
Audio
| Item | Details |
|---|---|
| Codec | Realtek® ALC1220 |
| Audio Type | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel |
| Digital Output | S/PDIF Out support |
LAN
| Item | Details |
|---|---|
| Controller | Realtek® 5GbE LAN chip |
| Speeds | 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless Communication
| Item | Details |
|---|---|
| Controller | Qualcomm® Wi-Fi 7 QCNCM865 |
| Standards | 802.11a/b/g/n/ac/ax/be |
| Bands | 2.4 / 5 / 6 GHz |
| Bluetooth | Bluetooth 5.4 |
| Wireless Standard | 11be 320 MHz support |
Expansion Slots
| Slot | Interface / Source | Mode Support |
|---|---|---|
| 1 x PCIEX16 | CPU | AMD Ryzen™ 9000/7000: PCIe 5.0 x16 mode |
| AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode | ||
| AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode | ||
| 1 x PCIEX4 | Chipset | PCIe 4.0 x4 |
| 1 x PCIEX2 | Chipset | PCIe 3.0 x2 |
Storage
| Connector | Source | Type / Key | Supported Sizes | Interface Support |
|---|---|---|---|---|
| 1 x M2A_CPU | CPU | Socket 3, M key | 25110/22110/2580/2280 | Ryzen™ 9000/7000: PCIe 5.0 x4/x2 SSDs; Ryzen™ 8000 Phoenix 1/2: PCIe 4.0 x4/x2 SSDs |
| 1 x M2B_CPU | CPU | Socket 3, M key | 22110/2280 | Ryzen™ 9000: PCIe 5.0 x4/x2 SSDs |
| 2 x M2C_SB, M2D_SB | Chipset | Socket 3, M key | 22110/2280 | PCIe 4.0 x4/x2 SSDs |
| 4 x SATA | Chipset | SATA 6Gb/s | — | SATA devices |
RAID Support
- NVMe SSDs: RAID 0, 1, 5, 10
- SATA devices: RAID 0, 1, 10
USB
CPU + ASMedia USB4® Controller
- 2 x USB4® Type-C® ports on the back panel
CPU
- 1 x USB Type-C® port on the back panel (USB 3.2 Gen 2)
Chipset + USB 3.2 Gen 1 Hub
- 4 x USB 3.2 Gen 1 ports (via internal headers)
Chipset
- 1 x USB Type-C® internal header with USB 3.2 Gen 2x2 support (up to 65W PD 3.0/QC 4+ fast charging)
- 1 x USB Type-C® port on the back panel (USB 3.2 Gen 2)
- 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports (via internal headers)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x PCIe power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x SATA 6Gb/s connectors
- 4 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header (USB 3.2 Gen 2x2)
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 1 x HDMI port (Note)
- 1 x Trusted Platform Module header (GC-TPM2.0 SPI V2 only)
- 2 x temperature sensor headers
- 1 x reset jumper
- 1 x Clear CMOS jumper

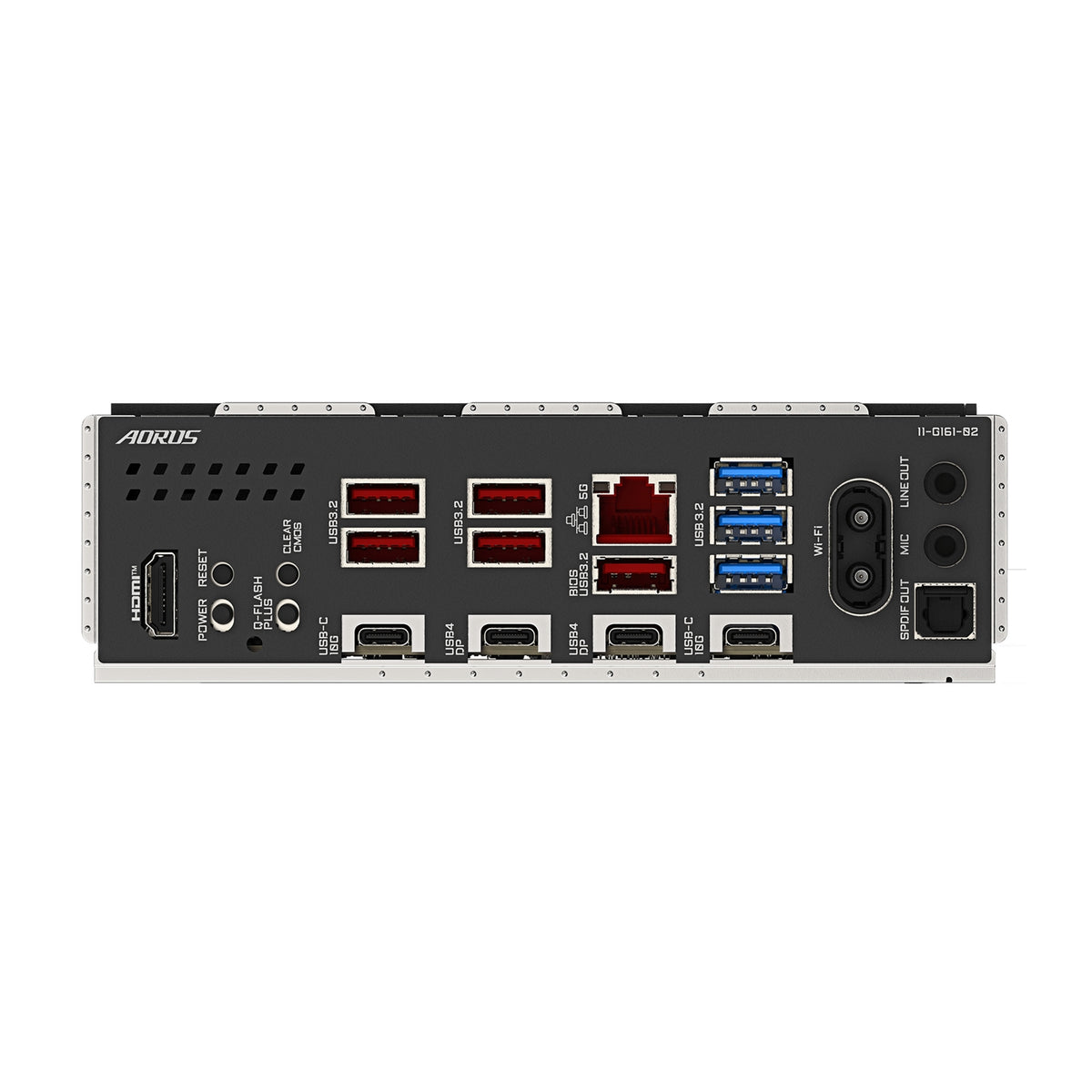

Back Panel Connectors
- 1 x HDMI port (Note)
- 1 x reset button
- 1 x power button
- 1 x Clear CMOS button
- 1 x Q-Flash Plus button
- 5 x USB 3.2 Gen 2 Type-A ports (red)
- 2 x USB Type-C® ports with USB 3.2 Gen 2 support
- 2 x USB4® Type-C® ports (DisplayPort support (Note))
- 1 x RJ-45 port
- 3 x USB 3.2 Gen 1 ports
- 2 x antenna connectors (2T2R)
- 2 x audio jacks
- 1 x optical S/PDIF Out connector
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control*
- Noise detection
* Fan/pump speed control support depends on the installed fan/pump.
BIOS
- 1 x 512 Mbit flash
- AMI UEFI BIOS (licensed)
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
- Support Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
Form Factor
| Item | Details |
|---|---|
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
