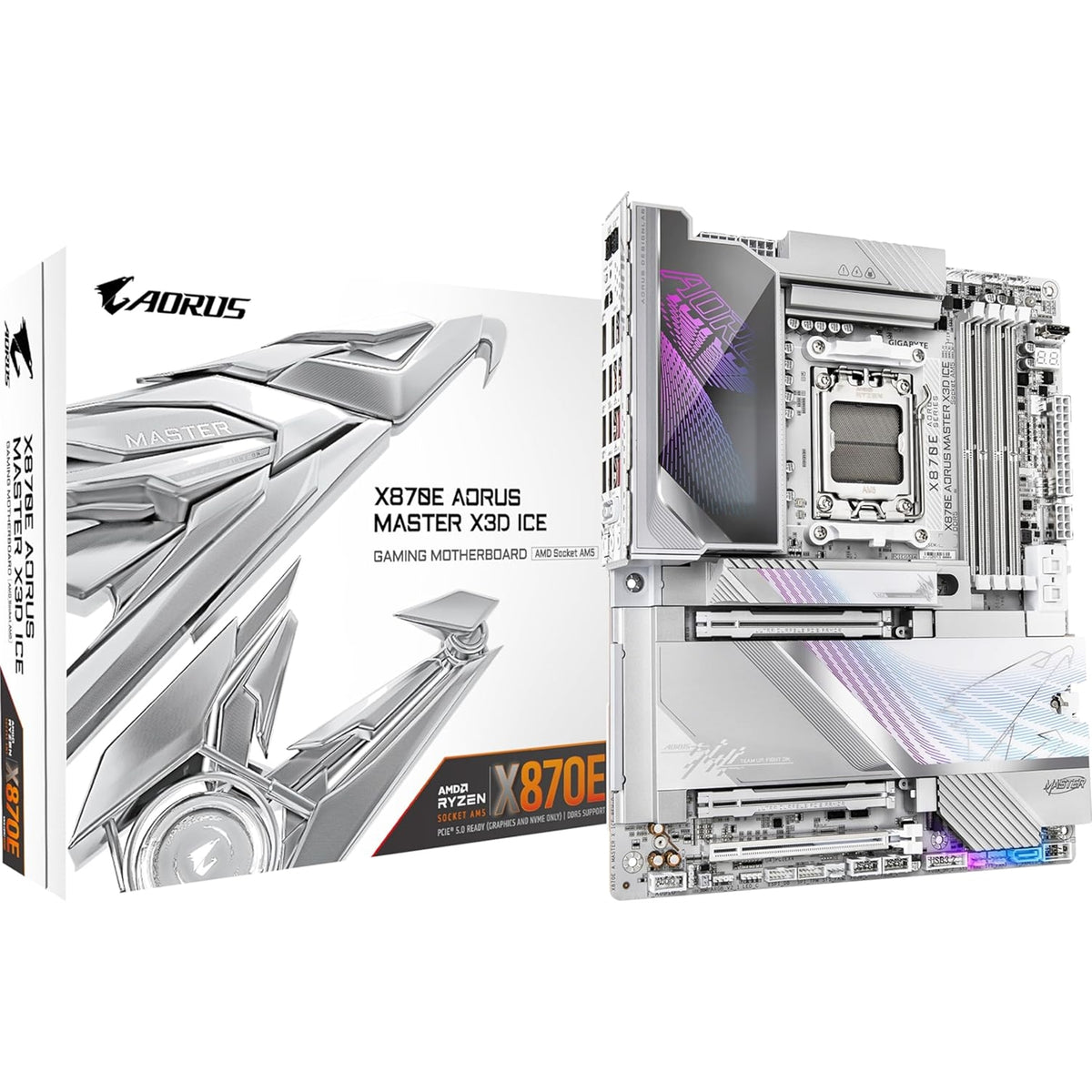

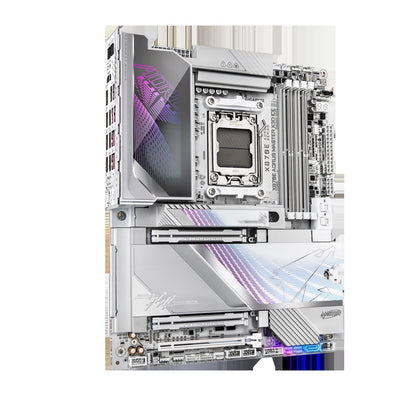

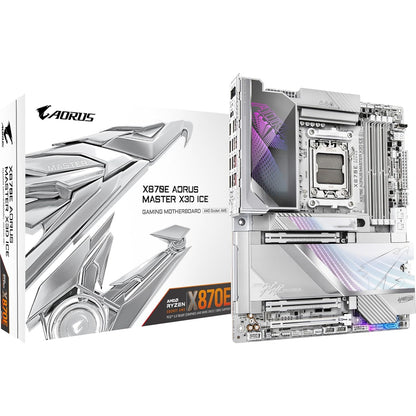

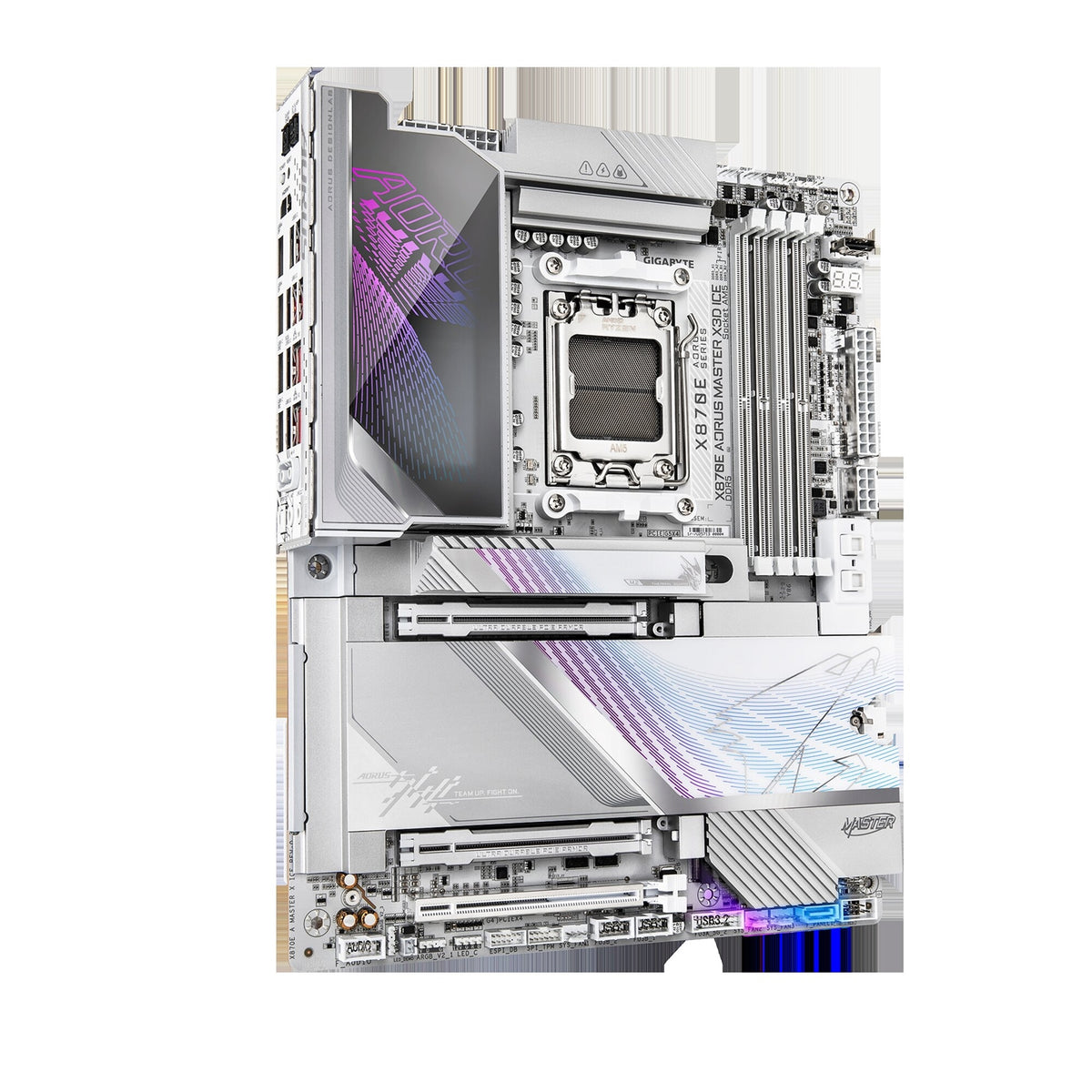

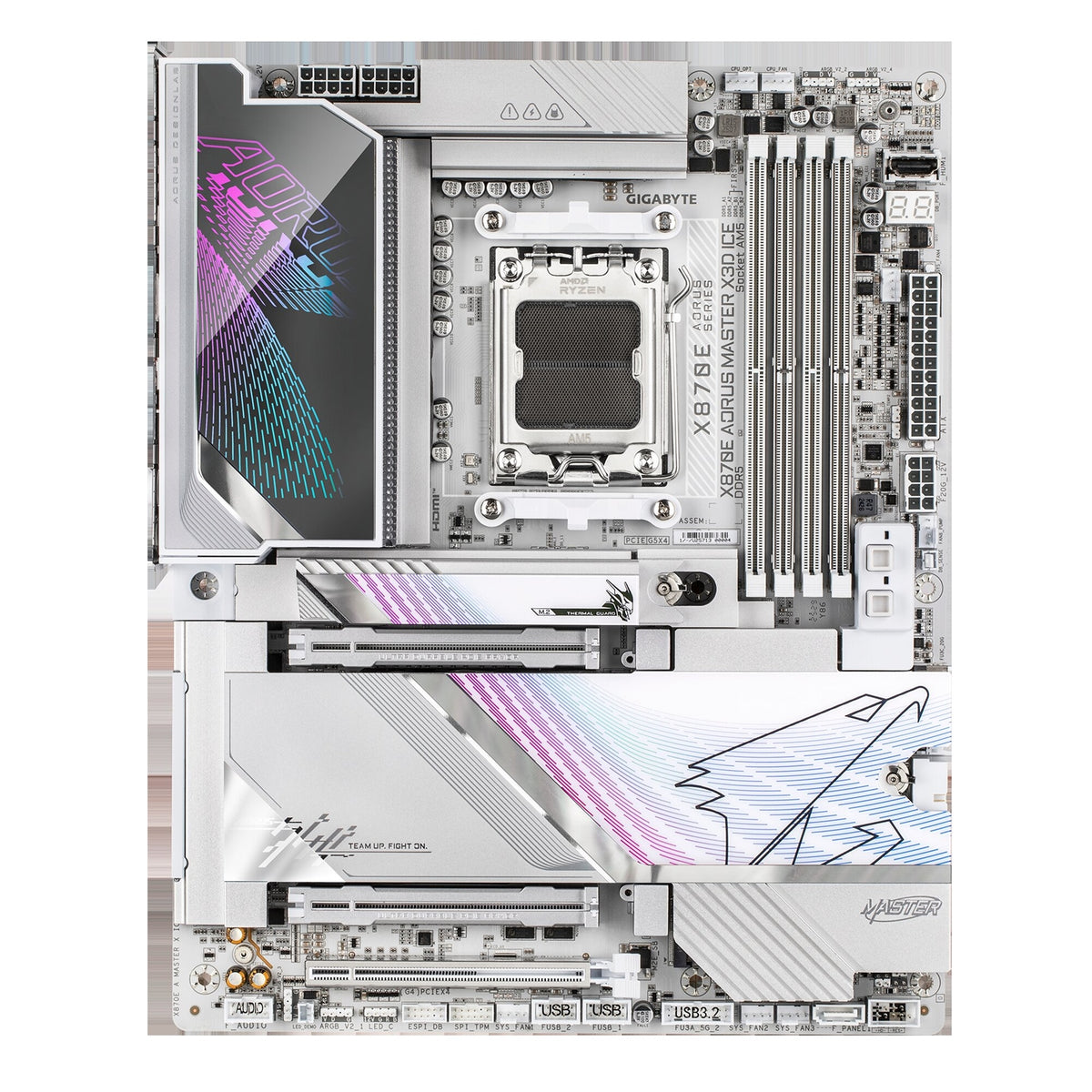

Gigabyte X870E AORUS MASTER X3D ICE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 5x M.2 Sockets, Fitted I/O Shield, 10GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

Gigabyte X870E AORUS MASTER X3D ICE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 5x M.2 Sockets, Fitted I/O Shield, 10GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

£491.76 GBP
£491.76 GBP
Sale Sold out
Taxes included.
View full details

X870E AORUS MASTER X3D ICE Motherboard

The X870E AORUS MASTER X3D ICE is engineered for next-generation AMD Ryzen™ platforms, combining advanced power delivery, ultra-fast storage, and comprehensive connectivity in an ATX form factor.

Key Features

  • X3D Turbo Mode 2.0
    Designed to unleash incredible X3D performance.

  • DDR5 Overclocking up to 9000 MT/s
    Supports high-speed DDR5 memory for extreme performance tuning.

  • DriverBIOS

  • Wi-Fi driver pre-install

  • Power-On & easy network launch

  • AMD Socket AM5 Support
    Compatible with:

  • AMD Ryzen™ 9000 Series Processors
  • AMD Ryzen™ 8000 Series Processors

  • AMD Ryzen™ 7000 Series Processors

  • Digital Twin 18+2+2 Phases VRM Solution
    For robust and stable power delivery.

  • Dual Channel DDR5 (4 x DIMM)

  • AMD EXPO™ memory module support

  • PCIe EZ-Latch Plus Duo
    One-click, screwless quick release for dual PCIe slots.

  • M.2 EZ-Flex
    High-efficiency heat dissipation and flexible patented baseplate for M.2 SSDs.

  • WIFI EZ-Plug
    Quick and easy Wi‑Fi antenna installation.

  • M.2 EZ-Latch Click & Plus
    Screwless, quick-release design on M.2 slots and heatsinks.

  • Friendly UI
    Multi-theme interface, AIO fan control, and Q-Flash auto scan in BIOS and software.

  • Ultra-Fast Storage
    5 x M.2 slots, including PCIe 5.0 x4 support.

  • PCB Thermal Plate
    14% thermal improvement and enhanced motherboard stability.

  • Efficient Thermal Design

  • VRM Thermal Armor Advanced
  • M.2 Thermal Guard L

  • M.2 Thermal Guard Ext.

  • Fast Networking

  • 10GbE LAN + 5GbE LAN

  • Wi-Fi 7 with directional ultra-high gain antenna

  • Extended Connectivity

  • HDMI
  • Dual USB4 Type‑C with DP-Alt support

  • Front QC-USB 65W

  • PCIe UD Slot X
    PCIe 5.0 x16 slot with 10X strength for graphics cards.

Specifications

General

Category Details
Socket AMD Socket AM5
Chipset AMD X870E
Form Factor ATX, 30.5 cm x 24.4 cm
OS Support Windows 11 64-bit

CPU Support

  • AMD Ryzen™ 9000 Series Processors
  • AMD Ryzen™ 8000 Series Processors
  • AMD Ryzen™ 7000 Series Processors

Memory

  • Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules
  • 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM)
  • Dual channel memory architecture
  • Support for non-ECC un-buffered DIMM memory modules
  • Support for AMD EXPO™ and XMP memory modules

Onboard Graphics

  • Integrated Graphics Processor with AMD Radeon™ Graphics support

USB4 (via ASMedia USB4® Controller)
- 2 x USB4® Type‑C® ports
- USB4 and DisplayPort video outputs
- Max resolution: 3840 x 2160 @ 240 Hz

HDMI
- 1 x HDMI port
- Max resolution: 4096 x 2160 @ 60 Hz
- 1 x front HDMI port
- Max resolution: 1920 x 1080 @ 30 Hz

Audio

  • Realtek® ALC1220 CODEC
  • ESS ES9118 DAC chip
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2/4/5.1-channel support
  • Support for S/PDIF Out

LAN

  • Realtek® 5GbE LAN chip (LAN1)
  • 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps
  • Realtek® 10GbE LAN chip (LAN2)
  • 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps

Wireless Communication

  • MediaTek Wi‑Fi 7 MT7927, RZ738
  • 802.11a/b/g/n/ac/ax/be
  • 2.4 / 5 / 6 GHz bands
  • Bluetooth 5.4
  • Support for 11be 320 MHz wireless standard

Expansion Slots

CPU-integrated

  • 1 x PCI Express x16 slot (PCIEX16)
  • AMD Ryzen™ 9000/7000 Series: PCIe 5.0 x16
  • AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8

  • AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4

  • 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU

Chipset

  • 1 x PCI Express x16 slot (PCIEX4)
  • PCIe 4.0, running at x4

Storage

M.2 (Socket 3, M key)

  • 1 x M2A_CPU (type 2580/2280 SSDs)
  • AMD Ryzen™ 9000/7000: PCIe 5.0 x4/x2
  • AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x4/x2

  • AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4/x2

  • 1 x M2B_CPU (type 2280 SSDs)

  • AMD Ryzen™ 9000/7000: PCIe 5.0 x4/x2

  • 2 x M.2 (M2C_SB, M2D_SB), Chipset

  • Type 2280, PCIe 4.0 x4/x2 SSDs

  • 1 x M.2 (M2E_SB), Chipset

  • Type 2280, PCIe 4.0 x2 SSDs

SATA

  • 2 x SATA 6 Gb/s connectors

RAID Support

  • RAID 0, 1, 5, 10 for NVMe SSDs
  • RAID 5 available only on AMD Ryzen™ 9000 Series Processors
  • RAID 0, 1 for SATA storage devices

USB Connectivity

CPU + ASMedia USB4® Controller

  • 2 x USB4® Type‑C® ports (back panel)

CPU

  • 1 x USB 3.2 Gen 2 Type‑A port (red, back panel)

Chipset + USB 3.2 Gen 1 Hub

  • 4 x USB 3.2 Gen 1 ports via internal headers

Chipset

  • 1 x USB Type‑C® (back panel), USB 3.2 Gen 2x2
  • 1 x USB Type‑C® (back panel), USB 3.2 Gen 2
  • 1 x USB Type‑C® (internal header), USB 3.2 Gen 2x2
  • Supports up to 65W PD 3.0 / QC 4+ fast charging
  • 6 x USB 3.2 Gen 2 Type‑A ports (red, back panel)
  • 4 x USB 2.0/1.1 ports via internal headers

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x PCIe power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 4 x system fan headers
  • 1 x system fan extension cable header (supports three additional system fan headers)
  • 1 x system fan/water cooling pump header
  • 4 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 5 x M.2 Socket 3 connectors
  • 2 x SATA 6 Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x speaker header
  • 1 x USB Type‑C® header (USB 3.2 Gen 2x2)
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 1 x Trusted Platform Module header (GC-TPM2.0 SPI V2 only)
  • 1 x HDMI port (Note)
  • 1 x chassis intrusion header
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • 2 x temperature sensor headers

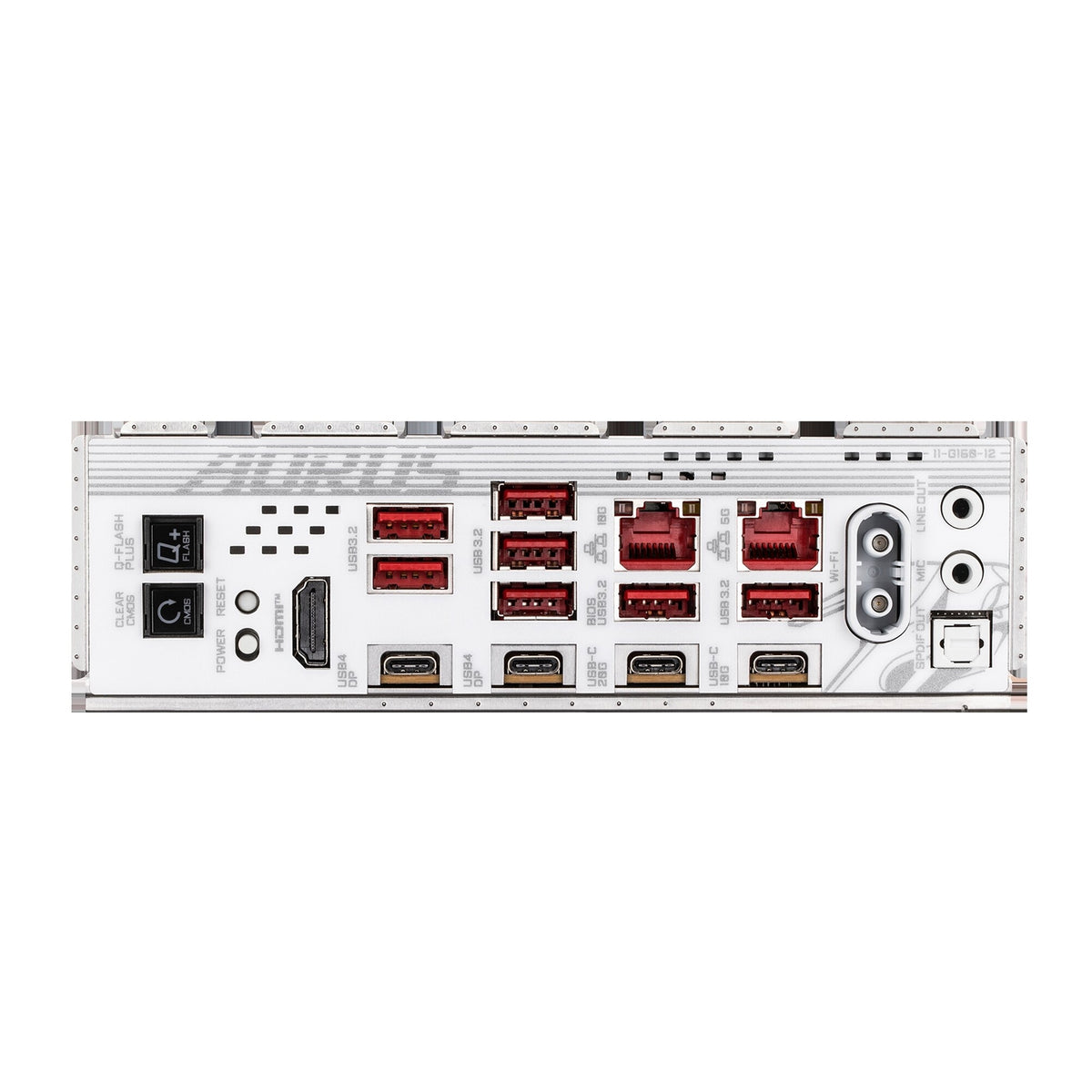

Back Panel Connectors

  • 1 x Q-Flash Plus button
  • 1 x Clear CMOS button
  • 1 x reset button
  • 1 x power button
  • 1 x HDMI port (Note)
  • 2 x USB4® Type‑C® ports (DisplayPort support, Note)
  • 1 x USB Type‑C® port (USB 3.2 Gen 2)
  • 1 x USB Type‑C® port (USB 3.2 Gen 2x2)
  • 7 x USB 3.2 Gen 2 Type‑A ports (red)
  • 2 x RJ‑45 LAN ports
  • 2 x antenna connectors (2T2R)
  • 2 x audio jacks
  • 1 x optical S/PDIF Out connector

I/O Controller & Monitoring

  • iTE® I/O Controller chip

H/W Monitoring

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control*
  • Noise detection

* Support depends on the installed fan/pump.

BIOS

  • 1 x 512 Mbit flash
  • AMI UEFI BIOS (licensed)
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup

Bundled Software

  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
