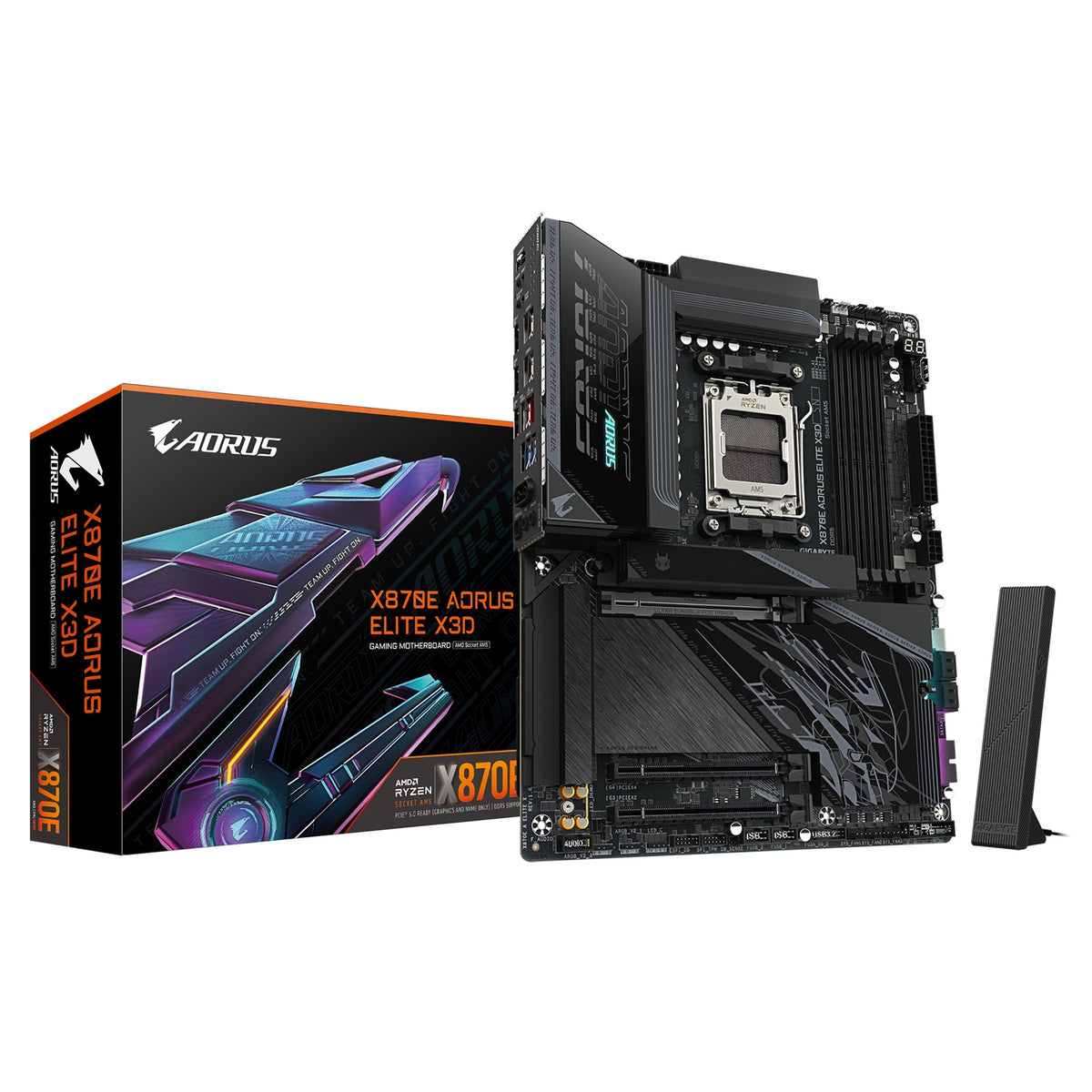

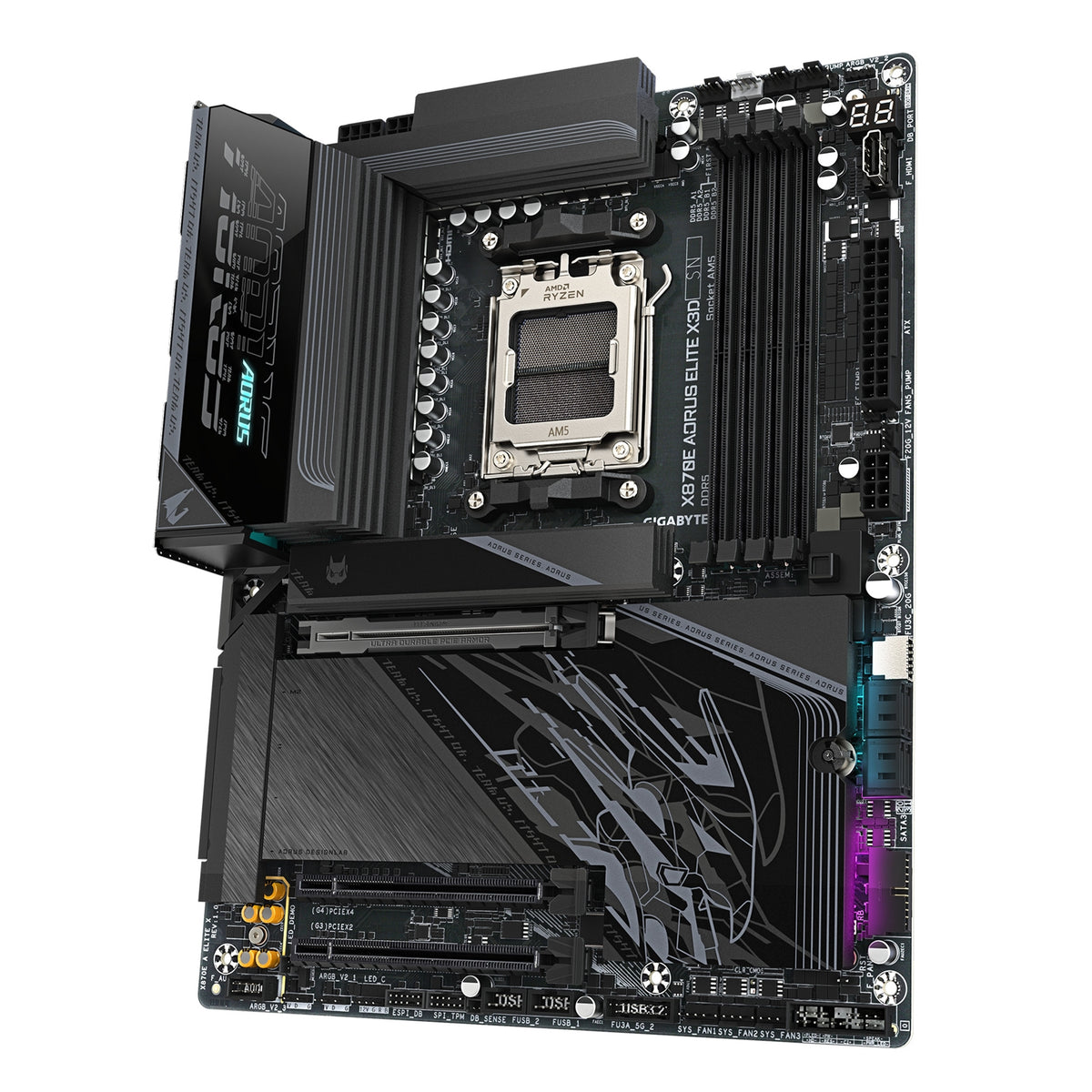

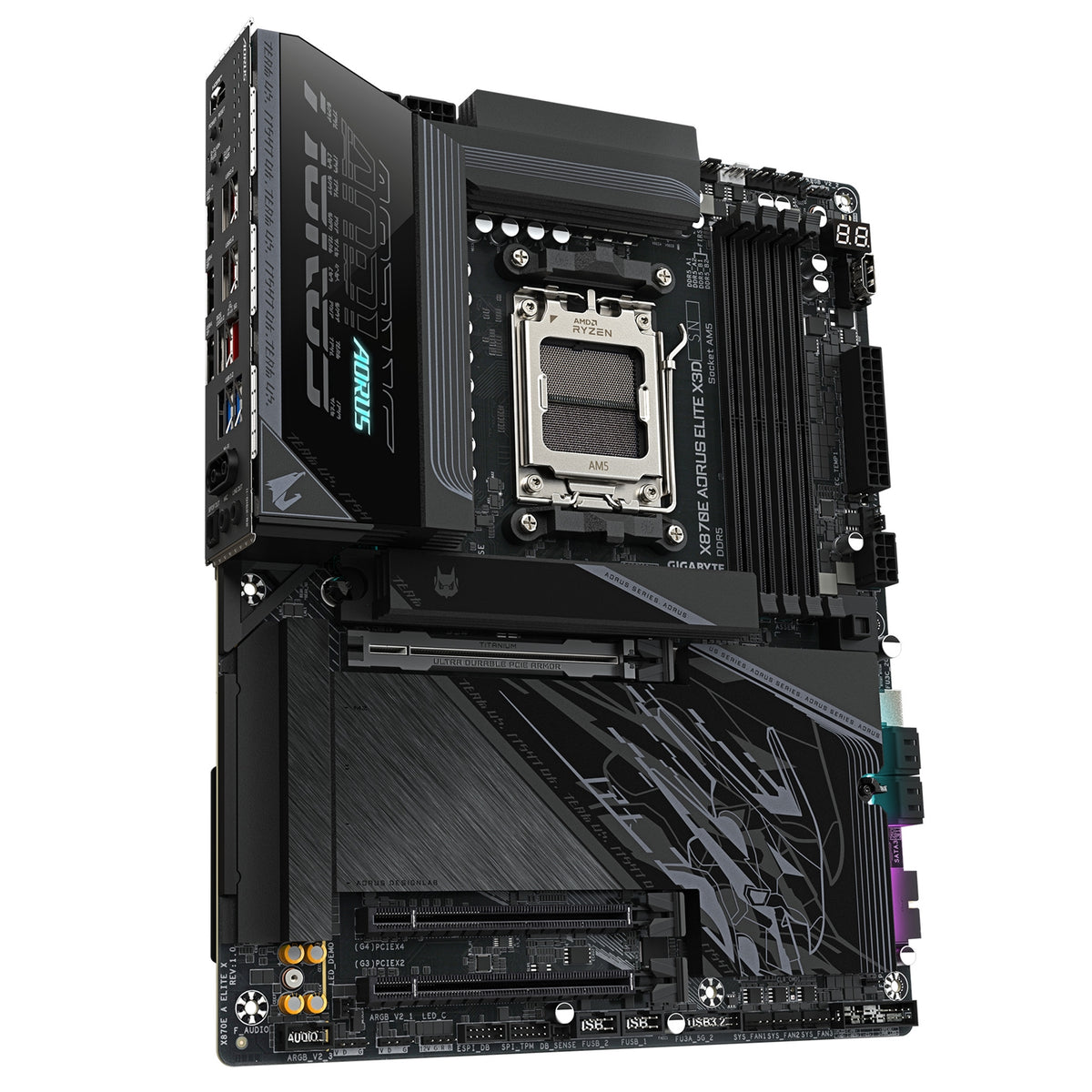

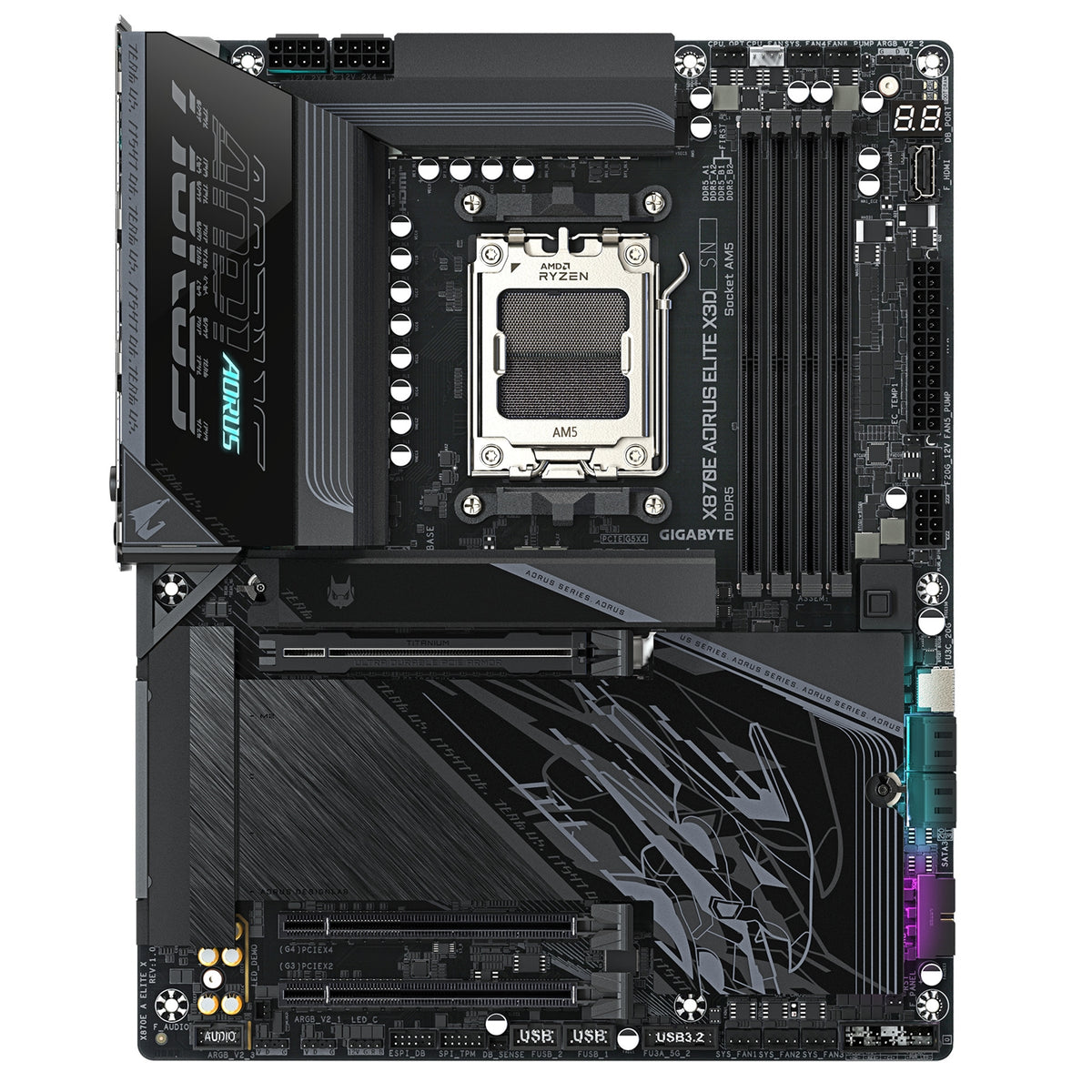

X870E AORUS ELITE X3D Motherboard
High-performance AMD X870E gaming motherboard with advanced connectivity, thermal design, and next‑gen storage support.
Key Features
-
X3D Turbo Mode 2.0
Incredible X3D performance unleashed by AI and DDR5 overclocking up to 9000 MT/s. -
DDR5 Overclocking up to 9000 MT/s
Dual channel DDR5 with 4 DIMM slots and AMD EXPO™ memory module support. -
AMD Socket AM5
Supports: - AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
-
AMD Ryzen™ 7000 Series Processors
-
Digital Twin 16+2+2 Phases VRM Solution
Designed for stable power delivery to high-end processors. -
BIOS & Driver Convenience
- Wi-Fi driver pre-install
-
Power-On & easy network launch
-
M.2 EZ-Flex
High-efficiency heat dissipation with flexible patented baseplate for M.2 SSDs. -
WIFI EZ-Plug
Quick and easy Wi‑Fi antenna installation. -
M.2 EZ-Latch Click & Plus
Quick-release, screwless design for M.2 slots and heatsinks. -
Friendly UI
Multi-theme interface, AIO fan control, and Q‑Flash auto scan in BIOS and software. -
Ultra-Fast Storage
4 x M.2 slots, including PCIe 5.0 x4 support. -

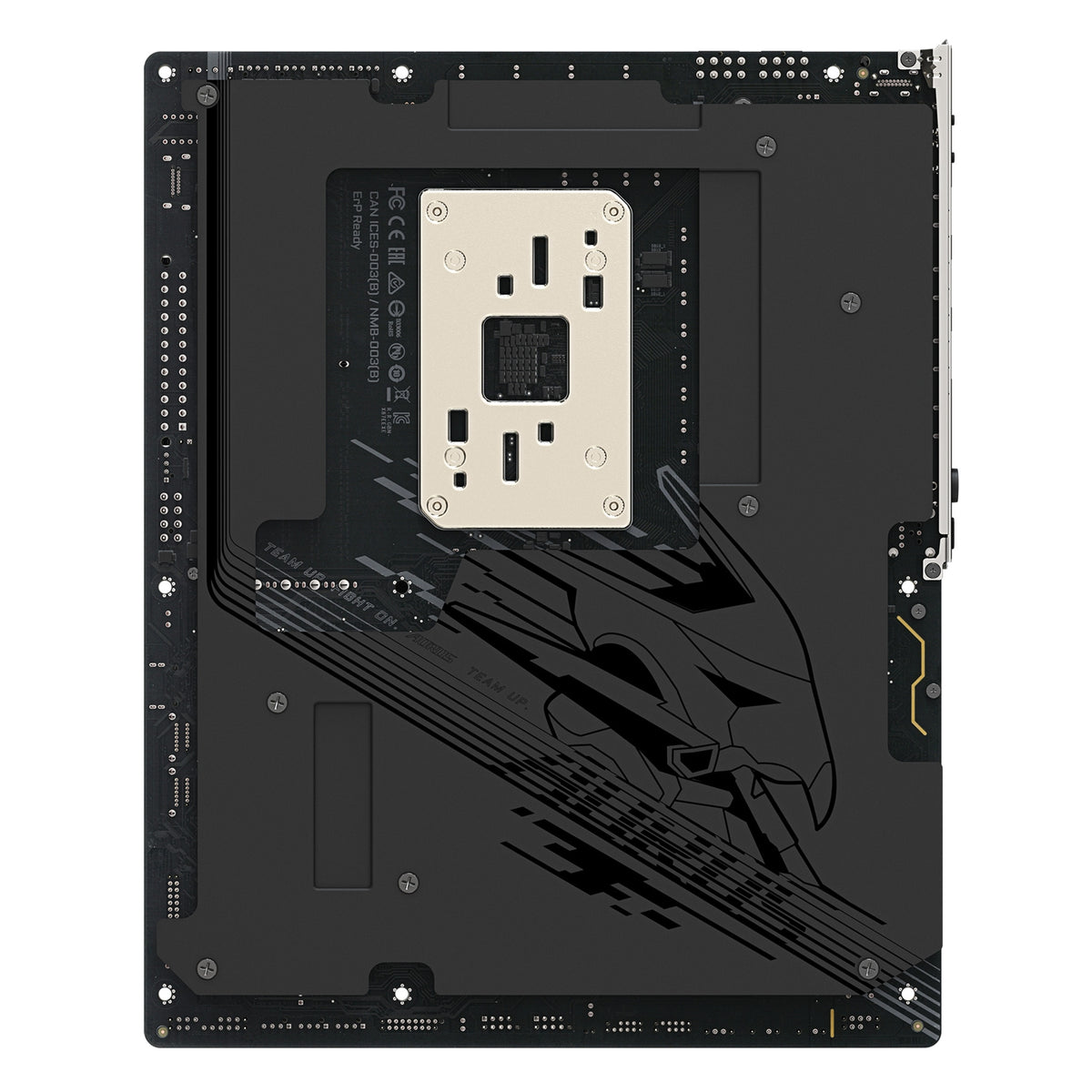

PCB Thermal Plate
14% thermal improvement and reinforced motherboard stability. -
Efficient Thermal Design
VRM Thermal Armor Advanced, M.2 Thermal Guard L, and M.2 Thermal Guard Ext. -
Fast Networking
5GbE LAN and Wi‑Fi 7 with directional ultra-high gain antenna. -
Extended Connectivity
HDMI, dual USB4 Type‑C with DP‑Alt, and front QC‑USB 65W. -
PCIe UD Slot X
PCIe 5.0 x16 slot with 10x strength for graphics card support.
Specifications
CPU
| Item | Details |
|---|---|
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
Chipset
| Item | Details |
|---|---|
| Chipset | AMD X870E |
Memory
| Item | Details |
|---|---|
| Memory Type | DDR5 |
| Supported Speeds | 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s |
| Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel memory architecture |
| Module Support | Non‑ECC un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Profile Support | AMD EXPO™ and XMP memory modules |
Onboard Graphics
| Item | Details |
|---|---|
| Integrated Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support |
| USB4 Video | 2 x USB4® Type‑C® ports with DisplayPort outputs, max 3840x2160@240 Hz |
| HDMI (rear) | 1 x HDMI port, max 4096x2160@60 Hz |
| HDMI (front) | 1 x front HDMI port, max 1920x1080@30 Hz |
Audio
| Item | Details |
|---|---|
| Codec | Realtek® ALC1220 |
| Audio | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel support |
| Digital Out | S/PDIF Out support |
LAN
| Item | Details |
|---|---|
| Controller | Realtek® 5GbE LAN chip |
| Speeds | 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless Communication
| Item | Details |
|---|---|
| Module | Qualcomm® Wi‑Fi 7 QCNCM865 |
| Standards | 802.11a/b/g/n/ac/ax/be |
| Bands | 2.4 / 5 / 6 GHz |
| Bluetooth | BLUETOOTH 5.4 |
| Wireless Standard | 11be 320 MHz support |
Expansion Slots
| Item | Details |
|---|---|
| CPU PCIe Slot | 1 x PCIe x16 (PCIEX16) |
| CPU PCIe Modes | Ryzen™ 9000/7000: PCIe 5.0 x16; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 |
| Chipset Slots | 1 x PCIe x16 (PCIEX4) PCIe 4.0 x4; 1 x PCIe x16 (PCIEX2) PCIe 3.0 x2 |
Storage
| Item | Details |
|---|---|
| M2A_CPU | 1 x M.2, Socket 3, M key, type 25110/22110/2580/2280 SSDs; Ryzen™ 9000/7000: PCIe 5.0 x4/x2; Ryzen™ 8000 Phoenix 1/2: PCIe 4.0 x4/x2 |
| M2B_CPU | 1 x M.2, Socket 3, M key, type 22110/2280 SSDs; Ryzen™ 9000/7000: PCIe 5.0 x4/x2 |
| M2C_SB / M2D_SB | 2 x M.2, Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSDs |
| SATA | 4 x SATA 6Gb/s connectors |
| NVMe RAID | RAID 0, 1, 5, 10 support |
| SATA RAID | RAID 0, 1, 10 support |
USB
CPU + ASMedia USB4® Controller
- 2 x USB4® Type‑C® ports on the back panel
CPU
- 1 x USB Type‑C® port on the back panel (USB 3.2 Gen 2)
Chipset + USB 3.2 Gen 1 Hub
- 4 x USB 3.2 Gen 1 ports via internal headers
Chipset
- 1 x USB Type‑C® internal header, USB 3.2 Gen 2x2 (up to 65W PD 3.0 / QC 4+ fast charging)
- 5 x USB 3.2 Gen 2 Type‑A (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports via internal headers
Internal I/O Connectors
- 1 x 24‑pin ATX main power connector
- 2 x 8‑pin ATX 12V power connectors
- 1 x PCIe power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type‑C® header (USB 3.2 Gen 2x2)
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (GC‑TPM2.0 SPI V2 only)
- 1 x HDMI port (Note)
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 2 x temperature sensor headers
- 1 x noise detection header

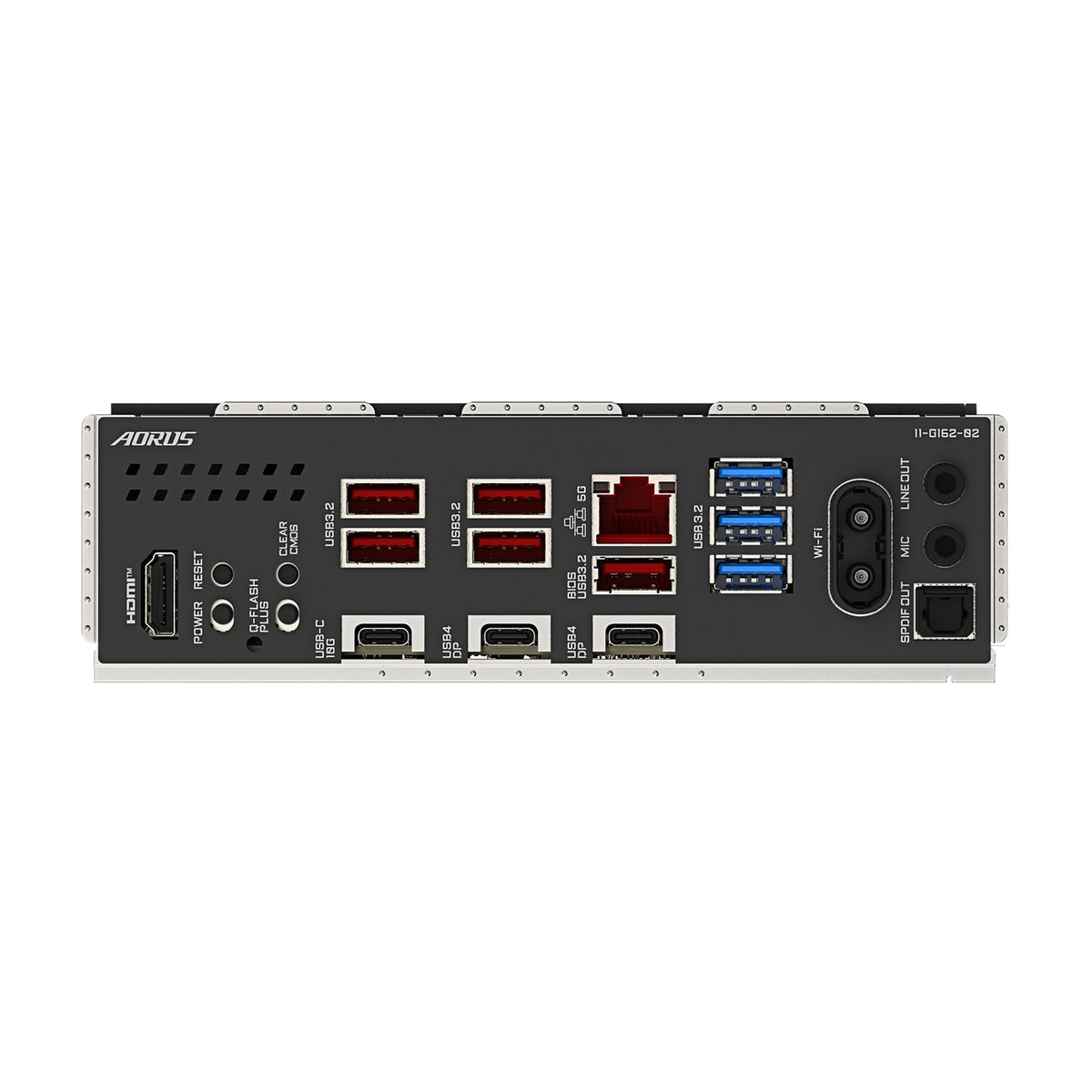

Back Panel Connectors
- 1 x HDMI port (Note)
- 1 x reset button
- 1 x power button
- 1 x Clear CMOS button
- 1 x Q‑Flash Plus button
- 5 x USB 3.2 Gen 2 Type‑A ports (red)
- 1 x USB Type‑C® port (USB 3.2 Gen 2)
- 2 x USB4® Type‑C® ports (DisplayPort support)
- 1 x RJ‑45 port
- 3 x USB 3.2 Gen 1 ports
- 2 x antenna connectors (2T2R)
- 2 x audio jacks
- 1 x optical S/PDIF Out connector
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control*
- Noise detection
* Fan/pump speed control support depends on the installed fan/pump.
BIOS
- 1 x 512 Mbit flash
- AMI UEFI BIOS (licensed)
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q‑Flash
- Support for Q‑Flash Plus
- Support Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64‑bit
Form Factor
| Item | Details |
|---|---|
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
