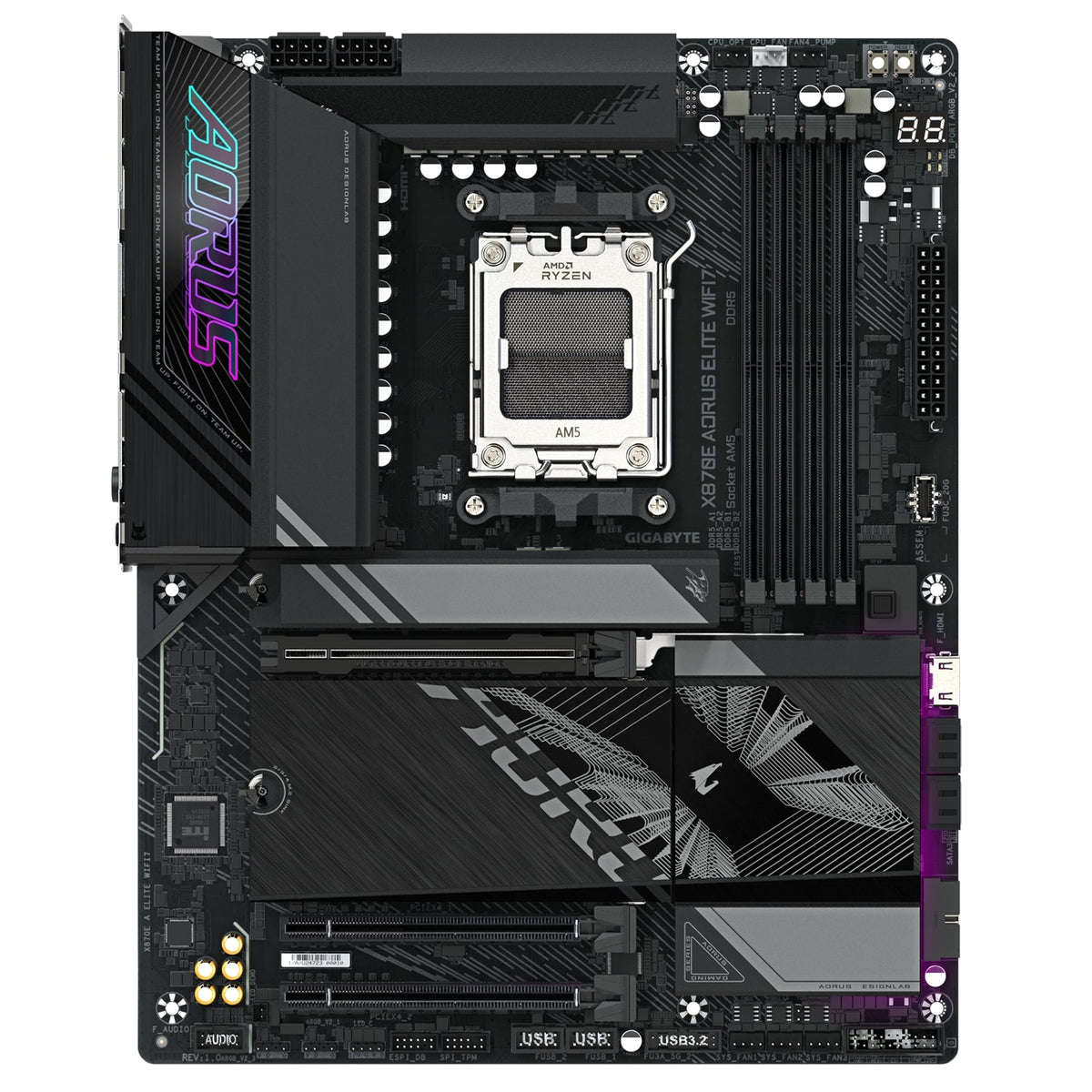

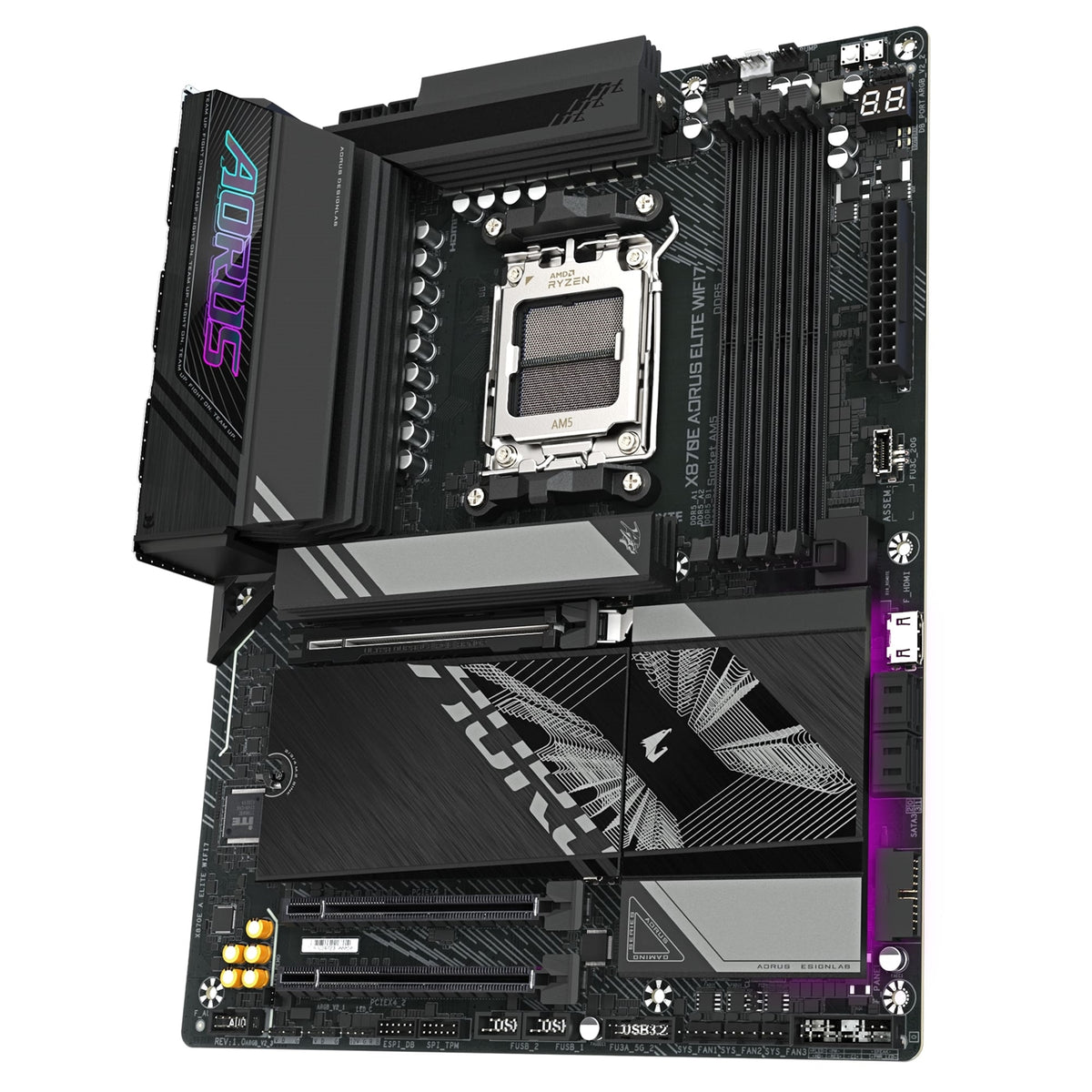

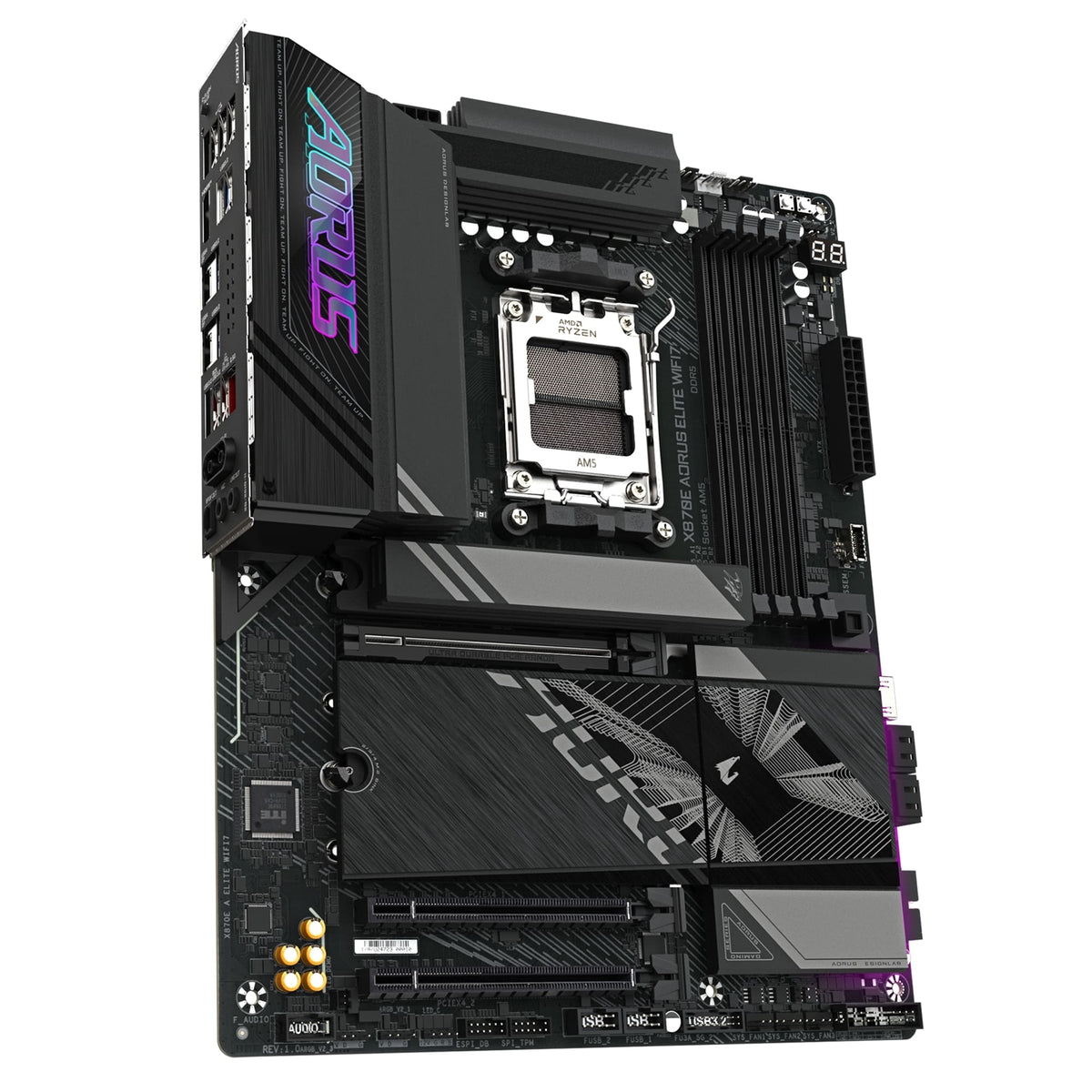

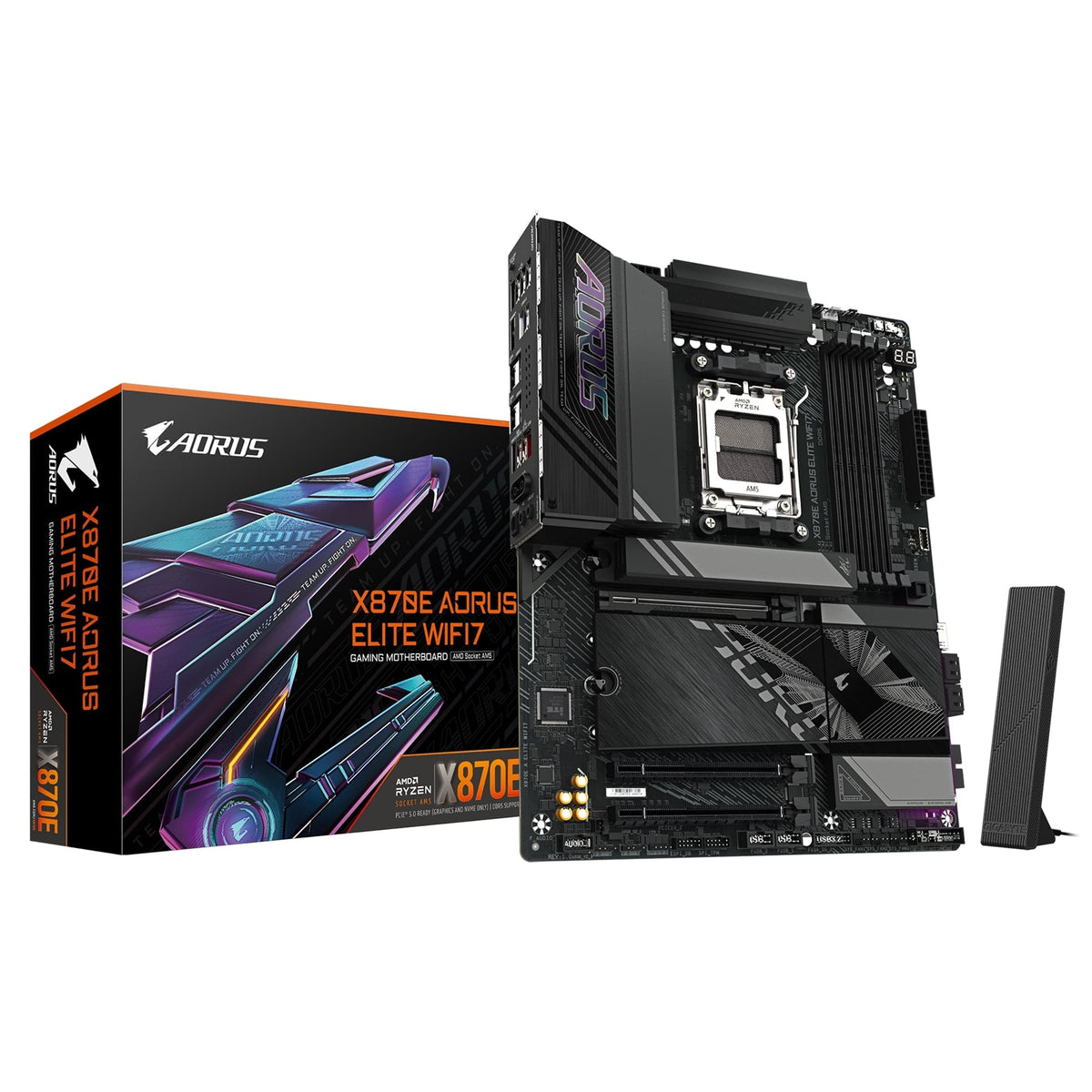

X870E AORUS ELITE WIFI7 Motherboard (AMD X870E, AM5)
The X870E AORUS ELITE WIFI7 is engineered for cutting-edge AMD Ryzen 9000, 8000, and 7000 Series processors, delivering advanced performance, next-generation connectivity, and a streamlined DIY building experience.
Key Features
- AMD Socket AM5 Support
- Compatible with AMD Ryzen 9000 / 8000 / 7000 Series Processors
-
AMD X870E chipset for next-gen gaming and content creation
-
Robust Power Delivery
- Digital twin 16+2+2 phases VRM solution
-
Designed for consistent, high-powered performance and advanced overclocking
-
High-Performance DDR5 Memory
- Dual Channel DDR5 with 4 x DIMM slots
- Supports AMD EXPO and XMP memory modules
- Auto DDR5 Memory Boost and One-Click Acceleration for instant DDR5 tuning
- Exclusive BIOS design for optimized DDR5 performance
-
“Zenith of the Memory” optimizations for performance and compatibility
-
Ultra-Fast Storage
- 4 x M.2 slots, including 3 x PCIe 5.0 x4
- NVMe RAID 0/1/5/10 support for SSDs
-
SATA RAID 0/1/10 support for SATA drives
-
Advanced Thermal Design
- VRM Thermal Armor Advanced with Fins-Array heatsinks
- M.2 Thermal Guard L and M.2 Thermal Guard Ext with backplates
-
Full-metal thermal design and durable heatsinks for cool, efficient operation
-
High-Speed Networking
- Realtek 2.5GbE LAN

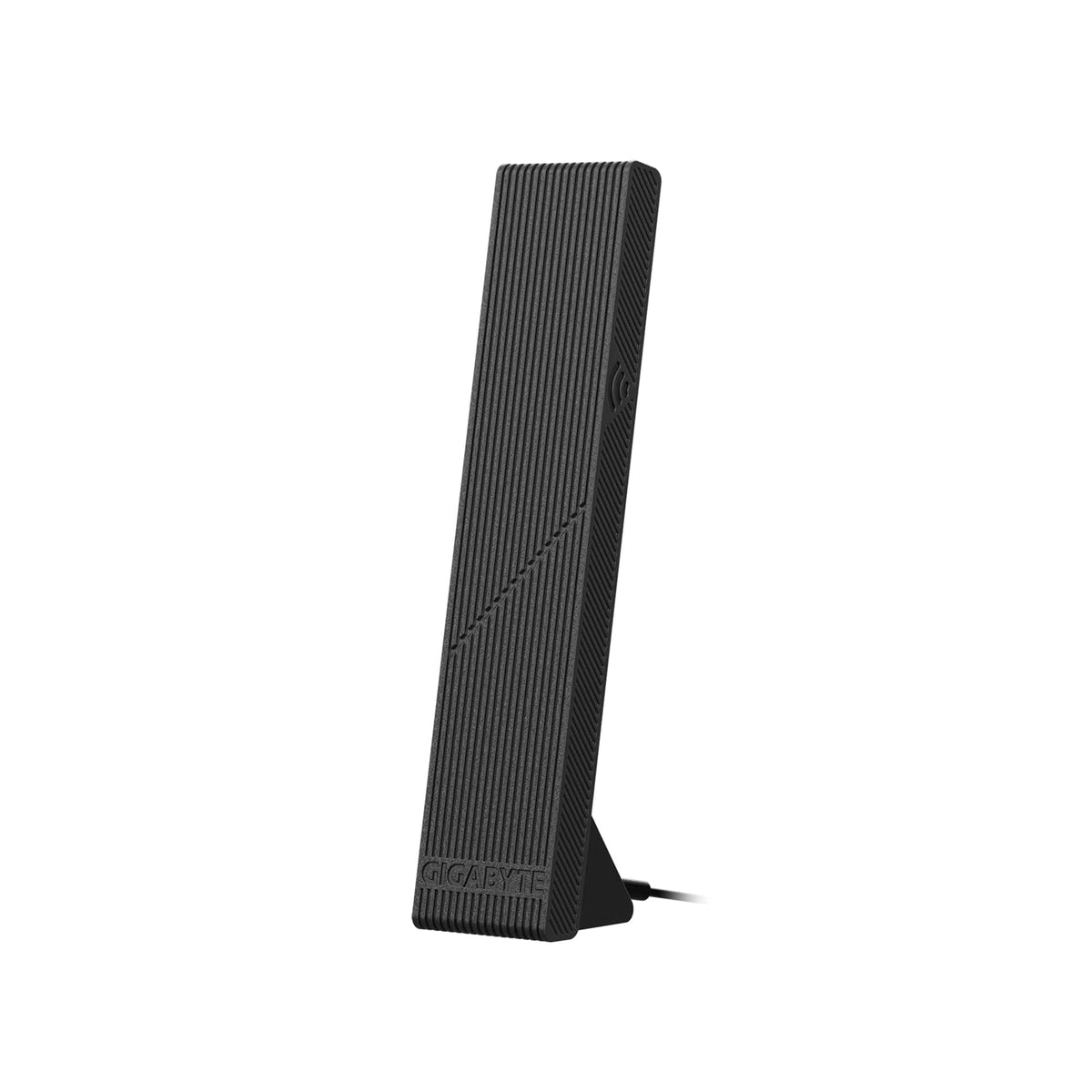

- Wi-Fi 7 with directional ultra-high gain antenna
-
Bluetooth 5.4 wireless support
-
Extended Connectivity
- Dual USB4 Type-C with DisplayPort Alt Mode
- HDMI and front HDMI video outputs
-
All-round USB connectivity for high-speed peripherals
-
Premium Audio
- Realtek ALC1220 HD Audio codec
- 2/4/5.1/7.1-channel support and S/PDIF Out
-
Audiophile-grade capacitors for enhanced sound
-
Ultra Durable Design
- Ultra Durable PCIe Armor with metal back plate on PCIe x16 slot
- PCIe UD Slot X: PCIe 5.0 x16 with 10X strength for graphics cards
-
Born from Ultra Durable technology for longevity and reliability
-
DIY-Friendly Features
- WIFI EZ-Plug for quick Wi-Fi antenna installation
- EZ-Latch Plus: quick-release, screwless PCIe and M.2 slots
- EZ-Latch Click: screwless M.2 heatsink design
- Sensor Panel Link: onboard video port for easy in-chassis panel setup
-
Onboard power and reset buttons, and Clear CMOS jumper
-
Enhanced PCB Engineering
- 6-layer server-grade PCB for signal fidelity, power consistency, and reduced EMI
- 2X copper enhancement for improved thermal management and power delivery
-
56% lower dissipation factor for enhanced high-frequency signal integrity
-
User-Friendly Software & BIOS
- Friendly UI with multi-theme options, AIO fan control, and Q-Flash auto scan
- Support for GIGABYTE Control Center (GCC)
- Q-Flash and Q-Flash Plus support
- Smart Backup support
-
Collaborative BIOS development focused on user-driven improvements
-
Built for Advanced Gaming & Creating
- Designed for AMD X800-series platform capabilities
- USB4 onboard, robust overclocking potential, faster dual-channel DDR5, AMD EXPO support, and PCIe 5.0 for graphics and NVMe
Specifications
CPU
| Item | Description |
|---|---|
| Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors |
| Chipset | AMD X870E |
Memory
| Item | Description |
|---|---|
| Type | DDR5 |
| Supported Speeds | 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel memory architecture |
| Module Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| Profile Support | AMD EXPO and XMP |
Onboard Graphics
| Item | Description |
|---|---|
| Integrated GPU | Integrated Graphics Processor with AMD Radeon Graphics support |
| USB4 Video | 2 x USB4 Type-C ports (via ASMedia USB4 controller), USB4 and DisplayPort video output, max 3840x2160@240 Hz |
| HDMI (rear) | 1 x HDMI port, max 4096x2160@60 Hz |
| HDMI (front) | 1 x front HDMI port, max 1920x1080@30 Hz |
| Multi-Display | Supports up to quad-display |
Audio
| Item | Description |
|---|---|
| Codec | Realtek ALC1220 |
| Audio | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel |
| Digital Out | S/PDIF Out support |
LAN & Wireless
| Item | Description |
|---|---|
| LAN | Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless (PCB rev. 1.0) | MediaTek Wi-Fi 7 MT7925, Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz bands, Bluetooth 5.4, 11be 160MHz support |
| Wireless (PCB rev. 1.1/1.2) | Realtek Wi-Fi 7 RTL8922AE, Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz bands, Bluetooth 5.4, 11be 160MHz support |
Expansion Slots
| Slot | Source | Standard / Mode |
|---|---|---|
| 1 x PCIEX16 | CPU | AMD Ryzen 9000/7000: PCIe 5.0 x16 (up to x8 when M2B_CPU or M2C_CPU is populated) AMD Ryzen 8000 Phoenix 1: PCIe 4.0 x8 AMD Ryzen 8000 Phoenix 2: PCIe 4.0 x4 |
| 1 x PCIEX4_1 | Chipset | PCIe 4.0 x4 |
| 1 x PCIEX4_2 | Chipset | PCIe 3.0 x4 |
Storage Interfaces
| Connector | Source | Supported Devices |
|---|---|---|
| 1 x M2A_CPU | CPU | M.2 Socket 3, M key, type 25110/22110/2580/2280 SSDs Ryzen 9000/7000: PCIe 5.0 x4/x2 Ryzen 8000 Phoenix 1: PCIe 4.0 x4/x2 Ryzen 8000 Phoenix 2: PCIe 4.0 x4/x2 |
| 2 x M2B_CPU / M2C_CPU | CPU | M.2 Socket 3, M key, type 22110/2280 SSDs Ryzen 9000: PCIe 5.0 x4/x2 |
| 1 x M2D_SB | Chipset | M.2 Socket 3, M key, type 22110/2280 SSDs, PCIe 4.0 x4/x2 |
| 4 x SATA 6Gb/s | Chipset | SATA 6Gb/s devices |
RAID Support
- NVMe SSDs: RAID 0, 1, 5, 10
- SATA devices: RAID 0, 1, 10
USB Ports
| Source | Ports |
|---|---|
| CPU + ASMedia USB4 | 2 x USB4 Type-C (rear) |
| CPU | 1 x USB 3.2 Gen 1 (rear) |
| Chipset | 1 x USB Type-C (internal) with USB 3.2 Gen 2x2 support |
| Chipset | 2 x USB 3.2 Gen 2 Type-A (red, rear) |
| Chipset | 7 x USB 3.2 Gen 1 (3 x rear, 4 x internal) |
| Chipset | 8 x USB 2.0/1.1 (4 x rear, 4 x internal) |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header with USB 3.2 Gen 2x2 support
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
- 1 x HDMI port (internal, as noted)
- 1 x power button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper

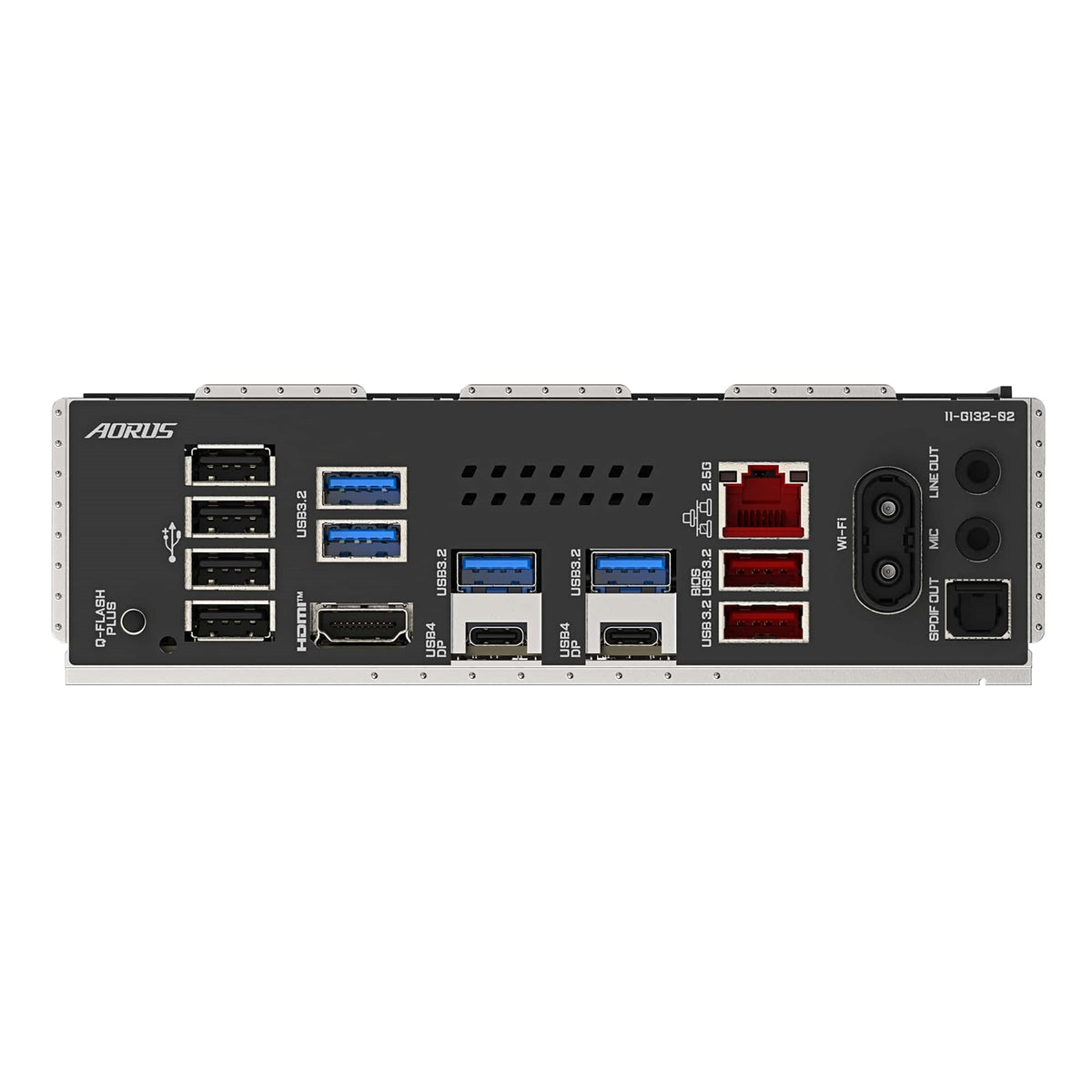

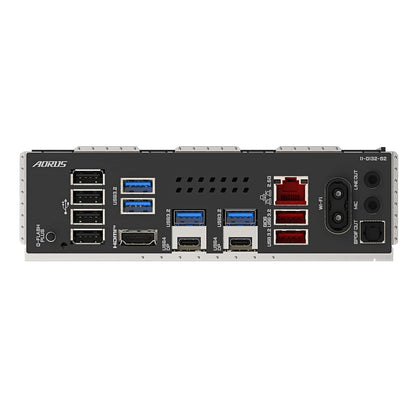

Back Panel Connectors
- 1 x Q-Flash Plus button
- 4 x USB 2.0/1.1 ports
- 4 x USB 3.2 Gen 1 ports
- 1 x HDMI port (as noted)
- 2 x USB4 Type-C ports (DisplayPort support as noted)
- 1 x RJ-45 2.5GbE LAN port
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 2 x antenna connectors (2T2R)
- 2 x audio jacks
- 1 x optical S/PDIF Out connector
I/O Controller & Monitoring
| Item | Description |
|---|---|
| Controller | iTE I/O Controller chip |
| Monitoring | Voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, fan speed control, noise detection |
BIOS
| Item | Description |
|---|---|
| ROM | 1 x 256 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Features | Q-Flash, Q-Flash Plus, advanced DDR5 tuning options |
Unique Features & Software
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash and Q-Flash Plus
- Support Smart Backup
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
Form Factor
| Item | Description |
|---|---|
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
The X870E AORUS ELITE WIFI7 delivers a powerful, feature-rich platform built to drive advanced AMD Ryzen 9000, 8000, and 7000 Series processors, combining next-gen connectivity, refined memory performance, premium thermal design, and DIY-friendly features for high-end gaming and creation.
