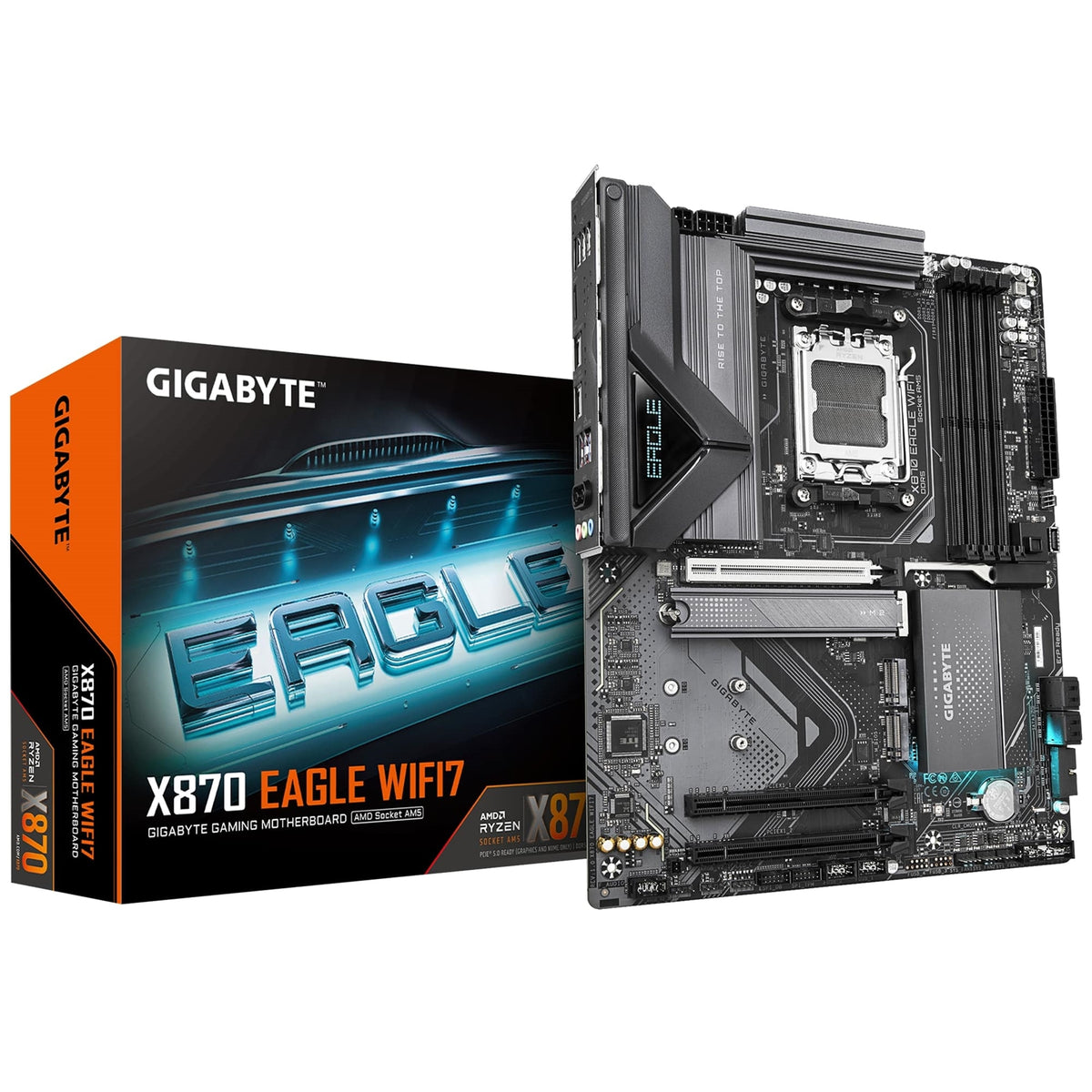

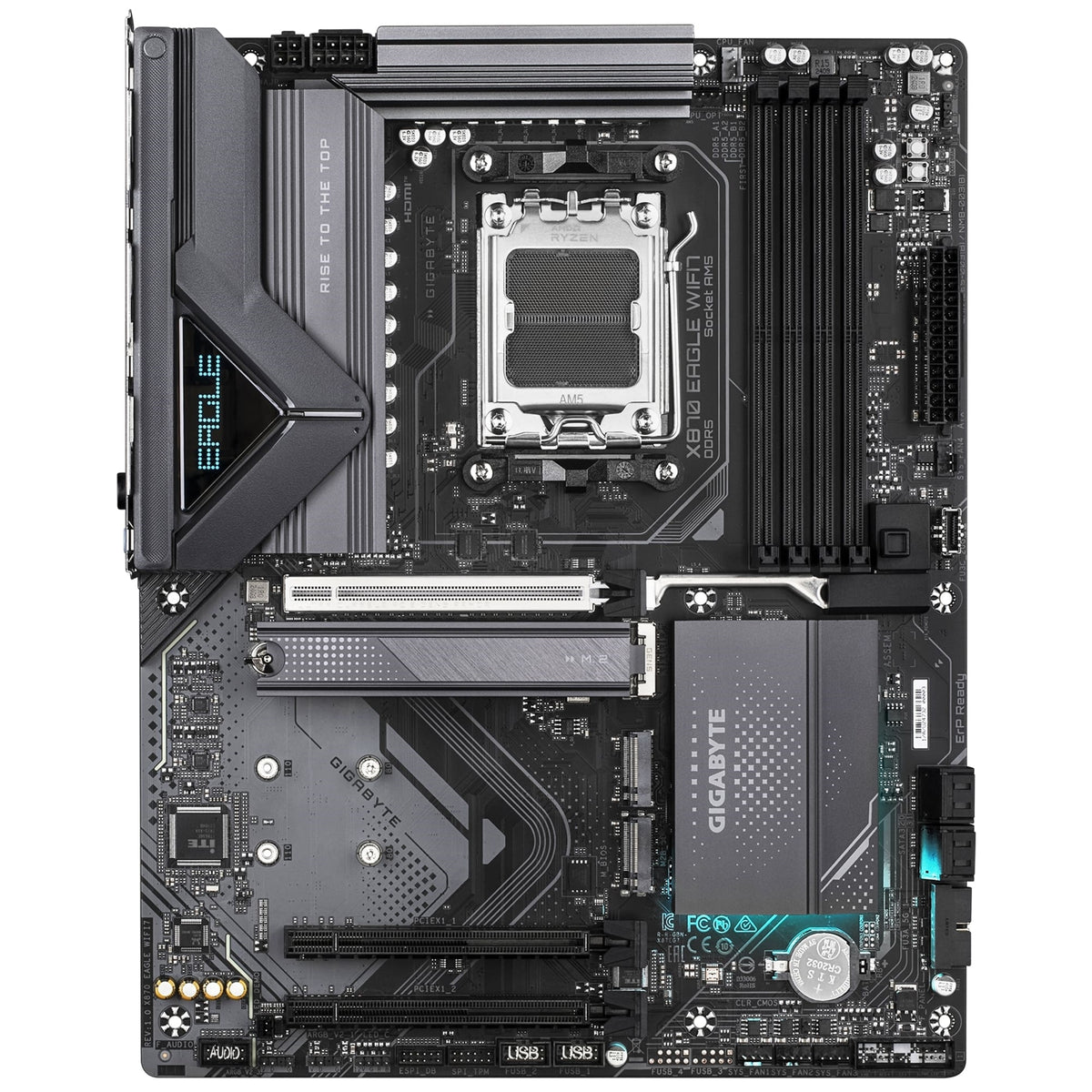

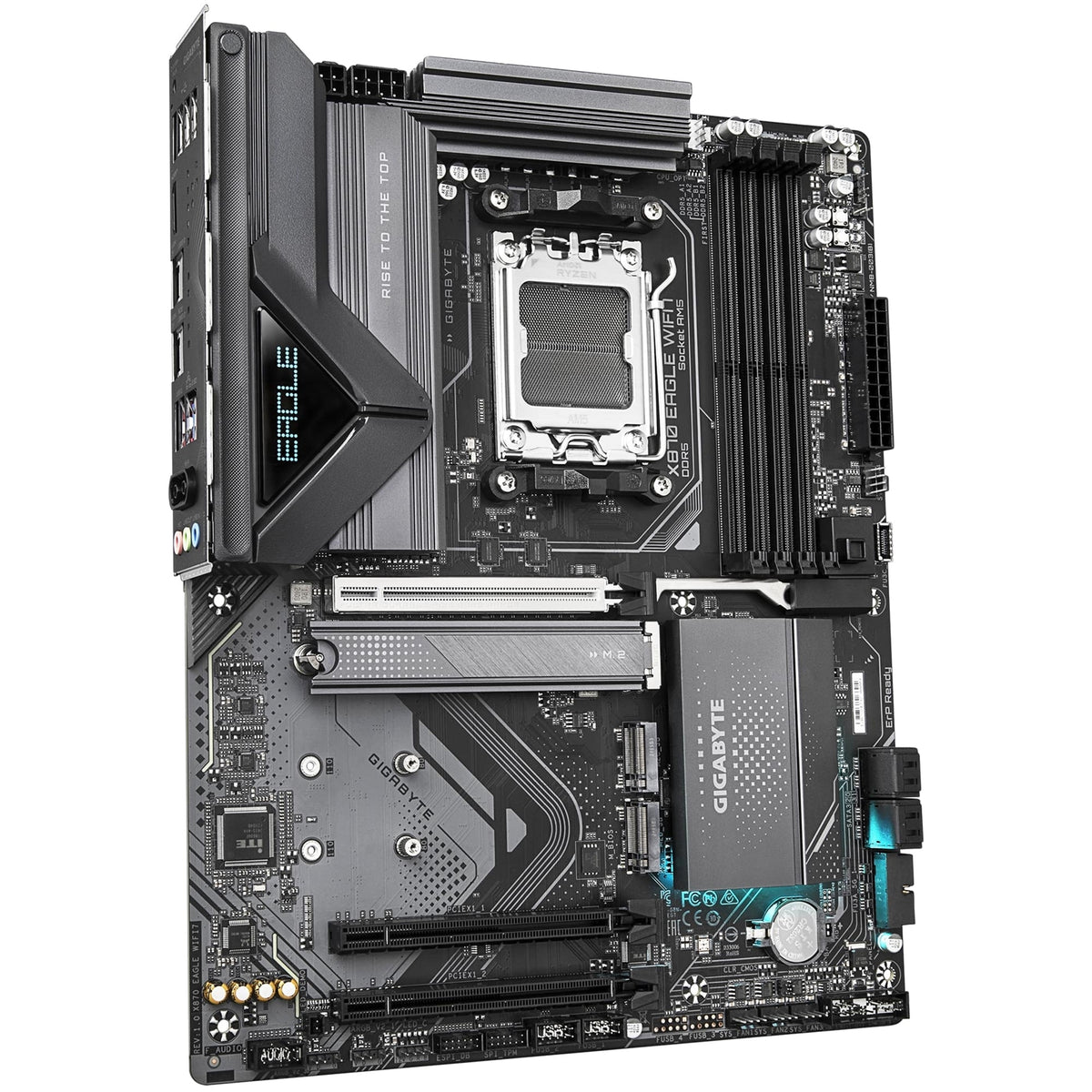

GIGABYTE X870 Series Motherboard – AORUS | AERO | GIGABYTE
Elevate your computing experience with GIGABYTE’s renowned AORUS, AERO, and GIGABYTE motherboard series. Designed with innovative engineering and advanced features, these AMD X870 motherboards deliver exceptional performance, reliability, and user-friendly design for gamers, content creators, and professionals.
Key Features
- AMD Socket AM5
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital Twin 14+2+2 Phases VRM Solution
- Dual Channel DDR5 Memory
- 4 x DIMM slots with AMD EXPO™ memory module support
- Ultra-Fast Storage
- 3 x M.2 slots, including 1 x PCIe 5.0 x4
- Efficient Thermal Design
- VRM Thermal Armor Advanced
- M.2 Thermal Guard
- High-Speed Networking
- 2.5GbE LAN
- Wi-Fi 7 with ultra-high gain antenna
- Extended Connectivity
- Dual USB4 Type-C with DP-Alt
- HDMI
AORUS AI SNATCH – One-Click DDR5 Performance
Unleash ultimate performance with intuitive one-click features:
-
Auto DDR5 Memory Boost
Instantly unlock the full potential of DDR5 memory to boost gaming and productivity. -
One-Click Acceleration
Enhance DDR5 speeds with a single click. - Real-Time Analyze & OC Accuracy
- EZ to Pro
Durable Performance & Power Delivery
-
GIGABYTE Ultra Durable Design
Built with optimal components inside and out to deliver prime performance and a long-lasting platform. -
Digital Twin VRM Design
Ensures consistent, high-powered performance for advanced overclocking.
Zenith of Memory
GIGABYTE gaming motherboards are engineered to boost DDR5 memory performance and deliver top-tier compatibility using advanced tuning methods.
Advanced Thermal Solutions
EAGLE motherboards feature:
- Advanced full-metal thermal design
- Durable heatsinks
- Optimized thermal management to keep systems cool and efficient
Future-Ready Connectivity
Experience blazing data-transfer speeds and next-generation connectivity for network, storage, and peripherals.
Dual 40Gbps USB4 with DP-Alt
- 2 x USB4 Type-C ports
- Up to 40 Gbps per port
- DisplayPort Alt Mode with ultra-HD display support
- Ideal for video editing, large file transfers, and data-intensive tasks
Wi-Fi 7 & 2.5GbE LAN
- Wi-Fi 7
- Exceptional bandwidth and minimal latency, enhancing VR with a seamless immersive experience.
- 2.5GbE LAN
- Lightning-fast speeds, reduced lag, and high performance for competitive gaming.
PCIe 5.0 / 4.0 Hardware Design
- PCIe 5.0 x16 slot
- PCIe 5.0 / 4.0 M.2 slot support
- Ready for PCIe 5.0 / 4.0 devices to deliver superior performance.
Hi-Fi Audio
- High-end audio capacitors
- Audio Noise Guard
- High Definition Audio, supporting 2/4/5.1/7.1-channel output
Easy & Friendly DIY Experience
Innovative hardware, software, and BIOS design make building and tuning your PC straightforward.
WIFI EZ-Plug
- Integrated Wi-Fi antenna plugs into one adapter for quick, easy installation.
EZ Debug Zone
- Centralized debug LEDs
- Control buttons for organized, convenient troubleshooting during PC building.
EZ-Latch Designs
- User-friendly quick-release and screwless mechanisms:
- EZ-Latch Plus: PCIe and M.2 slots with quick release and screwless design
- EZ-Latch Click: M.2 heatsinks with screwless attachment
UC BIOS & Q-FLASH Auto Scan
- UC BIOS
- Restructured with a user-centered interface and intuitive performance adjustment.
- Q-FLASH Auto Scan
- Automatically scans USB flash drives for BIOS files, eliminating manual search.
Friendly UI
- Multi-theme interface
- AIO fan control
- Q-Flash Auto Scan in BIOS and software
HWiNFO Exclusive Partnership
Enhanced monitoring support through exclusive integration with HWiNFO.
Specifications
CPU
| Feature | Details |
|---|---|
| Socket | AMD AM5 |
| Supported CPUs | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870 |
Memory
| Feature | Details |
|---|---|
| Type | DDR5 |
| Supported Speeds | 8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6666(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, 4400 MT/s |
| Slots | 4 x DDR5 DIMM |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| Supported Modules | Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Memory Profiles | AMD EXPO™ and XMP support |
Onboard Graphics
| Feature | Details |
|---|---|
| Integrated GPU | AMD Radeon Graphics (with supported CPUs) |
| USB4 Display Output | 2 x USB4 Type-C ports via ASMedia USB4 controller, DisplayPort video, max 3840x2160@240 Hz |
| HDMI Output | 1 x HDMI port, max 4096x2160@60 Hz |
Audio
| Feature | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Standard | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel |
LAN
| Feature | Details |
|---|---|
| Controller | Realtek 2.5GbE LAN chip |
| Speeds | 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless Communication
| PCB Revision | Controller | Wi-Fi Standard | Bands | Bluetooth | Additional |
|---|---|---|---|---|---|
| rev. 1.0 | MediaTek Wi-Fi 7 MT7925 | 802.11a/b/g/n/ac/ax/be | 2.4/5/6 GHz | Bluetooth 5.4 | Supports 11be 160MHz |
| rev. 1.1 | Realtek Wi-Fi 7 RTL8922AE | 802.11a/b/g/n/ac/ax/be | 2.4/5/6 GHz | Bluetooth 5.4 | Supports 11be 160MHz |
Expansion Slots
| Slot | Source | Mode |
|---|---|---|
| 1 x PCIe x16 (PCIEX16) | CPU | Ryzen 9000 / 7000: PCIe 5.0 x16 |
| Ryzen 8000 Phoenix 1: PCIe 4.0 x8 | ||
| Ryzen 8000 Phoenix 2: PCIe 4.0 x4 | ||
| 2 x PCIe x16 (PCIEX1_1/2) | Chipset | PCIe 3.0 x1 |
Storage
| Connector | Source | Type | Size Support | Interface |
|---|---|---|---|---|
| M2A_CPU | CPU | M.2 Socket 3, M key | 25110 / 22110 / 2580 / 2280 | Ryzen 9000/7000: PCIe 5.0 x4/x2; Ryzen 8000 Phoenix 1/2: PCIe 4.0 x4/x2 |
| M2C_SB | Chipset | M.2 Socket 3, M key | 25110 / 22110 / 2580 / 2280 | PCIe 4.0 x2 |
| M2B_SB | Chipset | M.2 Socket 3, M key | 25110 / 22110 / 2580 / 2280 | PCIe 4.0 x4/x2 |
| SATA | Chipset | 4 x SATA 6Gb/s | — | SATA 6Gb/s |
RAID Support
- NVMe SSDs: RAID 0, 1, 5, 10
- SATA devices: RAID 0, 1, 10
USB
CPU + ASMedia USB4 Controller
- 2 x USB4 Type-C ports on back panel
CPU
- 1 x USB 3.2 Gen 2 Type-A (red) on back panel
- 1 x USB 3.2 Gen 1 port on back panel
CPU + USB 2.0 Hub
- 4 x USB 2.0/1.1 ports on back panel
Chipset
- 1 x USB Type-C with USB 3.2 Gen 2x2 (internal header)
- 4 x USB 3.2 Gen 1 ports (2 rear, 2 via internal header)
- 4 x USB 2.0/1.1 ports via internal headers
Internal I/O Connectors
- 1 x 24-pin ATX main power
- 1 x 8-pin ATX 12V power
- 1 x 4-pin ATX 12V power
- 1 x CPU fan header
- 1 x CPU fan / water pump header
- 4 x system fan headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x SATA 6Gb/s connectors
- 3 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header (USB 3.2 Gen 2x2)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 only)
- 1 x power button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper

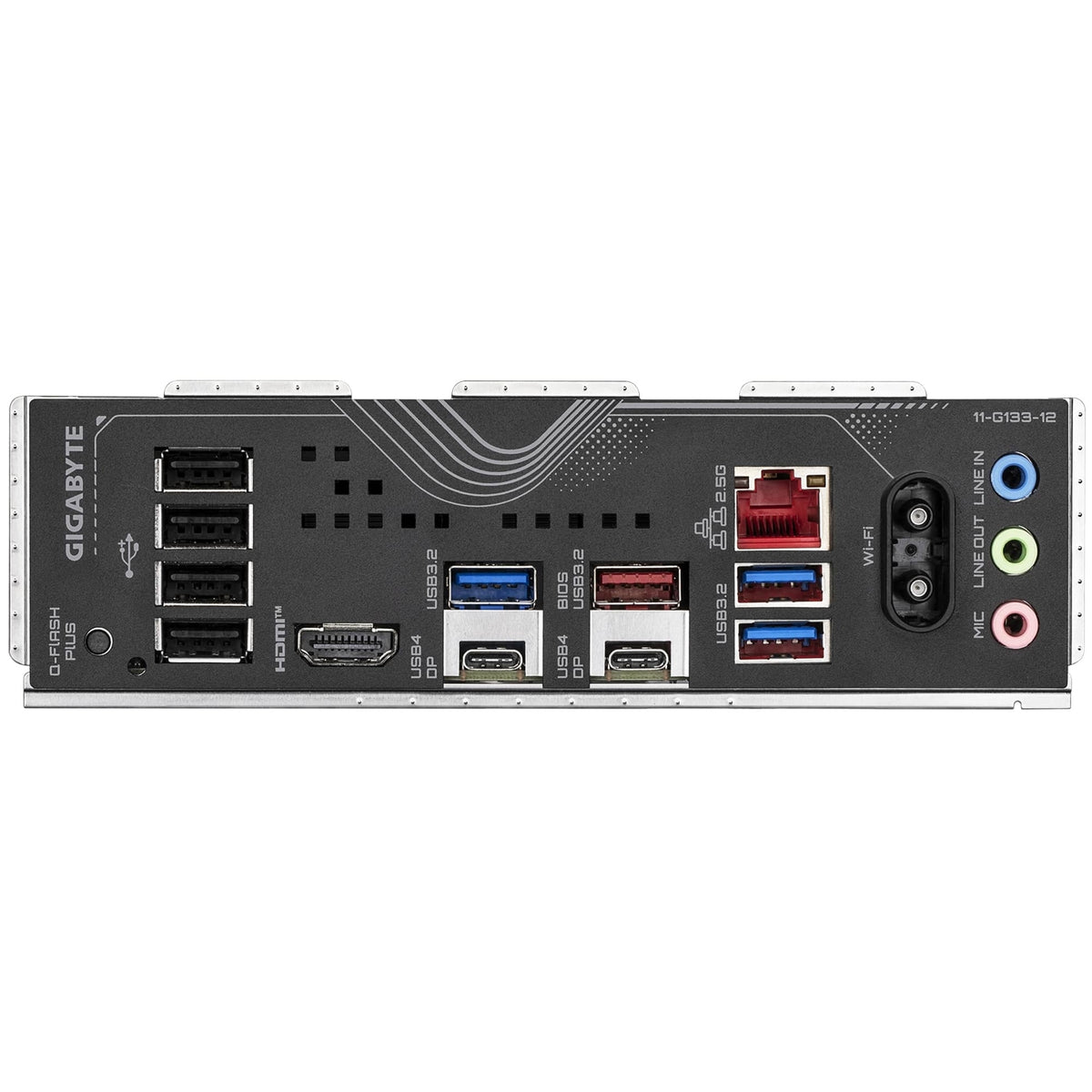

Back Panel Connectors
- 1 x Q-Flash Plus button
- 2 x antenna connectors (2T2R)
- 1 x HDMI port
- 2 x USB4 Type-C (DisplayPort capable)
- 1 x USB 3.2 Gen 2 Type-A (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller
- iTE I/O Controller Chip
Hardware Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- 1 x 256 Mbit flash
- AMI UEFI BIOS (licensed)
- Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
Form Factor
- ATX
- Dimensions: 30.5 cm x 24.4 cm
