Gigabyte X870 AORUS ELITE X3D ICE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Socket, 5GbE LAN, WiFi 7, 1x HDMI Port / 2x USB-C (USB4)

GIGABYTE X870 AORUS ELITE X3D ICE

AMD Socket AM5 ATX Gaming Motherboard

The GIGABYTE X870 AORUS ELITE X3D ICE is engineered for next-generation AMD Ryzen™ 9000, 8000, and 7000 Series processors, delivering advanced performance, ultra-fast storage, and extensive connectivity for high-end gaming and content creation builds.

Key Features

Extreme X3D & Memory Performance

• X3D Turbo Mode 2.0: A.I.-powered tuning designed to unleash incredible X3D performance.
• DDR5 Overclocking: Supports DDR5 OC memory up to 8800 MT/s.
• Dual Channel DDR5:
• 4 × DIMM slots
• Supports AMD EXPO™ and XMP memory modules

Robust Power & Thermal Design

• Digital Twin 16+2+2 Phases VRM Solution for stable power delivery.
• Efficient Thermal Design:
• VRM Thermal Armor Advanced
• M.2 Thermal Guard L
• M.2 Thermal Guard Ext

High-Speed Storage & Expansion

• Ultra-Fast Storage:
• 4 × M.2 slots, including PCIe 5.0 x4 support
• PCIe UD Slot X:
• PCIe 5.0 x16 slot with reinforced 10X strength for graphics cards

Smart Installation & User Experience

• M.2 EZ-Flex: High-efficiency M.2 SSD heat dissipation with flexible patented baseplate.
• M.2 EZ-Latch Click & Plus: Quick-release, screwless design on M.2 slots and heatsinks.
• WIFI EZ-Plug: Quick and easy Wi-Fi antenna installation.
• Friendly UI:
• Multi-theme BIOS
• AIO fan control
• Q-Flash auto scan in BIOS and software

Advanced Networking & Connectivity

• Fast Networking:
• Realtek® 5GbE LAN
• Wi-Fi 7 with directional ultra-high gain antenna
• Extended Connectivity:
• HDMI
• Dual USB4 Type-C with DP-Alt

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 × 24-pin ATX main power connector
• 2 × 8-pin ATX 12V power connectors
• 1 × CPU fan header
• 1 × CPU fan/water cooling pump header
• 4 × system fan headers
• 2 × system fan/water cooling pump headers
• 3 × addressable RGB Gen2 LED strip headers
• 1 × RGB LED strip header
• 4 × M.2 Socket 3 connectors
• 2 × SATA 6 Gb/s connectors
• 1 × front panel header
• 1 × front panel audio header
• 1 × USB Type-C® header (USB 3.2 Gen 2x2)
• 2 × USB 3.2 Gen 1 headers
• 2 × USB 2.0/1.1 headers
• 1 × Trusted Platform Module header (GC-TPM2.0 SPI V2 only)
• 1 × HDMI port (Note)
• 1 × reset jumper
• 1 × Clear CMOS jumper
• 2 × temperature sensor headers
• 1 × noise detection header

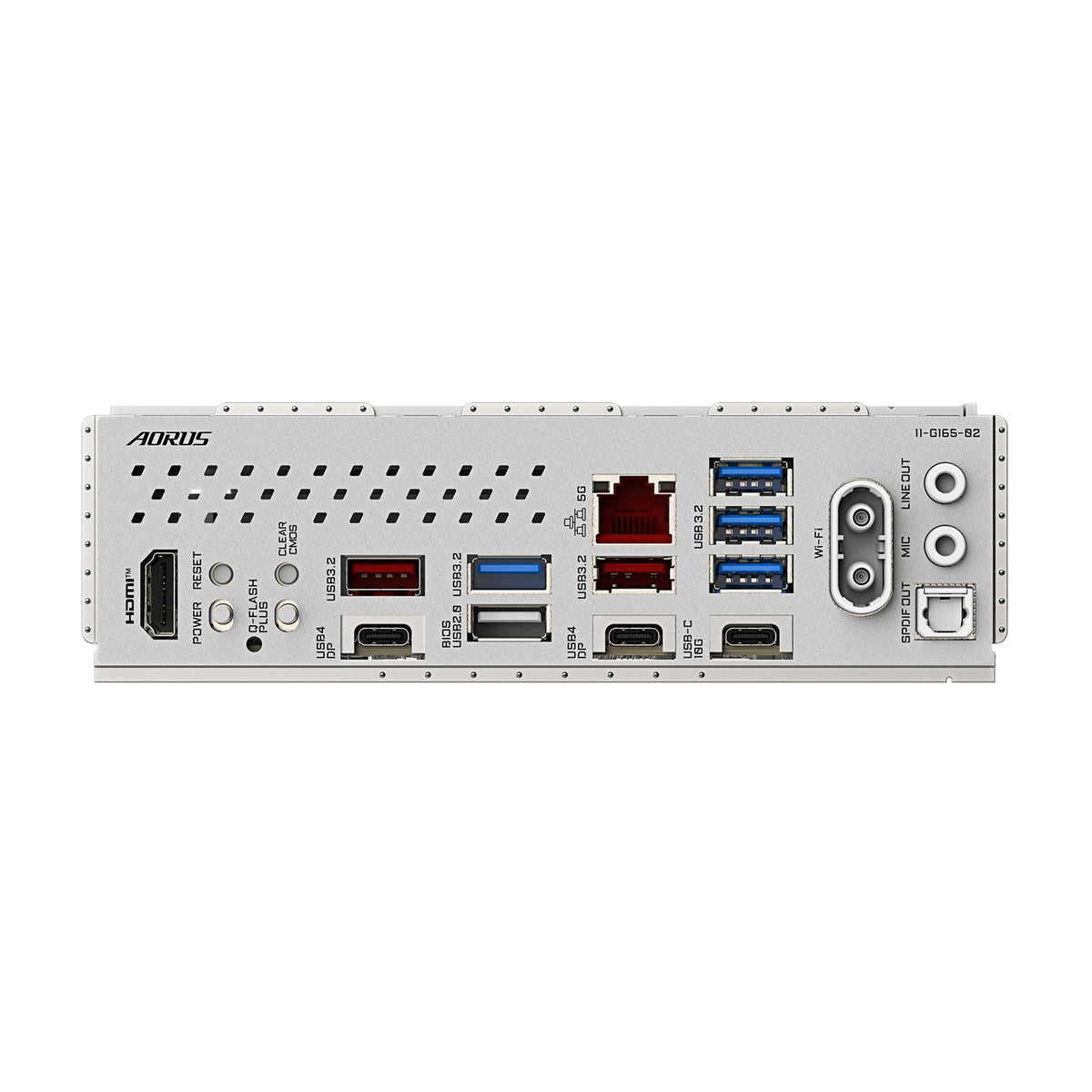

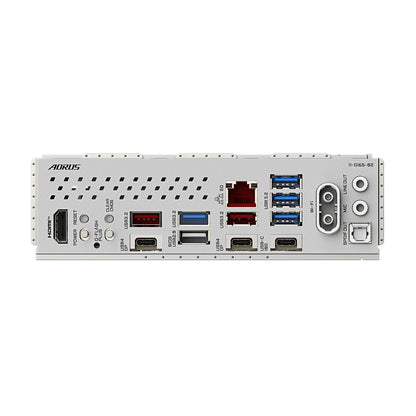

Back Panel Connectors

• 1 × HDMI port (Note)
• 1 × power button
• 1 × reset button
• 1 × Q-Flash Plus button
• 1 × Clear CMOS button
• 2 × USB4® Type-C® ports (DisplayPort support, Note)
• 1 × USB Type-C® port (USB 3.2 Gen 2)
• 2 × USB 3.2 Gen 2 Type-A (red)
• 4 × USB 3.2 Gen 1 ports
• 1 × USB 2.0/1.1 port
• 1 × RJ-45 (5GbE LAN) port
• 2 × antenna connectors (2T2R)
• 1 × optical S/PDIF Out connector
• 2 × audio jacks

I/O Controller & Monitoring

BIOS

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Available applications and functions depend on motherboard model and specifications
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton Internet Security (OEM version)

Operating System Support

• Windows 11 64-bit

Form Factor
