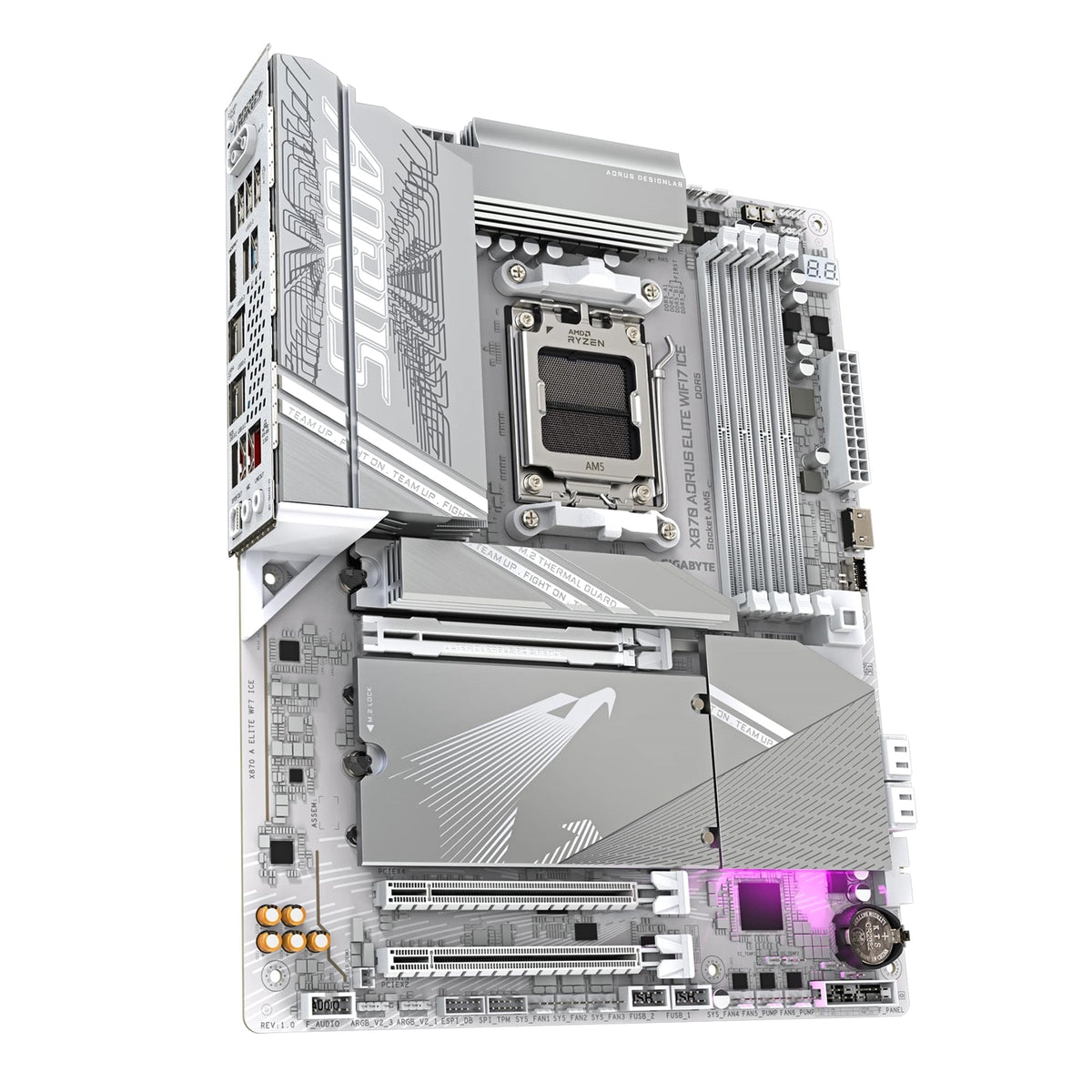

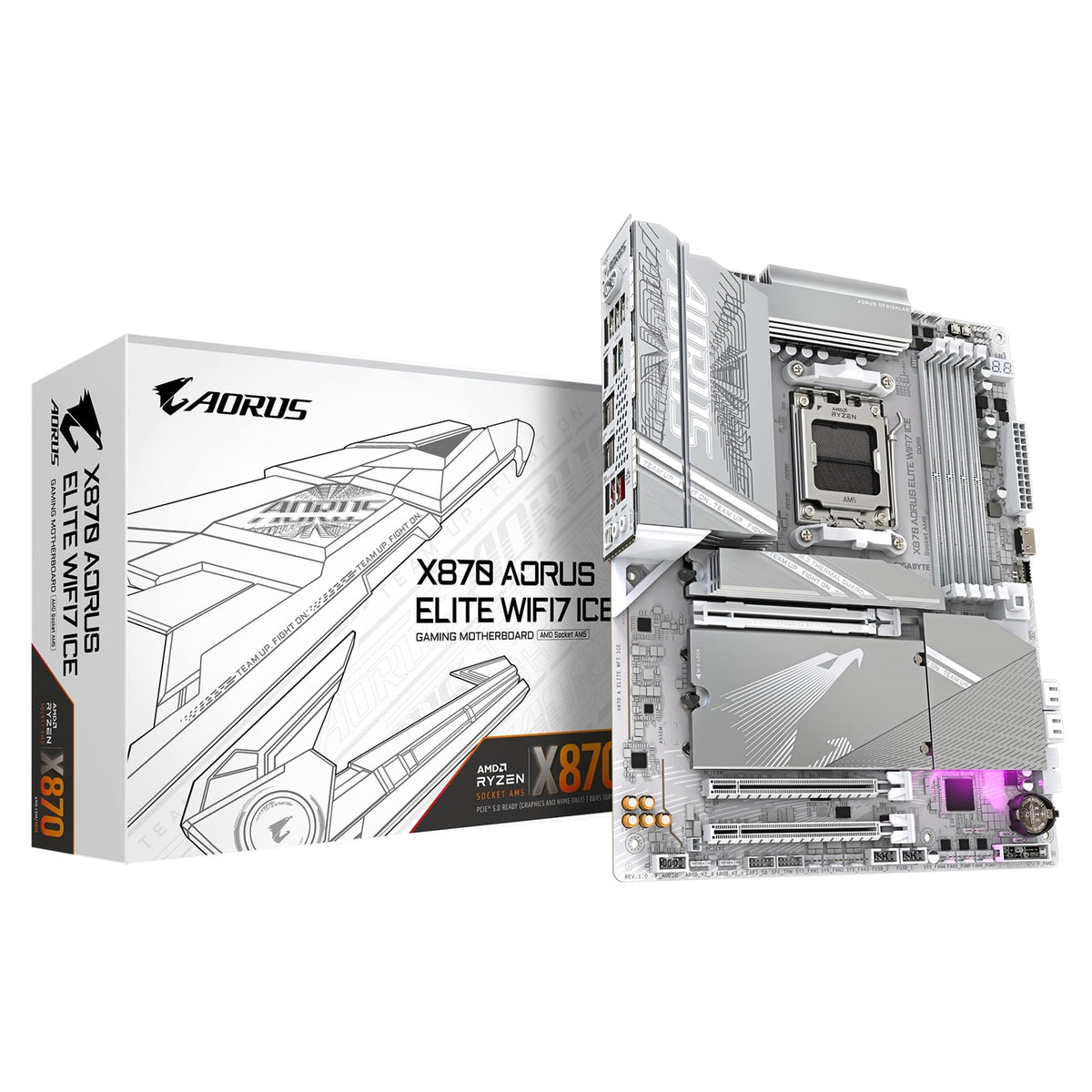

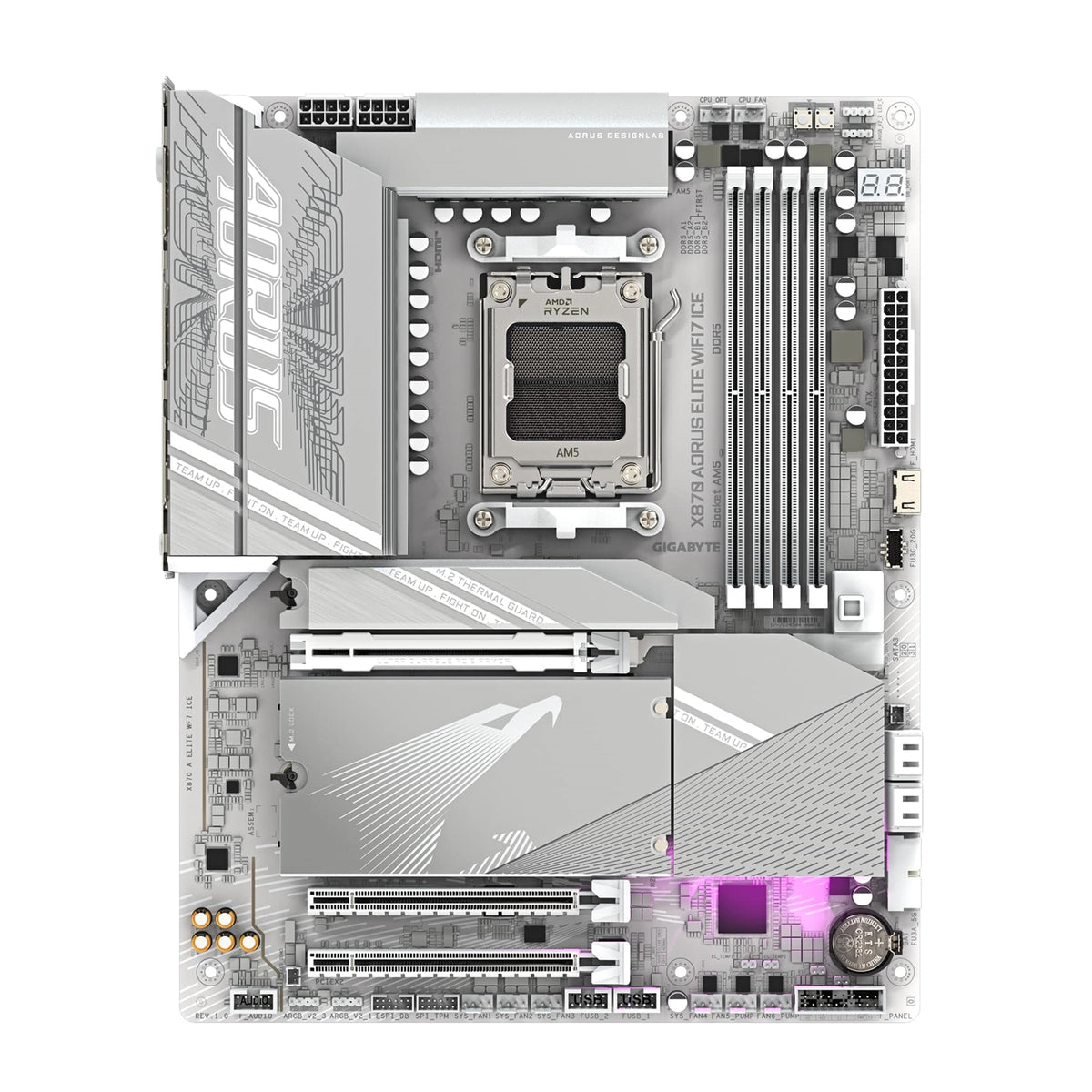

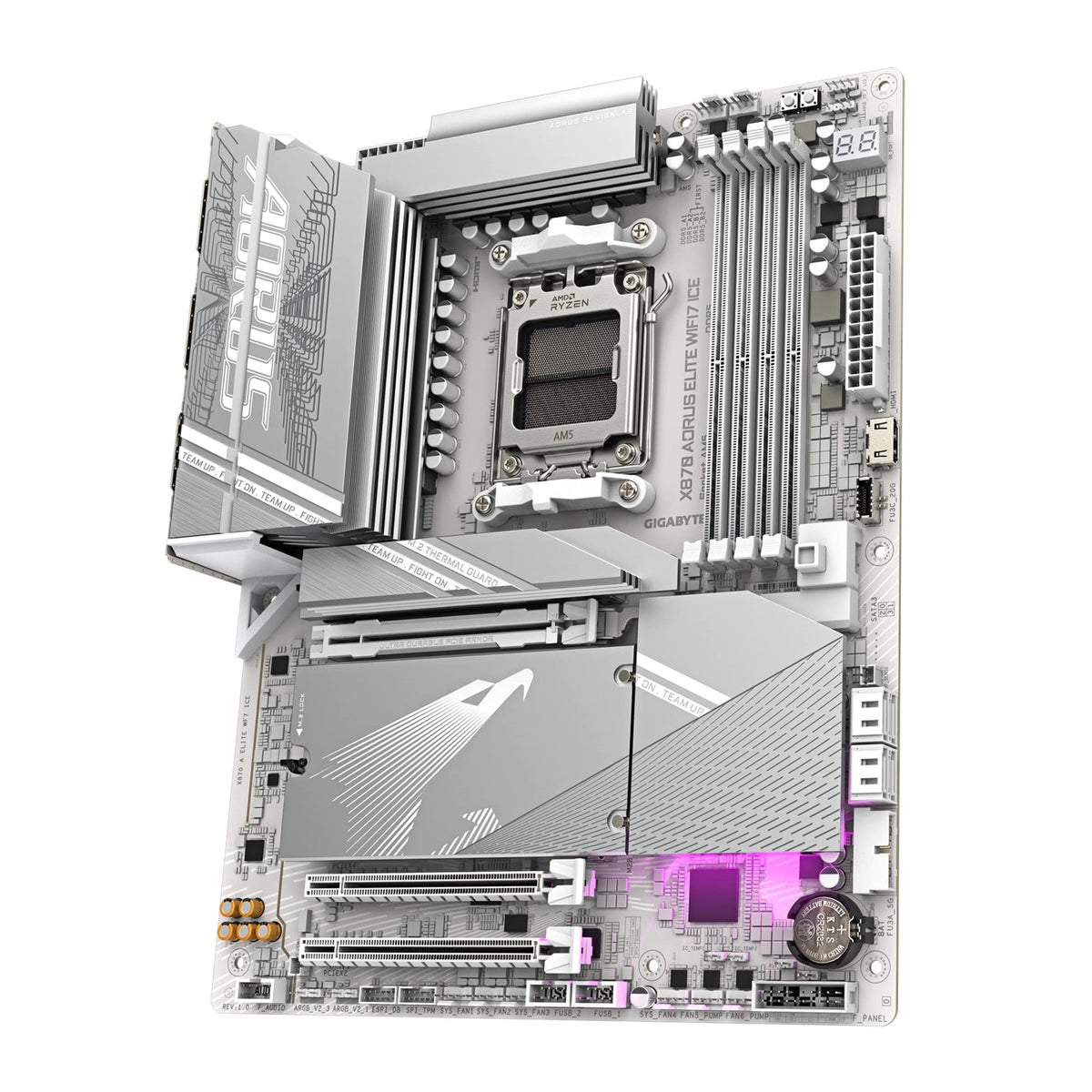

X870 AORUS ELITE WIFI7 ICE
AMD X870 ATX Gaming Motherboard with Wi-Fi 7, DDR5 & USB4
Key Features
- AMD Socket AM5
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Power Design
- Digital twin 16+2+2 phases VRM solution
- Memory Performance
- Dual Channel DDR5 with 4 x DIMM slots
- AMD EXPO memory module support
- Ultra-Fast Storage
- 4 x M.2 slots, including 3 x PCIe 5.0 x4
- Networking & Wireless
- 2.5GbE LAN
- Wi-Fi 7 with directional ultra-high gain antenna
- Thermal Design
- VRM Thermal Armor Advanced
- M.2 Thermal Guard L
- Smart Fan 6: efficient cooling, silent operation, customizable
- DIY & Ease of Use
- WIFI EZ-Plug: quick, easy Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with quick-release & screwless design
- EZ-Latch Click: screwless M.2 heatsinks
- Sensor Panel Link: onboard video port for in-chassis panel setup
- Connectivity & Display
- Dual USB4 Type-C with DP-Alt
- HDMI and front HDMI
- Audio
- Realtek ALC1220 HD Audio
- Audiophile grade capacitors
- Durability & Build
- Ultra Durable PCIe Armor with metal back plate on PCIe x16 slot
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics cards
AORUS AI SNATCH
- Unleash Ultimate Performance with One-Click Activation
- Auto DDR5 Memory Boost: unlock DDR5 performance with a single click
- One-Click Acceleration: enhance DDR5 speeds instantly
- Real-time analyze, OC accuracy up, EZ to Pro
Zenith of the Memory
- Advanced DDR5 Performance
- AORUS gaming motherboards boost DDR5 performance and compatibility using advanced methods
- Exclusive BIOS Design
- Advanced BIOS functionality for seamless optimization of DDR5 memory
- Unmatched Hardware Excellence
- State-of-the-art technology designed to elevate your gaming experience
Steady Power, Better Play
- Digital Twin VRM Design
- Delivers consistent, high-powered performance to elevate overclocking
- Comprehensive Thermal Design
- Full-metal thermal design and durable heatsinks keep systems cool and efficient
Hassle-Free Assembly
- WIFI EZ-Plug
- Integrates Wi-Fi antenna plugs into one adapter for easy installation
- EZ-Latch Designs
- User-friendly PCIe and M.2 quick-release, screwless mechanisms
(WIFI EZ-Plug design repeated in original content; retained as described.)
Enhanced PCB Design for Superior Gameplay
- 6-Layer Server-Grade PCB
- Facilitates condensed integration
- Ensures signal fidelity, power consistency, and reduced EMI
- 2X Copper Enhancement
- Optimizes thermal management and power delivery
- Supports comprehensive overclocking capabilities
- 56% Lower Dissipation Factor
- Enhances signal integrity in high-frequency circuits
All-Round Connectivity
- Next-generation network, storage, and Wi-Fi solutions
- Lightning-fast data transfer and broad expandability
Born from Ultra Durable
- Technology reflects a commitment to longevity and reliability
- AORUS series motherboards are engineered to endure and excel
Collaborative Excellence in Computing
- GIGABYTE motherboards showcase dedication to BIOS improvement
- Synergy with the user community to democratize next-level computing power
Built for the Most Advanced PC for Gaming and Creating
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking capabilities, faster dual-channel DDR5 memory support, AMD EXPO technology, and PCIe 5.0 support for both graphics and NVMe, you can play demanding games and tackle large projects using AMD Ryzen 9000, 8000, and 7000 Series processors.
Specifications
General
| Category | Details |
|---|---|
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD X870 |
| Form Factor | ATX (30.5cm x 24.4cm) |
| OS Support | Windows 11 64-bit |
CPU Support
| Supported Processors |
|---|
| AMD Ryzen 9000 Series |
| AMD Ryzen 8000 Series |
| AMD Ryzen 7000 Series |
Memory
| Feature | Details |
|---|---|
| Type | DDR5 |
| Supported Speeds | 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| Slots | 4 x DDR5 DIMM |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Channel Architecture | Dual Channel |
| Module Support | Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Memory Profiles | AMD EXPO and XMP support |
Onboard Graphics & Display
| Component | Details |
|---|---|
| Integrated Graphics Processor | AMD Radeon Graphics support |
| USB4 Controller | ASMedia USB4 |
| USB4 Display Output | 2 x USB4 Type-C (USB4 + DisplayPort, max 3840x2160@240 Hz) |
| Rear HDMI | 1 x HDMI (max 4096x2160@60 Hz) |
| Front HDMI | 1 x front HDMI (max 1920x1080@30 Hz) |
Audio
| Feature | Details |
|---|---|
| Codec | Realtek ALC1220 |
| Channels | 2/4/5.1/7.1-channel High Definition Audio |
| Digital Output | S/PDIF Out support |
| Components | Audiophile grade capacitors |
LAN & Wireless
| Feature | Details |
|---|---|
| LAN | Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) |
Wireless Communication (varies by PCB revision):
| PCB Rev. | Wi-Fi Chip | Wi-Fi Standards | Bands | Bluetooth | Other |
|---|---|---|---|---|---|
| 1.0 | MediaTek Wi-Fi 7 MT7925 | a/b/g/n/ac/ax, 11be 160MHz support | 2.4 / 5 / 6 GHz | 5.4 | Wi-Fi 7 support |
| 1.1 | Realtek Wi-Fi 7 RTL8922AE | a/b/g/n/ac/ax, 11be 160MHz support | 2.4 / 5 / 6 GHz | 5.4 | Wi-Fi 7 support |
Expansion Slots
| Slot | Source | Standard / Mode |
|---|---|---|
| 1 x PCIEX16 | CPU | Ryzen 9000/7000: PCIe 5.0 x16 (up to x8 if M2B_CPU/M2C_CPU used) |
| Ryzen 8000 Phoenix 1: PCIe 4.0 x8 | ||
| Ryzen 8000 Phoenix 2: PCIe 4.0 x4 | ||
| 1 x PCIEX4 | Chipset | PCIe 4.0 x4 |
| 1 x PCIEX2 | Chipset | PCIe 3.0 x2 |
Storage
| Connector | Source | Form Factor / Key | Interface & Support |
|---|---|---|---|
| M2A_CPU | CPU | M.2 Socket 3, M | Type 25110/22110/2580/2280 SSDs; Ryzen 9000/7000: PCIe 5.0 x4/x2; Ryzen 8000 Phoenix 1/2: PCIe 4.0 x4/x2 |
| M2B_CPU | CPU | M.2 Socket 3, M | Type 22110/2280; Ryzen 9000: PCIe 5.0 x4/x2 |
| M2C_CPU | CPU | M.2 Socket 3, M | Type 22110/2280; Ryzen 9000: PCIe 5.0 x4/x2 |
| M2D_SB | Chipset | M.2 Socket 3, M | Type 22110/2280; PCIe 4.0 x4/x2 |
| SATA | Chipset | 4 x SATA 6Gb/s | RAID 0/1/5/10 for NVMe SSDs; RAID 0/1/10 for SATA storage |
USB
| Source | Ports & Type |
|---|---|
| CPU + ASMedia USB4 | 2 x USB4 Type-C on back panel |
| CPU + USB 3.2 Gen 1 Hub | 4 x USB 3.2 Gen 1 on back panel |
| CPU + USB 2.0 Hub | 4 x USB 2.0/1.1 on back panel |
| Chipset (external) | 2 x USB 3.2 Gen 2 Type-A (red) on back panel |
| Chipset (internal) | 1 x USB 3.2 Gen 2x2 Type-C header, 2 x USB 3.2 Gen 1 headers, 4 x USB 2.0/1.1 headers |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header (USB 3.2 Gen 2x2)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 1 x Trusted Platform Module header (for specified GC-TPM2.0 SPI modules)
- 1 x HDMI port (Note as per original)
- 1 x power button
- 1 x reset button
- 2 x temperature sensor headers
- 1 x reset jumper
- 1 x Clear CMOS jumper

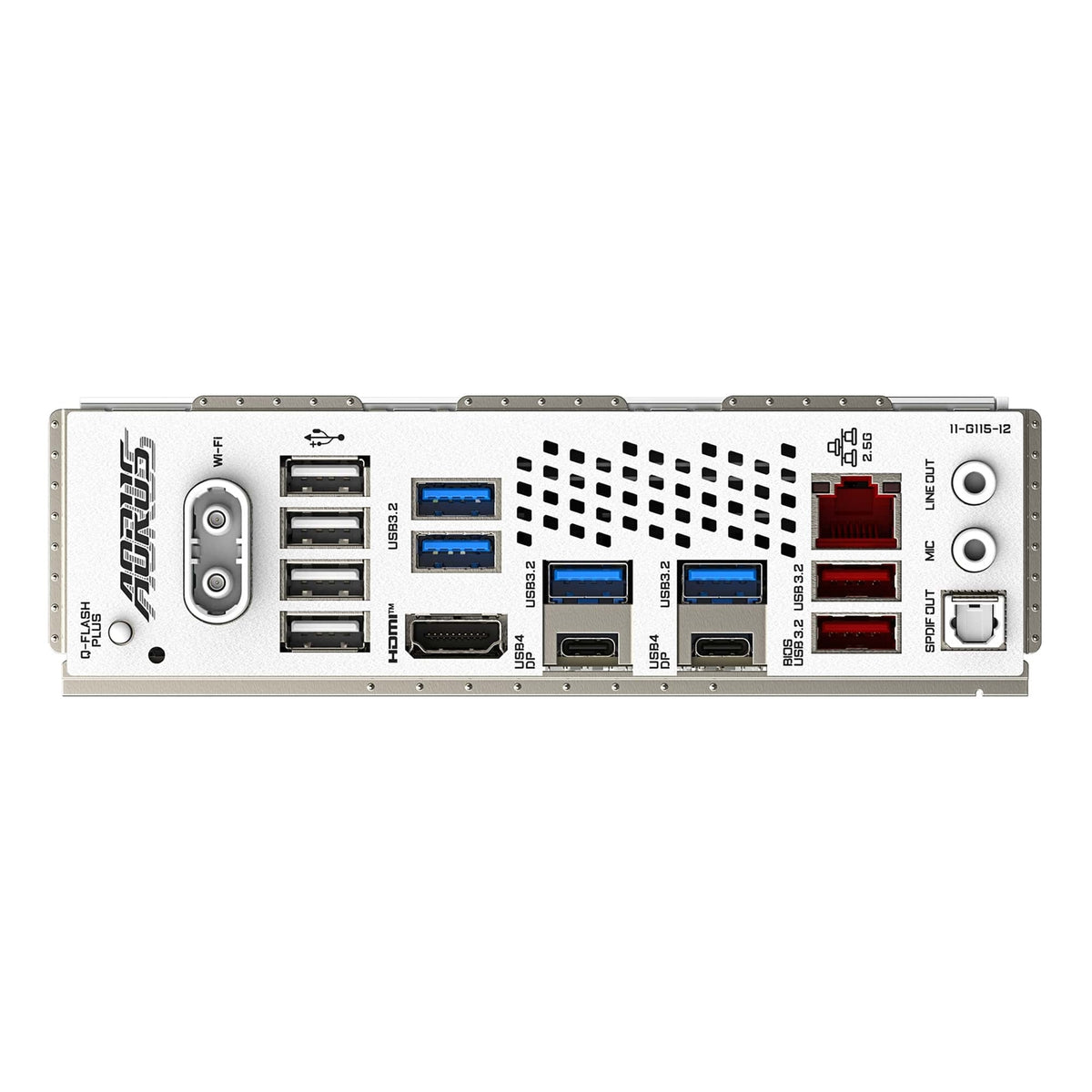

Back Panel Connectors
- 1 x Q-Flash Plus button
- 1 x HDMI port (Note as per original)
- 2 x antenna connectors (2T2R)
- 2 x USB4 Type-C ports (DisplayPort support, Note as per original)
- 2 x USB 3.2 Gen 2 Type-A (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
I/O Controller & Monitoring
| Feature | Details |
|---|---|
| I/O Controller | iTE I/O Controller Chip |
| Monitoring | Voltage, temperature, fan speed, water cooling flow rate, noise detection |
| Protections & Control | Fan fail warning, fan speed control |
BIOS
| Feature | Details |
|---|---|
| ROM | 1 x 256 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Standards Support | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Q-Flash and Q-Flash Plus support
- Smart Backup support
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
