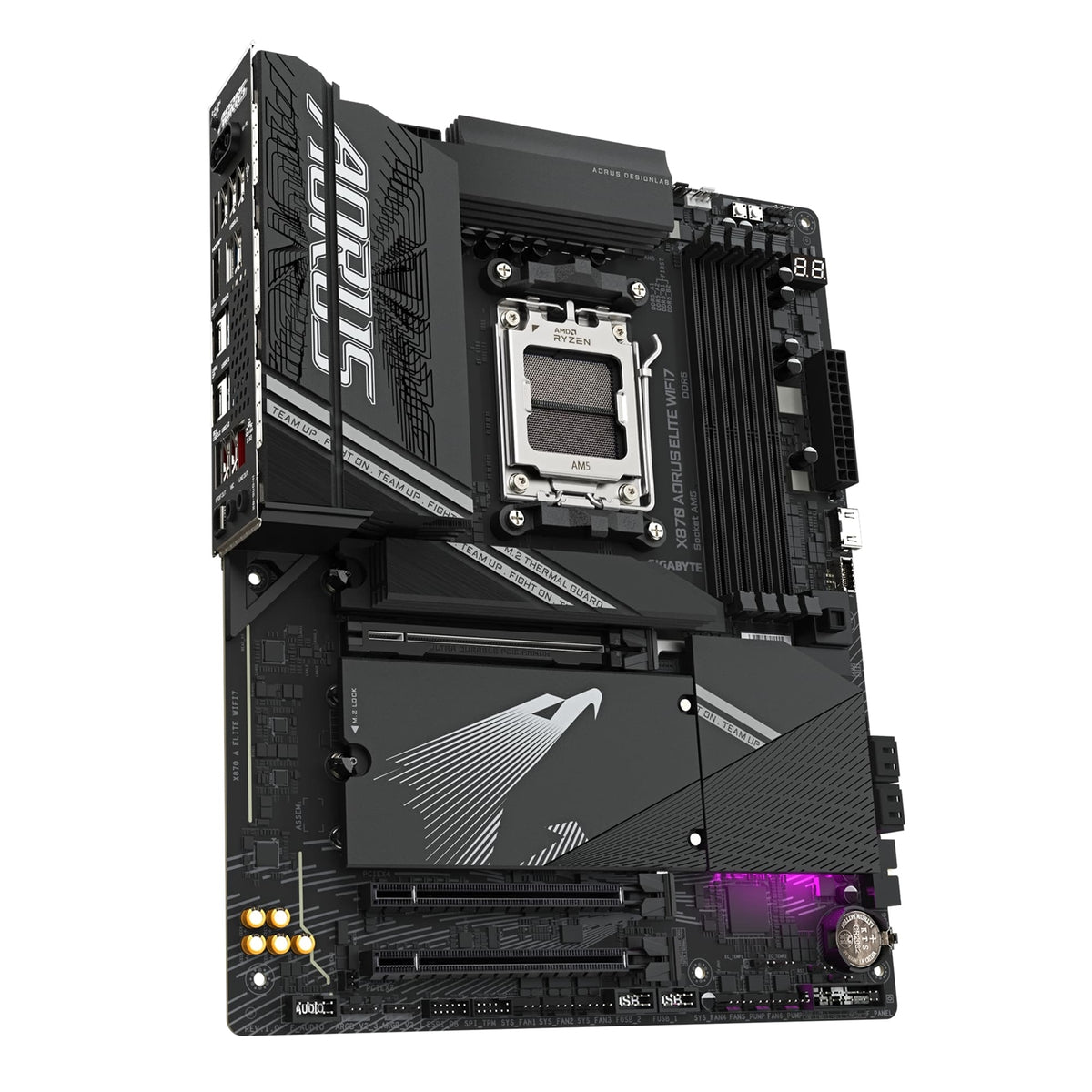

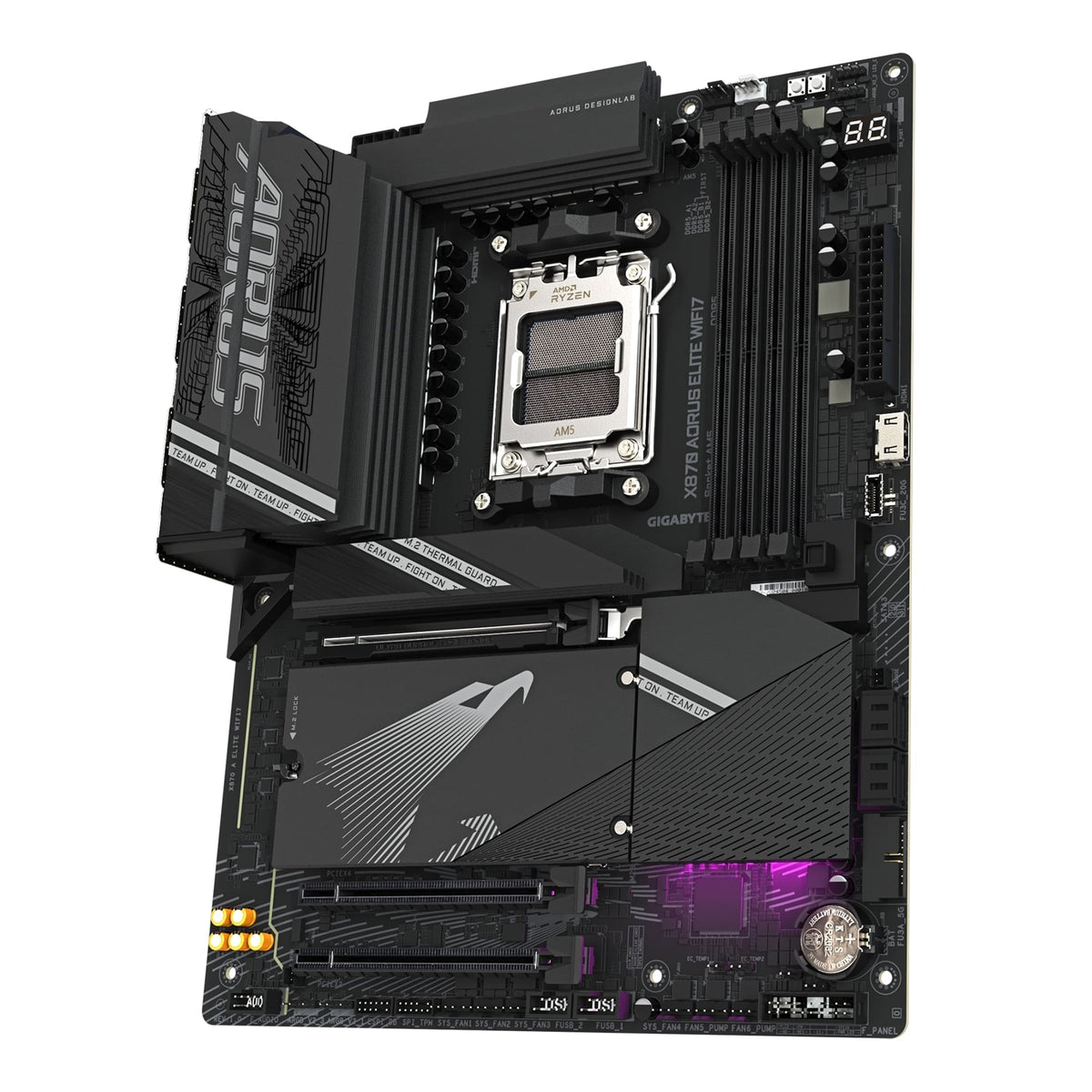

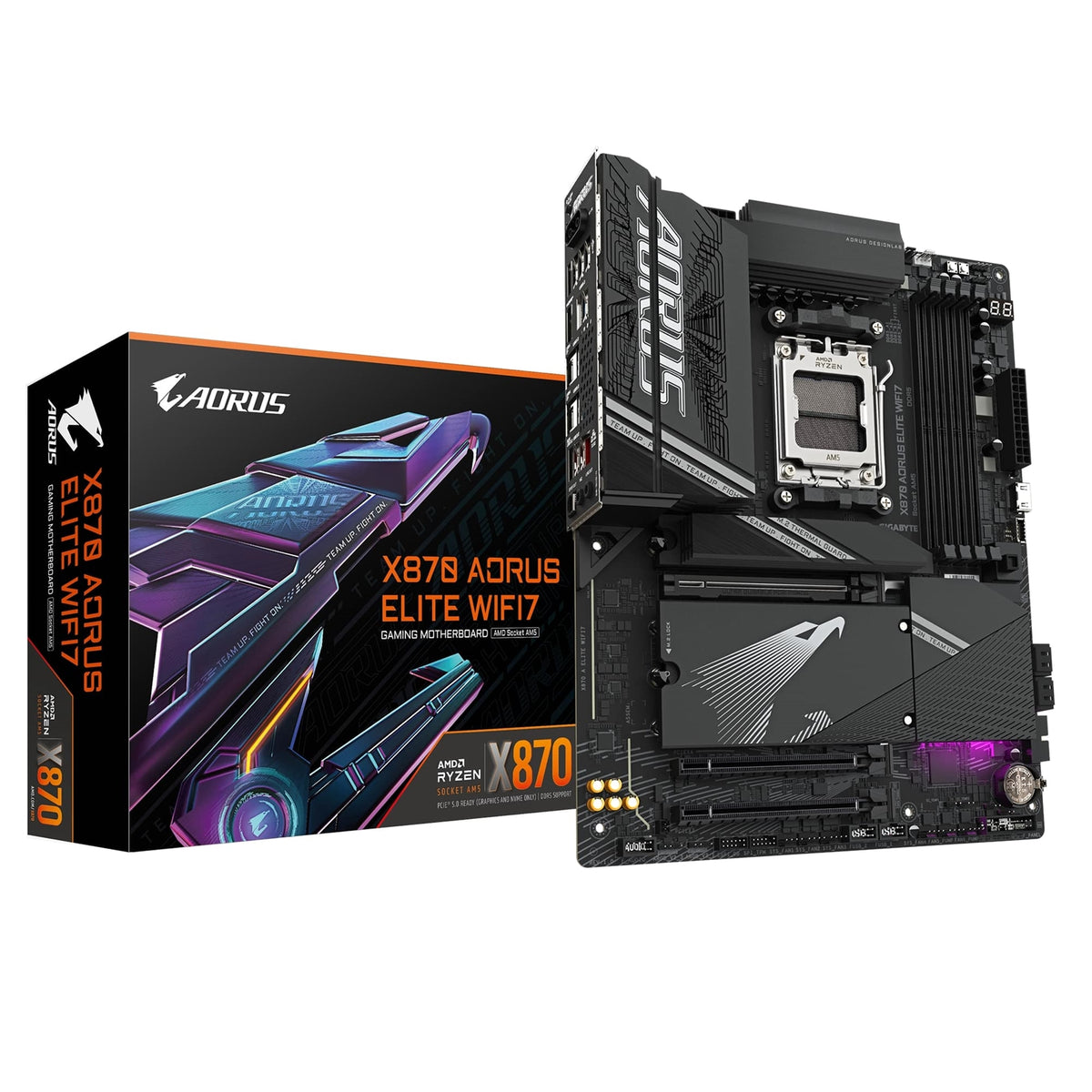

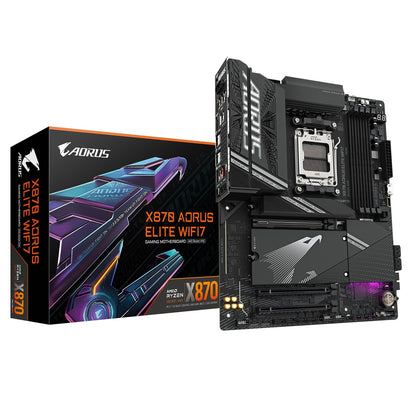

X870 AORUS ELITE WIFI7 Gaming Motherboard
AMD X870 | AM5 | DDR5 | PCIe 5.0 | Wi-Fi 7 | USB4
The X870 AORUS ELITE WIFI7 motherboard is engineered for advanced AMD gaming and content creation builds, delivering powerful performance, high-speed connectivity, and a DIY‑friendly design.
Key Features
- AMD Socket AM5 Support
- Compatible with AMD Ryzen 9000 / 8000 / 7000 Series Processors
-
AMD X870 chipset for next‑generation performance
-
Advanced Power & Thermal Design
- Digital twin 16+2+2 phases VRM solution
- VRM Thermal Armor Advanced
- M.2 Thermal Guard for SSD cooling
-
Comprehensive, full-metal thermal design
-
High-Speed DDR5 Performance
- Dual Channel DDR5 with 4 x DIMM slots
- Support for AMD EXPO and XMP memory profiles
- AORUS AI SNATCH with one-click DDR5 optimization
- Auto DDR5 Memory Boost and one-click acceleration
- Exclusive BIOS design for seamless DDR5 tuning
- Shielded memory routing & daisy-chained routing
- 6-layer server-grade PCB with 2X copper enhancement
-
56% lower dissipation factor for improved signal integrity
-
Ultra-Fast Storage & PCIe
- 4 x M.2 slots total
- 3 x PCIe 5.0 x4 M.2 (CPU) and 1 x PCIe 4.0 x4 (chipset)
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength
- Ultra Durable PCIe Armor metal back plate for x16 slot
-
RAID 0/1/5/10 for NVMe, RAID 0/1/10 for SATA (RAID 5 with Ryzen 9000)
-
Next-Gen Networking & Wireless
- Realtek 2.5GbE LAN
- Wi-Fi 7 with directional ultra-high gain antenna
- Bluetooth 5.4
-
WIFI EZ-Plug design for quick, easy antenna installation
-
Extended Connectivity
- Dual USB4 Type-C with DP-Alt support (up to 3840x2160@240 Hz)
- HDMI rear port and front HDMI for sensor panel link
-
Multiple USB 3.2 Gen 2x2 / Gen 2 / Gen 1 / USB 2.0 options
-
Premium Audio
- Realtek ALC1220 HD Audio codec
- 2/4/5.1/7.1-channel HD audio
- Support for S/PDIF Out
-
Audiophile-grade capacitors
-
DIY-Friendly Design
- EZ-Latch Plus: quick-release PCIe and M.2 slots, screwless design
- EZ-Latch Click: screwless M.2 heatsinks
- WIFI EZ-Plug one-piece antenna adapter
- Onboard power and reset buttons
-
Clear CMOS and Q-Flash Plus buttons
-
Intuitive Control & BIOS
- Friendly UI with multi-theme BIOS
- AIO fan control and Q-Flash auto scan
- Real-time analysis and OC accuracy tools
-
Support for GIGABYTE Control Center (GCC)
-
Built for Longevity & Reliability
- AORUS Ultra Durable technology
- Enhanced PCB for signal fidelity, power consistency, and reduced EMI
- Engineered to endure and excel for gaming and creation
Built for the Most Advanced PC for Gaming and Creating
When only the fastest will do, an AMD X800-series platform with the X870 AORUS ELITE WIFI7 delivers:
- USB 4.0 onboard
- Robust overclocking capabilities
- Faster dual-channel DDR5 memory support
- AMD EXPO technology
- PCIe 5.0 support for both graphics and NVMe storage
Paired with AMD Ryzen 9000, 8000, or 7000 Series processors, you can tackle demanding games and heavy creative workloads with revolutionary performance.
Specifications
CPU
| Feature | Details |
|---|---|
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870 |
Memory
| Feature | Details |
|---|---|
| Type | DDR5 |
| Supported Speeds | 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| Slots | 4 x DDR5 DIMM |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Channel Architecture | Dual Channel |
| Module Support | Non‑ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Profile Support | AMD EXPO, XMP |
Onboard Graphics
| Feature | Details |
|---|---|
| Integrated GPU | AMD Radeon Graphics (CPU dependent) |
| Rear HDMI | 1 x HDMI, max 4096x2160@60 Hz |
| Front HDMI | 1 x HDMI, max 1920x1080@30 Hz |
| USB4 Type-C Video | 2 x USB4 Type-C (via ASMedia USB4 controller) with DisplayPort support, max 3840x2160@240 Hz |
Audio
| Feature | Details |
|---|---|
| Codec | Realtek ALC1220 HD Audio |
| Channels | 2/4/5.1/7.1-channel |
| Digital Out | S/PDIF Out support |
LAN & Wireless
| Feature | Details |
|---|---|
| LAN | Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wi-Fi (PCB rev. 1.0) | MediaTek Wi-Fi 7 MT7925, WiFi a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.4 |
| Wi-Fi (PCB rev. 1.1) | Realtek Wi-Fi 7 RTL8922AE, WiFi a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.4 |
Expansion Slots
| Slot | Source | Standard | Lanes / Notes |
|---|---|---|---|
| 1 x PCIEX16 | CPU | PCIe 5.0 / 4.0 | Ryzen 9000/7000: PCIe 5.0 x16; when M2B_CPU or M2C_CPU used, runs up to x8. Ryzen 8000 Phoenix 1: PCIe 4.0 x8. Ryzen 8000 Phoenix 2: PCIe 4.0 x4. Supports graphics card or NVMe SSD only. |
| 1 x PCIEX4 | Chipset | PCIe 4.0 | Runs at x4 |
| 1 x PCIEX2 | Chipset | PCIe 3.0 | Runs at x2 |
Storage
| Connector | Source | Type | Support |
|---|---|---|---|
| 1 x M2A_CPU | CPU | M.2 Socket 3, M key, 25110/22110/2580/2280 | Ryzen 9000/7000: PCIe 5.0 x4/x2; Ryzen 8000 Phoenix 1/2: PCIe 4.0 x4/x2 |
| 2 x M2B_CPU / M2C_CPU | CPU | M.2 Socket 3, M key, 22110/2280 | Ryzen 9000: PCIe 5.0 x4/x2 |
| 1 x M2D_SB | Chipset | M.2 Socket 3, M key, 22110/2280 | PCIe 4.0 x4/x2 |
| 4 x SATA 6Gb/s | Chipset | SATA | RAID 0/1/10 support |
RAID Support (NVMe & SATA)
- NVMe SSD: RAID 0, 1, 5, 10 (RAID 5 only with Ryzen 9000)
- SATA: RAID 0, 1, 10
USB
| Source | Ports | Details |
|---|---|---|
| CPU + ASMedia USB4 | 2 x USB4 Type-C (rear) | USB4, DisplayPort support |
| CPU + USB 3.2 Gen 1 Hub | 4 x USB 3.2 Gen 1 (rear) | Type-A |
| CPU + USB 2.0 Hub | 4 x USB 2.0/1.1 (rear) | Type-A |
| Chipset | 1 x USB 3.2 Gen 2x2 Type-C (front) | via internal header |
| Chipset | 2 x USB 3.2 Gen 2 Type-A (rear, red) | — |
| Chipset | 2 x USB 3.2 Gen 1 | via internal header |
| Chipset | 4 x USB 2.0/1.1 | via internal headers |
Internal I/O Connectors
- Power:
- 1 x 24-pin ATX main power connector
-
2 x 8-pin ATX 12V power connectors
-
Cooling:
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
-
2 x system fan/water cooling pump headers
-
RGB:
- 3 x addressable RGB Gen2 LED strip headers
-
1 x RGB LED strip header
-
Storage:
- 4 x M.2 Socket 3 connectors
-
4 x SATA 6Gb/s connectors
-
Front Panel & Audio:
- 1 x front panel header
-
1 x front panel audio header
-
USB:
- 1 x USB Type-C header (USB 3.2 Gen 2x2)
- 1 x USB 3.2 Gen 1 header
-
2 x USB 2.0/1.1 headers
-
Additional:
- 1 x noise detection header
- 1 x Trusted Platform Module header (GC-TPM2.0 SPI series only)
- 1 x HDMI port (internal, front panel use)
- 1 x power button
- 1 x reset button
- 2 x temperature sensor headers
- 1 x reset jumper
- 1 x Clear CMOS jumper

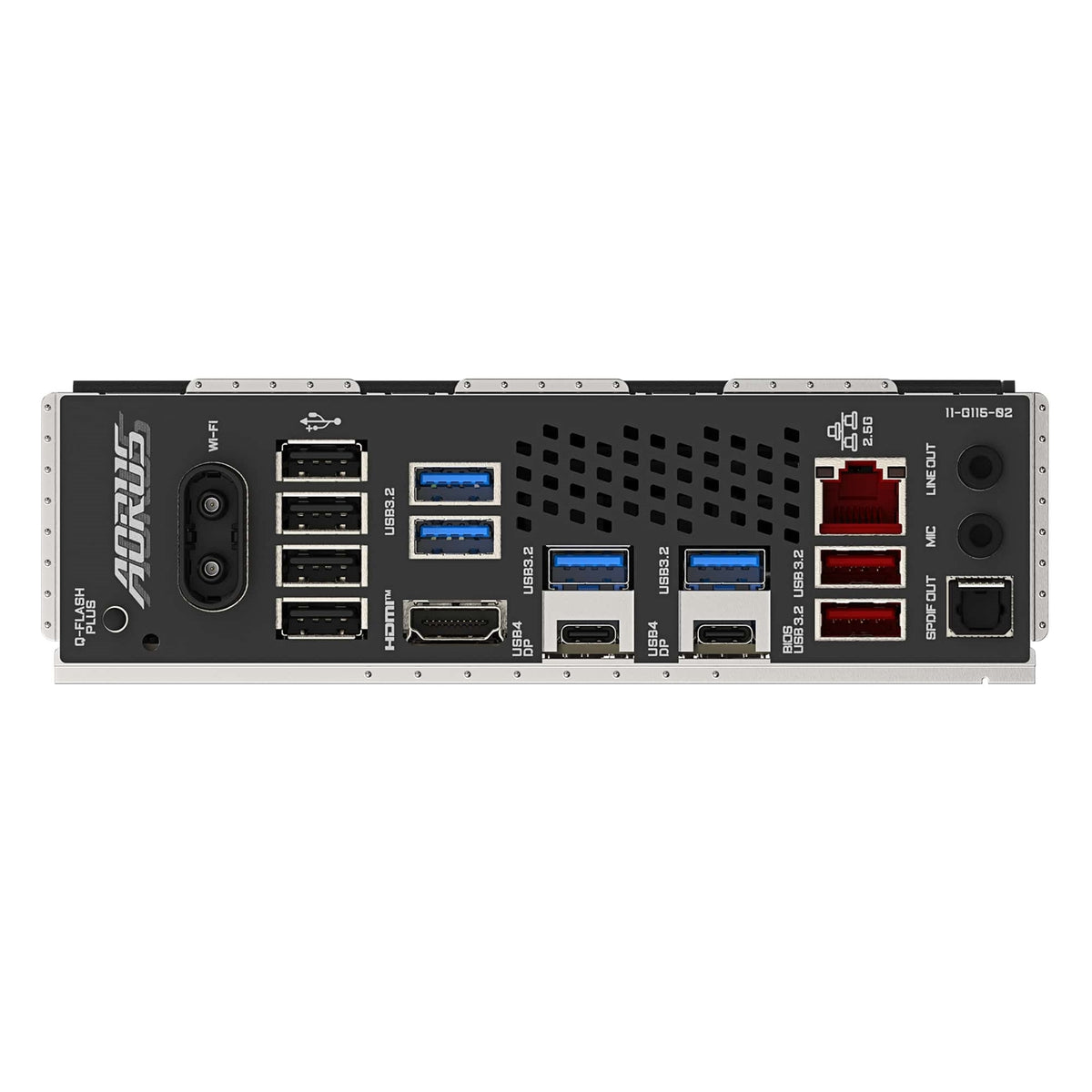

Back Panel Connectors
- 1 x Q-Flash Plus button
- 1 x HDMI port
- 2 x antenna connectors (2T2R)
- 2 x USB4 Type-C ports (with DisplayPort support)
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 1 x optical S/PDIF Out
- 2 x audio jacks
I/O Controller & Monitoring
- iTE I/O Controller chip
- Voltage, temperature, fan speed, and water cooling flow rate detection
- Fan fail warning and fan speed control
- Noise detection
BIOS
- 1 x 256 Mbit flash
- AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- GIGABYTE Control Center (GCC) support
- Q-Flash & Q-Flash Plus support
- Smart Backup support
- AORUS AI SNATCH for one-click performance tuning
- Collaborative BIOS refinement based on user community feedback
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
Form Factor
- ATX
- Dimensions: 30.5 cm x 24.4 cm
