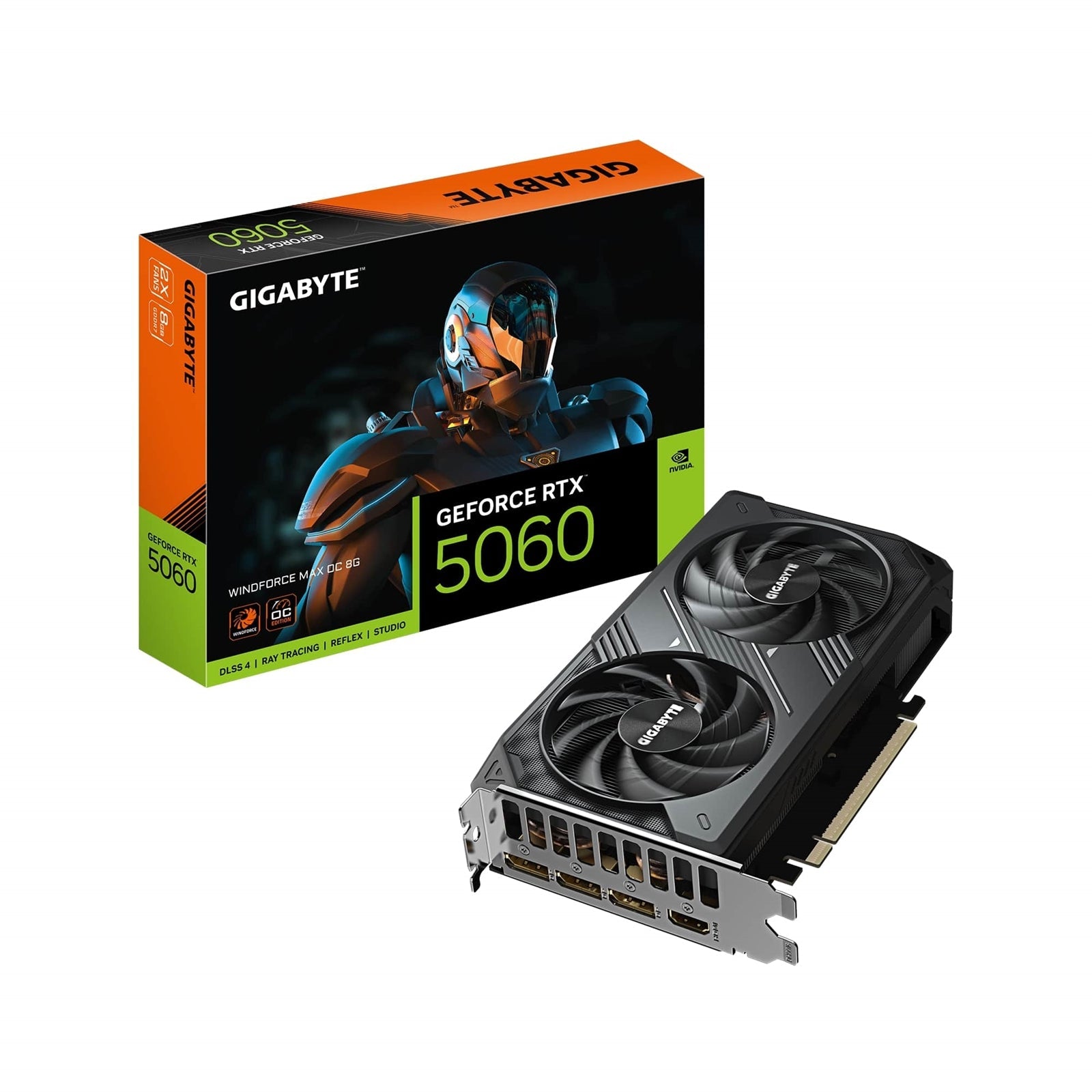

Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G Graphics Card
The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G is designed for gamers and creators who want powerful performance, advanced cooling, and durable components. Powered by the NVIDIA Blackwell architecture and DLSS 4, this graphics card delivers next-generation AI, ray tracing, and rendering capabilities.
Key Features
- Powered by NVIDIA Blackwell Architecture and DLSS 4
- GeForce RTX 5060 GPU
- 8GB GDDR7 memory with 128-bit interface
- WINDFORCE cooling system
- Hawk fan design
- Server-grade thermal conductive gel
- Reinforced structure
- Core Clock: 2512 MHz (Reference card: 2497 MHz)
Next-Gen Performance
-
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4. -
New Streaming Multiprocessors
Optimized for neural shaders. -
Fourth-Gen Ray Tracing Cores
Built for mega geometry and immersive ray-traced visuals. -
The Ultimate Platform for Gamers and Creators
Designed to handle demanding gaming and creative workflows.
WINDFORCE Cooling System
The WINDFORCE cooling system delivers exceptional thermal performance using multiple advanced cooling technologies working together:
- Hawk fans with alternate spinning
- Server-grade thermal conductive gel
- Composite copper heat pipes
- Copper plate in direct contact with GPU
- 3D active fans
- Screen cooling with extended heatsink design
This comprehensive solution improves heat dissipation and helps maintain stable performance.
Hawk Fan Technology
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This innovative profile:
- Reduces air resistance and noise
- Increases air pressure by up to 53.6%
- Increases air volume by 12.5%
- Maintains low acoustics while enhancing airflow
Graphene Nano Lubricant
- Extends the life of the sleeve bearing fan by 2.1 times
- Offers longevity close to double ball bearing fans
- Operates more quietly
Alternate Spinning
- Reduces turbulence between adjacent fans
- Increases overall airflow pressure for more efficient cooling
Advanced Thermal Solutions
Server-Grade Thermal Conductive Gel
To enhance quality and reliability, server-grade thermal conductive gel is used on critical components such as VRAM and MOSFETs:
- Highly deformable, non-fluid gel for optimal contact on uneven surfaces
- Effectively resists deformation from transport or long-term use
- Outperforms traditional thermal pads in maintaining stable contact
Copper Plate & Composite Copper Heat Pipe
- Copper plate directly contacts the GPU
- Composite copper heat pipes rapidly transfer heat from GPU and VRAM to the heatsink
Screen Cooling
- Extended heatsink design allows air to pass through
- Improves overall heat dissipation efficiency
Superior Craftsmanship & Ultra Durable Design
Ultra Cooling
-
Lower RDS(on) MOSFETs
Designed for lower switching resistance, enabling faster current charging and discharging at extremely low temperatures.
Low Power Loss
-
Metal Chokes
Hold energy longer than common iron-core chokes at high frequency, reducing core energy loss and EMI interference.
Longer Life
-
Lower ESR Solid Capacitors
Provide better electronic conductivity for excellent system performance and extended lifespan.
Friendly PCB Design
A fully automated production process ensures high-quality circuit boards and a smoother PCB surface:
- Eliminates sharp protrusions from solder connectors typically seen on conventional PCBs
- Helps prevent accidental cuts or damage to components during system assembly
Power Through the Game
GIGABYTE offers power supply solutions designed to pair with your graphics card:
- Compatible with AORUS series and UD series power supplies from GIGABYTE.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software platform for all supported GIGABYTE products. It provides an intuitive interface that allows you to:
- Adjust clock speeds
- Fine-tune voltage
- Set fan modes
- Modify power targets in real time
Specifications
| Category | Details |
|---|---|
| Graphics Processing | GeForce RTX 5060 |
| Core Clock | 2512 MHz (Reference: 2497 MHz) |
| CUDA Cores | 3840 |
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128 bit |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi-View | 4 |
| Card Size | L=199 W=116 H=40 |
| PCB Form | ATX |
| DirectX Support | DirectX 12 API |
| OpenGL Support | 4.6 |
| Recommended PSU | 550W |
| Power Connectors | 8-pin ×1 |
| Output Ports | DisplayPort 2.1b ×3, HDMI 2.1b ×1 |
| Accessories | Quick guide |
The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G combines advanced NVIDIA Blackwell architecture, powerful AI and ray tracing capabilities, and a robust WINDFORCE cooling system to deliver high performance, durability, and efficient thermal management for your next gaming or creation build.
