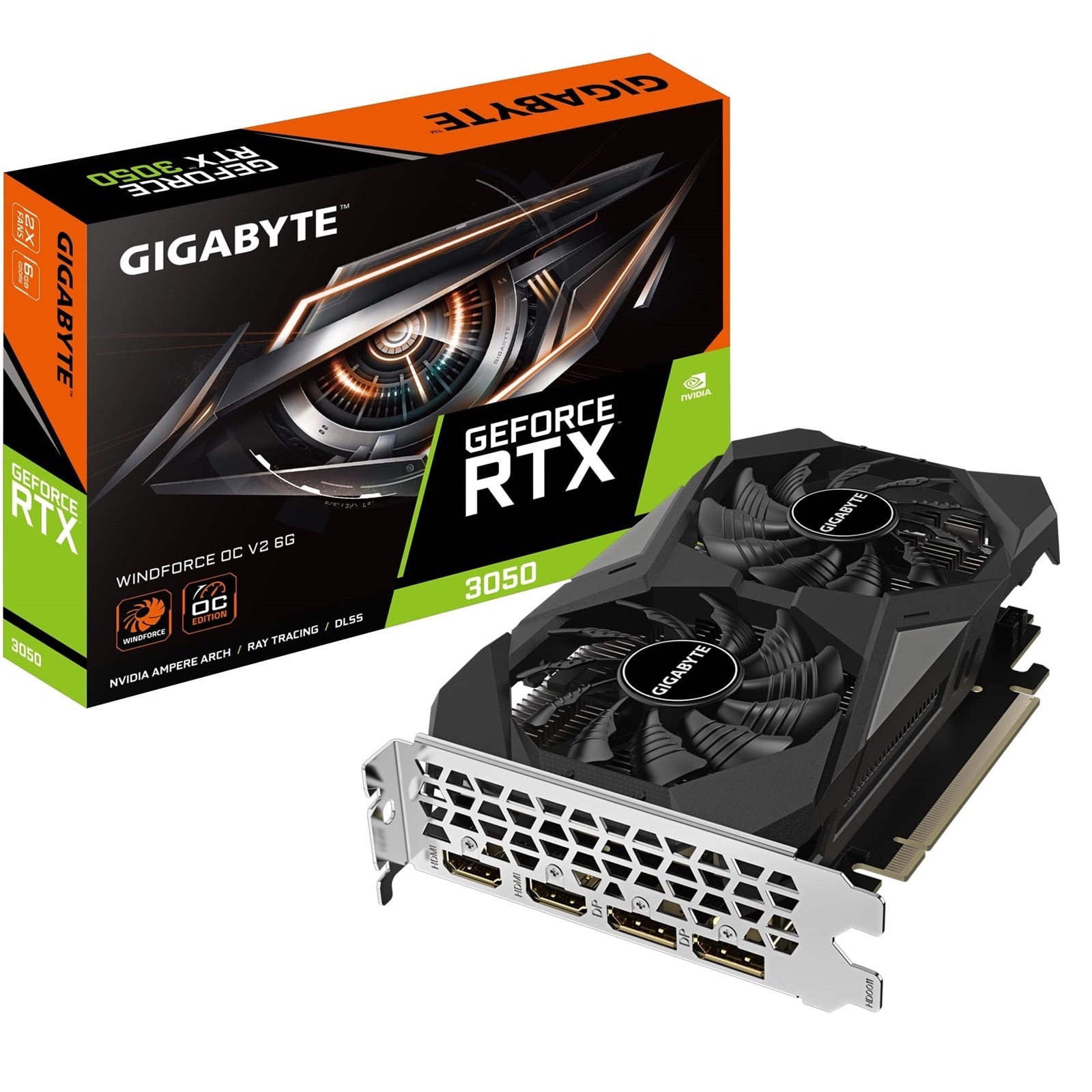

GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 6G Graphics Card
Experience powerful graphics performance with the GeForce RTX 3050 WINDFORCE OC V2 6G, featuring advanced cooling and durable components designed for reliable, efficient gaming.
Key Features
- Powered by GeForce RTX 3050
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- 6GB GDDR6 memory with 96-bit memory interface
- WINDFORCE cooling system
- Core Clock: 1477 MHz (Reference Card: 1470 MHz)
WINDFORCE Cooling System
The WINDFORCE cooling system is engineered for high-efficiency heat dissipation, combining:
- Two unique blade fans
- Alternate spinning technology
- 3D Active Fan
Alternate Spinning
- Reduces turbulence between adjacent fans
- Increases overall air pressure
- Adjacent fans rotate in opposite directions, aligning airflow and enhancing pressure while reducing turbulence.
Unique Blade Fan
- Airflow is split by the triangular fan edge
- Guided smoothly through the 3D stripe curve on the fan surface
- Effectively enhances airflow for better cooling performance.
3D Active Fan
- Provides semi-passive cooling
- Fans remain off when the GPU is under low load or running low power games
- Allows for silent operation when the system is light-loaded or idle.
Graphene Nano Lubricant
- Extends the life of the sleeve bearing fan by 2.1 times
- Achieves a lifespan close to that of double ball bearing fans
- Operates more quietly.
Ultra Durable Design
Built for stability, efficiency, and longevity.
Ultra Cooling
- Lower RDS(on) MOSFETs are designed to provide lower switching resistance
- Enables faster electric current charging and discharging
- Operates at extremely low temperature.
Low Power Loss
- Metal chokes hold energy longer than common iron-core chokes at high frequency
- Helps reduce core energy loss
- Reduces EMI interference.
Longer Life
- Lower ESR solid capacitors improve electronic conductivity
- Supports excellent system performance
- Contributes to a longer component lifespan.
Friendly PCB Design
The fully automated production process ensures:
- High-quality circuit boards
- Elimination of sharp solder protrusions on the PCB surface
- A more user-friendly design that helps prevent hand injuries and reduces the risk of accidental component damage during installation.
Specifications
| Specification | Detail |
|---|---|
| Graphics Processing | GeForce RTX 3050 |
| Core Clock | 1477 MHz (Reference: 1470 MHz) |
| CUDA Cores | 2304 |
| Memory Clock | 14000 MHz |
| Memory Size | 6 GB |
| Memory Type | GDDR6 |
| Memory Bus | 96 bit |
| Card Bus | PCI-E 4.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi-View | 4 |
| Card Size | L = 191 mm, W = 111 mm, H = 36 mm |
| PCB Form | ATX |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| Recommended PSU | 300W |
| Power Connectors | N/A |
| Output Ports | DP 1.4a x 2, HDMI 2.1 x 2 |
| Accessories | Quick guide |
