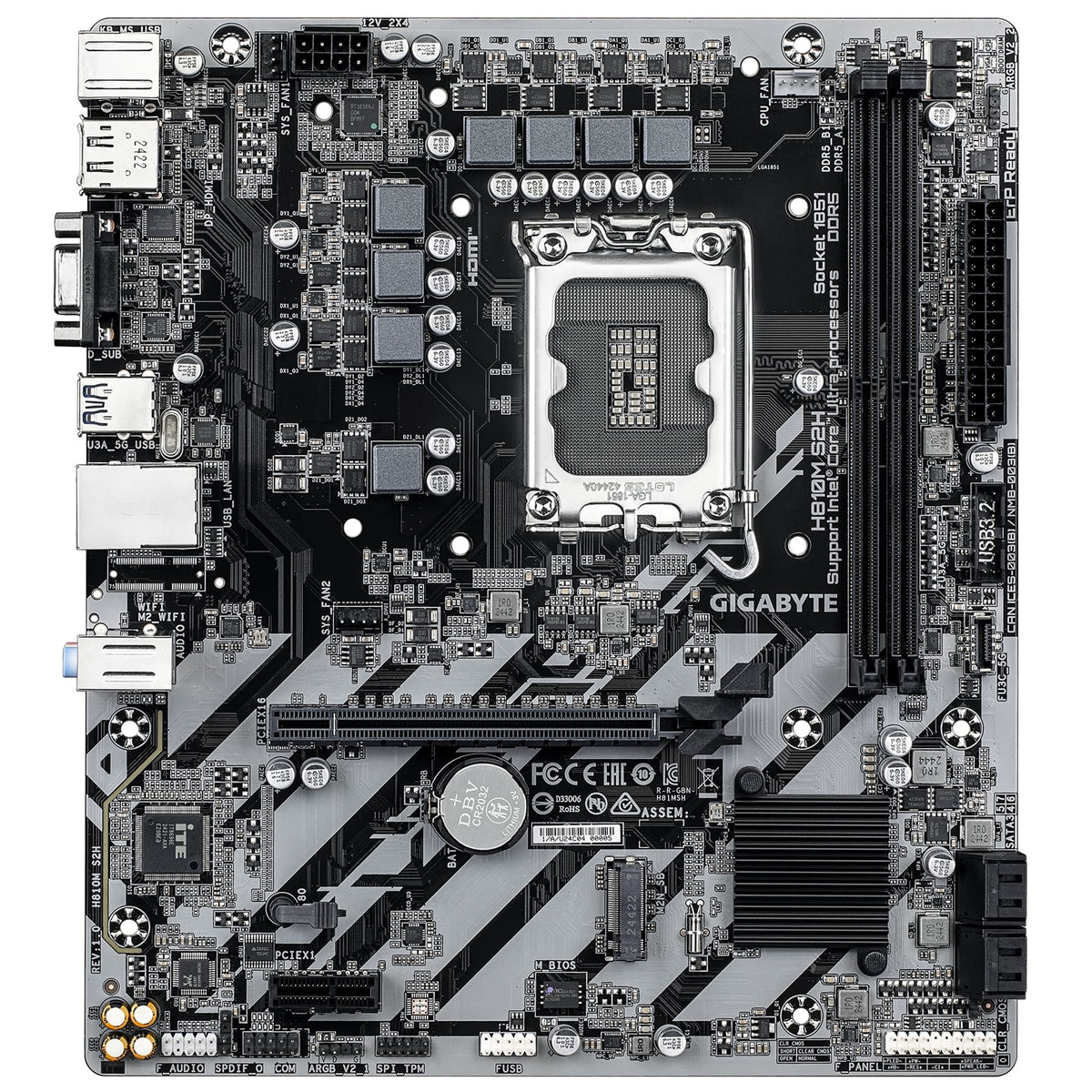

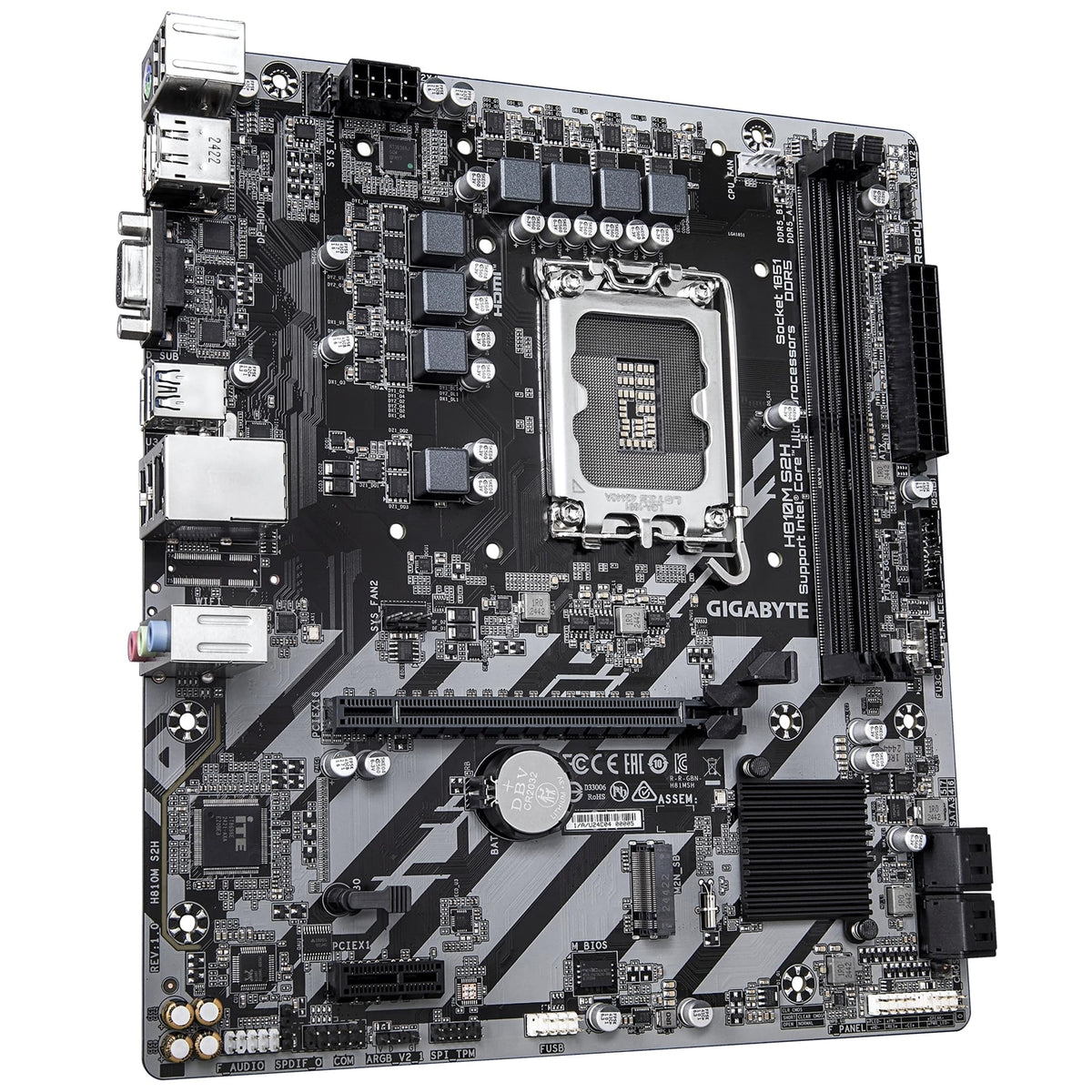

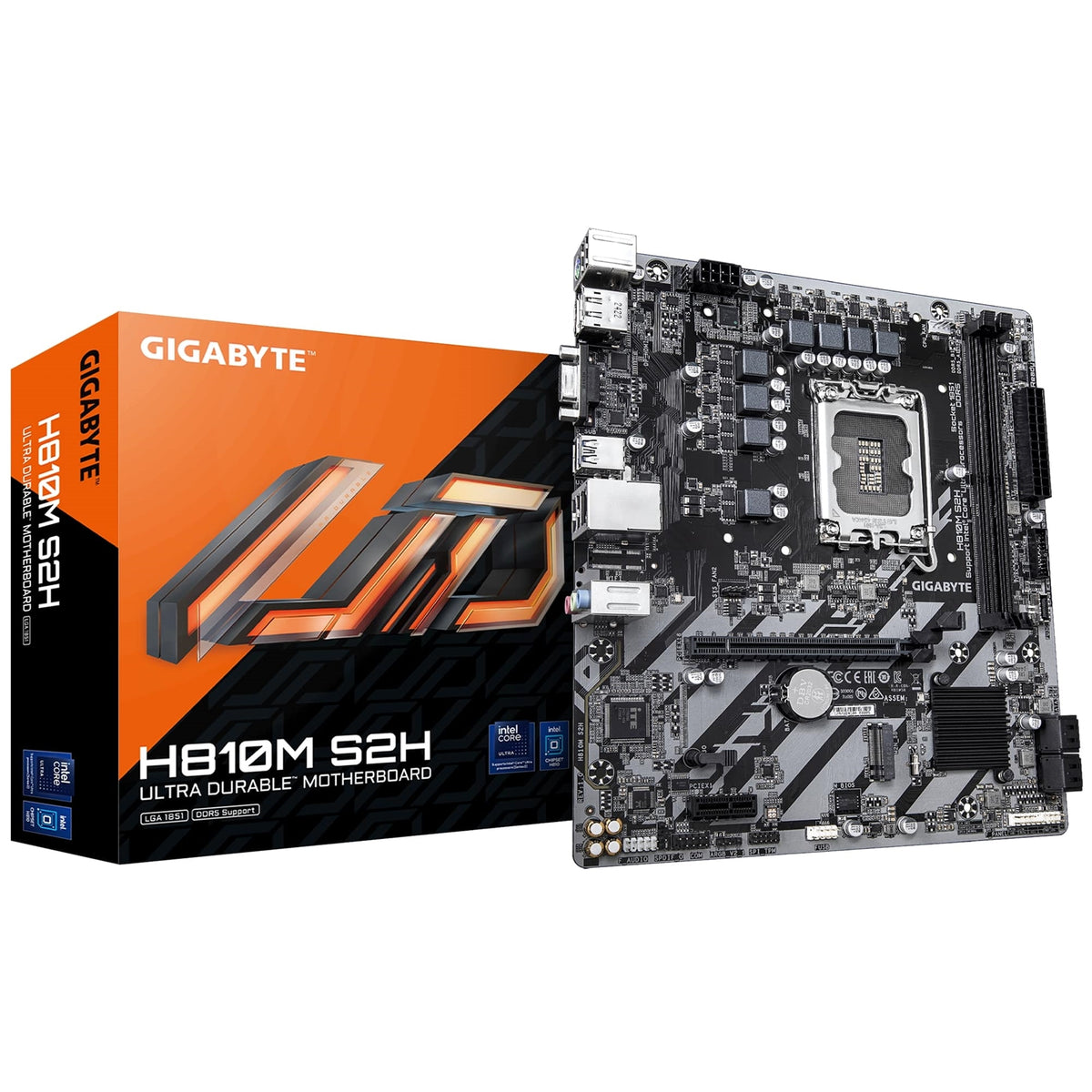

GIGABYTE H810M S2H Micro ATX Motherboard
The GIGABYTE H810M S2H motherboard is designed to deliver durable performance, efficient power delivery, and user-friendly features for Intel Core Ultra processors (Series 2). With next-generation connectivity, intuitive BIOS, and robust cooling controls, it provides a solid platform for modern PC builds.
Key Features
Powerful Intel Platform Support
- CPU Socket: LGA1851
- Supports: Intel Core Ultra Processors (Series 2)
- L3 cache varies by CPU model (see GIGABYTE website for latest CPU support list).
Hybrid 4+1+2 Phases VRM Solution
- Hybrid VRM design with high-quality components
- Enhanced system performance and hardware scalability
Smart Fan 6 Cooling
- Cool, quiet, and customizable cooling control
- Superior cooling performance and whisper-quiet operation
Next Generation Storage & Expansion
- PCIe 4.0 x16 slot for high-performance graphics or NVMe SSD
- PCIe 4.0 x4 M.2 connector for fast storage
- SATA RAID support: RAID 0, 1, 5, 10
Fast Networking
- Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps)
- Integrated bandwidth management application for improved latency and responsiveness in crowded LAN environments
Extended Display Connectivity
- DisplayPort
- HDMI
- D-Sub
- Support for up to triple-display output (actual support may vary by CPU)
Hi-Fi Audio
- Realtek High Definition Audio CODEC
- High-end audio capacitors
- Audio Noise Guard
- Configurable 2/4/5.1/7.1-channel audio via software
- S/PDIF Out support
EZ-Latch & Easy Assembly
- PCIe EZ-Latch: Quick-release design for the PCIe x16 slot, making graphics card removal easier
- EZ-Latch designs simplifying the assembly process
EZ Debug Zone
- Centralized debug LEDs and control buttons
- Organized troubleshooting for easier system building
User-Friendly BIOS & Software
- UC BIOS: Restructured, user-centered interface with intuitive performance adjustments
- Q-FLASH Auto Scan: Automatically scans USB flash drives for BIOS files
- Friendly UI with multi-theme support and Q-Flash Auto Scan in BIOS and software
- Support for GIGABYTE Control Center (GCC)
- Support for Smart Backup
Durable Performance
- GIGABYTE Ultra Durable motherboard design
- Built with optimal components inside and out for long-term stability and performance
Specifications
Processor & Chipset
| Item | Details |
|---|---|
| CPU Socket | LGA1851 |
| CPU Support | Intel Core Ultra Processors |
| Chipset | Intel H810 Express Chipset |
| L3 Cache | Varies with CPU |
Memory
| Item | Details |
|---|---|
| Memory Type | DDR5 6400/5600 MT/s |
| Slots | 2 x DDR5 DIMM sockets |
| Maximum Capacity | Up to 128 GB (64 GB per DIMM) |
| Channel Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode) |
| Non-ECC Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP Support | Extreme Memory Profile (XMP) |
| Note | CPU and memory configuration may affect supported types and speeds; see GIGABYTE website Memory Support List for details |
Onboard Graphics
| Output | Max Resolution | Standard / Support |
|---|---|---|
| HDMI | 4096 x 2160 @ 60 Hz | HDMI 2.1, HDCP 2.3 |
| DisplayPort | 3840 x 2160 @ 60 Hz | DisplayPort 2.1 |
| D-Sub | 1920 x 1200 @ 60 Hz | |
| Display Support | Up to triple-display at the same time | Graphics specs may vary by CPU |
Integrated Graphics Processor – Intel HD Graphics support (actual support may vary by CPU).
Audio
| Item | Details |
|---|---|
| Audio CODEC | Realtek Audio CODEC |
| Audio Standard | High Definition Audio |
| Channel Support | 2/4/5.1/7.1-channel |
| Configuration | Channel configuration via audio software |
| Digital Output | Support for S/PDIF Out |
| Enhancements | High-end audio capacitors, Audio Noise Guard |
LAN
| Item | Details |
|---|---|
| Controller | Realtek GbE LAN chip |
| Speeds | 1 Gbps / 100 Mbps / 10 Mbps |
| Software | LAN bandwidth management application |
Expansion Slots
| Source | Slot | Standard | Configuration |
|---|---|---|---|
| CPU | 1 x PCI Express x16 | PCIe 4.0 | Runs at x16 (PCIEX16) |
| Chipset | 1 x PCI Express x1 | PCIe 3.0 | Runs at x1 (PCIEX1) |
- The PCIEX16 slot can only support either a graphics card or an NVMe SSD.
Storage
| Source | Interface | Details |
|---|---|---|
| Chipset | 1 x M.2 (Socket 3, M key) | Type 2280, PCIe 4.0 x4/x2 SSD support |
| Chipset | 4 x SATA 6Gb/s | RAID 0, 1, 5, 10 support for SATA storage devices |
USB Connectivity
| Controller | Ports & Location | Standard |
|---|---|---|
| Chipset | 1 x USB Type-C (internal header) | USB 3.2 Gen 1 |
| 3 x USB 3.2 Gen 1 (1 rear, 2 via internal header) | USB 3.2 Gen 1 | |
| 3 x USB 2.0/1.1 (1 rear, 2 via internal header) | USB 2.0/1.1 | |
| Chipset + USB 2.0 Hub | 4 x USB 2.0/1.1 on back panel | USB 2.0/1.1 |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable RGB Gen2 LED strip headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C header (USB 3.2 Gen 1 support)
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

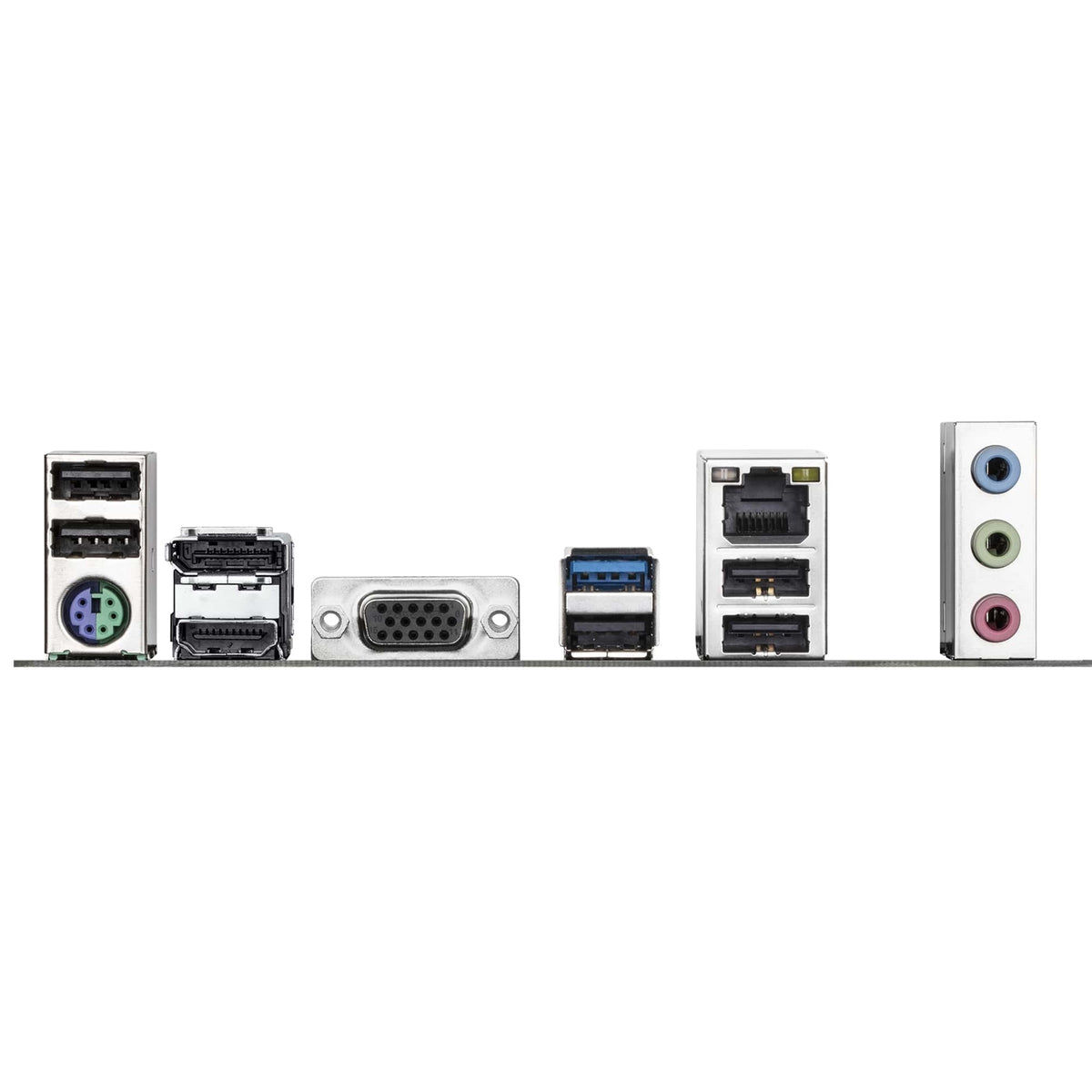

Back Panel Connectors
- 1 x PS/2 keyboard/mouse combo port
- 1 x HDMI port (support may vary by CPU)
- 1 x DisplayPort (support may vary by CPU)
- 1 x D-Sub port
- 1 x USB 3.2 Gen 1 port
- 5 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
Actual graphics support may vary depending on the CPU.
I/O Controller & Monitoring
| Item | Details |
|---|---|
| I/O Controller | iTE I/O Controller Chip |
| Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection |
| Alerts & Control | Fan fail warning, fan speed control* |
* Fan speed control support depends on the fan installed.
BIOS
| Item | Details |
|---|---|
| BIOS Type | Licensed AMI UEFI BIOS |
| Flash ROM | 1 x 256 Mbit flash |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Features | Support for Q-Flash |
Unique Features & Software
- Support for GIGABYTE Control Center (GCC)
- Available applications and functions vary by motherboard model and specifications
- Support for Q-Flash
- Support for Smart Backup
- Bundled Software:
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
The Intel NPU driver is only supported on Windows 11.
Form Factor
| Item | Details |
|---|---|
| Form Factor | Micro ATX |
| Dimensions | 24.4 cm x 21.5 cm |
