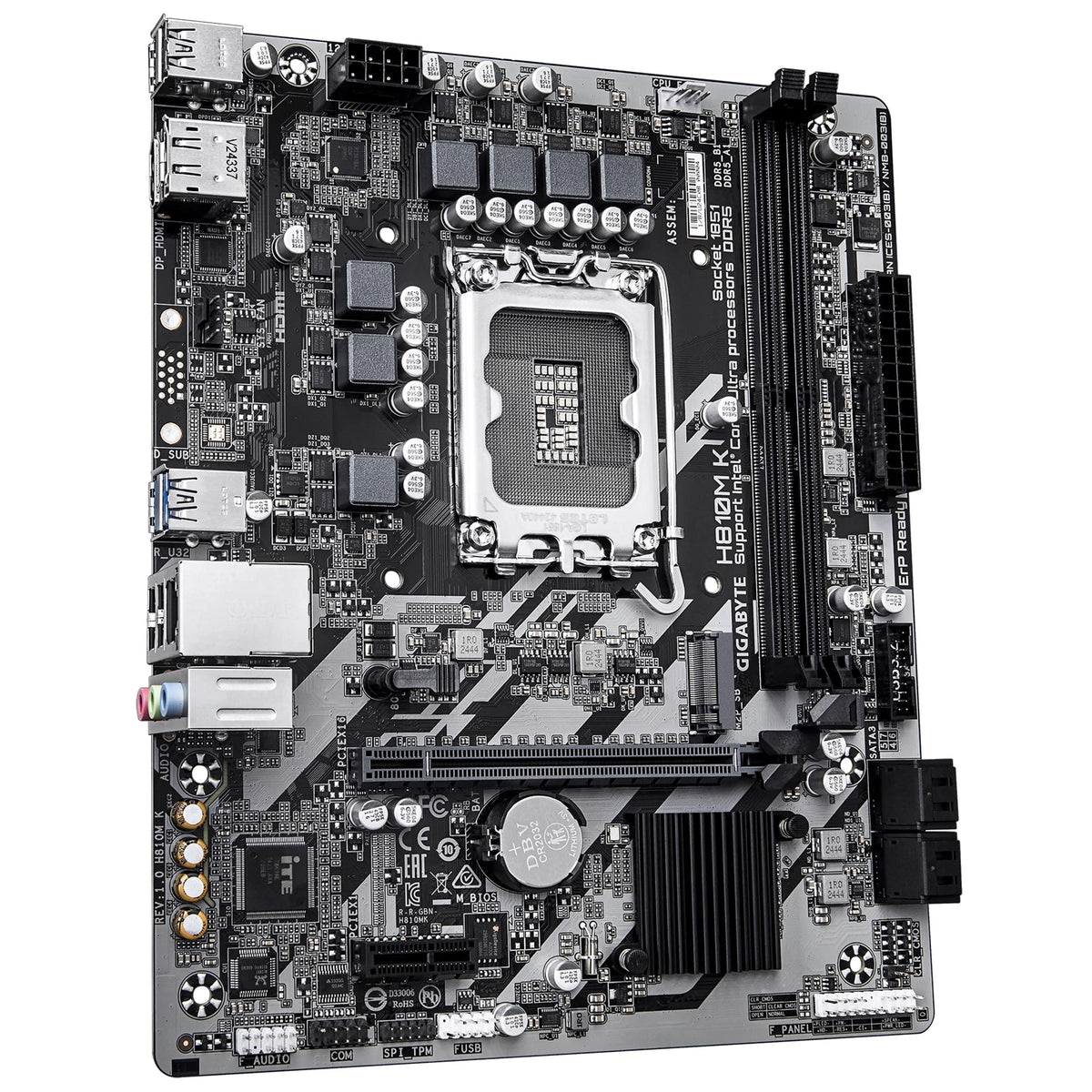

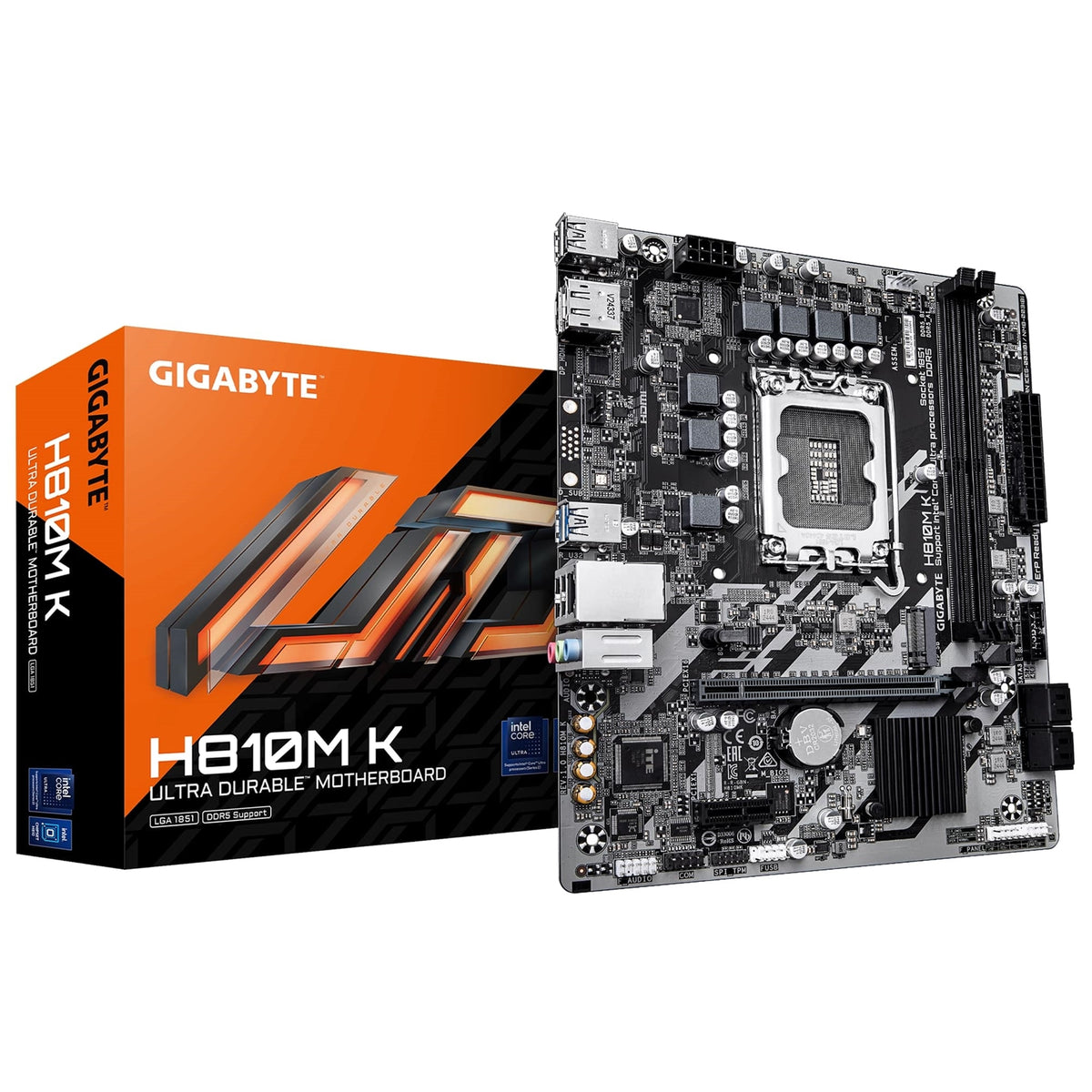

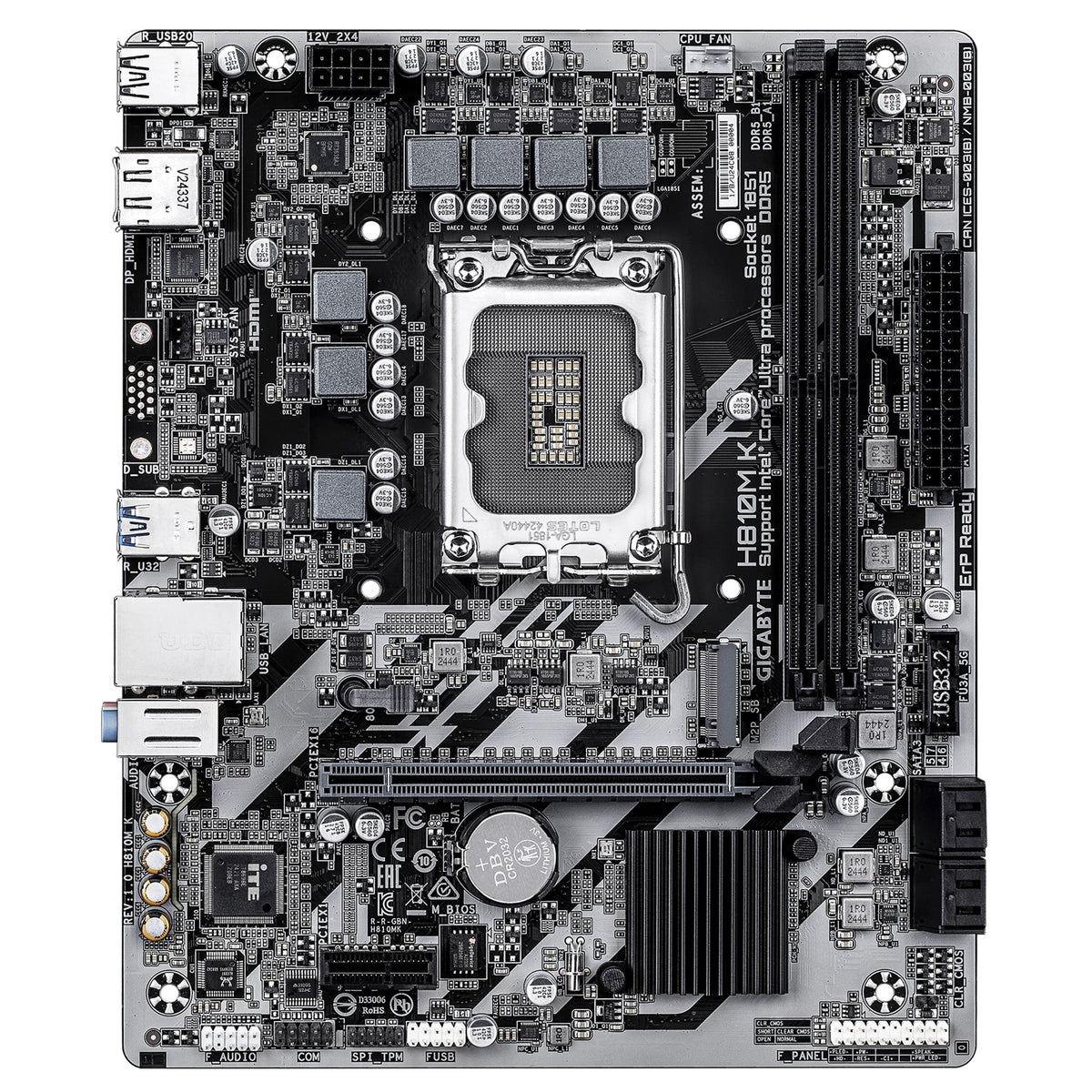

Gigabyte H810M K Motherboard
The Gigabyte H810M K motherboard delivers a solid, future-ready platform with enhanced power delivery, efficient cooling, and user-friendly design for streamlined PC building and tuning.
Key Features
- CPU Support
- Supports Intel Core Ultra processors (Series 2)
- LGA1851 socket
-
L3 cache varies with CPU
-
Power Design
- Hybrid 3+1+2 phases VRM solution
-
Designed with high-quality components for enhanced system performance and hardware scalability
-
Cooling – Smart Fan 6
- “Cool. Quiet. Customized.” fan control
- Superior cooling performance and whisper-quiet operation
-
Monitoring support includes:
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control (support depends on the installed fan)
-
Next-Generation Storage & Expansion
- PCIe 4.0 x4 M.2 connector for high-speed SSDs
- PCIe 4.0 x16 slot for graphics or NVMe SSD
- PCIe 3.0 x1 slot for expansion cards
-
RAID 0/1/5/10 support for SATA storage devices
-
Networking
- Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps)
-
LAN bandwidth management software to improve latency and maintain low ping in crowded LAN environments
-
Display & Multimedia
- HDMI and DisplayPort outputs for onboard Intel HD Graphics
-
Hi-Fi Audio with:
- Realtek Audio CODEC
- High-End Audio Capacitors
- Audio Noise Guard
-
User-Friendly Design & Debugging
- EZ-Latch: PCIe x16 slot with quick release design for easy graphics card removal
- EZ Debug Zone with centralized debug LEDs and control buttons
-
EZ-Latch designs simplifying the assembly process
-
Intuitive BIOS & Software
- UC BIOS with user-centered, intuitive performance adjustment
- Friendly UI with Multi-Theme and Q-Flash Auto Scan in BIOS and software
-
Q-FLASH Auto Scan automatically scans the USB flash drive for BIOS files
-
Durable Performance
- GIGABYTE Ultra Durable design with optimal components for reliable, long-term performance
- Designed as a timeless, stable platform
Specifications
CPU
| Specification | Details |
|---|---|
| Socket | LGA1851 |
| CPU Support | Intel Core Ultra Processors |
| L3 Cache | Varies with CPU |
(For the latest CPU support list, please refer to GIGABYTE’s website.)
Chipset
| Specification | Details |
|---|---|
| Chipset | Intel H810 Express Chipset |
Memory
| Specification | Details |
|---|---|
| Memory Type | DDR5 6400/5600 MT/s memory modules |
| Slots | 2 x DDR5 DIMM sockets |
| Maximum Capacity | Up to 128 GB (64 GB per DIMM) |
| Channel Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP Support | Support for Extreme Memory Profile (XMP) |
CPU and memory configuration may affect supported memory types, speeds, and DRAM count. Refer to the “Memory Support List” on GIGABYTE’s website for details.
Onboard Graphics
| Output | Max Resolution | Standard |
|---|---|---|
| HDMI | 4096 x 2160 @ 60 Hz | HDMI 2.1, HDCP 2.3 |
| DisplayPort | 3840 x 2160 @ 60 Hz | DisplayPort 2.1 |
- Integrated Graphics Processor – Intel HD Graphics support
- Actual support may vary by CPU.
Audio
| Specification | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Audio Standard | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel |
Audio jack functionality is configurable via audio software. To enable 7.1-channel audio, use the audio software for configuration.
LAN
| Specification | Details |
|---|---|
| Controller | Realtek GbE LAN chip |
| Speed | 1 Gbps / 100 Mbps / 10 Mbps |
Expansion Slots
| Source | Slot | Standard | Mode | Notes |
|---|---|---|---|---|
| CPU | 1 x PCI Express x16 (PCIEX16) | PCIe 4.0 | x16 | Supports a graphics card or an NVMe SSD only |
| Chipset | 1 x PCI Express x1 (PCIEX1) | PCIe 3.0 | x1 | — |
Storage Interface
| Controller | Connector | Standard | Notes |
|---|---|---|---|
| Chipset | 1 x M.2 (Socket 3, M key, type 2280) | PCIe 4.0 x4/x2 | SSD support |
| Chipset | 4 x SATA | SATA 6 Gb/s | RAID 0/1/5/10 support |
USB
| Location | Ports | Standard |
|---|---|---|
| Back Panel | 2 x USB 3.2 Gen 1 | USB 3.2 Gen 1 |
| Internal Header | 2 x USB 3.2 Gen 1 | USB 3.2 Gen 1 |
| Back Panel | 4 x USB 2.0/1.1 | USB 2.0/1.1 |
| Internal Header | 2 x USB 2.0/1.1 | USB 2.0/1.1 |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

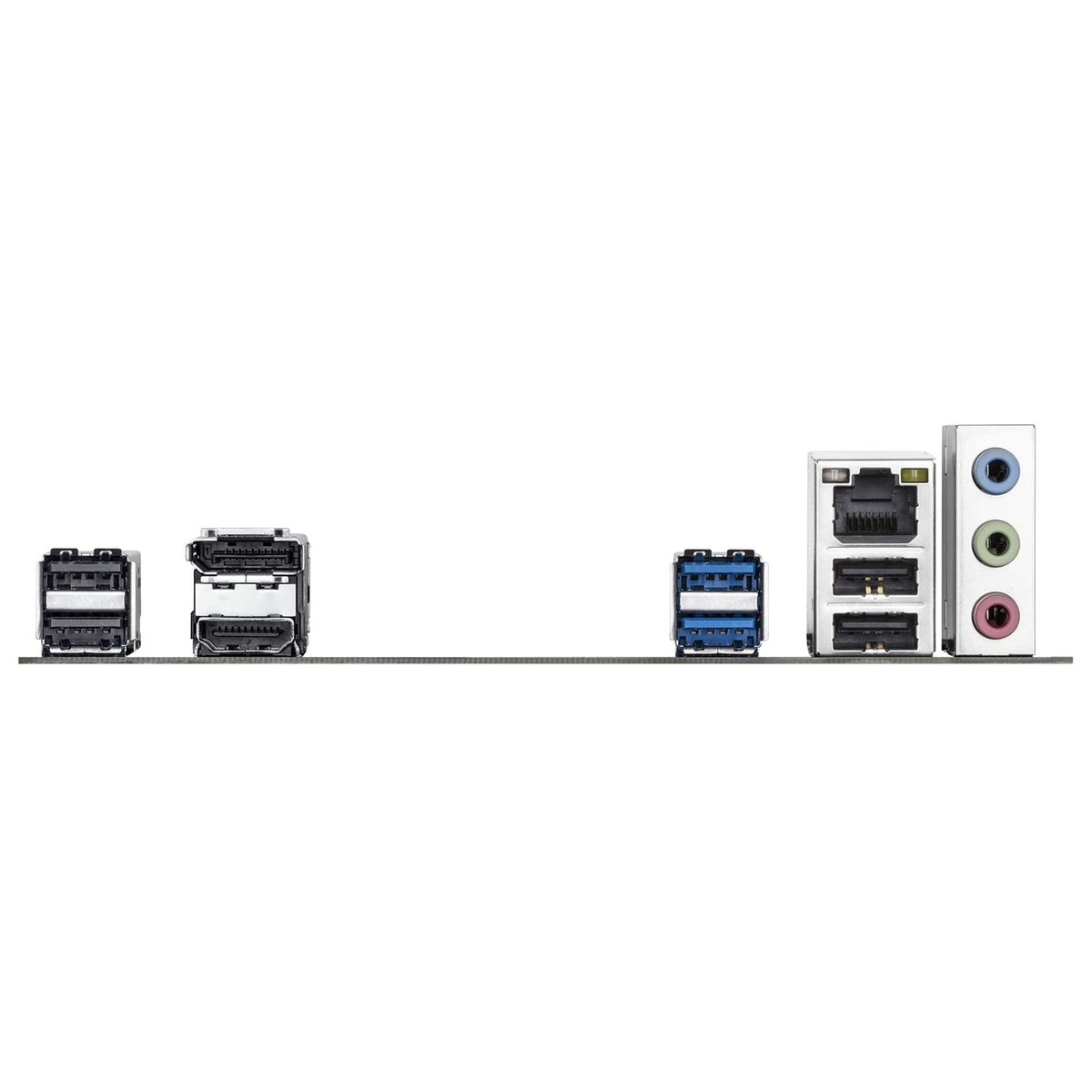

Back Panel Connectors
- 1 x DisplayPort*
- 1 x HDMI port*
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
*Actual support may vary by CPU.
I/O Controller
- iTE I/O Controller Chip
BIOS
| Specification | Details |
|---|---|
| ROM | 1 x 256 Mbit flash |
| BIOS Type | AMI UEFI BIOS (licensed) |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features
- Support for GIGABYTE Control Center (GCC)*
- Support for Q-Flash
- Support for Smart Backup
*Available applications in GCC may vary by motherboard model. Functions vary depending on specifications.
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software*
*Service discontinued due to contract termination by the software provider.
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
The Intel NPU driver is only supported on Windows 11.
Form Factor
| Specification | Details |
|---|---|
| Form Factor | Micro ATX |
| Dimensions | 24.4 cm x 21.5 cm |
With its hybrid VRM design, PCIe 4.0 support, Smart Fan 6 cooling control, GbE LAN, and user-friendly EZ-Latch and UC BIOS features, the Gigabyte H810M K motherboard provides a reliable and efficient foundation for modern Intel-based systems.
