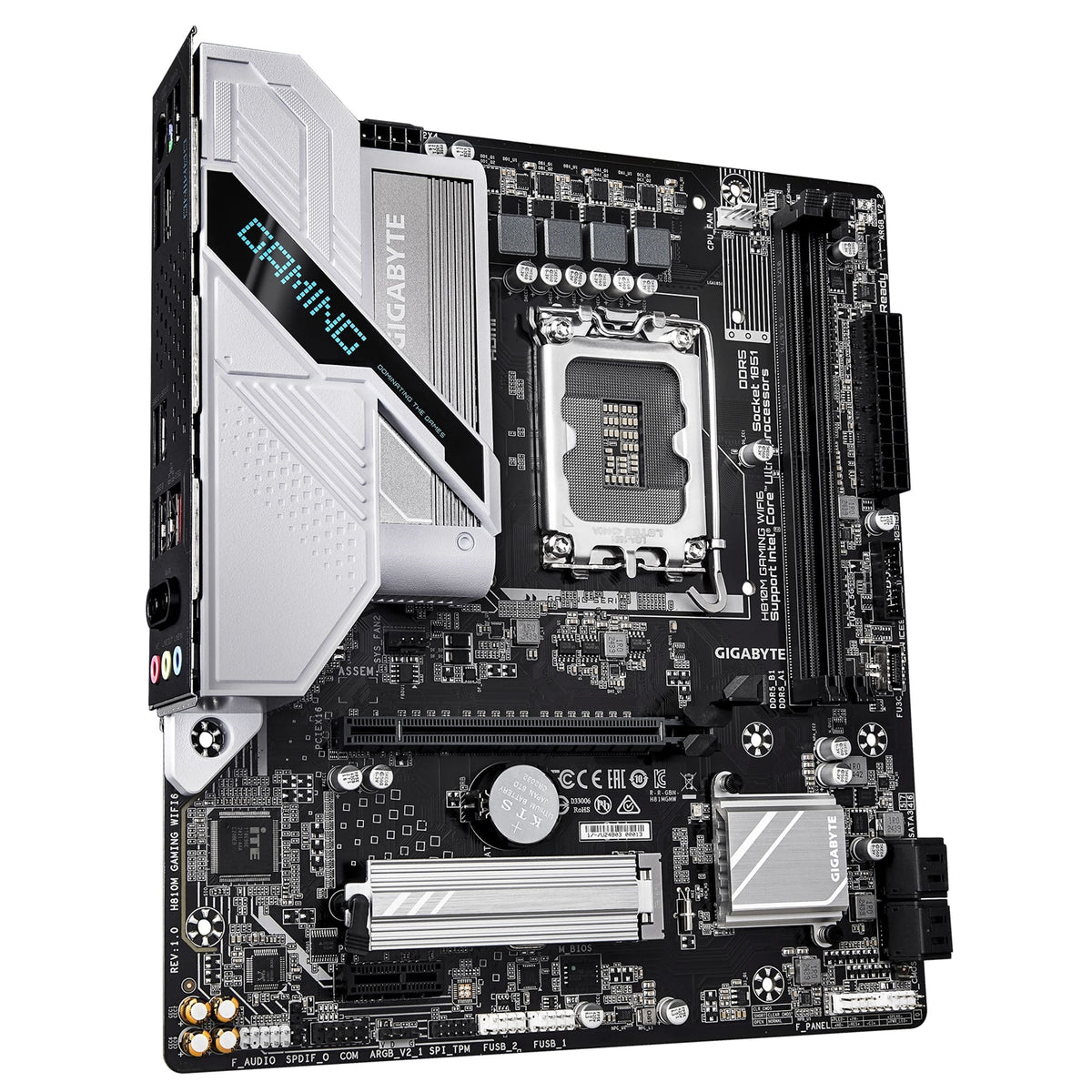

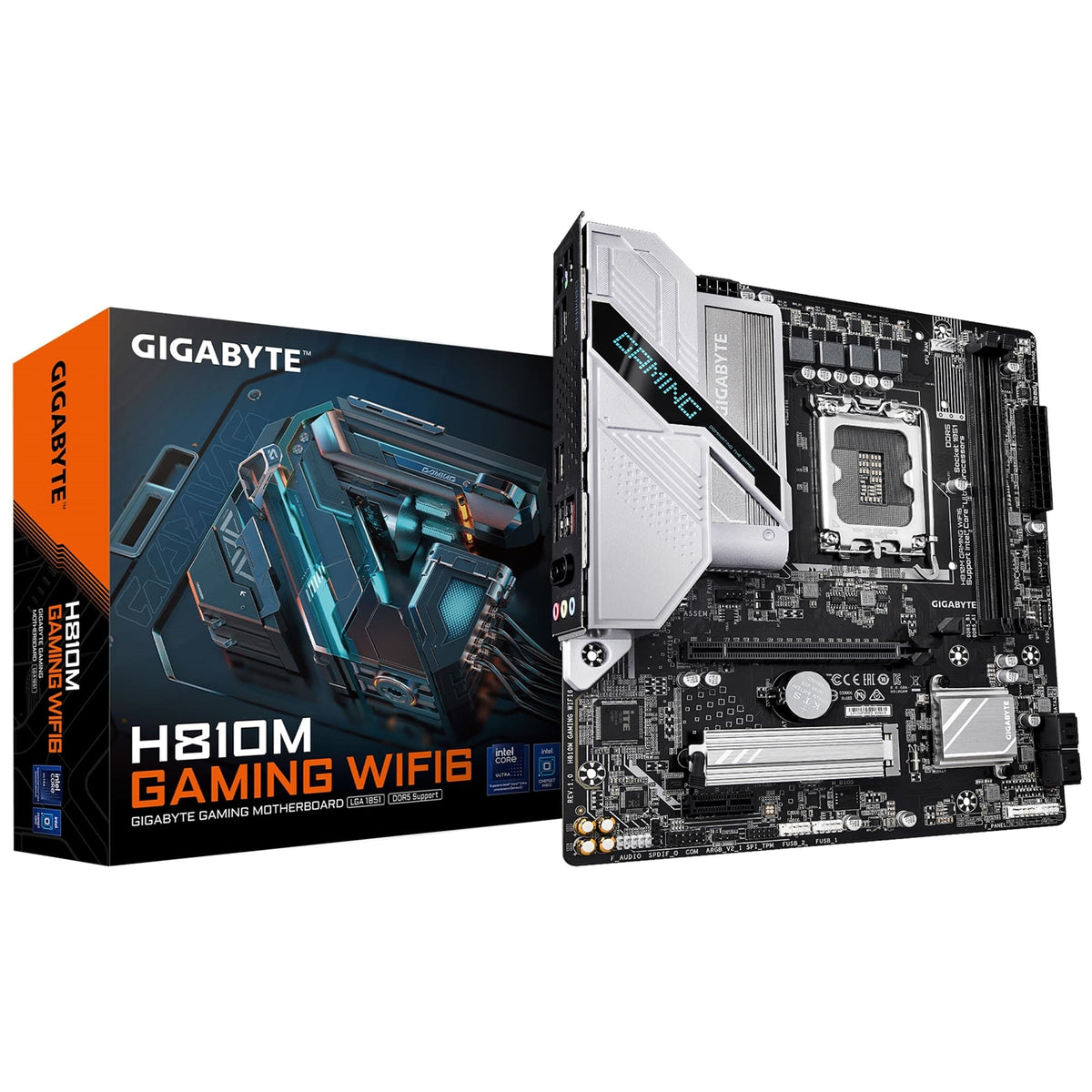

Gigabyte H810M GAMING WIFI6 Motherboard
A compact Micro ATX gaming motherboard designed for smooth, reliable performance with next-generation connectivity and streamlined DIY assembly.
Key Features
Optimized for Intel Core Ultra (Series 2)
- LGA1851 socket
- Supports Intel Core Ultra Processors
- Hybrid VRM Design for consistent, high-powered performance
- 4 VCORE phases to unlock the full power of multi-core CPUs
- 1 VCCGT phase optimized for integrated GPU performance and memory management
- VCCSA phases to deliver reliable power to CPU-connected PCIe lanes
Steady Power for Better Gaming
BETER PLAY GAMING Series design helps keep your gaming smooth, delivering stable power and performance for demanding workloads.
Cooling & Thermal Solutions
Comprehensive Thermal Design
GAMING motherboards feature advanced full-metal thermal design and durable heatsinks to help keep your system cool and efficient.
M.2 Thermal Guard
- Helps prevent throttling and bottlenecks on high-speed M.2 SSDs by dissipating heat before it becomes an issue.
Smart Fan 6 – Cool, Quiet, Customized
- Fan and cooling controls designed for flexible, quiet, and efficient operation.
Storage & Expansion
Ultra-Fast Storage
- PCIe 4.0 x4 M.2 slot for high-speed SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, 1, 5, 10 support for SATA storage devices
Expansion Slots
- 1 x PCI Express x16 slot (PCIe 4.0, running at x16)
- The PCIEX16 slot can only support a graphics card or an NVMe SSD
- 1 x PCI Express x1 slot (PCIe 3.0, running at x1)
Networking & Wireless
Fast Networking
- Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
Built-in Wi-Fi 6 & Bluetooth
- Realtek Wi-Fi 6 RTL8851BE
- Wi-Fi a/b/g/n/ac/ax, supporting 2.4/5 GHz bands
- Supports 11ax 80MHz wireless standard
- Bluetooth 5.3
- Actual data rate may vary depending on environment and equipment
WIFI EZ-Plug
- Quick and easy design for Wi-Fi antenna installation
Connectivity & I/O
Extended Display Connectivity
- HDMI port, supporting up to 4096x2160@60 Hz
- HDMI 2.1 and HDCP 2.3
- DisplayPort, supporting up to 3840x2160@60 Hz
- DisplayPort 2.1
- (Graphics specifications may vary depending on CPU support.)
USB Ports
- 1 x USB Type-C port with USB 3.2 Gen 1 support (front panel via internal header)
- 3 x USB 3.2 Gen 1 ports (1 rear, 2 via internal header)
- 5 x USB 2.0/1.1 ports on the back panel
- 4 x USB 2.0/1.1 ports via internal headers
DIY-Friendly Design
Hassle-Free Assembly
- EZ-Latch: PCIe x16 slot with quick release design
- M.2 EZ-Latch Plus: Screwless M.2 SSD installation
- Designed to make building your own PC a smooth and enjoyable process.
Friendly UI
- Multi-theme BIOS interface
- Q-Flash Auto Scan in BIOS and software for easier updates
Audio & Immersion
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel support
- Jack functionality configurable via audio software
- 7.1-channel configuration available in audio software
- Support for S/PDIF Out
Software & Unique Features
- Support for GIGABYTE Control Center (GCC)
- Available applications may vary by motherboard model and specifications
- Support for Q-Flash
- Support for Smart Backup
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Built to Last – Born from Ultra Durable
This technology embodies a commitment to excellence, providing a platform that is powerful, long-lasting, and reliable. GAMING series motherboards are engineered to endure and excel.
GIGABYTE motherboards also reflect ongoing BIOS improvement and collaboration with the user community, helping democratize next-level computing power.
Specifications
CPU
| Feature | Details |
|---|---|
| Socket | LGA1851 |
| CPU Support | Intel Core Ultra Processors |
| L3 Cache | Varies with CPU |
Chipset
| Feature | Details |
|---|---|
| Chipset | Intel H810 Express Chipset |
Memory
| Feature | Details |
|---|---|
| Type | DDR5 6400/5600 MT/s memory modules |
| Slots | 2 x DDR5 DIMM sockets |
| Capacity | Up to 128 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP | Support for Extreme Memory Profile (XMP) modules |
| Note | CPU and memory configuration may affect supported types, speeds, and module count. Refer to GIGABYTE’s “Memory Support List” for details. |
Onboard Graphics
| Feature | Details |
|---|---|
| Integrated Graphics | Intel HD Graphics (via supported CPUs) |
| HDMI | 1 x HDMI, max 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3 |
| DisplayPort | 1 x DisplayPort, max 3840x2160@60 Hz, DisplayPort 2.1 |
| Note | Graphics specifications may vary depending on CPU support. |
Audio
| Feature | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Audio | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel |
| Digital Out | Support for S/PDIF Out |
| Note | 7.1-channel audio configured via audio software; jack functions are software-configurable. |
LAN & Wireless
| Feature | Details |
|---|---|
| LAN | Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless | Realtek Wi-Fi 6 RTL8851BE |
| Wi-Fi Standards | a/b/g/n/ac/ax |
| Bands | 2.4 GHz / 5 GHz |
| Wireless Standard | Support for 11ax 80MHz |
| Bluetooth | Bluetooth 5.3 |
| Note | Actual data rates depend on environment and equipment. |
Expansion Slots
| Source | Slot | Standard | Notes |
|---|---|---|---|
| CPU | 1 x PCI Express x16 (PCIEX16) | PCIe 4.0, x16 | Supports a graphics card or an NVMe SSD only |
| Chipset | 1 x PCI Express x1 (PCIEX1) | PCIe 3.0, x1 | — |
Storage
| Feature | Details |
|---|---|
| M.2 | 1 x M.2 Socket 3 (M key, 2280), PCIe 4.0 x4/x2 SSD support |
| SATA | 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, 1, 5, 10 support for SATA devices |
USB
| Source | Ports |
|---|---|
| Chipset | 1 x USB Type-C (USB 3.2 Gen 1, via internal header) |
| Chipset | 3 x USB 3.2 Gen 1 (1 rear, 2 via internal header) |
| Chipset + 2 USB 2.0 Hubs | 5 x USB 2.0/1.1 (rear), 4 x USB 2.0/1.1 (via internal headers) |

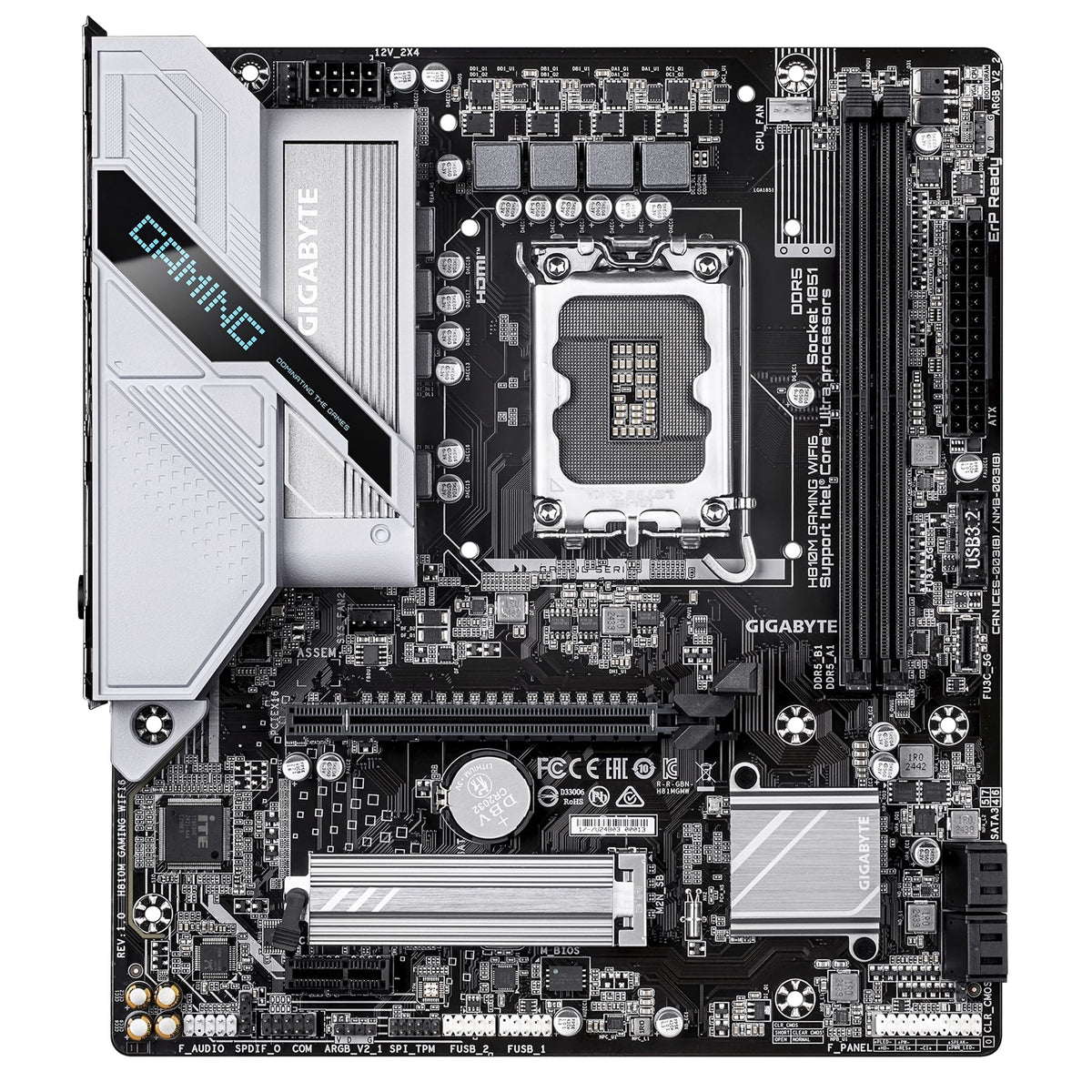

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable RGB Gen2 LED strip headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C header (USB 3.2 Gen 1 support)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

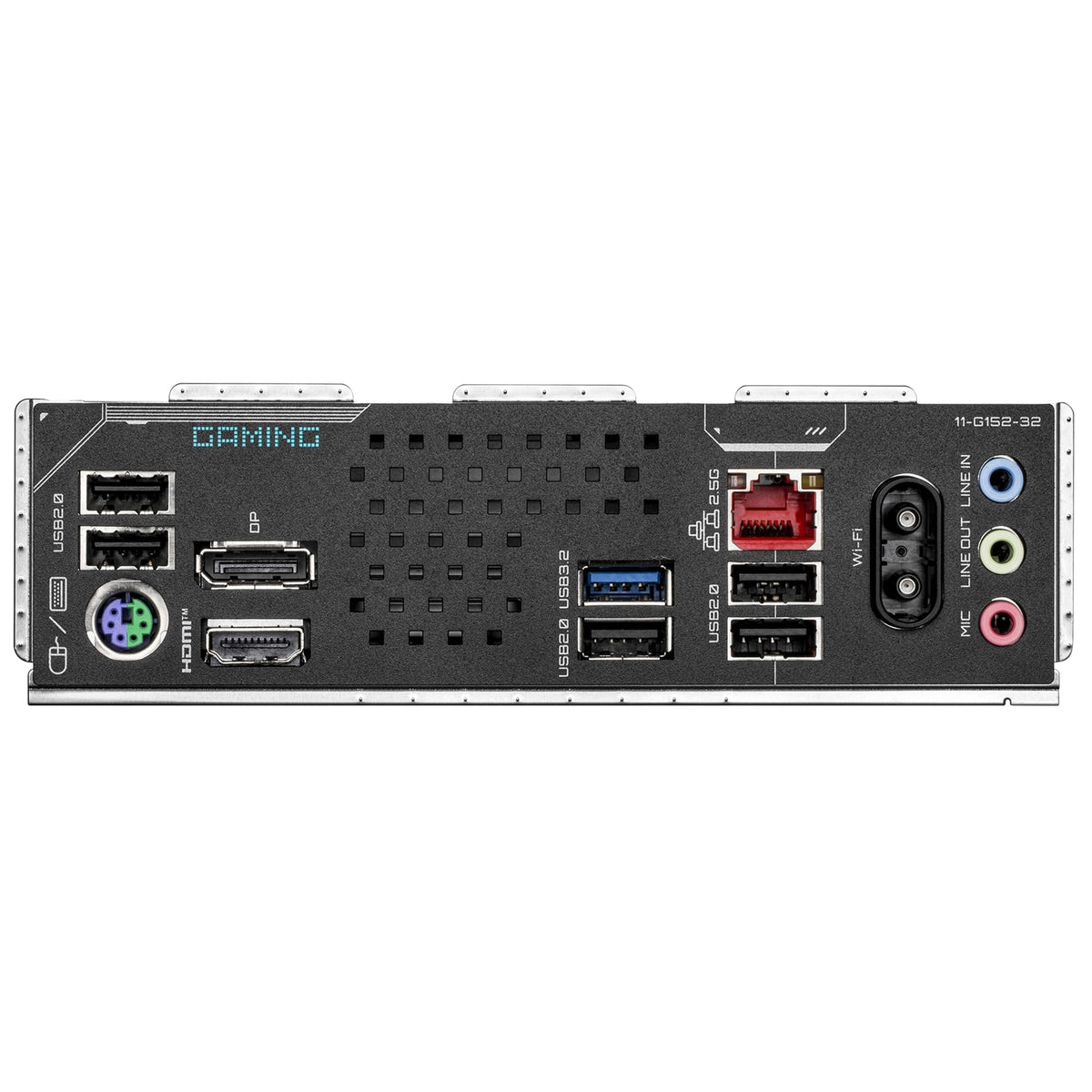

Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x HDMI port (CPU dependent)
- 1 x DisplayPort (CPU dependent)
- 1 x USB 3.2 Gen 1 port
- 5 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller & Monitoring
- iTE I/O Controller Chip
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control (depends on installed fan)
BIOS
- 1 x 256 Mbit flash
- AMI UEFI BIOS (licensed)
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
- Intel NPU driver is only supported on Windows 11
Form Factor
| Feature | Details |
|---|---|
| Form Factor | Micro ATX |
| Dimensions | 24.4 cm x 21.5 cm |
