Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port

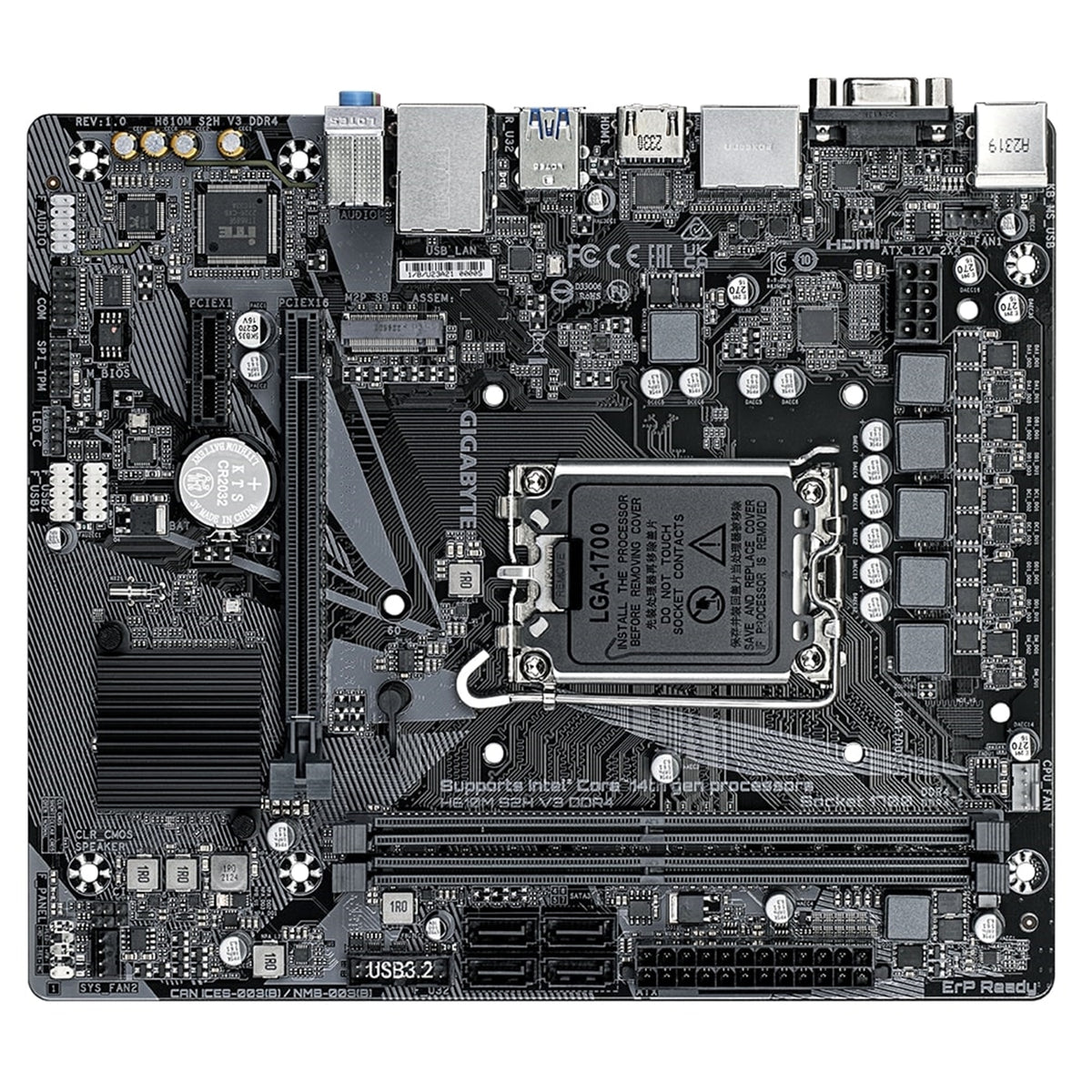

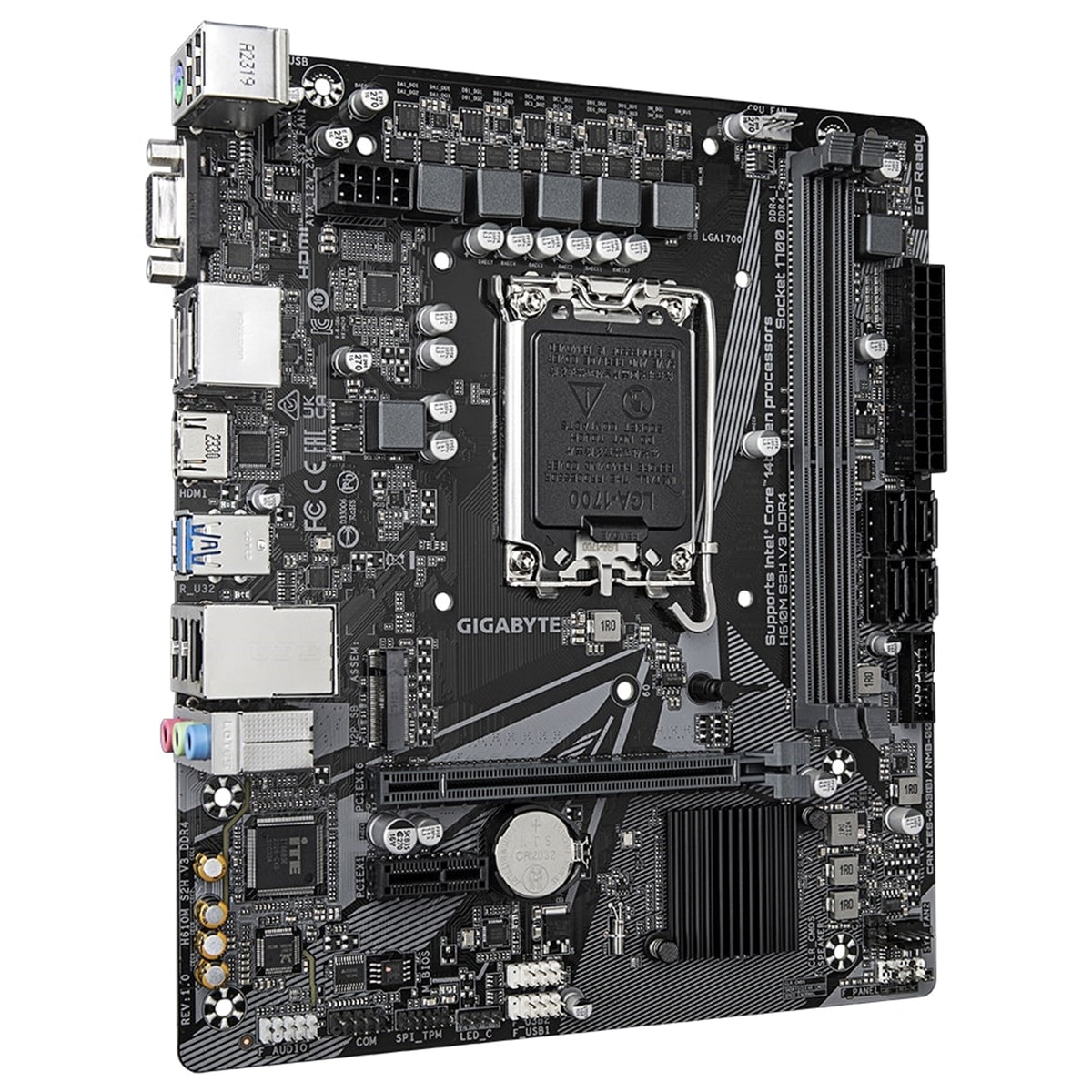

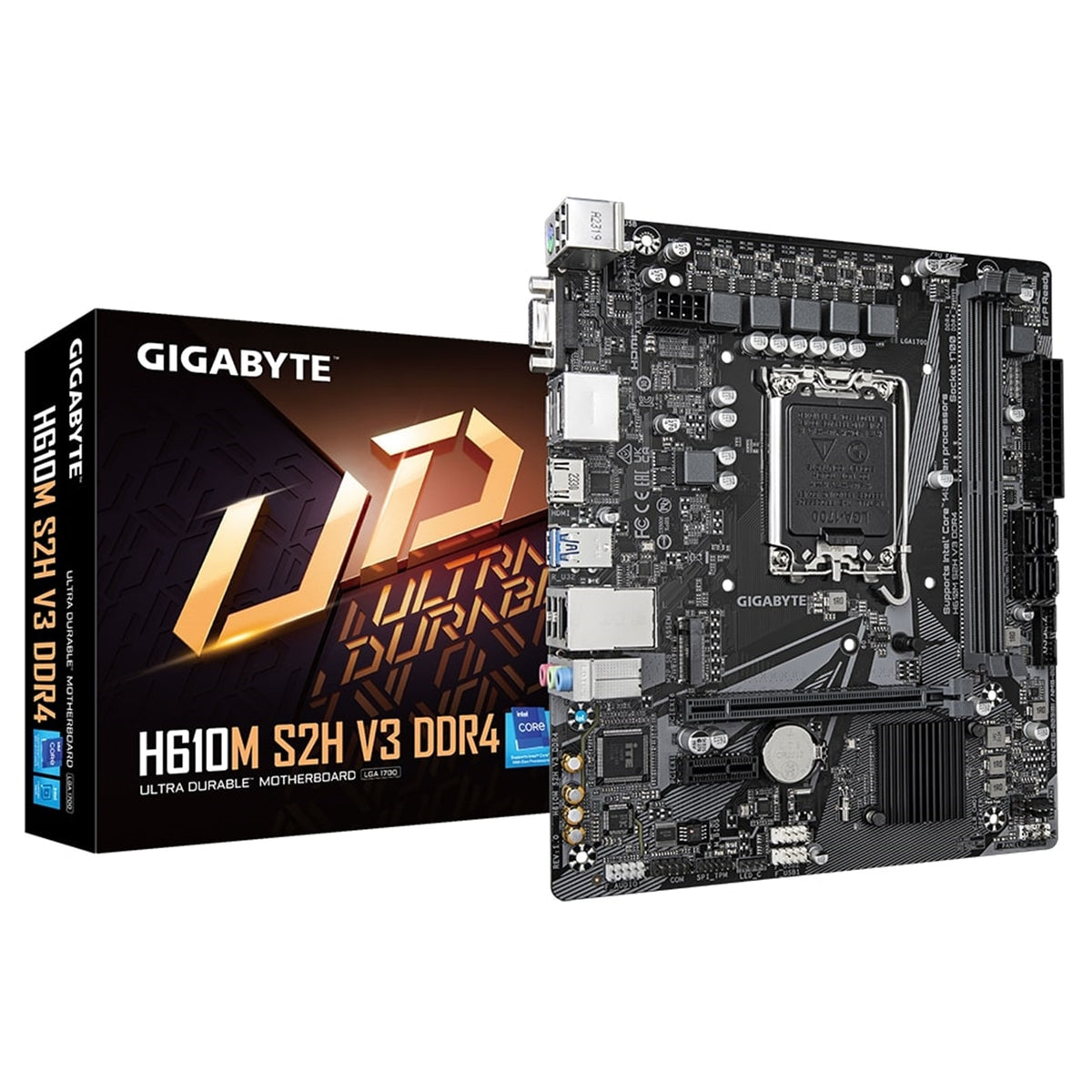

GIGABYTE H610M S2H V3 DDR4 (rev. 1.0) Micro ATX Motherboard

The GIGABYTE H610M S2H V3 DDR4 (rev. 1.0) is designed for Intel 14th, 13th, and 12th Gen processors, delivering reliable power delivery, flexible connectivity, and efficient cooling control in a compact micro ATX form factor.

Key Features

• CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold and Celeron processors (LGA1700)
• Memory: Dual Channel DDR4, 2 DIMMs, up to 64 GB (32 GB per DIMM)
• Power Design: 4+1+1 Hybrid Digital VRM with Low RDS(on) MOSFETs and solid capacitors
• Graphics Outputs: 2 x DisplayPort, 1 x HDMI, 1 x D-Sub for multiple display support
• Storage: NVMe PCIe 3.0 x4/x2 M.2 and 4 x SATA 6Gb/s ports
• Networking: Realtek GbE LAN with bandwidth management
• Audio: High-end audio capacitors and Audio Noise Guard
• Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers
• Software: GIGABYTE APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer
• Durability: Solid pin power connectors and Anti-Sulfur resistor design
• Form Factor: Micro ATX, 22.3 cm x 19.3 cm

Power Design & Stability

4+1+1 Phases Hybrid Power Design

• Cleaner, more efficient power delivery to the CPU
• Improved thermal performance for stability under high CPU frequencies and heavy loading
• 4+1+1 phases Low RDS(on) MOSFETs
• Solid capacitors to enhance transient response and reduce oscillation
• 8-pin solid pin CPU power connector for stable power, especially during CPU overloading

Solid Pin Power Connector Advantages

• Larger contact area for electricity
• More metal content to sustain higher power and heat
• Ultra-durable and longer lifespan

Memory Performance

Single 32 GB Support, Up to 64 GB Total

• Supports DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
• 2 x DDR4 DIMM sockets, up to 64 GB system memory (32 GB per DIMM)
• Dual channel memory architecture
• Support for:
• ECC Un-buffered DIMM 1Rx8/2Rx8 (operating in non-ECC mode)
• Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
• Extreme Memory Profile (XMP) memory modules

With the updated Intel memory reference code, a single slot can support up to 32 GB. Fully populating both slots enables 64 GB total capacity, offering more bandwidth for memory-intensive workloads such as rendering and video editing.

Cooling: Smart Fan 6

Smart Fan 6 provides advanced cooling controls to keep systems cool and quiet.

Headers & Sensors

• 3 x PWM/DC fan headers
• 4 x internal temperature sensors

High Current Support

• Each fan header supports PWM and DC fans and water cooling pumps
• Up to 24W (12V x 2A) per header with over-current protection

Precision Fan Control

• Up to 7 temperature/fan speed control points for precise fan curves
• Dual Curve Mode: Slope / Stair modes for different user scenarios
• Fan Stop: Fans can stop completely below user-specified temperature thresholds

Networking

GbE LAN with Bandwidth Management

• Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Network bandwidth management application to help improve network latency and maintain low ping times
• Enhanced responsiveness in crowded LAN environments

Storage & Expansion

PCIe & Expansion Slots

• 1 x PCI Express x16 slot (CPU), PCIe 4.0, running at x16
• 1 x PCI Express x1 slot (chipset), PCIe 3.0, running at x1

NVMe PCIe Gen3 x4 M.2 Connector

• 1 x M.2 connector (Socket 3, M key, type 2280/2260)
• Supports PCIe 3.0 x4/x2 SSDs

SATA

• 4 x SATA 6Gb/s connectors

Audio

High-End Audio Components

• Realtek Audio CODEC
• High definition audio
• 2/4/5.1/7.1-channel audio support

Audio Noise Guard

• PCB-level separation of sensitive analog audio components
• Helps reduce noise pollution and enhance sound clarity

Durability & Protection

Anti-Sulfur Resistor Design

• Protects against sulfurization, which can cause onboard resistors to open or short
• Enhances overall motherboard reliability in environments with sulfur compounds

BIOS & Software

UEFI BIOS

• 1 x 128 Mbit flash
• Licensed AMI UEFI BIOS
• New GUI and easier-to-use functionalities for optimal setup
• Standards support: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• GIGABYTE APP Center
• @BIOS
• EasyTune
• Smart Backup
• System Information Viewer
• Support for Q-Flash

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Connectivity & I/O

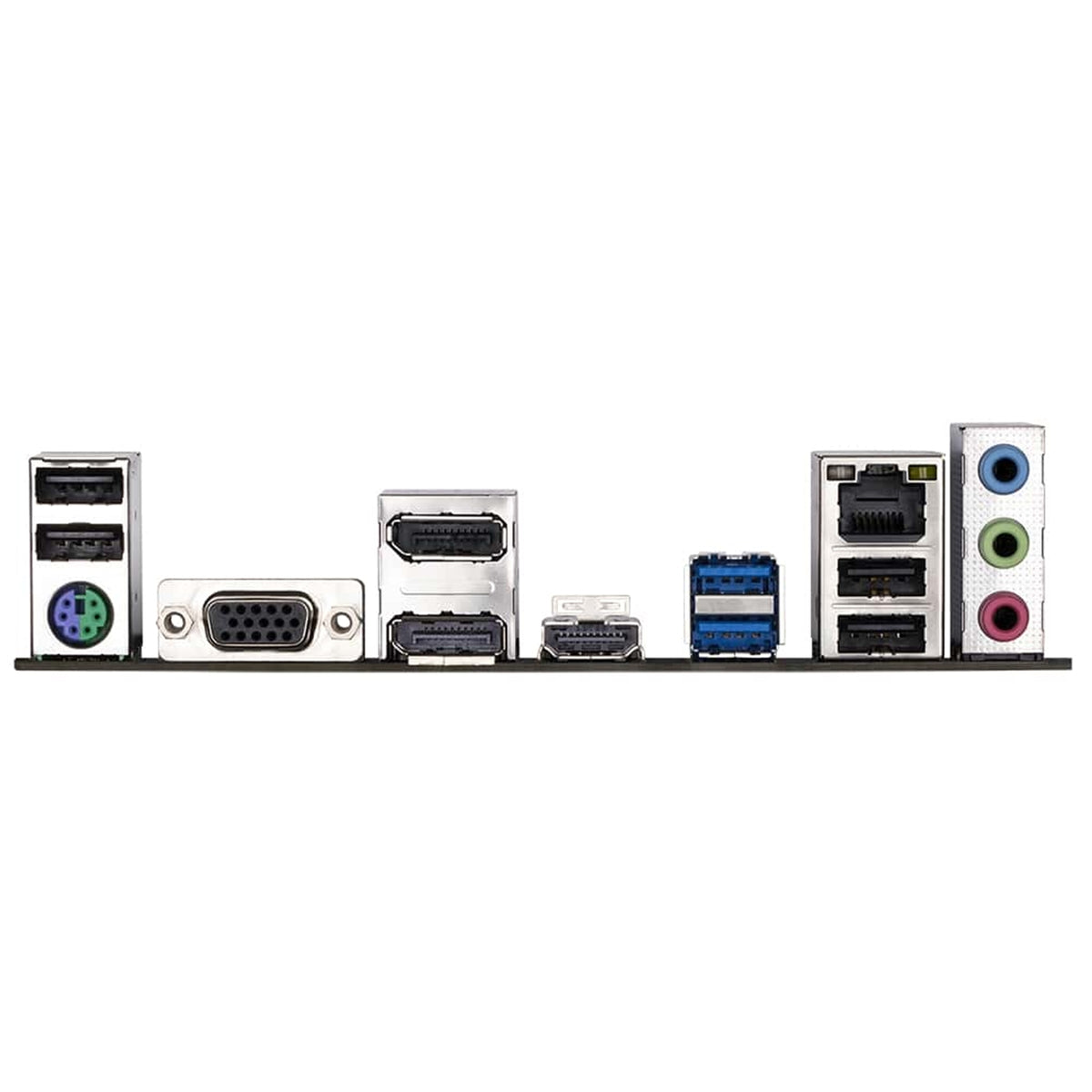

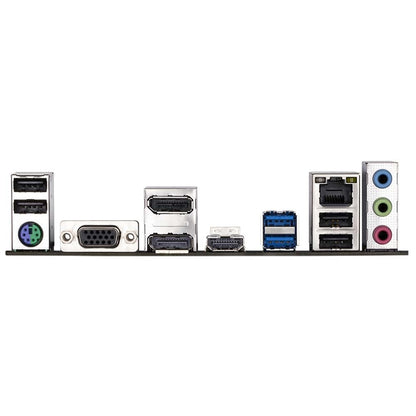

Rear Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 2 x DisplayPort
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

Hardware Monitoring & Control

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

I/O Controller: iTE I/O Controller chip

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Specifications Table

This motherboard combines solid power delivery, flexible display options, NVMe M.2 storage support, and robust cooling controls, making it a strong foundation for LGA1700-based systems.
