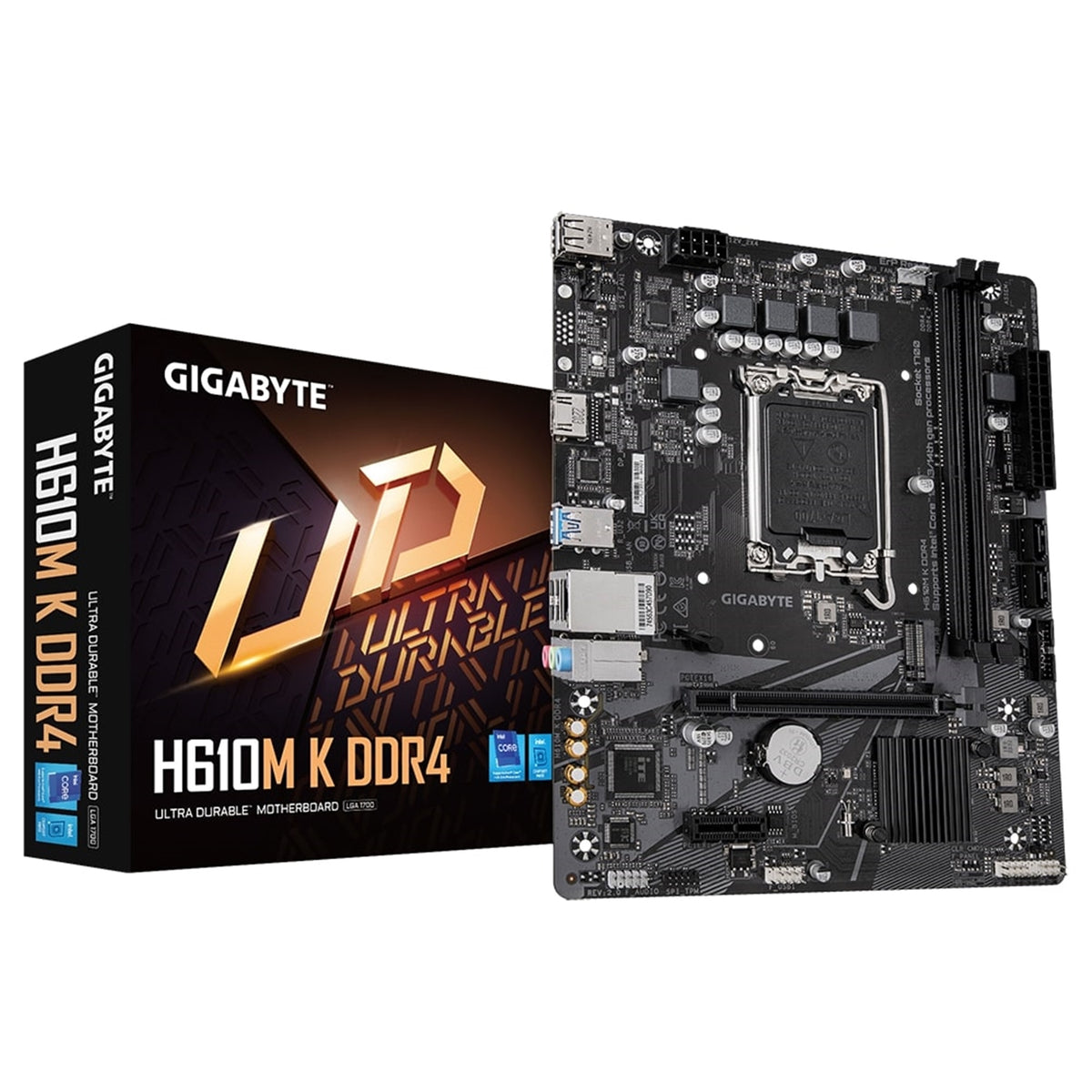

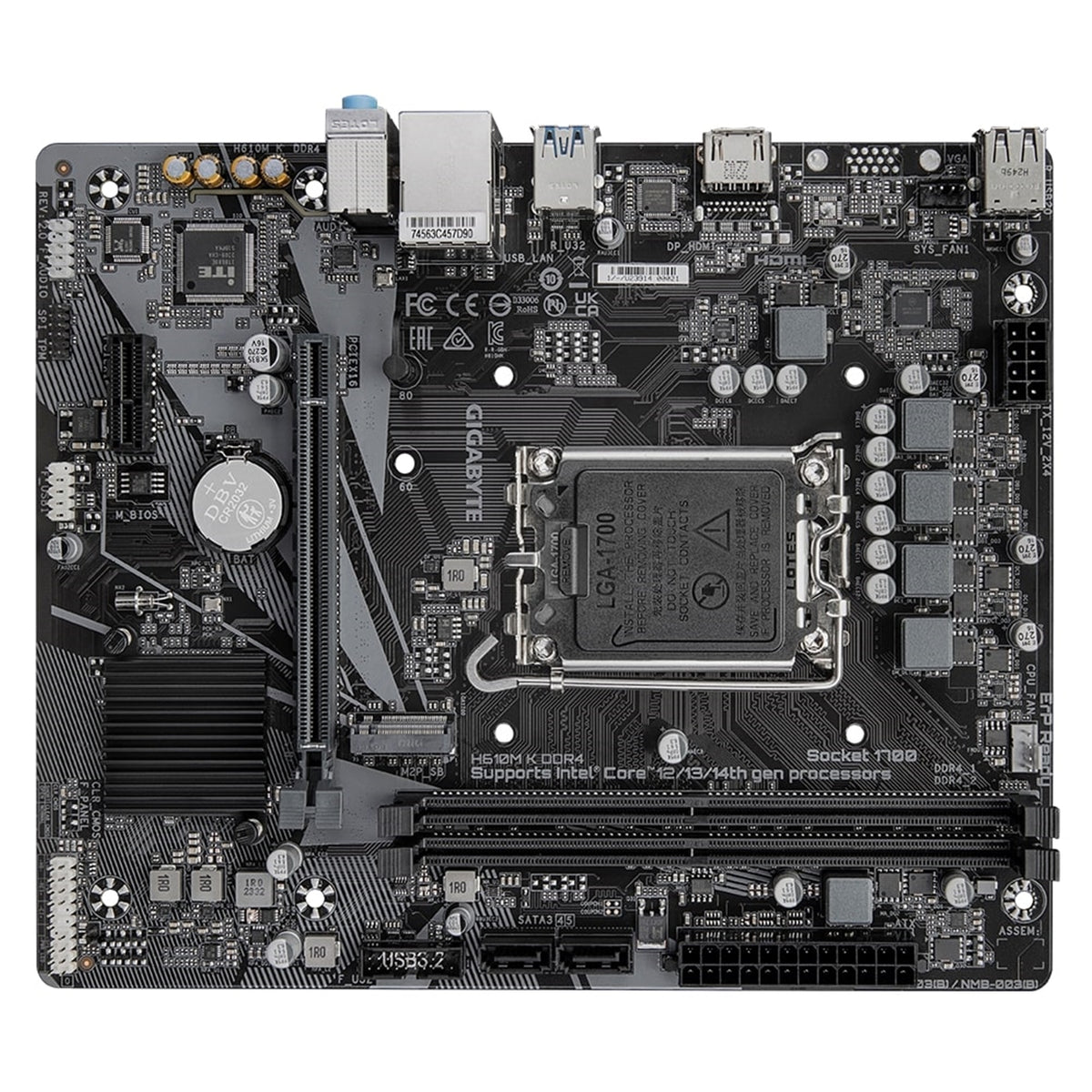

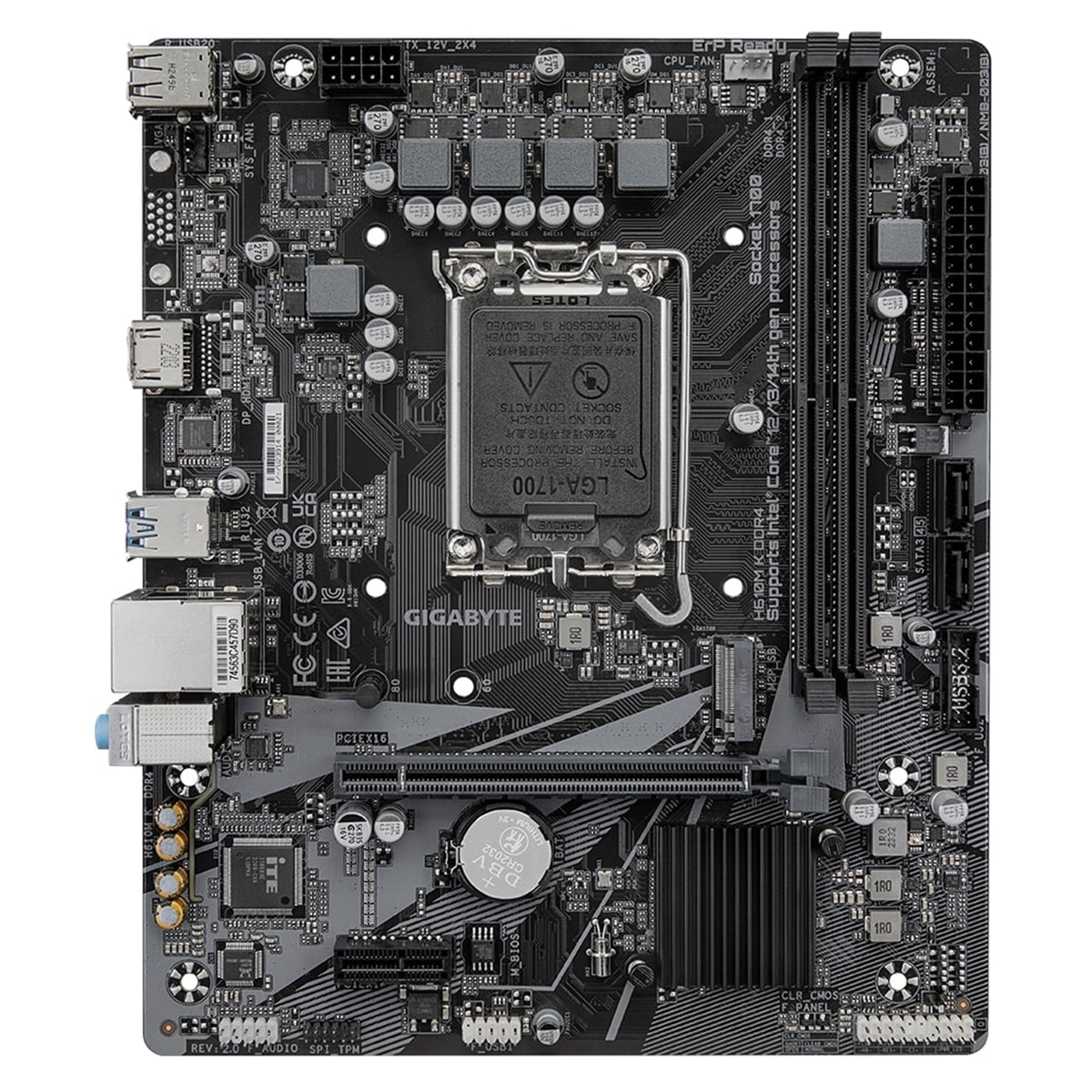

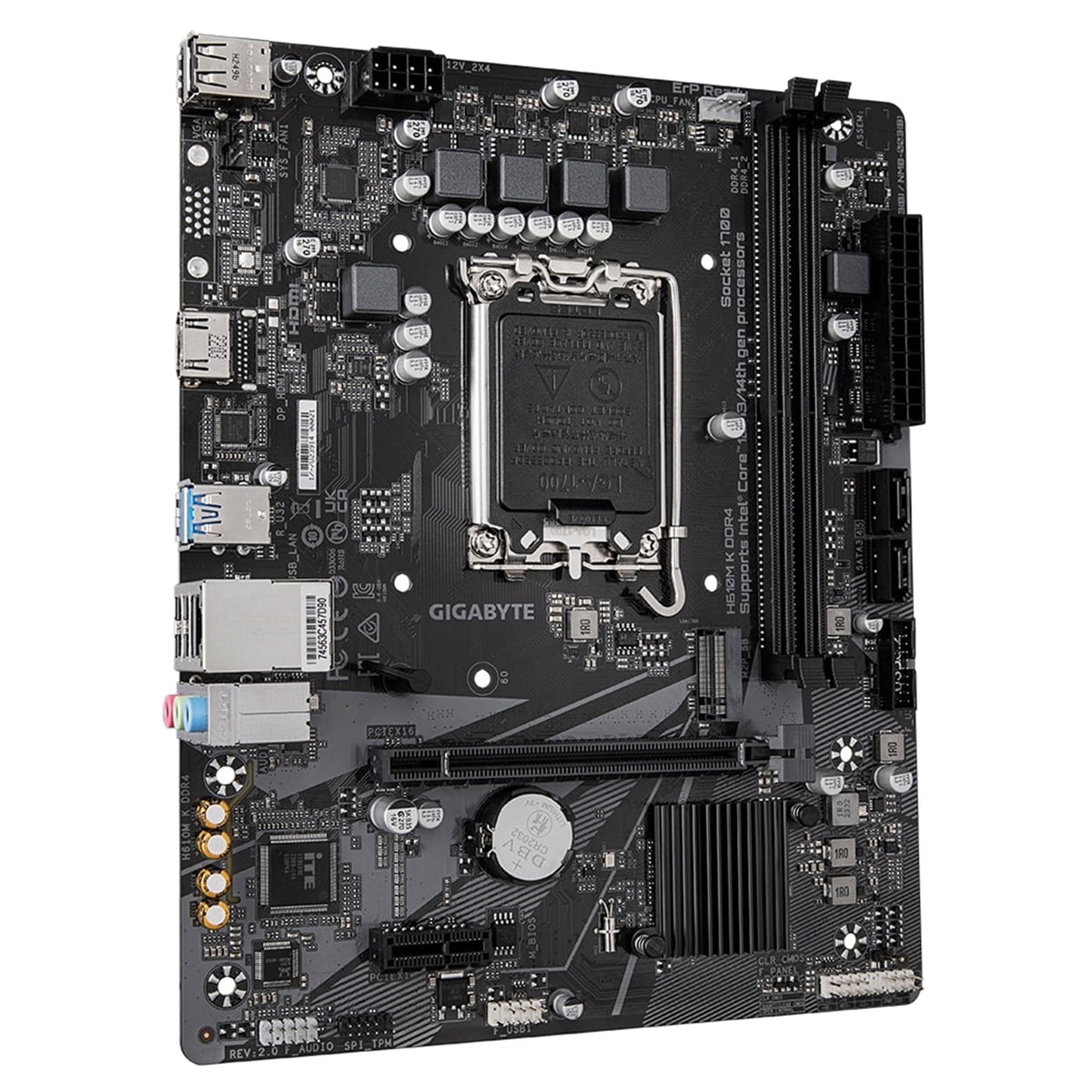

GIGABYTE H610 Micro ATX Motherboard (LGA1700, DDR4, PCIe 4.0, M.2, GbE LAN)
Optimize your Intel-based system with this GIGABYTE H610 micro ATX motherboard, designed for 14th, 13th, and 12th Gen Intel Core processors. With PCIe 4.0 support, NVMe PCIe Gen3 x4 M.2, GbE LAN, and Smart Fan 6, it delivers a solid foundation for responsive, reliable performance.
Key Features
- LGA1700 Socket Support
- Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
-
PCIe 4.0 design with Gen3 x4 M.2 support
-
DDR4 Dual Channel Memory
- 2 x DDR4 DIMM slots
-
Dual channel, Non-ECC Unbuffered DDR4 support
-
High-Speed Storage
- NVMe PCIe 3.0 x4 M.2 connector
-
SATA 6Gb/s connectivity
-
GbE LAN with Bandwidth Management
- Realtek GbE LAN with integrated bandwidth management application
-
Helps improve network latency and maintain low ping times for better responsiveness in crowded LAN environments
-
Enhanced Power & Durability
- Solid pin ATX 12V 8-pin power connector for stable power delivery during CPU overloading
- Anti-sulfur resistors design
-
Solid pin power connectors with:
- Larger contact area for electricity
- More metal quantity to sustain higher power and heat
- Ultra-durable, longer lifespan
-
Smart Cooling – Smart Fan 6
- Multiple temperature sensors
-
Hybrid fan headers with FAN STOP functionality
-
Premium Audio Design
- High-end audio capacitors for high-resolution, high-fidelity sound
-
Audio Noise Guard to separate sensitive analog audio components from PCB-level noise
-
User-Friendly BIOS & Software
- New GUI BIOS with easier-to-use functionalities
- GIGABYTE APP Center for simple, centralized access to utilities
Specifications
CPU
| Feature | Details |
|---|---|
| Socket | LGA1700 |
| Supported CPUs | 14th, 13th, 12th Gen Intel Core, Pentium Gold, Celeron |
| L3 Cache | Varies with CPU |
Chipset
| Feature | Details |
|---|---|
| Chipset | Intel H610 Express Chipset |
Memory
| Feature | Details |
|---|---|
| Type | DDR4 3200/3000/2933/2666/2400/2133 MT/s |
| Slots | 2 x DDR4 DIMM sockets |
| Max Capacity | Up to 64 GB (32 GB per DIMM) |
| Architecture | Dual channel |
| Supported Modules | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 | |
| Profiles | Support for Extreme Memory Profile (XMP) |
Onboard Graphics
| Feature | Details |
|---|---|
| Integrated Graphics | Intel HD Graphics support (via CPU) |
| Port | 1 x HDMI |
| Max Resolution | 4096 x 2160 @ 60 Hz |
Audio
| Feature | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Audio | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel |
| Design | High-end audio capacitors, Audio Noise Guard |
LAN
| Feature | Details |
|---|---|
| Controller | Realtek GbE LAN chip |
| Speed | 1 Gbps / 100 Mbps / 10 Mbps |
| Software | LAN bandwidth management software |
Expansion Slots
| Source | Slot | Standard | Lane Configuration |
|---|---|---|---|
| CPU | 1 x PCI Express x16 | PCIe 4.0 | x16 |
| Chipset | 1 x PCI Express x1 | PCIe 3.0 | x1 |
Storage Interface
| Controller | Connector | Details |
|---|---|---|
| Chipset | 1 x M.2 (Socket 3, M key) | Type 2280/2260, PCIe 3.0 x4/x2 SSD support |
| Chipset | 2 x SATA | SATA 6Gb/s |
USB
| Source | Ports | Details |
|---|---|---|
| Chipset | 4 x USB 3.2 Gen 1 | 2 rear, 2 via internal header |
| Chipset | 6 x USB 2.0/1.1 | 4 rear, 2 via internal header |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 2 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header
- For GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only
- 1 x Clear CMOS jumper

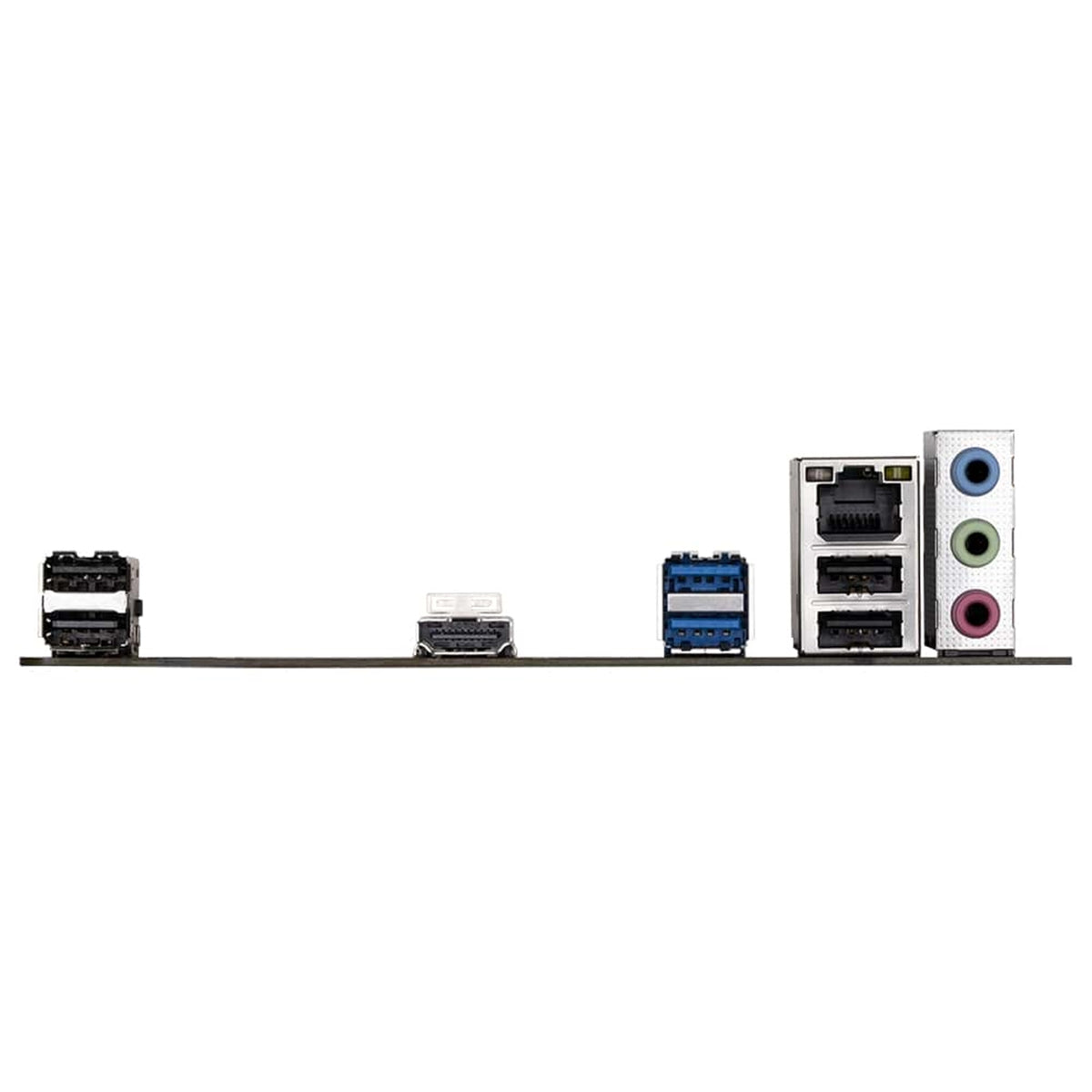

Back Panel Connectors
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller
- iTE I/O Controller Chip
Hardware Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- 1 x 128 Mbit flash
- Licensed AMI UEFI BIOS
- Supported standards: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for APP Center
- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
- Support for Q-Flash
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
- Micro ATX
- Dimensions: 22.6 cm x 18.5 cm
