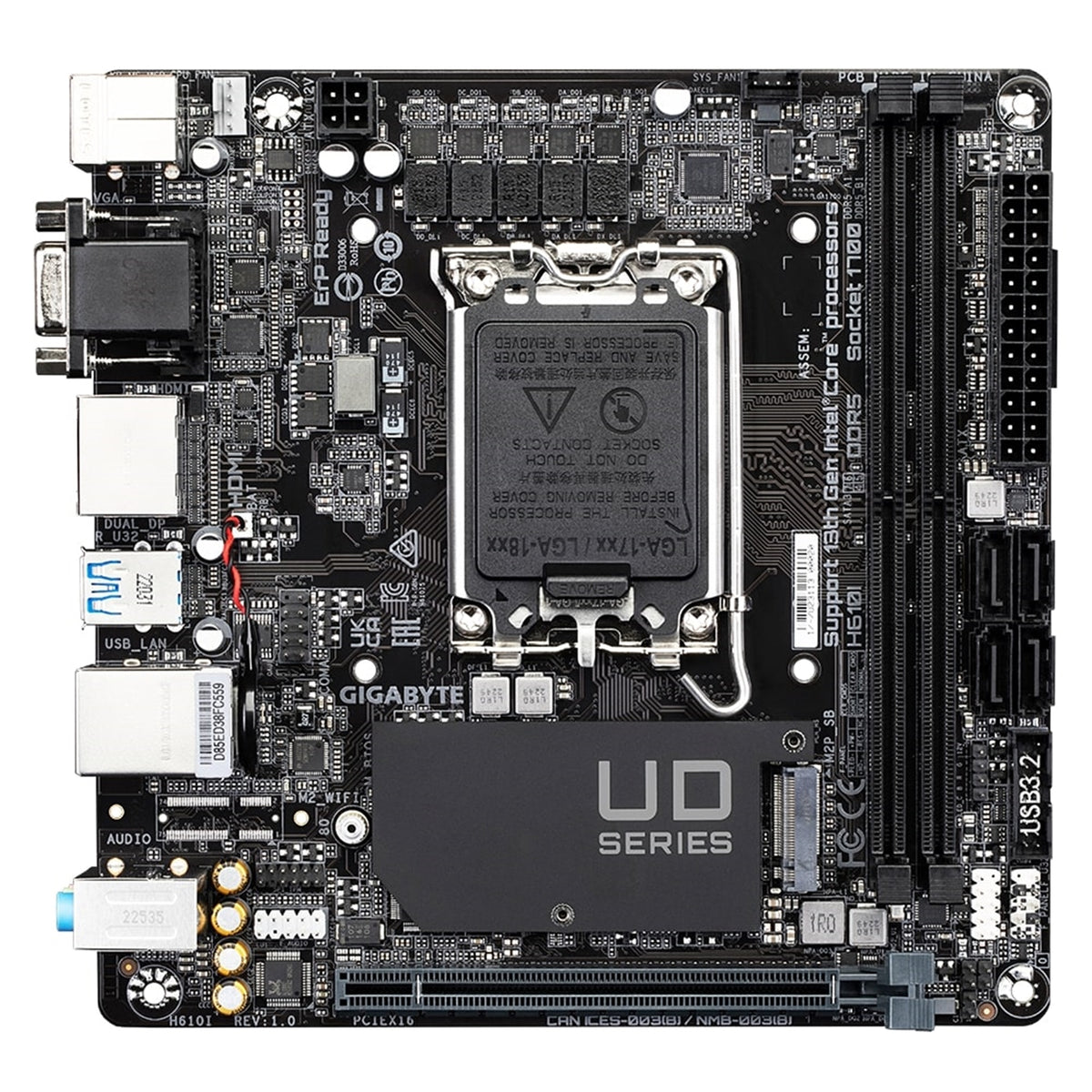

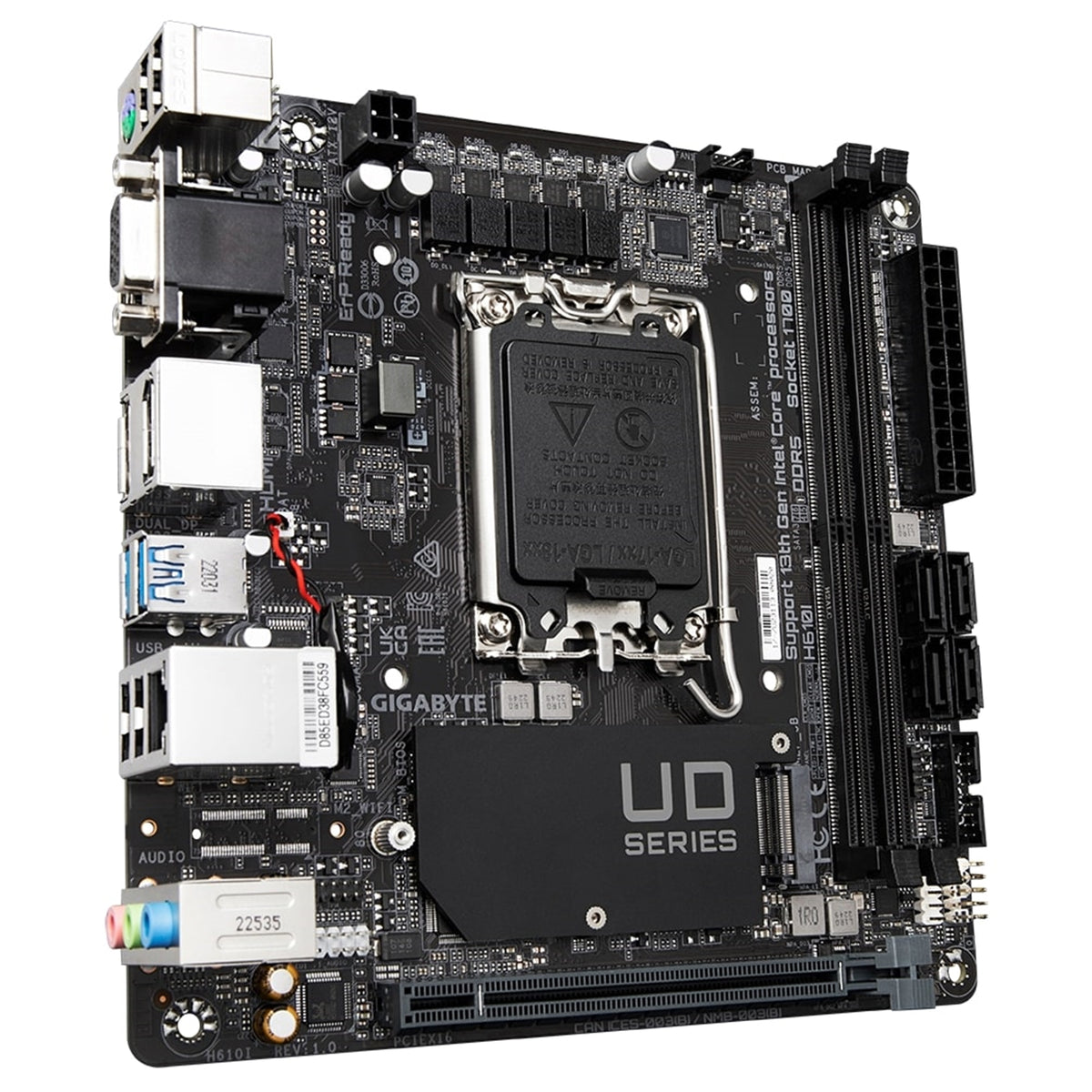

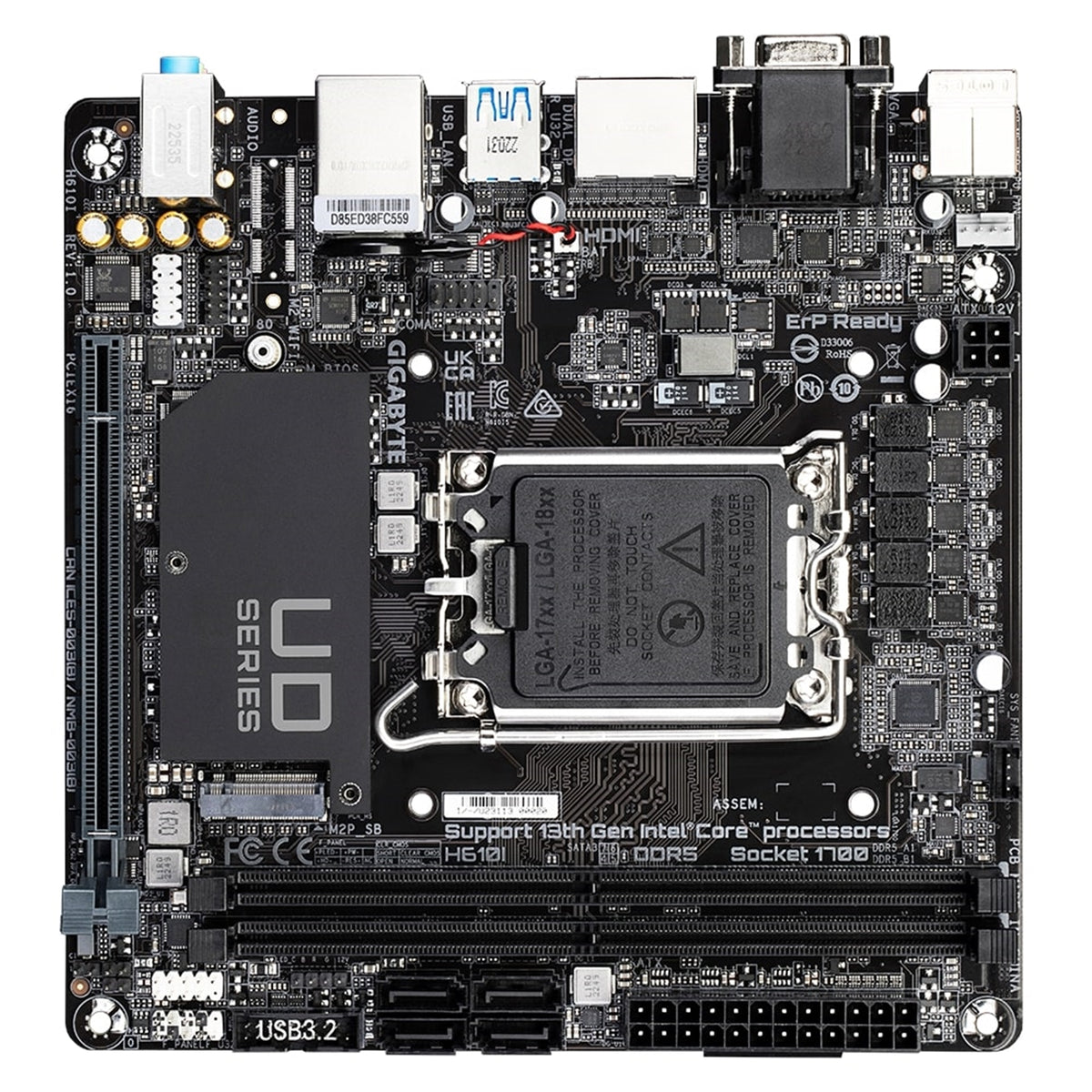

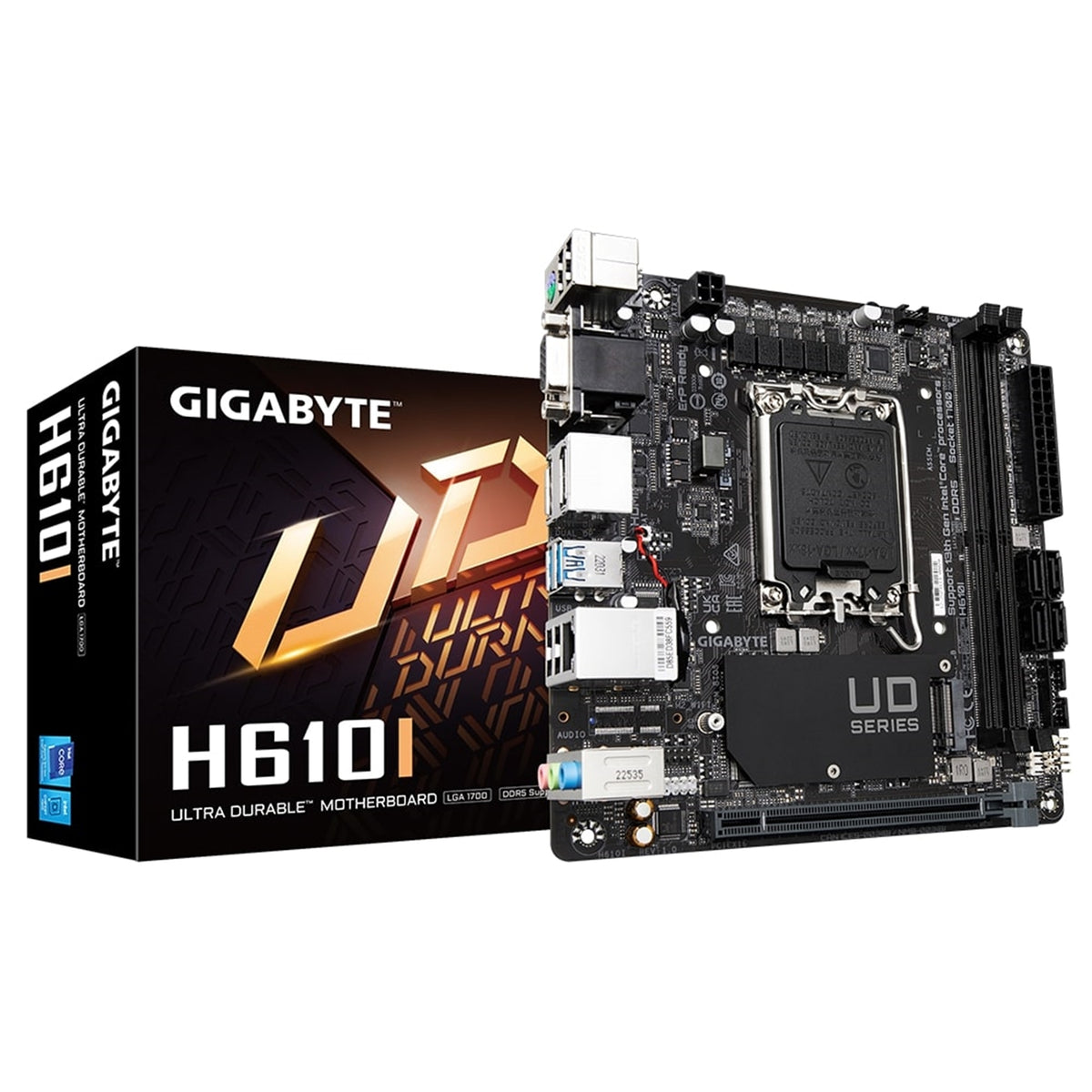

GIGABYTE H610I (Rev. 1.0) Mini-ITX Motherboard
Compact and feature-rich, the GIGABYTE H610I (Rev. 1.0) is designed for Intel® 14th, 13th, and 12th Gen processors, delivering reliable performance, modern connectivity, and flexible expansion in a Mini-ITX form factor.
Key Features
- Supports Intel® Core™ 14th / 13th / 12th Generation processors
- Dual Channel DDR5 memory, 2 DIMM slots
- 4+1+1 Hybrid Digital VRM Design
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- NVMe PCIe 3.0 x4 M.2 storage support
- High Quality Audio Capacitors with Audio Noise Guard
- Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
- GIGABYTE APP Center for simple, centralized software control
- Anti-Sulfur Resistors Design
Specifications
CPU
| Item | Details |
|---|---|
| Socket | LGA1700 |
| Supported CPUs | 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors |
| L3 Cache | Varies by CPU |
* Please refer to the CPU Support List for more information.
Chipset
| Item | Details |
|---|---|
| Chipset | Intel® H610 Express Chipset |
Memory
| Item | Details |
|---|---|
| Architecture | Dual channel DDR5 |
| Slots | 2 x DDR DIMM sockets |
| Max Capacity | Up to 128 GB (64 GB per DIMM) |
Supported Speeds
- 13th Gen Intel® Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s
- 13th Gen Intel® Core™ i5/i3 and 12th Gen Intel® Core™, Pentium® Gold, Celeron®: DDR5 4800/4400 MT/s
Module Support
- ECC Un-buffered DIMM 1Rx8 / 2Rx8 (operates in non-ECC mode)
- Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
- Extreme Memory Profile (XMP) support
(Please refer to the Memory Support List for more information.)
BIOS
| Item | Details |
|---|---|
| ROM | 1 x 256 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Graphics
Integrated Graphics Processor (Intel® HD Graphics support, CPU-dependent)
| Output | Max Resolution | Standard / Features |
|---|---|---|
| D-Sub | 1920 x 1200 @ 60 Hz | — |
| HDMI | 4096 x 2160 @ 60 Hz | HDMI 2.1, HDCP 2.3, native HDMI 2.1 TMDS compatible |
| DisplayPort (1) | 4096 x 2304 @ 60 Hz | DisplayPort 1.2, HDCP 2.3 |
| DisplayPort (2) | 4096 x 2304 @ 60 Hz | DisplayPort 1.2 |
- Supports up to 3 displays simultaneously
- Graphics specifications may vary depending on CPU support.
Audio
| Item | Details |
|---|---|
| Codec | Realtek® Audio CODEC |
| Audio | High Definition Audio, 2/4/5.1/7.1-channel* |
* Audio jack functionality can be reconfigured in the audio software. For 7.1-channel output, configure settings in the audio software.
LAN
| Item | Details |
|---|---|
| Controller | Intel® GbE LAN chip |
| Speed | 1 Gbps / 100 Mbps |
Wireless LAN
| Item | Details |
|---|---|
| Wireless LAN | N/A |
Expansion Slots
| Slot | Standard | Lane Configuration |
|---|---|---|
| 1 x PCI Express x16 | PCIe 4.0 | Runs at x16 |
Storage
| Interface | Details |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2280, PCIe 3.0 x4/x2 SSD support) |
| SATA | 4 x SATA 6Gb/s connectors |
RAID
| Item | Details |
|---|---|
| RAID Support | N/A |
USB
Chipset
- 4 x USB 3.2 Gen 1 ports
- 2 x rear panel
- 2 x via internal header
- 4 x USB 2.0/1.1 ports (rear panel)
Chipset + USB 2.0 Hub
- 2 x USB 2.0/1.1 ports via internal header
Internal Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header

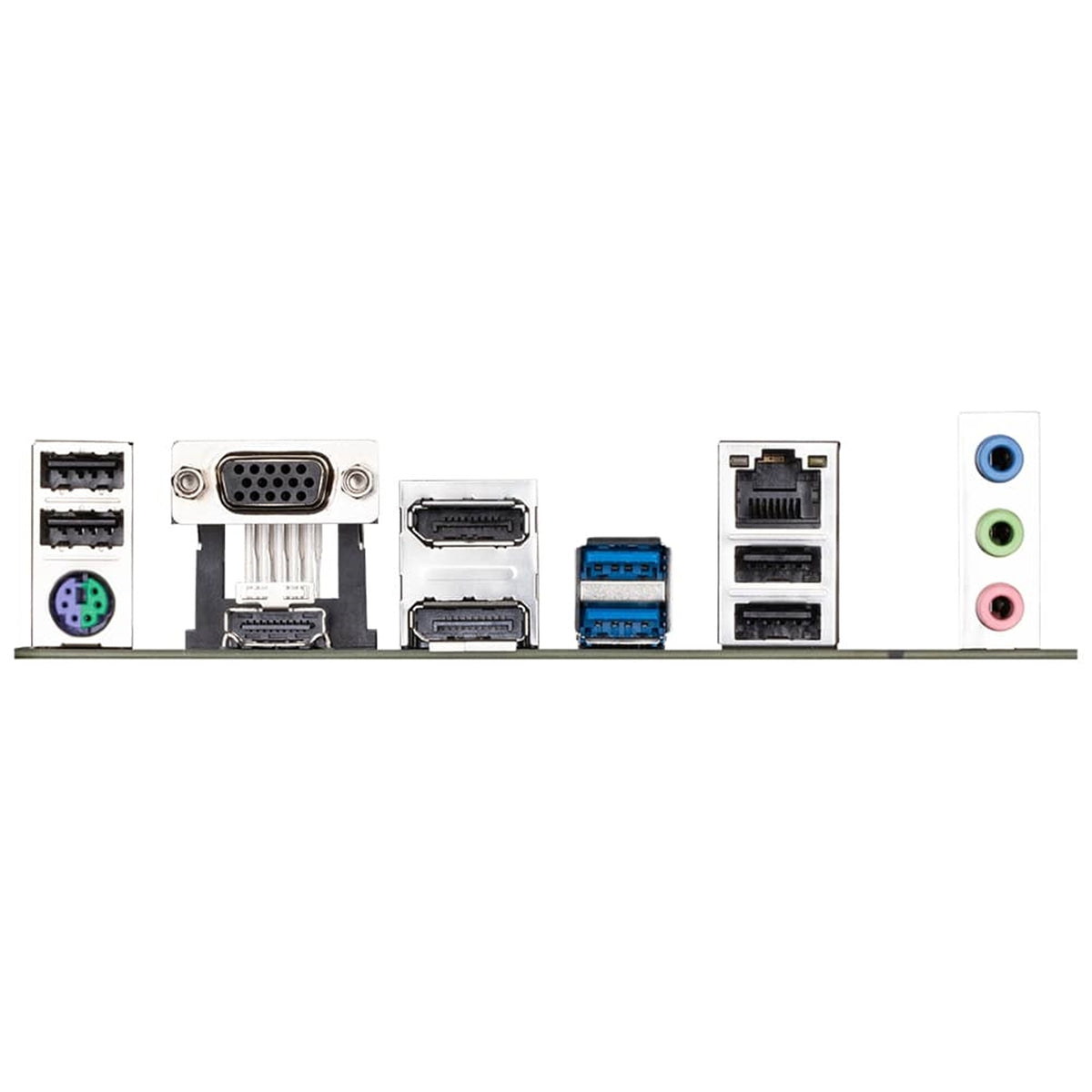

Rear Panel I/O
- 1 x PS/2 keyboard/mouse port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x D-Sub port
- 2 x DisplayPorts
- 1 x HDMI port
- 1 x RJ-45 LAN port
- 3 x audio jacks
Form Factor
| Item | Details |
|---|---|
| Form Factor | Mini-ITX |
| Dimensions | 17.0 cm x 17.0 cm |
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
