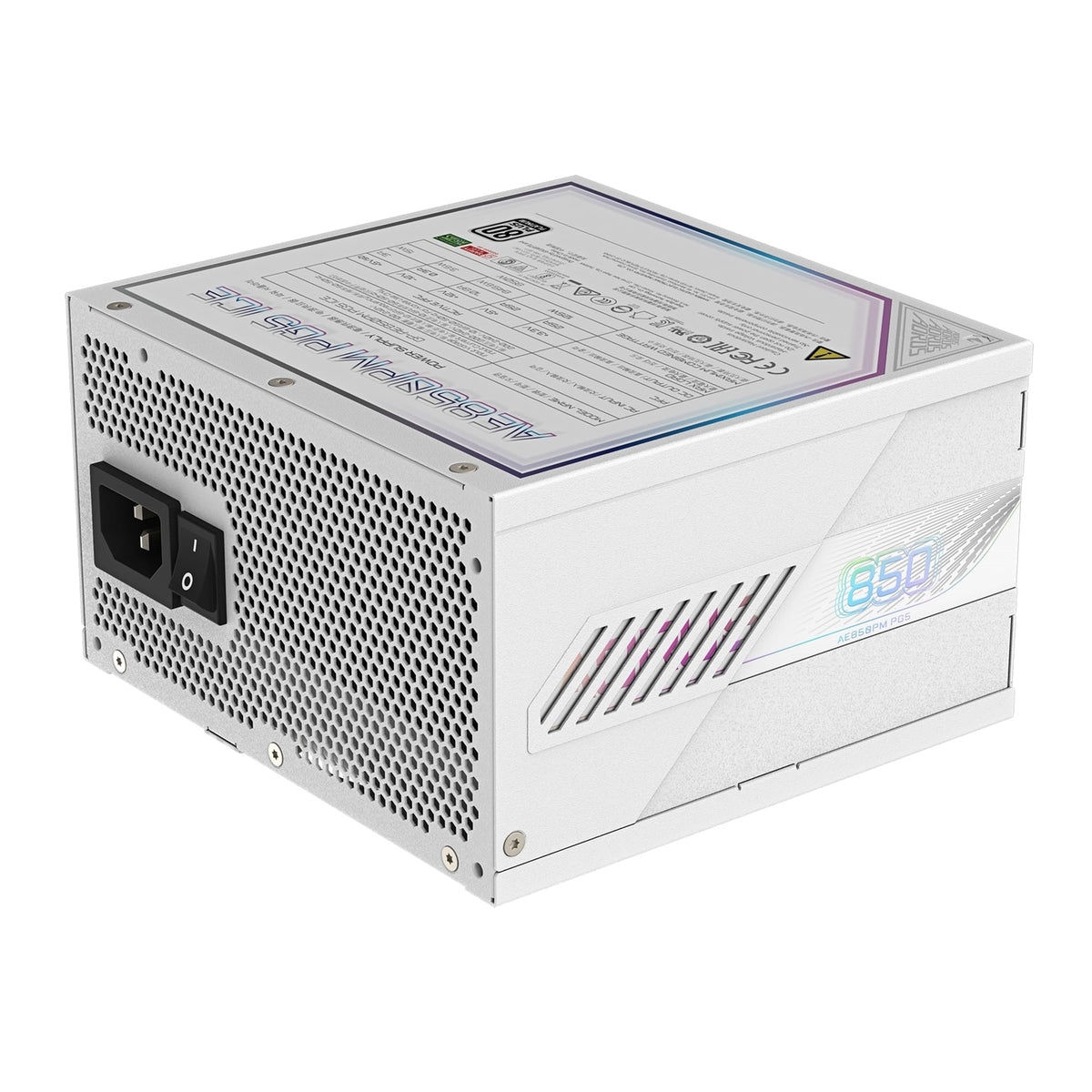

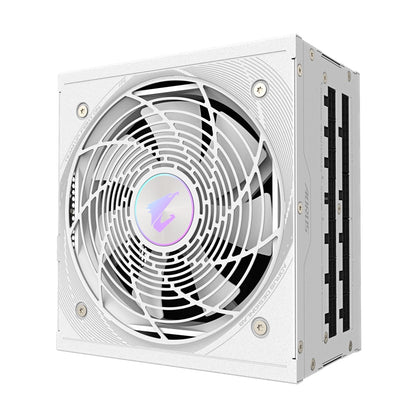

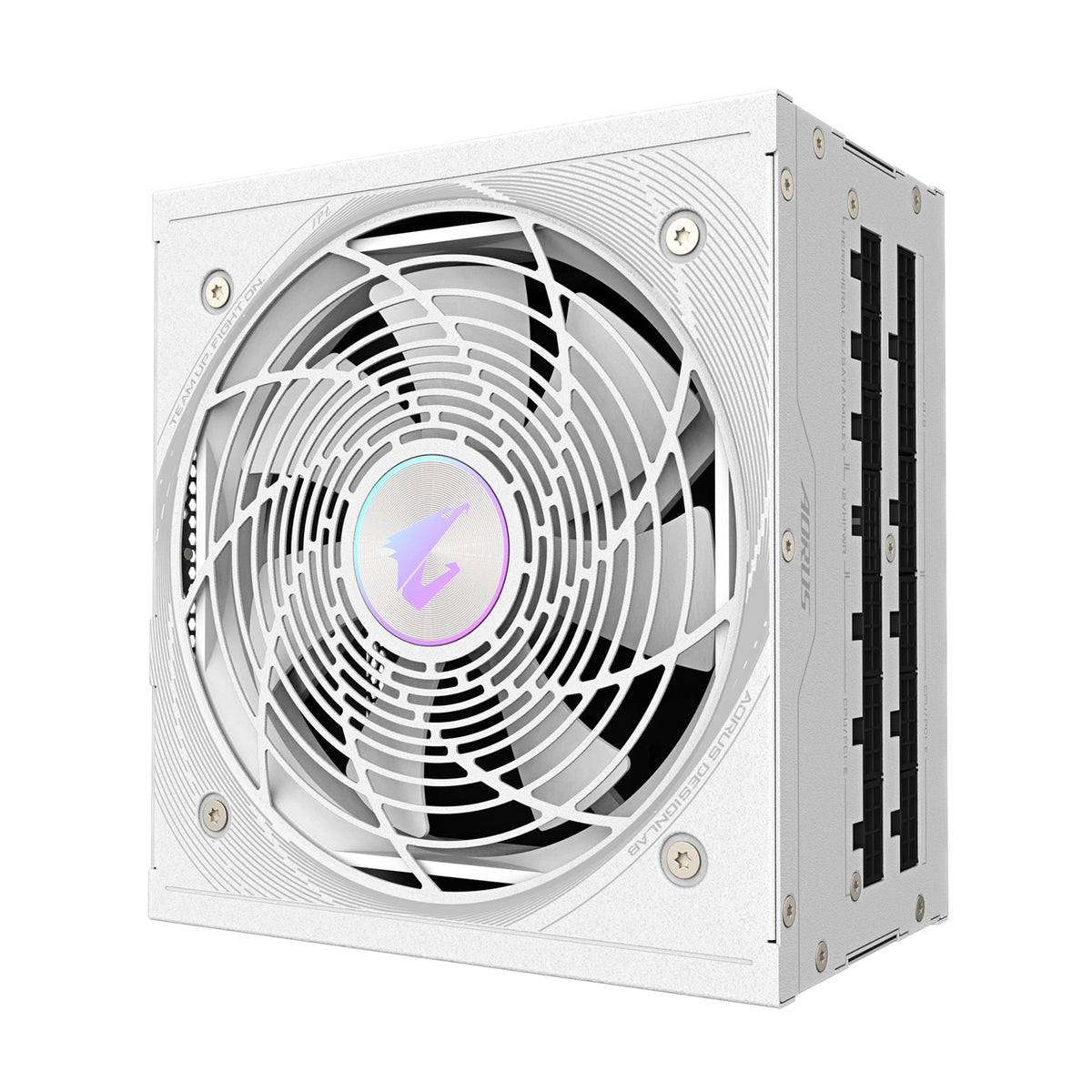

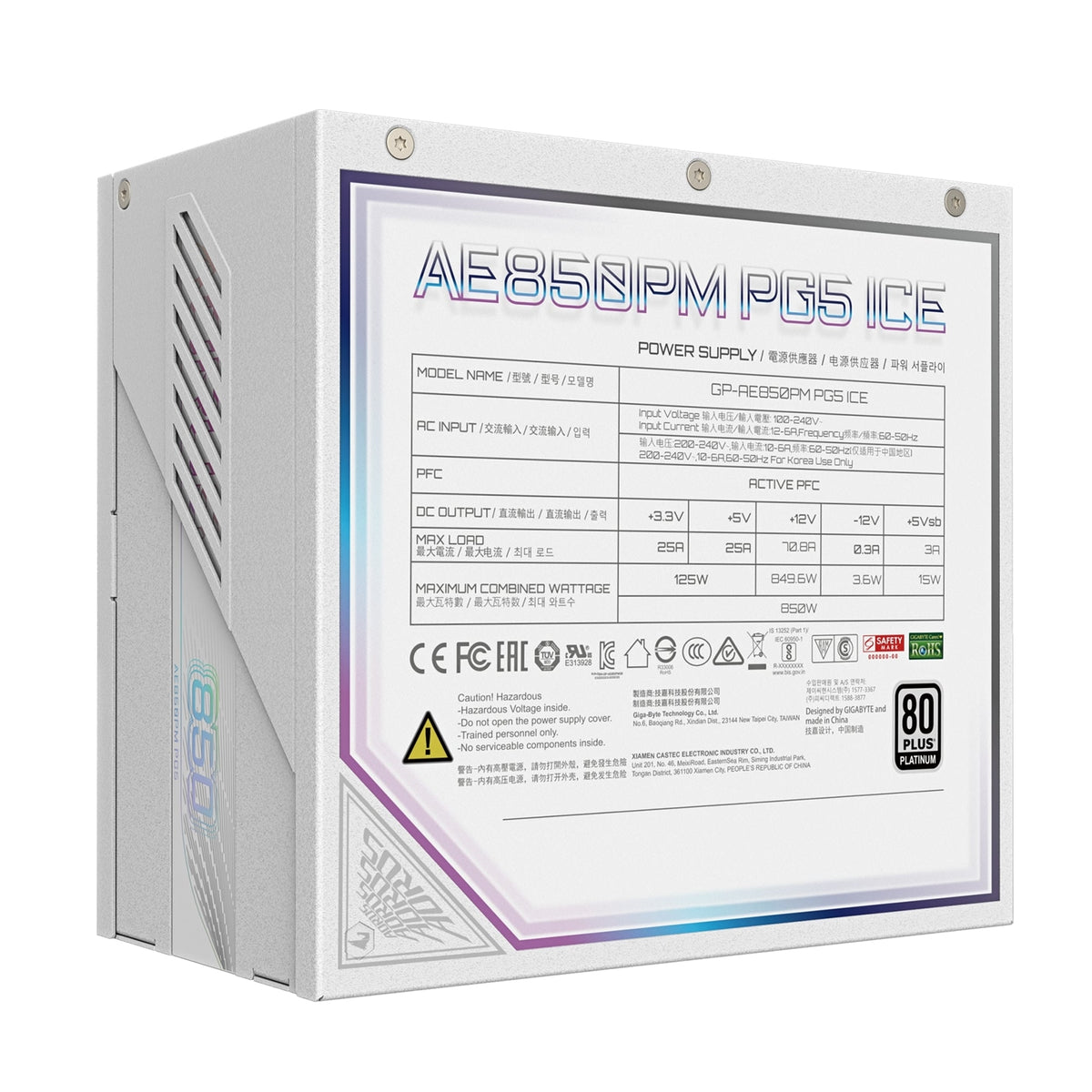

Gigabyte AORUS ELITE 850W ICE (GP-AE850PM PG5 ICE)
The Gigabyte AORUS ELITE 850W ICE is a premium white edition of the AORUS ELITE Platinum series, designed for modern high-performance systems. This fully modular 80 PLUS Platinum power supply supports the latest ATX 3.1 and PCIe Gen 5.1 standards, including a native 12VHPWR connector, all in a compact 140 mm chassis.
With a single +12V rail architecture, 100% Japanese capacitors, quiet 120 mm Fluid Dynamic Bearing fan, and a swappable AORUS magnetic badge plate, it combines reliability, efficiency, and style. Backed by a 10-year regional warranty, it delivers long-term peace of mind.
Key Features
-
ATX 3.1 & PCIe Gen 5.1 Ready
Includes a native 16-pin 12VHPWR cable supporting up to 600 W delivery. -
80 PLUS Platinum Certified
Approx. 92% efficiency at 50% load for reduced energy loss. -
100% Japanese Capacitors
Helps ensure stable voltage delivery and long lifetime. -

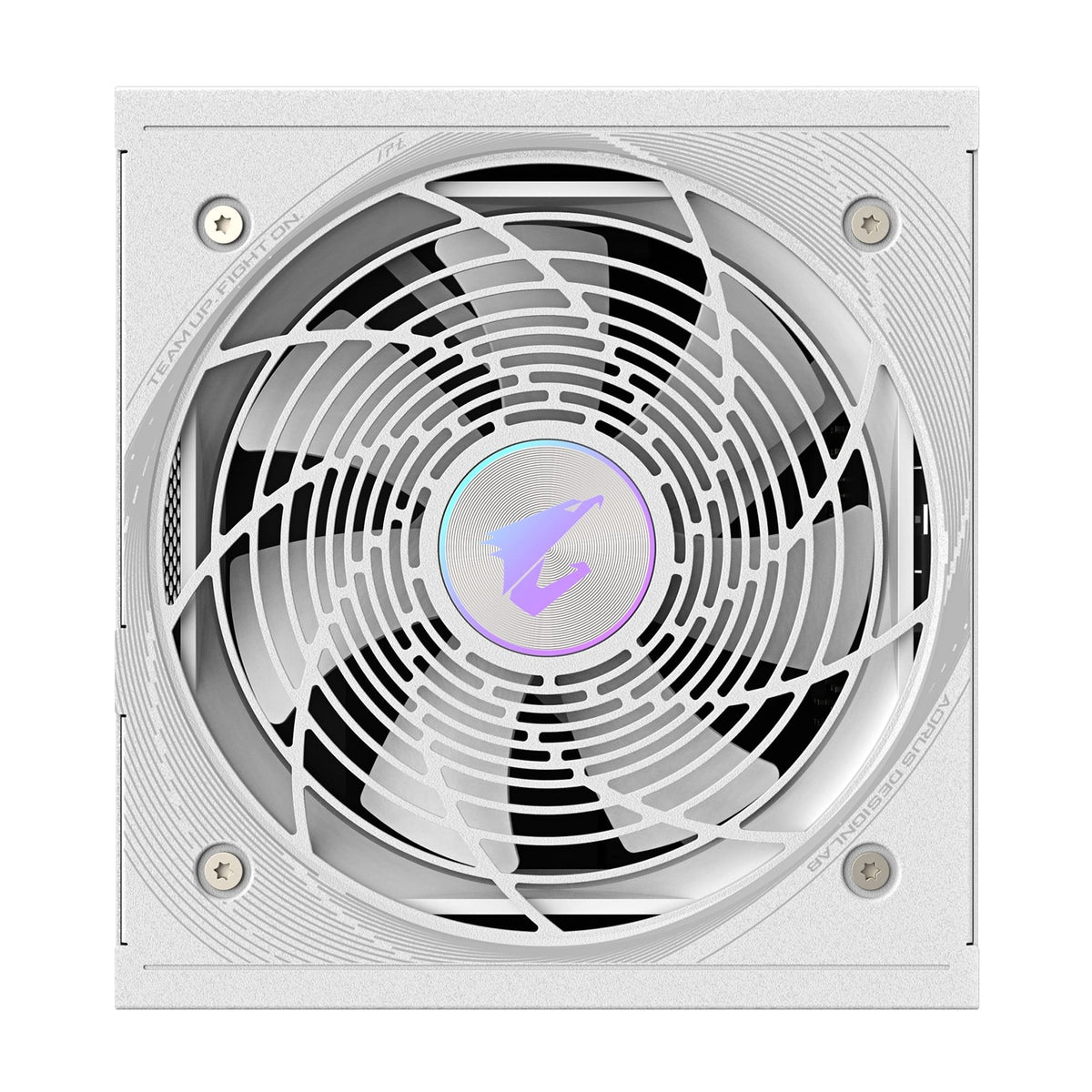

120 mm Smart FDB Fan
Oil-damped Fluid Dynamic Bearing with semi-passive operation under low load (<50%). -
Compact 140 mm Depth
Short 140 mm length for improved compatibility with space-constrained builds. -
Fully Modular Flat White Cables
Enables clean cable management, reduced clutter, and improved airflow. -
Single Powerful +12V Rail
Simplifies power delivery and enhances overcurrent handling. -
Comprehensive Protection Suite
OCP, OVP, UVP, OPP, OTP, SCP for added system safety. -
Swappable AORUS Magnetic Badge Plate
Allows aesthetic customization to match your build. -
10-Year Limited Warranty
Long-term coverage for extended peace of mind.
Full Technical Specifications
| Category | Details |
|---|---|
| Model / MPN | Gigabyte AORUS ELITE 850W ICE (GP-AE850PM PG5 ICE) |
| Form Factor | ATX (compatible with ATX 3.1) |
| Power Output | 850 W continuous / peak excursion support up to 3x GPU power and 2x total system power |
| Efficiency Certification | 80 PLUS Platinum (~92% at 50% load) |
| Input Voltage | 100–240 VAC |
| Input Frequency | 50–60 Hz |
| Input Current | 6–12 A |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Fan Type | 120 mm Smart Fluid Dynamic Bearing (FDB), semi-passive mode |
| Modularity | Fully modular with flat white cables |
| 12V Rail | Single rail delivering all available power (~70.8 A) |
| Protections | Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP) |

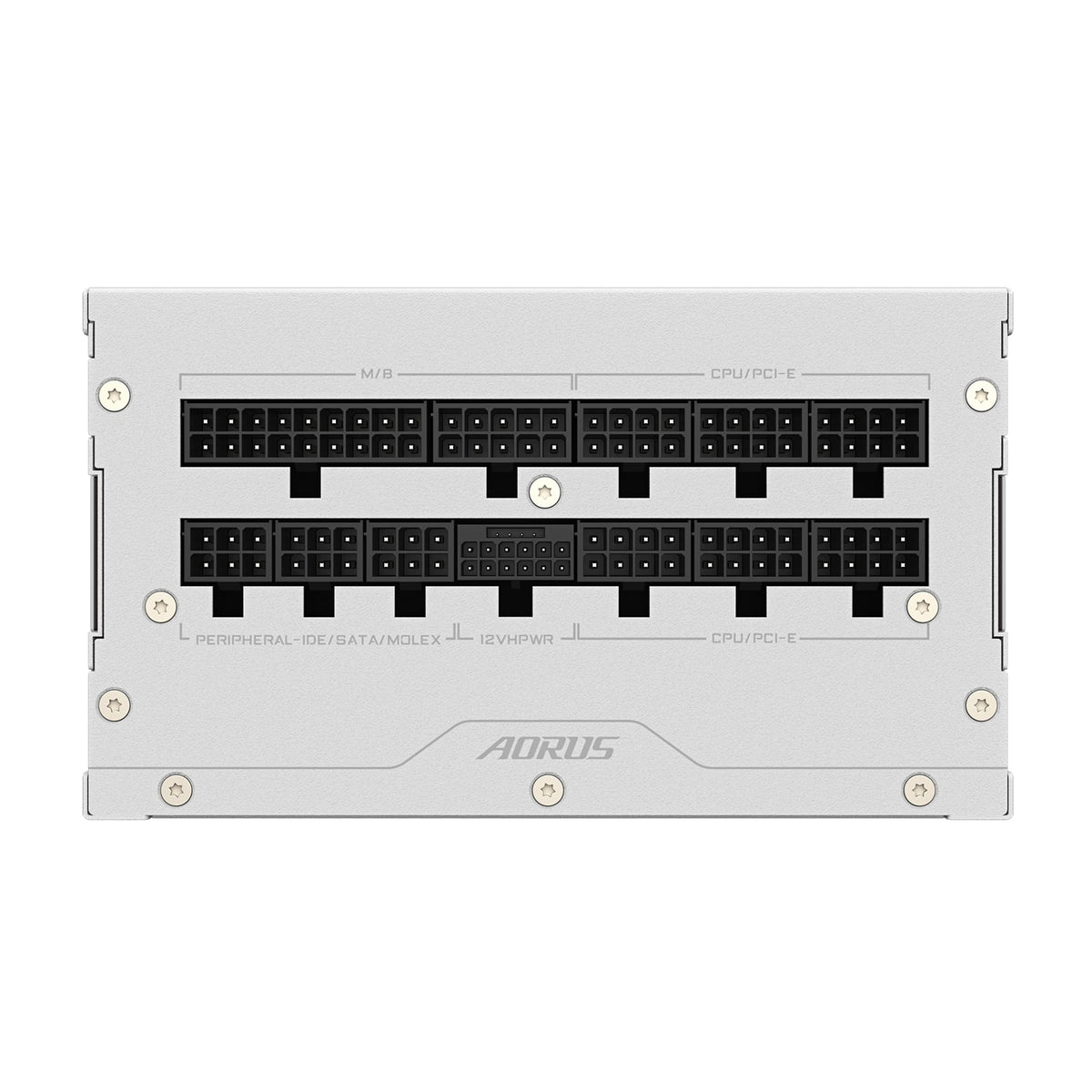

| Connectors | 1 x 24-pin ATX |
| 2 x 4+4-pin EPS (CPU) | |
| 1 x Native 12VHPWR (16-pin for PCIe Gen5 GPUs) | |
| 4 x PCIe 6+2-pin | |
| 8 x SATA | |
| 3 x Molex (4-pin peripheral) | |
| Hold-up Time | 16 ms |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| MTBF | 100,000 hours |
| Certifications | CE, FCC, RCM, EAC, cTUVus, CB, UKCA |
| Warranty | 10-year limited |
