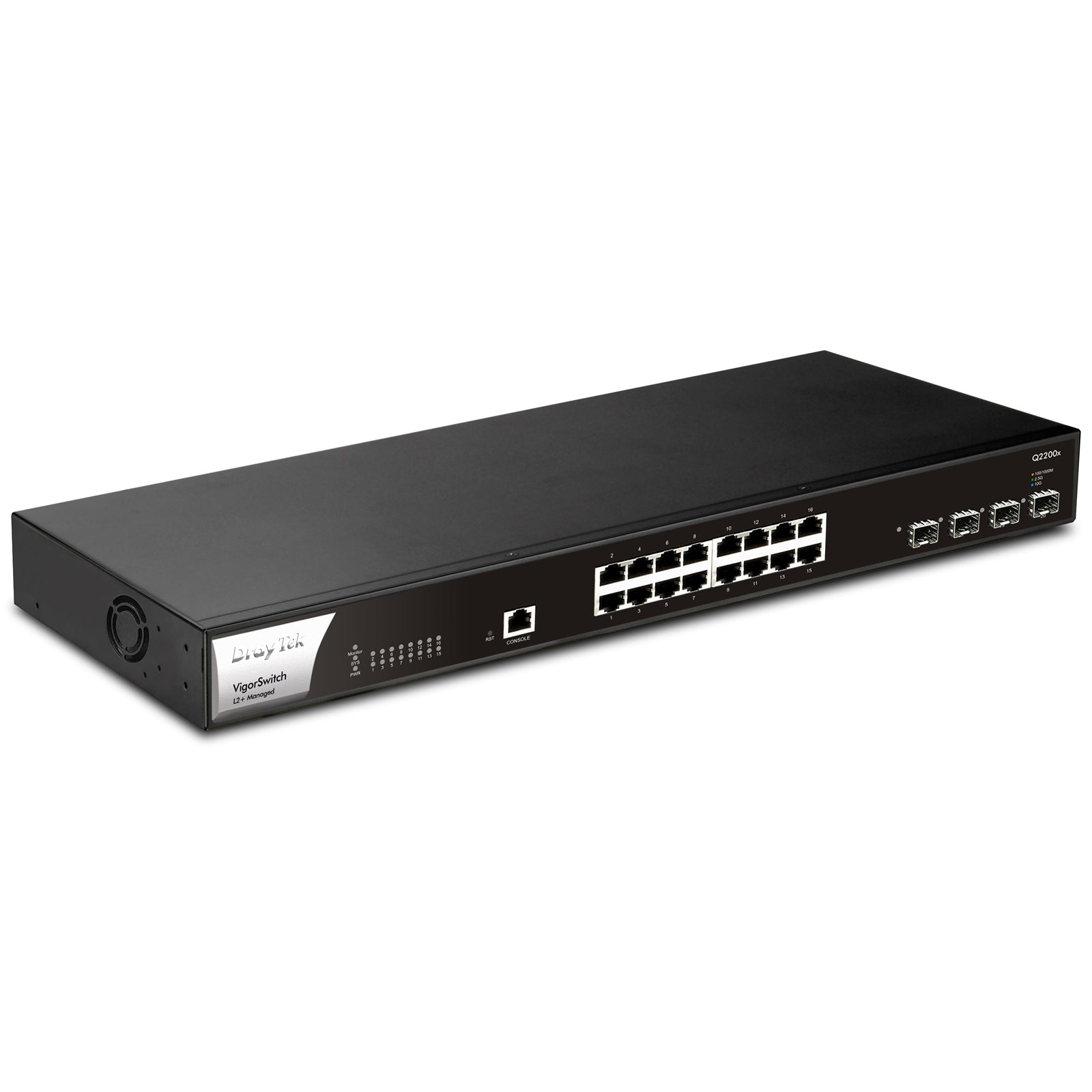

VigorSwitch Q2200x 2.5 Gigabit L2+ Managed Switch
The VigorSwitch Q2200x is a 2.5 Gigabit Layer 2+ managed switch designed for networks that demand performance beyond standard 1Gbps. With 16 multi‑Gigabit 2.5GbE ports and 4 independent 10Gbps SFP+ interfaces, it delivers high throughput for demanding environments such as high‑speed access points, high‑bandwidth video, and network attached storage.
Key Features
-
16 x 2.5GbE Ethernet Ports
Future‑proof your core network while continuing to use existing CAT 5e (or later) cabling.
Ideal for high‑speed Wi‑Fi access points such as the VigorAP 1060C. -
4 x 10Gbps SFP+ Uplinks
High‑speed 10 Gigabit SFP+ ports provide extra bandwidth for uplinking switches, servers, and networked storage, helping to minimise bottlenecks. -
Layer 2+ and Layer 3 Capabilities
Supported L3 features such as DHCP Server and VLAN Routing improve network stability and efficiency.
Additional features include: - Static Routes
- VLAN Routing
-
Multi‑subnet DHCP Server
-
Flexible Management Options
Manage the VigorSwitch Q2200x in the way that suits your deployment: - Stand‑alone via the device’s web interface
- Centrally through the VigorACS management platform
- Through a DrayTek Vigor router’s Central Switch Management
Easily provision VLAN configurations from the router, clone switch configurations, and significantly reduce setup time for complex networks with VLANs spanning multiple switches.
-
Enhanced Security Features
Protect your network against unauthorised access and common network issues with: - 802.1X port authentication
- DHCP Snooping
- IP Source Guard
-
Access Control Lists (ACLs)
-
ONVIF IP Camera Surveillance Management
Simplify IP camera deployments with built‑in ONVIF camera management: - Automatic detection and management of ONVIF cameras
- Auto‑generated IP camera topology
- Camera snapshots for easier fault detection and troubleshooting
Summary
The VigorSwitch Q2200x combines multi‑Gigabit 2.5GbE access, 10Gbps SFP+ uplinks, advanced Layer 2+ and Layer 3 functionality, centralised management options, robust security, and ONVIF IP camera support—making it a strong choice for performance‑driven, scalable, and secure network infrastructures.
