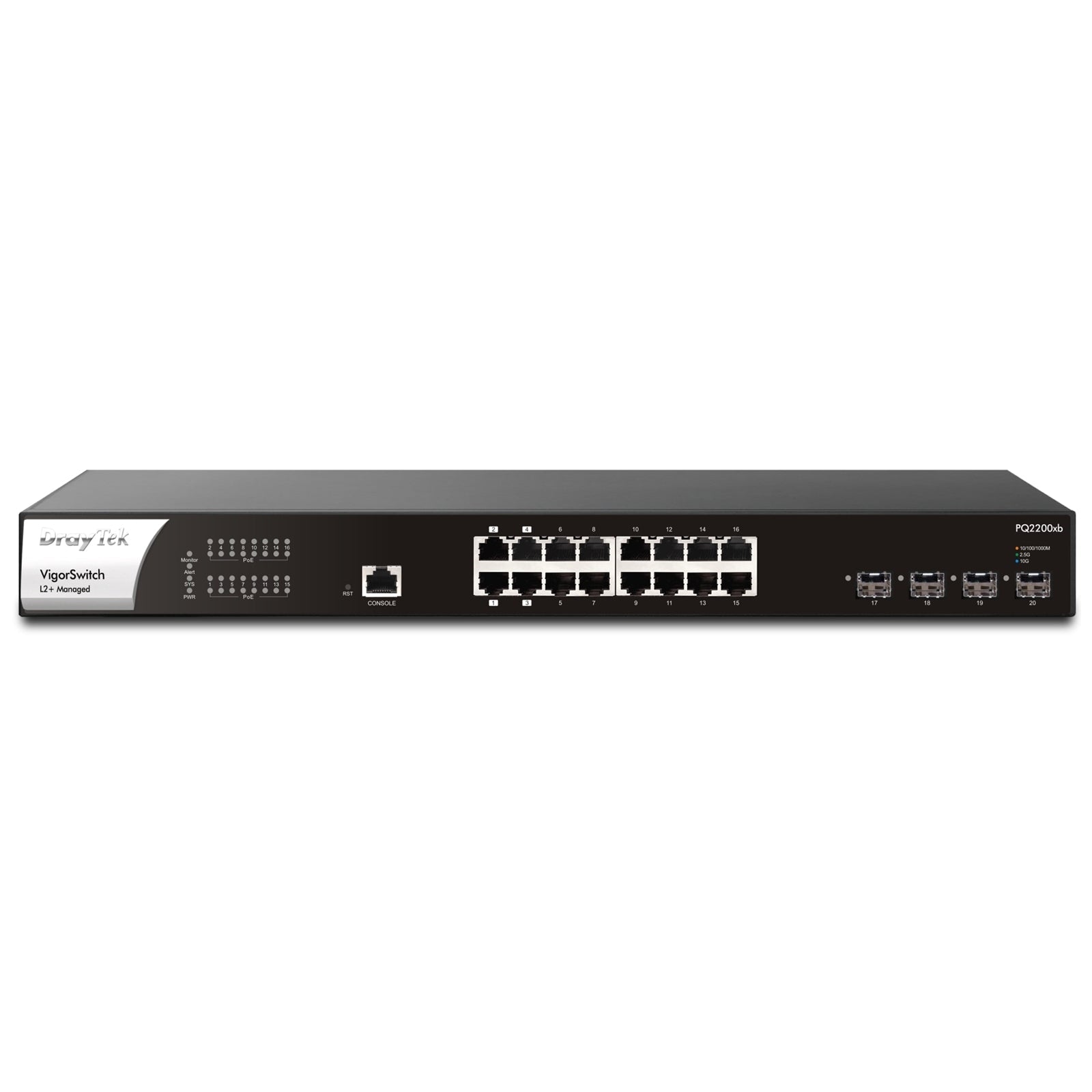

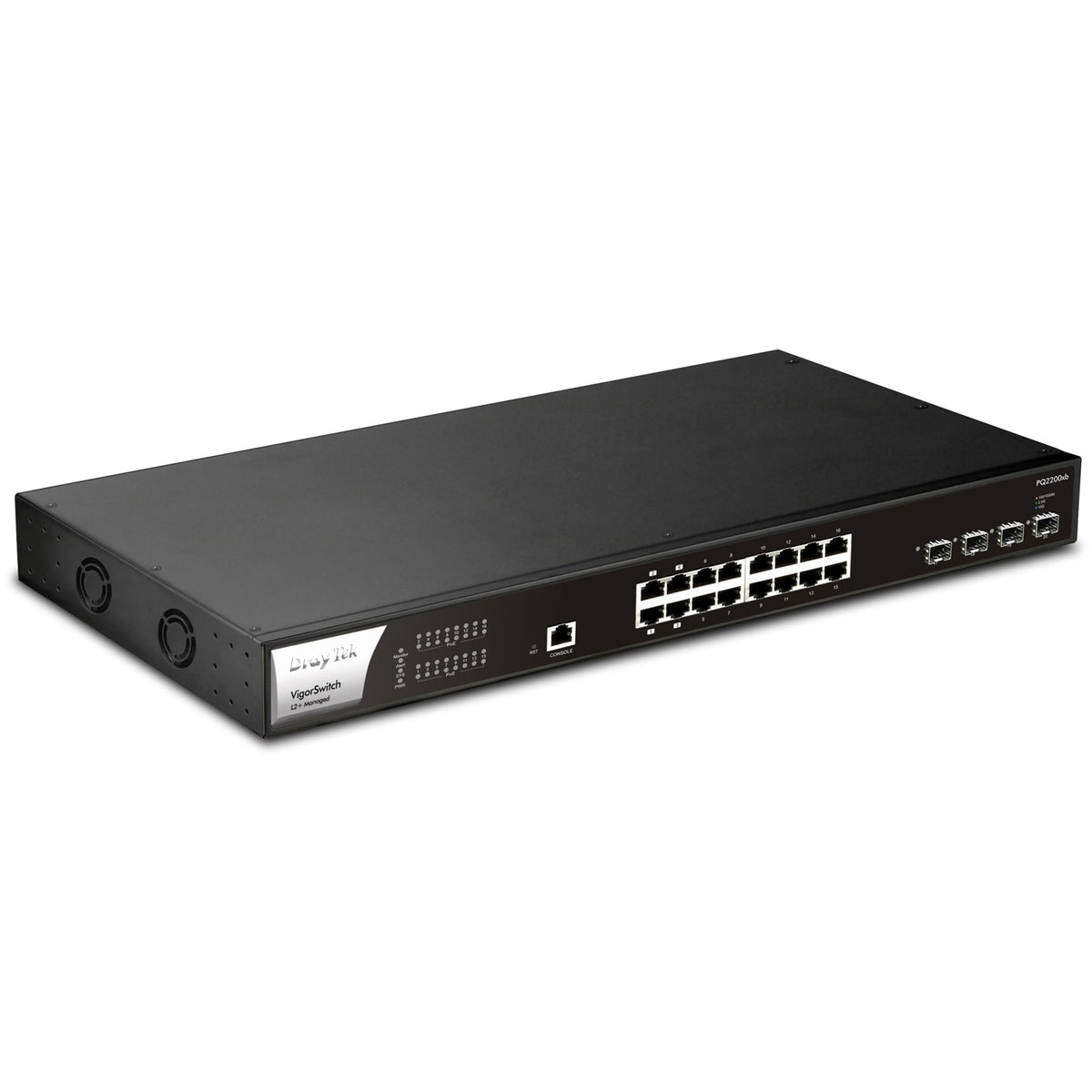

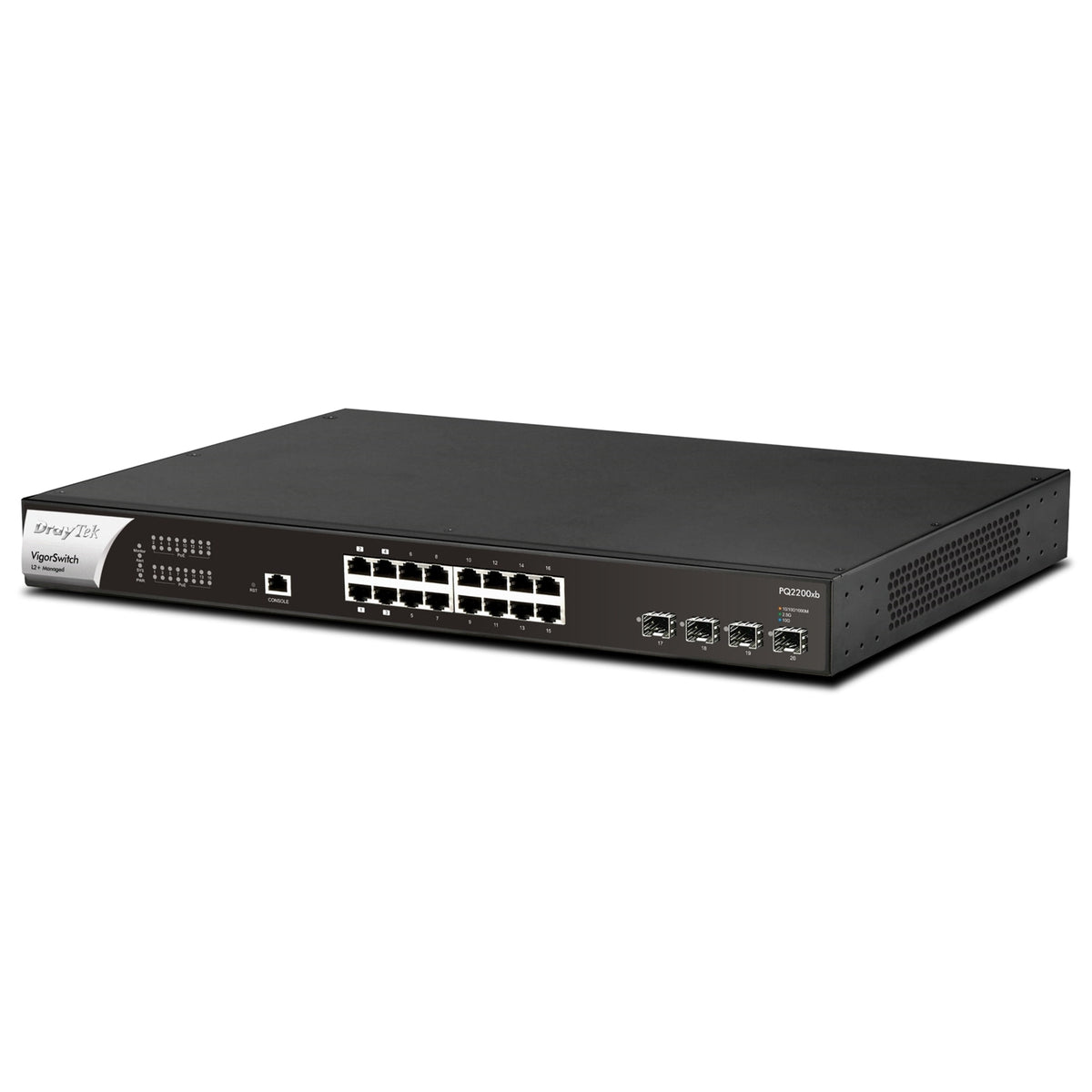

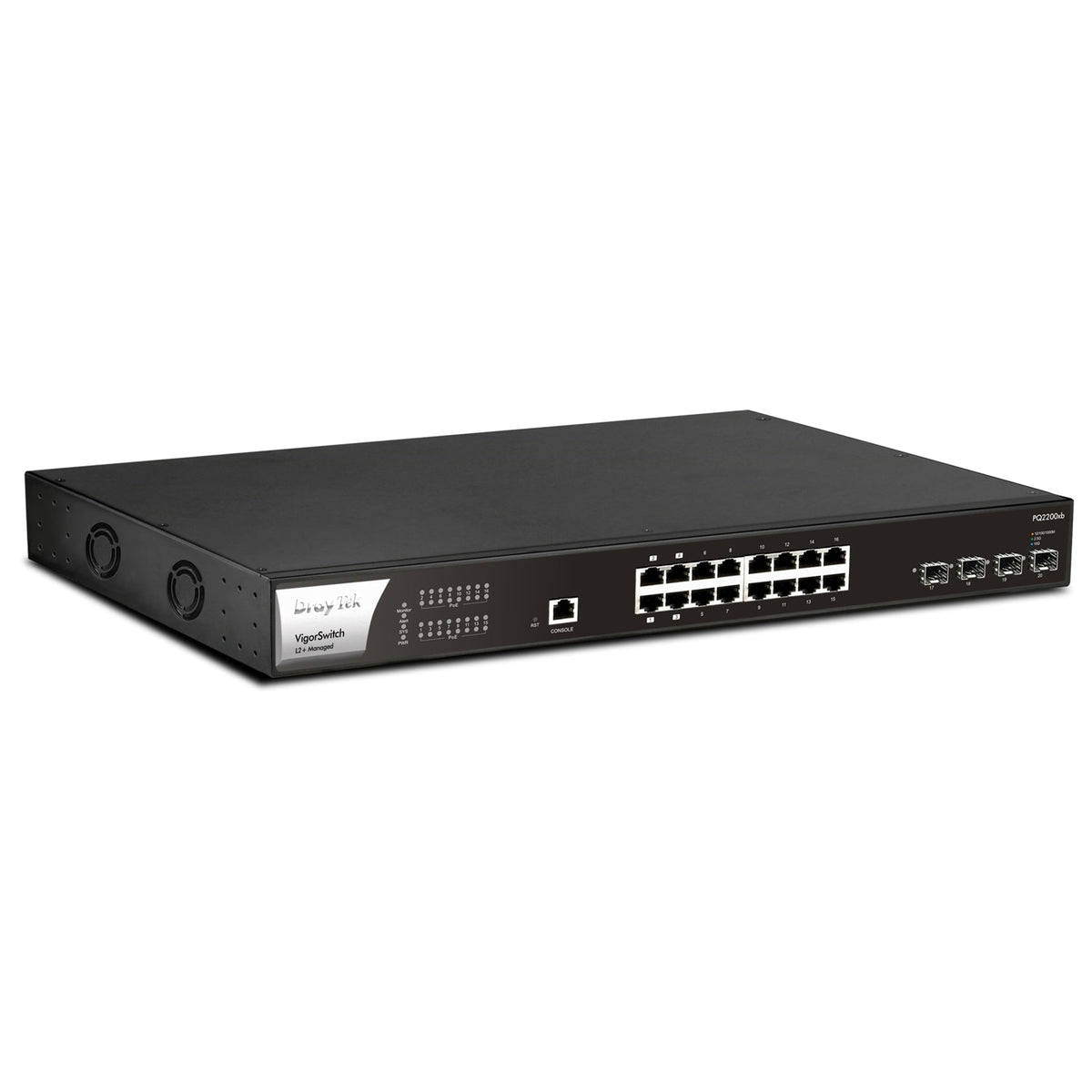

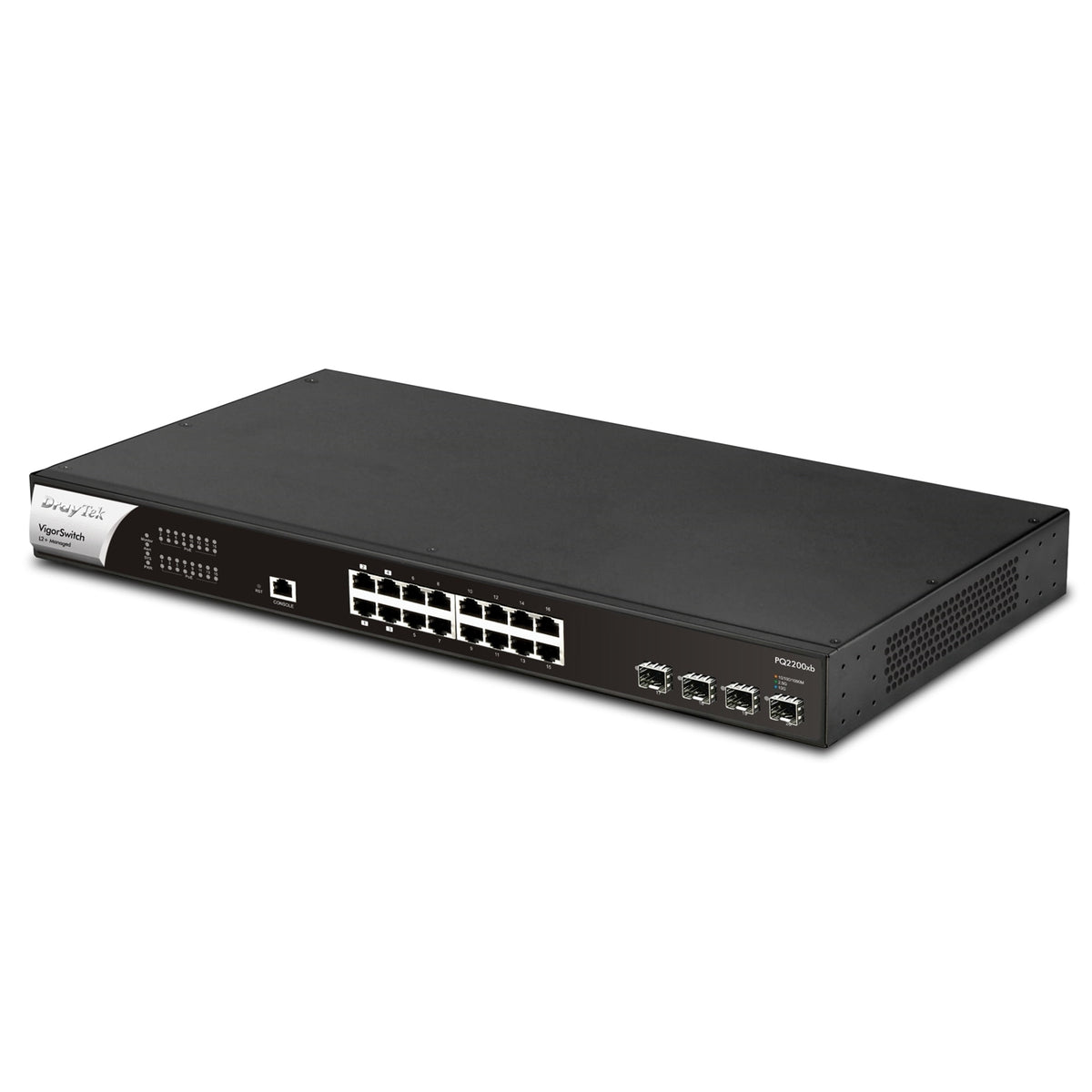

DrayTek VSPQ2200XB-K VigorSwitch PQ2200xb 16 Port 2.5 GbE POE+ Managed Layer 2+ Switch with 4x POE++ Ports and 4x 10GbE SFP+ Ports

VigorSwitch PQ2200xb 2.5 Gigabit L2+ Managed PoE Switch

The VigorSwitch PQ2200xb is a high‑performance 2.5 Gigabit L2+ managed switch designed for modern, bandwidth‑hungry networks. With 16 multi‑Gigabit 2.5GbE ports, powerful PoE++ capability, and 10Gbps SFP+ uplinks, it is ideal for environments that demand more than standard 1Gbps throughput.

Key Features

• 16 x 2.5GbE Ports
• 4 x PoE++ 2.5GbE ports
• 12 x PoE+ 2.5GbE ports
• Total PoE power budget: 400W
• 4 x Independent SFP+ 10Gbps Interfaces for high‑speed uplinks
• L2+ Managed Switch with advanced Layer 3 features
• Ideal for High‑Throughput Devices such as PoE Wi‑Fi 6 access points, high‑bandwidth video, and network‑attached storage
• Flexible Management Options including standalone management, VigorACS, and DrayTek Vigor router Central Switch Management

Future‑Proof Multi‑Gigabit Performance

• 16 x 2.5GbE Ethernet ports enhance core network speed.
• Designed to work over existing CAT 5e or later cabling.
• Ideal for Wi‑Fi 6 access point connections, including the VigorAP 1060C.

Advanced Layer 2+ and Routing Capabilities

Supported Layer 3 features improve network stability and efficiency:

• Static Routes
• VLAN Routing
• Multi‑subnet DHCP Server

These capabilities allow you to connect and expand separate networks through the VigorSwitch PQ2200xb.

High‑Speed 10Gbps SFP+ Uplinks

• 4 x SFP+ 10Gbps ports for high‑capacity links to:
• Switches
• Servers
• Networked Storage

Use these uplinks to alleviate potential bottlenecks and increase overall network throughput.

400W PoE++ Power Budget

• Total PoE power output: 400W across the PoE‑enabled 2.5GbE LAN ports.
• Up to 90W (PoE++) can be delivered to each of the first 4 dedicated Ethernet ports.
• PoE scheduling and monitoring features help ensure connected PoE devices are powered and operational.

Robust Security Features

Protect your network against unauthorised access and misconfigurations with:

• 802.1X Port Authentication
• DHCP Snooping
• IP Source Guard
• Access Control Lists (ACLs)

(For full details, refer to the product’s features section.)

Centralised or Standalone Management

Choose the management approach that best fits your environment:

• VigorACS Cloud Management Platform – centralised provisioning and monitoring
• DrayTek Vigor Router Central Switch Management – easy VLAN provisioning and configuration cloning
• Standalone Web Interface – direct configuration on the device

Quickly roll out and manage complex networks with VLANs spanning multiple switches, while significantly reducing setup time.

Technical Overview
