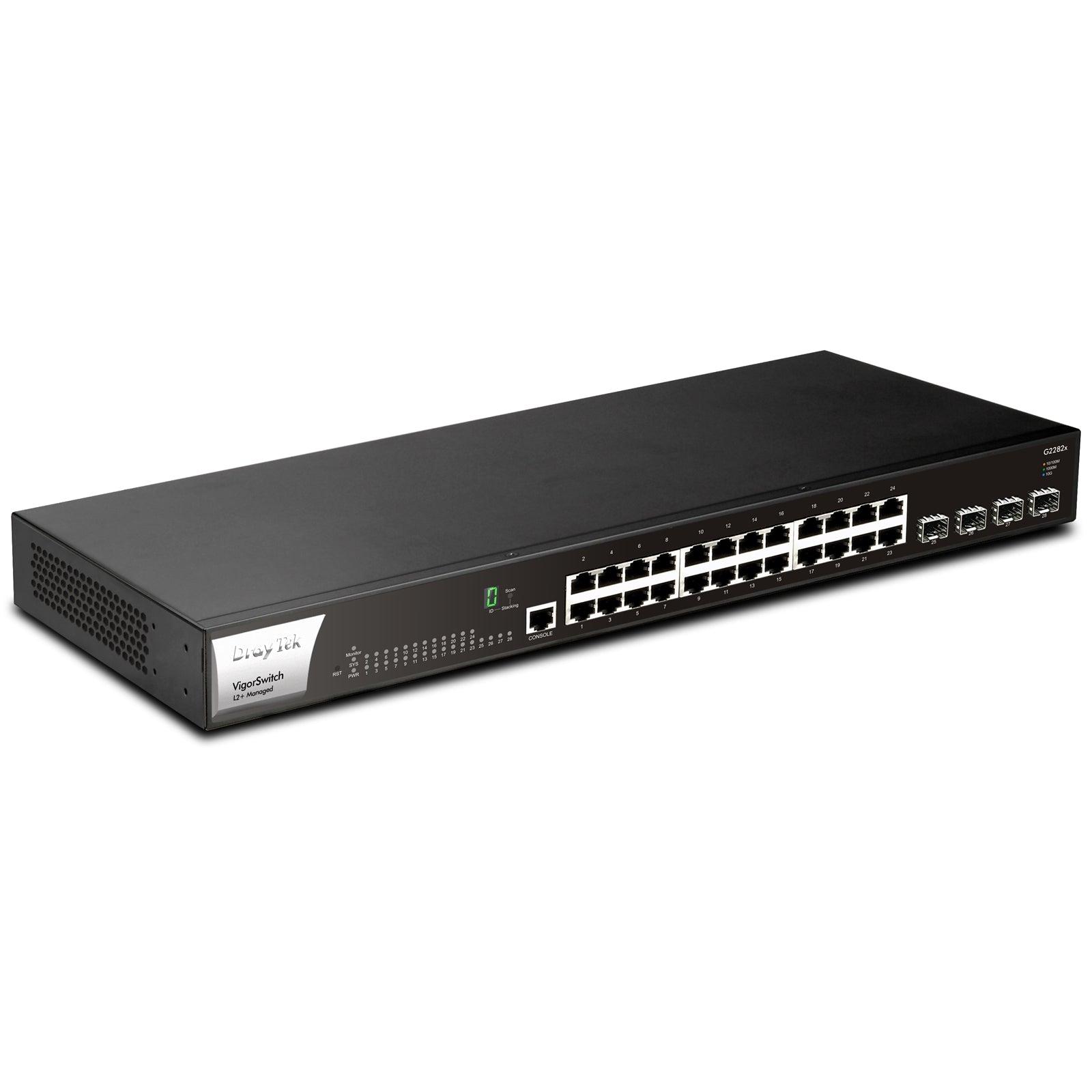

DrayTek VigorSwitch G2282x Layer 2+ Managed 10 Gbps Switch
The DrayTek VigorSwitch G2282x is a Layer 2+ managed 10 Gbps switch designed to enhance network performance, reliability, and control in demanding LAN environments.
Key Features
- Layer 2+ Managed 10 Gbps Switch
- 24 x Gigabit Ethernet LAN ports
- 4 x SFP+ 10 Gbps fiber links for uplink/downlink
- Fixed AC power input plus additional DC power input as an alternative power source
- Helps ensure uninterrupted operation
- Protects connected devices in the event of AC power supply failure
Advanced Layer 3 Capabilities
Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing, the VigorSwitch G2282x:
- Enhances overall network efficiency
- Maintains uninterrupted LAN connectivity even when the gateway is offline
- Provides an excellent solution for networks with increasing traffic demands
Wire-Speed VLAN Routing
- Routes inter-VLAN traffic directly on the switch
- Offloads routing tasks from the router
- Improves overall network performance
Intelligent Traffic Handling
Auto Surveillance & Voice VLAN
- Automatically recognizes traffic from IP cameras and IP phones
- Adds CoS tags for QoS prioritization
QoS (Quality of Service)
- Prioritizes critical traffic using:
- CoS
- DSCP
- IP Precedence tags
- Improves performance for important applications and services
IP Conflict Prevention
- Prevents IP conflicts caused by misconfigured or malicious hosts
- Improves network stability and reliability
Access Control & Security
- Supports Access Control Lists (ACL) by IP/MAC
- Provides 802.1X port access control with RADIUS
- Filters unauthorized hosts for enhanced network security
10G SFP+ Uplinks
- 4 x 10G-capable SFP+ fiber ports
- Ideal for aggregation or uplinking to core switches
- Delivers high-speed connectivity across your network backbone
Improving LAN Sustainability and Efficiency
In large LANs, much of the traffic remains internal (e.g., IP cameras to NVR, IP phones to PBX, clients to file servers). As an L2+ switch with DHCP server and VLAN routing functionalities, the VigorSwitch G2282x:
- Receives traffic before the router
- Shares the processing load with the router
- Helps your LAN continue operating even when the router is offline
DHCP & VLAN Routing
- Acts as a DHCP server, assigning dynamic IP addresses for up to 8 VLANs
- Supports VLAN routing with up to 512 routes
ONVIF-Friendly for Surveillance
- Recognizes ONVIF devices across different VLANs
- Displays surveillance topology
- Provides a user interface for:
- Video streaming
- Device maintenance
The DrayTek VigorSwitch G2282x delivers robust switching, advanced Layer 3 features, and intelligent traffic management, making it a powerful choice for scalable, high-performance LAN environments.
