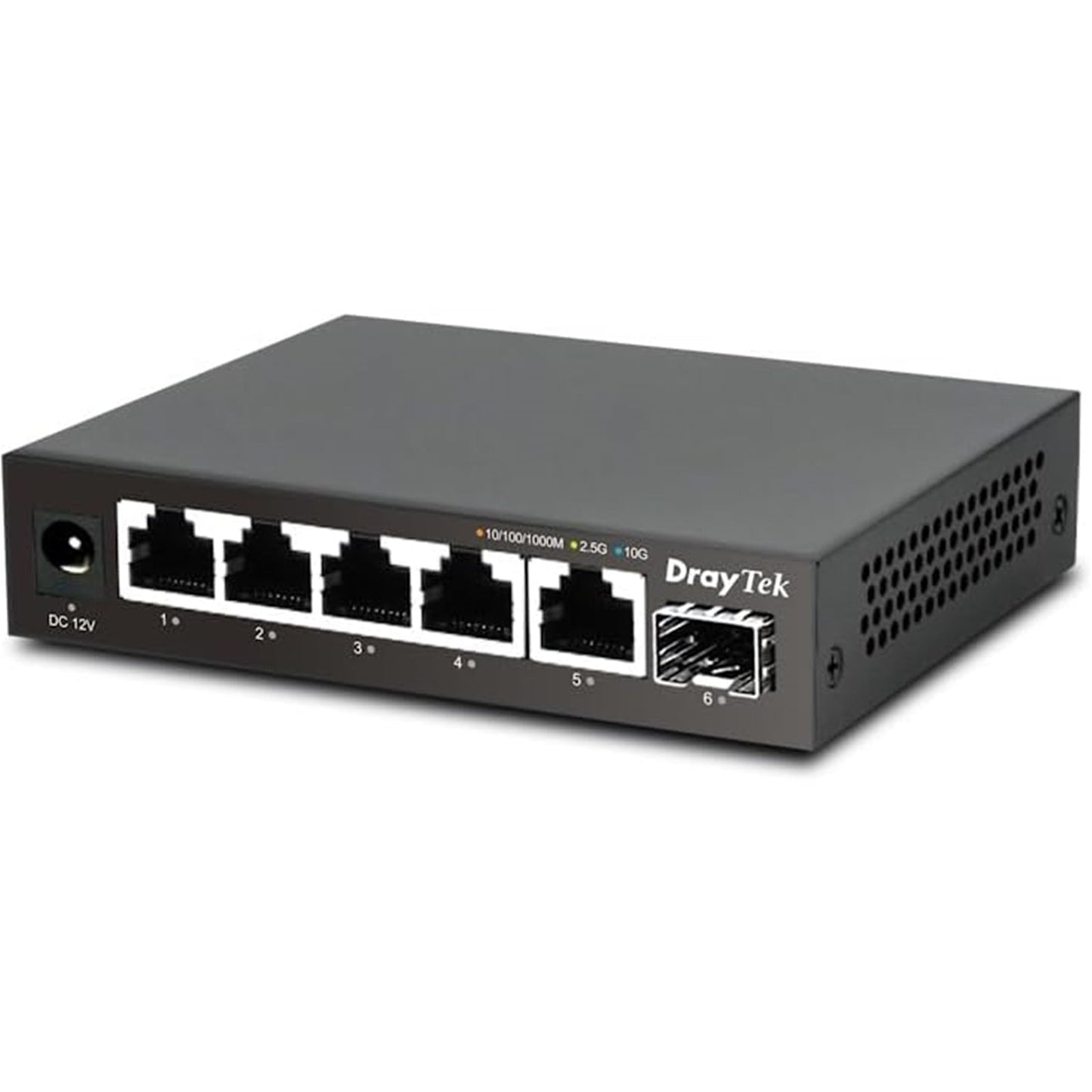

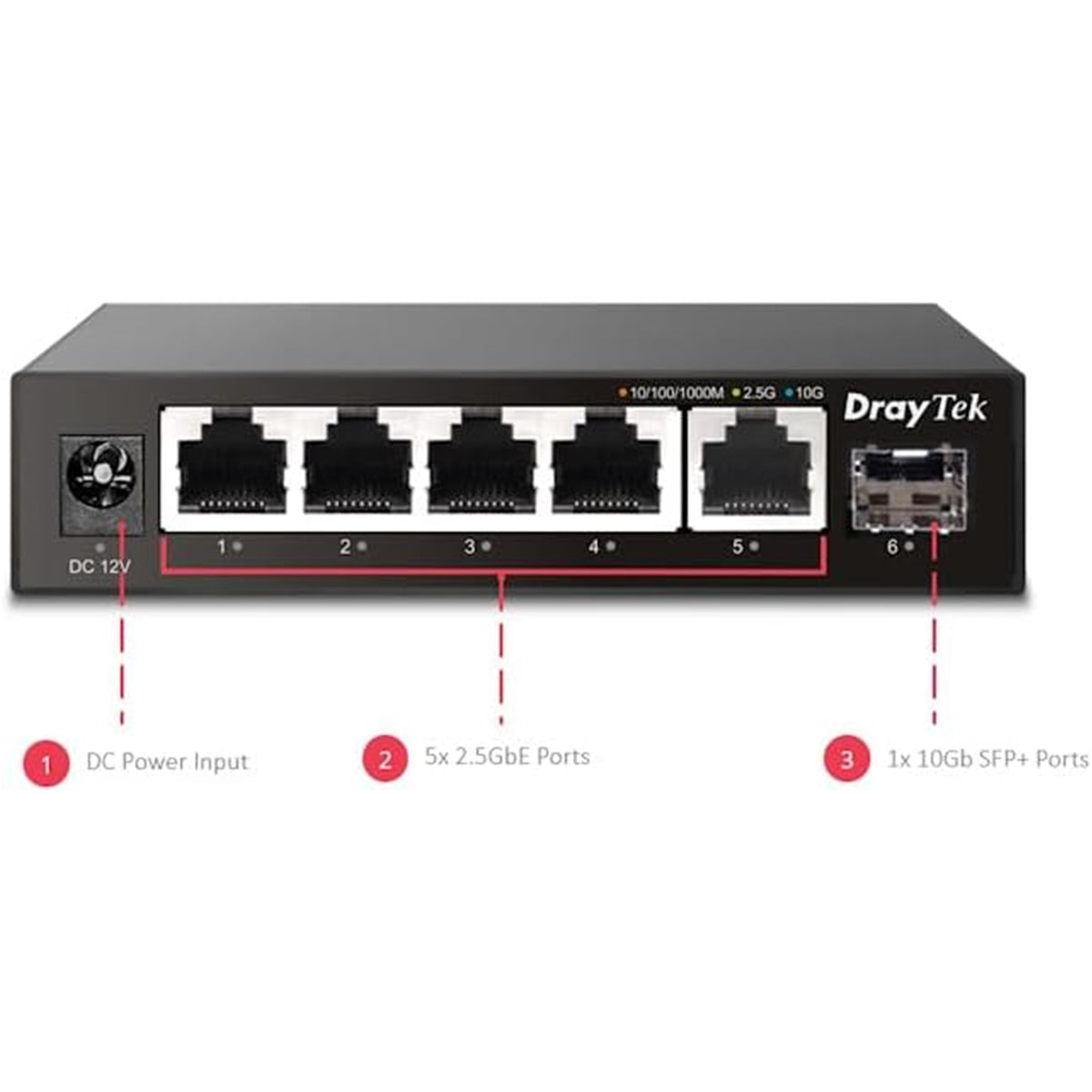

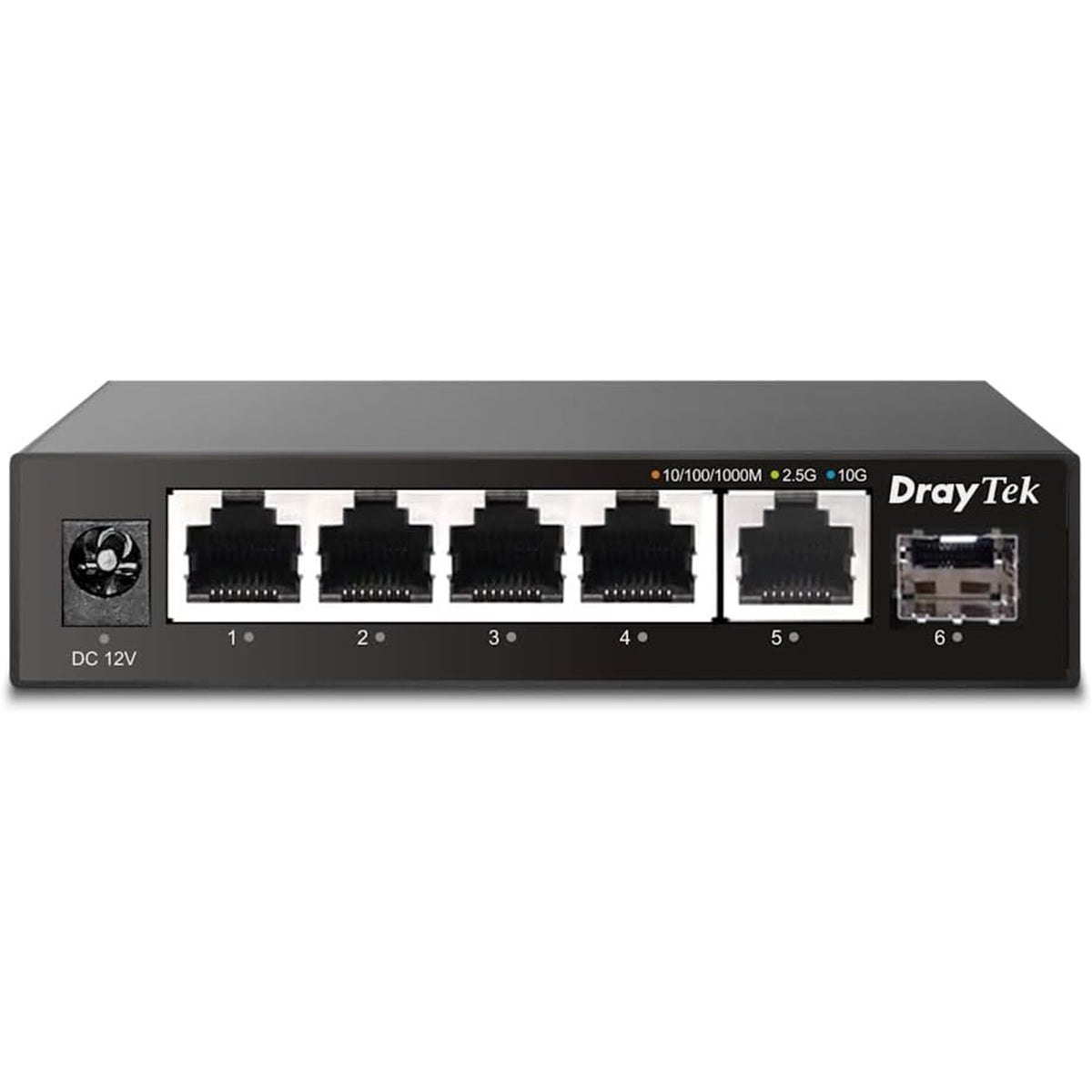

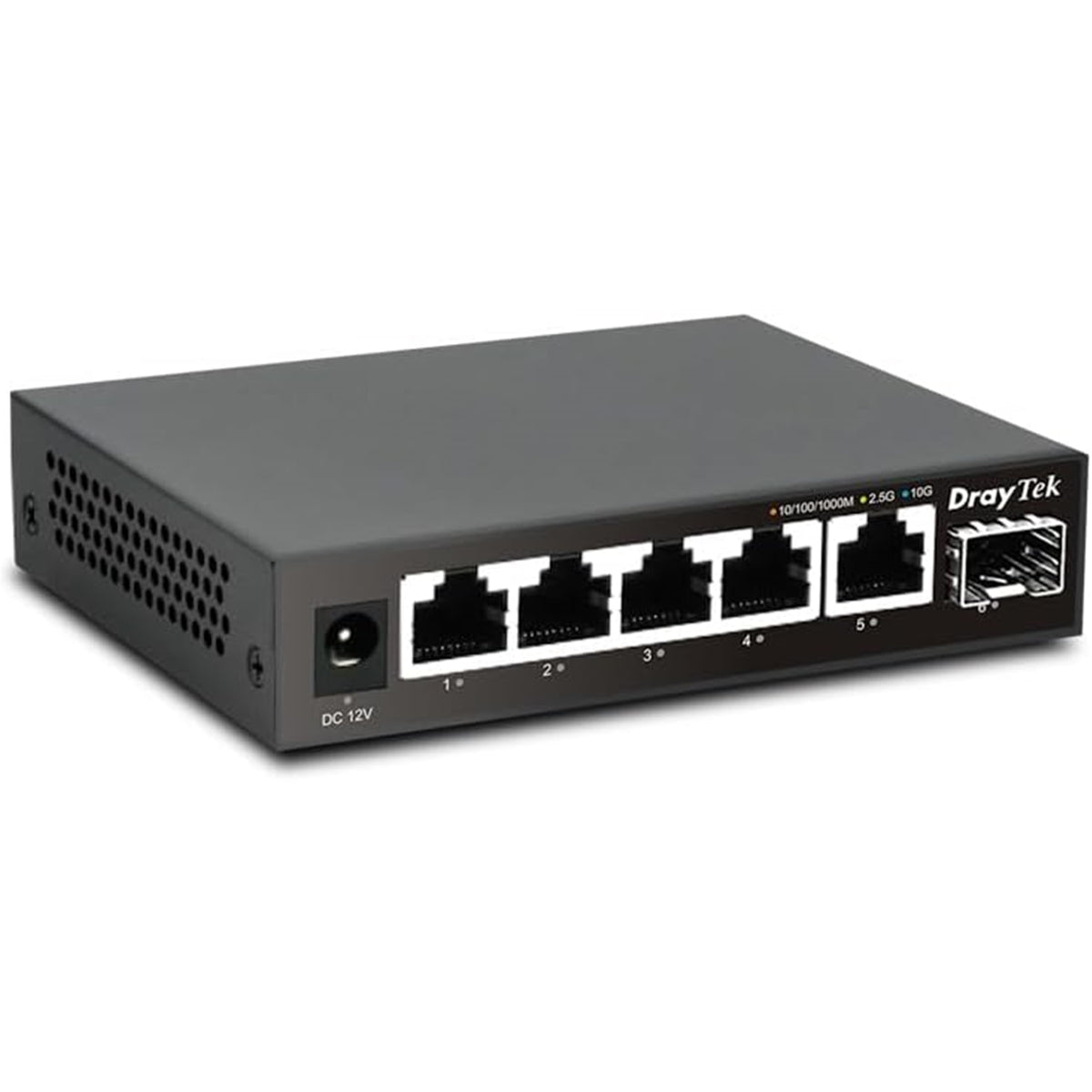

VigorSwitch Q60x Unmanaged Switch – 5 x 2.5GbE Ports & 1 x 10GbE SFP+ Uplink
The VigorSwitch Q60x is a compact, high-performance unmanaged 2.5 Gigabit Ethernet switch designed for fast, reliable connectivity. With 5 x 2.5GbE RJ-45 LAN ports and 1 x 10GbE SFP+ uplink, it delivers smooth data transfer and flexible deployment in offices and high-demand network environments.
Key Features
5 x 2.5 Gigabit Ethernet Ports
A significant speed upgrade over standard Gigabit, the 2.5GbE ports provide:
- Faster data transfer rates
- Improved bandwidth for multiple devices
- Smoother, more reliable network performance
Benefits: Ideal for high-demand applications such as HD video streaming, large file transfers, gaming, and cloud services.
1 x SFP+ 10GbE Uplink / Fibre Port
The SFP+ 10GbE port enables ultra-fast fibre uplinks to core networks, servers, or other switches.
- Connect to external network infrastructure at high speed
- Support high-volume data transfers between devices and backbone networks
Benefits: Seamless integration with existing network infrastructures and support for high-volume data traffic.
Compact, Durable Design
The VigorSwitch Q60x features a compact form factor with a durable metal casing, ideal for smaller office spaces.
- Easy to position in tight spaces
- Suitable for discreet and accessible placement
- Wall mountable for flexible installation options
Benefits: Greater placement flexibility for clean, organised network layouts.
Fanless, Low-Power Operation
Designed for silent, energy-efficient performance:
- Fanless passive cooling for silent operation
- Low power consumption for cost-effective, 24/7 use
Plug and Play Deployment
The VigorSwitch Q60x is an unmanaged, VLAN-aware switch that is simple to set up.
- Just connect power and plug in your devices
- Handles untagged and VLAN-tagged traffic without configuration
Benefits: Fast, hassle-free installation.
Product Overview
VigorSwitch Q60x is a small, high-performance unmanaged 2.5 Gigabit Ethernet switch with 5 x 2.5-Gigabit RJ-45 LAN ports and 1 x 10-Gigabit SFP+ port. Use the faster 2.5GbE ports for high-speed connections between switches, servers, and wireless access points such as the VigorAP 805. The 10Gb SFP+ interface can be an ideal option for uplink purposes to connect to a router or another switch.
This lightweight, low-power network switch is easy to deploy. The VLAN-aware device requires no configuration, offers fanless operation, and comes with a power supply.
Specifications
Physical Interfaces
| Item | Details |
|---|---|
| RJ-45 Ethernet Ports | 5 x 10/100/1000/2500Mbps |
| SFP+ Port | 1 x 1000Mbps/10Gbps |
| Power | AC power socket (external power supply) |
| Buttons | Factory reset button |
Networking Performance
| Specification | Value |
|---|---|
| Switching Capacity | 45Gbps |
| Forwarding Rate | 33.5Mpps (64B) |
| MAC Addresses Supported | 4K |
| Jumbo Frame Support | Up to 12KB |
| Packet Buffer Size | 8Mbit |
Standards Compliance
| IEEE Standard / Feature | Support |
|---|---|
| 3u 100Base-T | Yes |
| 3z 1000Base-X | Yes |
| 3ab 1000Base-T | Yes |
| 3bz 2.5GBase-T | Yes |
| 3ae 10GBase-X | Yes |
| 3x Flow Control Capability | Yes |
| 3 Auto-negotiation | Yes |
| 3az Energy Efficient Ethernet | Yes |
Power & Environmental
| Parameter | Value |
|---|---|
| AC Input Requirements | 100–240V @ 0.3A AC |
| Power Supply | External |
| Maximum Power Consumption | 4.85W |
| Cooling | Fanless (silent) passive |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
Physical
| Parameter | Value |
|---|---|
| Dimensions (W x D x H) | 114 x 90 x 25 mm |
| Rack Mountable | No |
| Wall Mountable | Yes |
| Weight (excluding SFP/cables) | 250g |
Box Contents
- VigorSwitch Q60x Network Switch
- UK Power Adapter
- Quick Start Guide
Warranty
- Two (2) Year Manufacturer's RTB Warranty
- Optional VigorCare Enhanced Warranty available:
- VigorCare A3 3 Year Subscription: VCARE-A3
- VigorCare A5 5 Year Subscription: VCARE-A5
