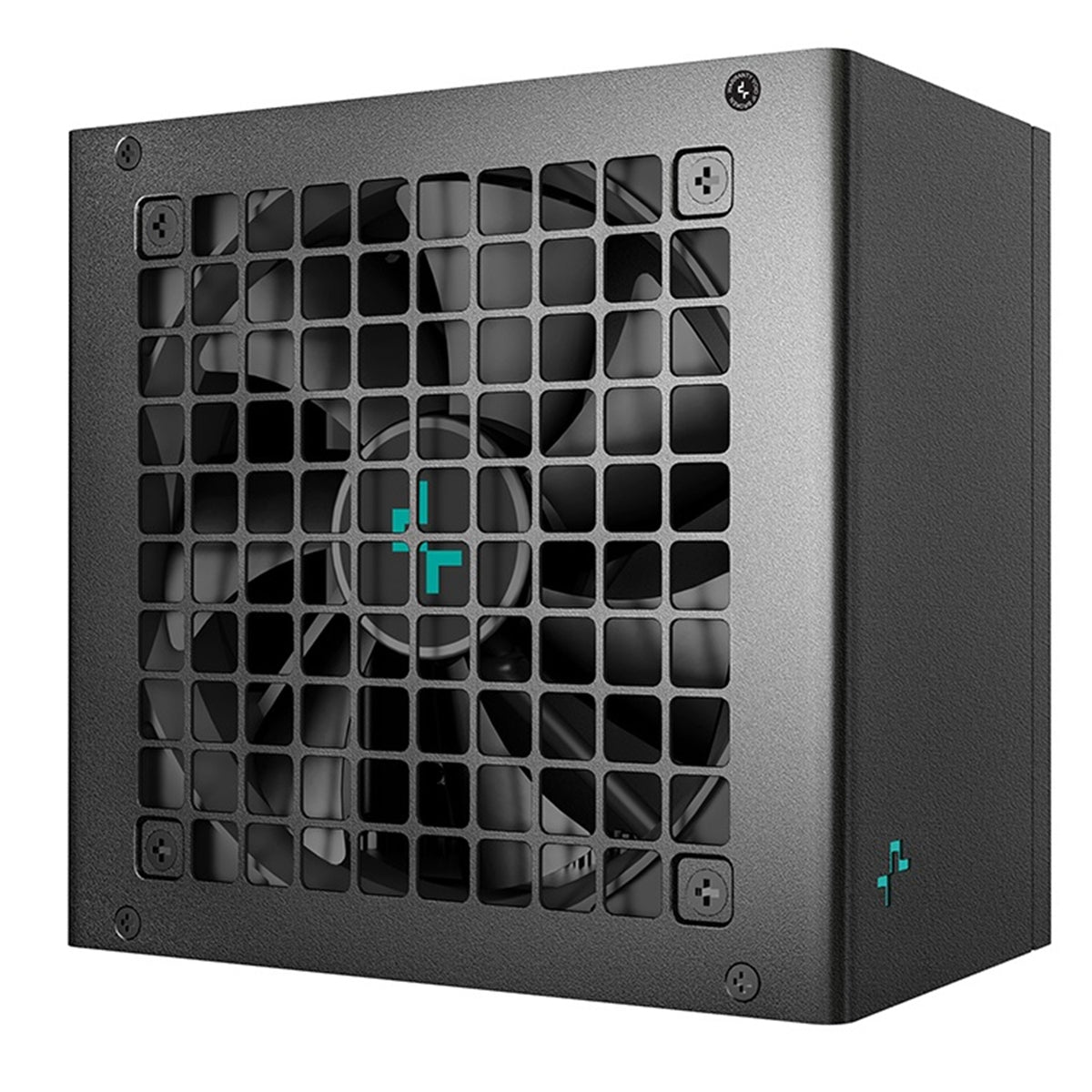

DeepCool PN750D Native Direct ATX 3.1 Power Supply
The DeepCool PN750D is a non-modular 750W power supply designed to meet the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, it delivers stable power for a wide range of modern high-power components.
Key Features
Native ATX 3.1 & PCIe 5.1 Support
- Compliant with Intel ATX 3.1 and PCIe 5.1 standards
- Includes a dedicated 12V-2x6 connector
- 2 EPS and 3 PCIe connectors to support modern hardware configurations
80 Plus Gold & Cybenetics Gold Certified
- 80 Plus Gold certified for high power efficiency under typical loads up to 90%
- Cybenetics Gold rated for additional efficiency assurance
Stable, Reliable Power Delivery

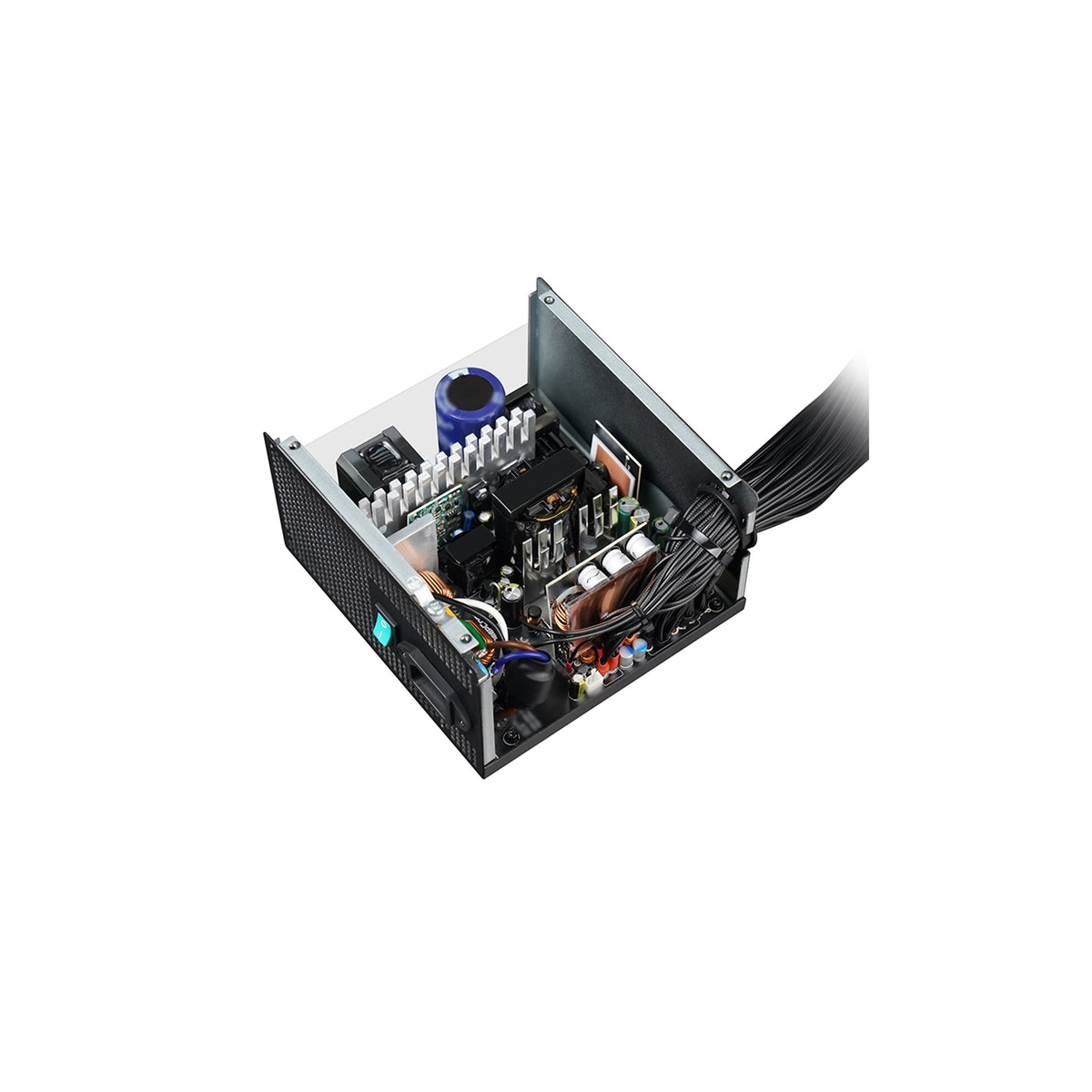

- Premium main electrolytic capacitor
- Active PFC with full-bridge SRC LLC and DC-to-DC topology
- Hold-up time of ≥ 16 ms at 80% load for consistent power stability
PCIe 5.1 GPU Power
- High-grade 105°C-resistant 16AWG copper-core embossed 12V-2x6 cable
- Provides up to 450W dedicated power for modern GPUs
Dynamic Cooling

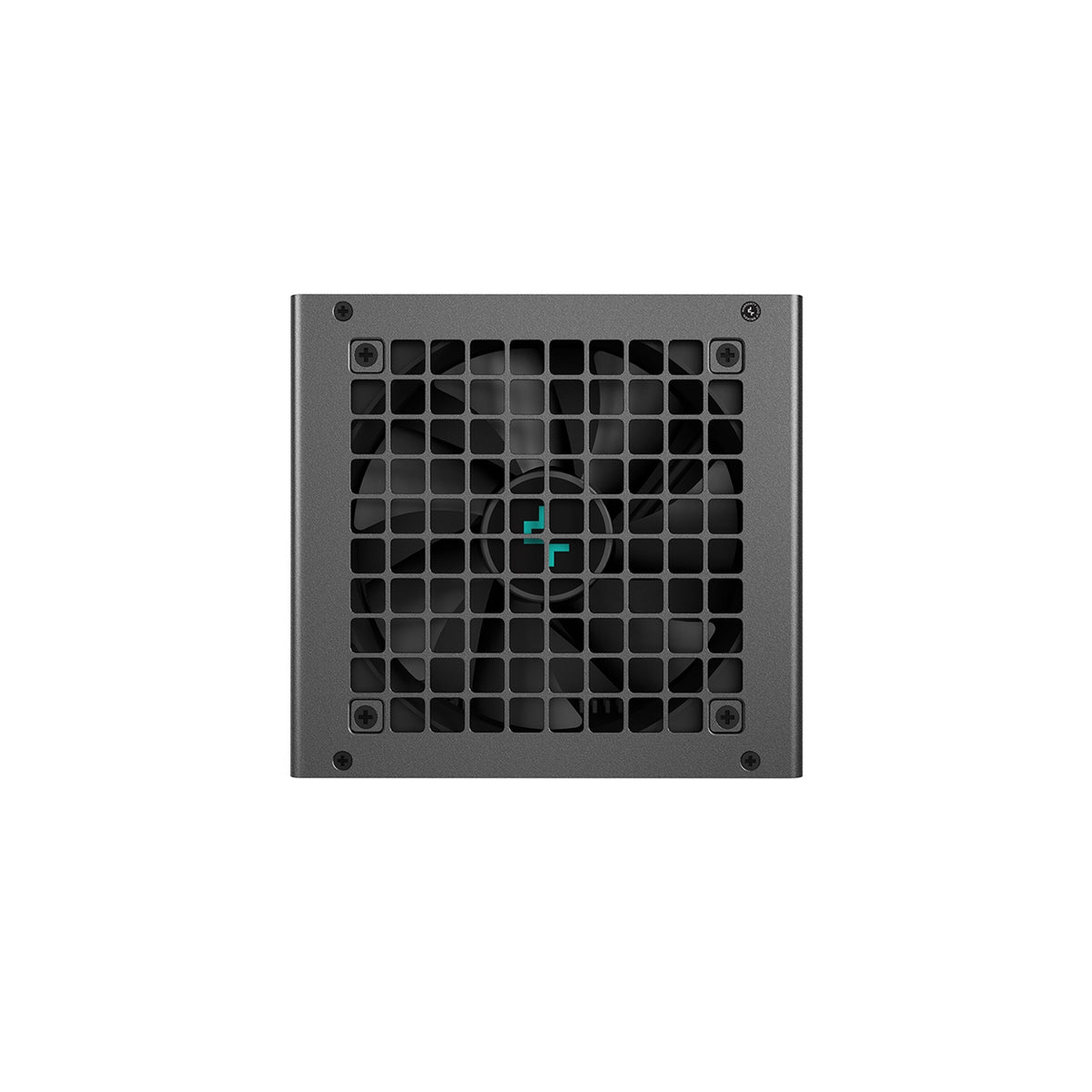

- 120mm dynamic hydro bearing (HYB) fan
- Automatically adjusts fan speed based on PSU cooling requirements
Comprehensive Protection
Built-in safeguards for dependable long-term operation:
- Over Power Protection (OPP)
- Over Voltage Protection (OVP)
- Short Circuit Protection (SCP)
- Over Temperature Protection (OTP)
- Over Current Protection (OCP)
- Under Voltage Protection (UVP)
- No Load Operation (NLO)
- Surge & Inrush Protection (SIP)
Long-Term Warranty Coverage
- Engineered and manufactured to a high standard
- Includes a 10-year limited warranty for extended peace of mind
Specifications
| Category | Details |
|---|---|
| Type | ATX12V V3.1 |
| Product Dimensions | 150 x 140 x 86 mm (W x L x H) |
| Efficiency Certification | 80 Plus Gold |
| Fan Size | 120 mm |
| Fan Bearing | HYB (Hydro Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese electrolytic capacitors |
| Power Good Signal | 100–150 ms |
| Hold-Up Time | ≥ 16 ms (80% load) |
| Efficiency | ≥ 90% under typical load (50% loading) |
Connectors
- 20+4 Pin: x1
- EPS 8-Pin: x2
- PCIe 12+4-Pin 12VHPWR: x1
- PCIe 6+2-Pin: x3
- SATA: x8
- Molex 4-Pin: x2
Protection & Compliance
| Category | Details |
|---|---|
| Protection | OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO |
| Operating Temperature | 0 – 40°C |
| Regulatory | CE / FCC / CCC / TUV-RH / cTUVus / RCM / EAC |
| ErP Regulation | ErP 2014 |
| Environmental | WEEE / RoHS / Triman / P65 |
| MTBF | 100,000 hours |
