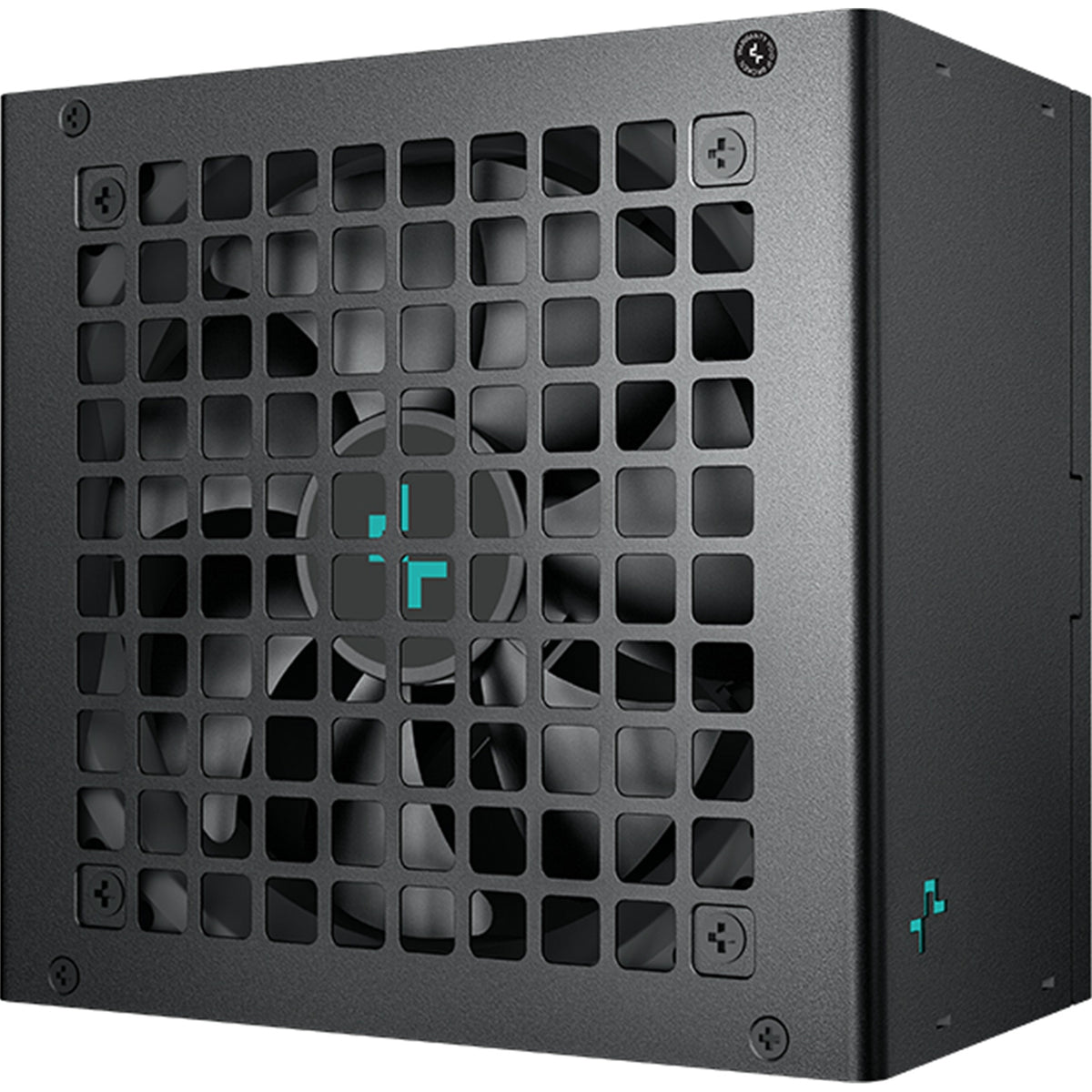

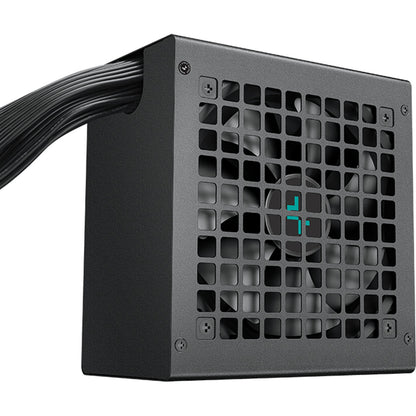

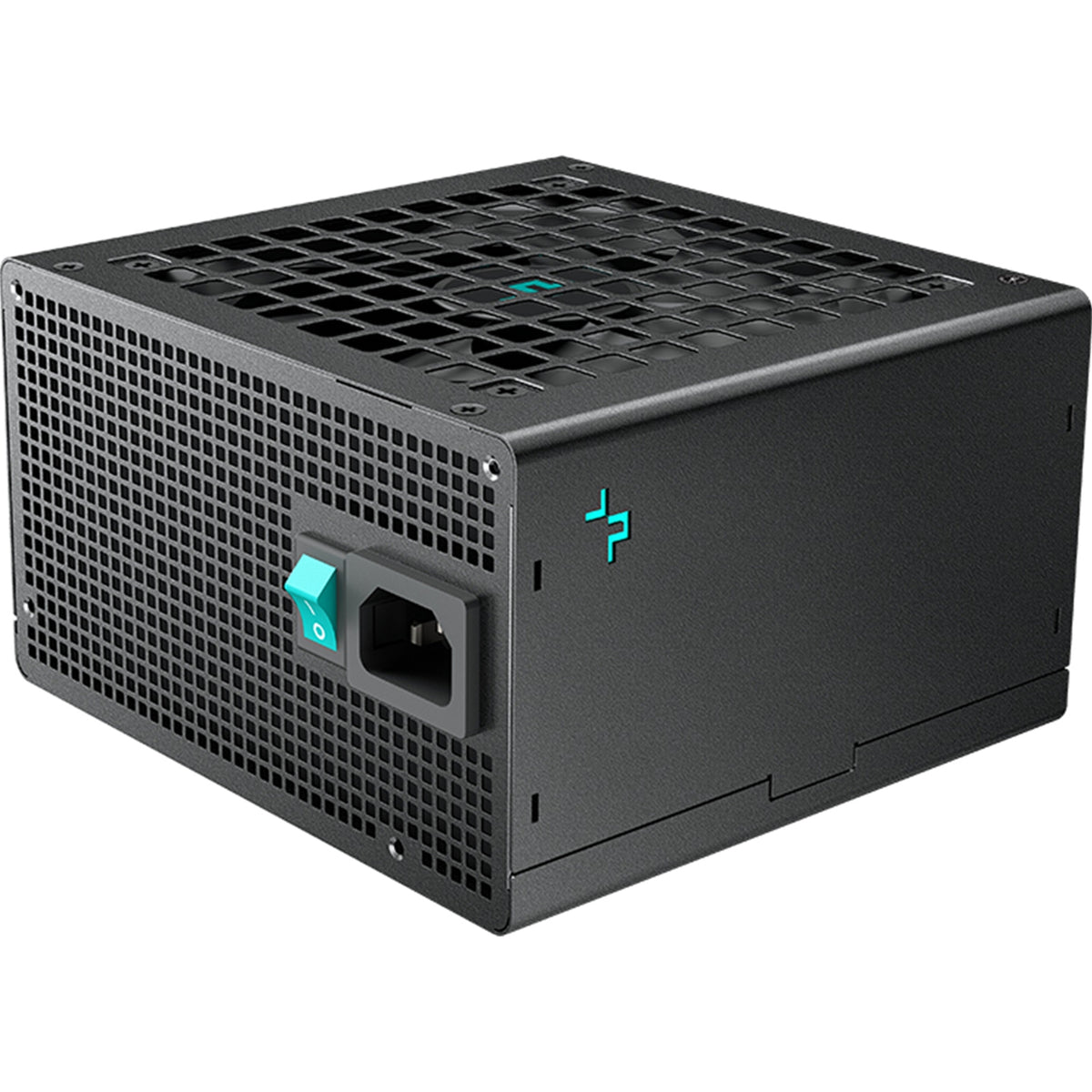

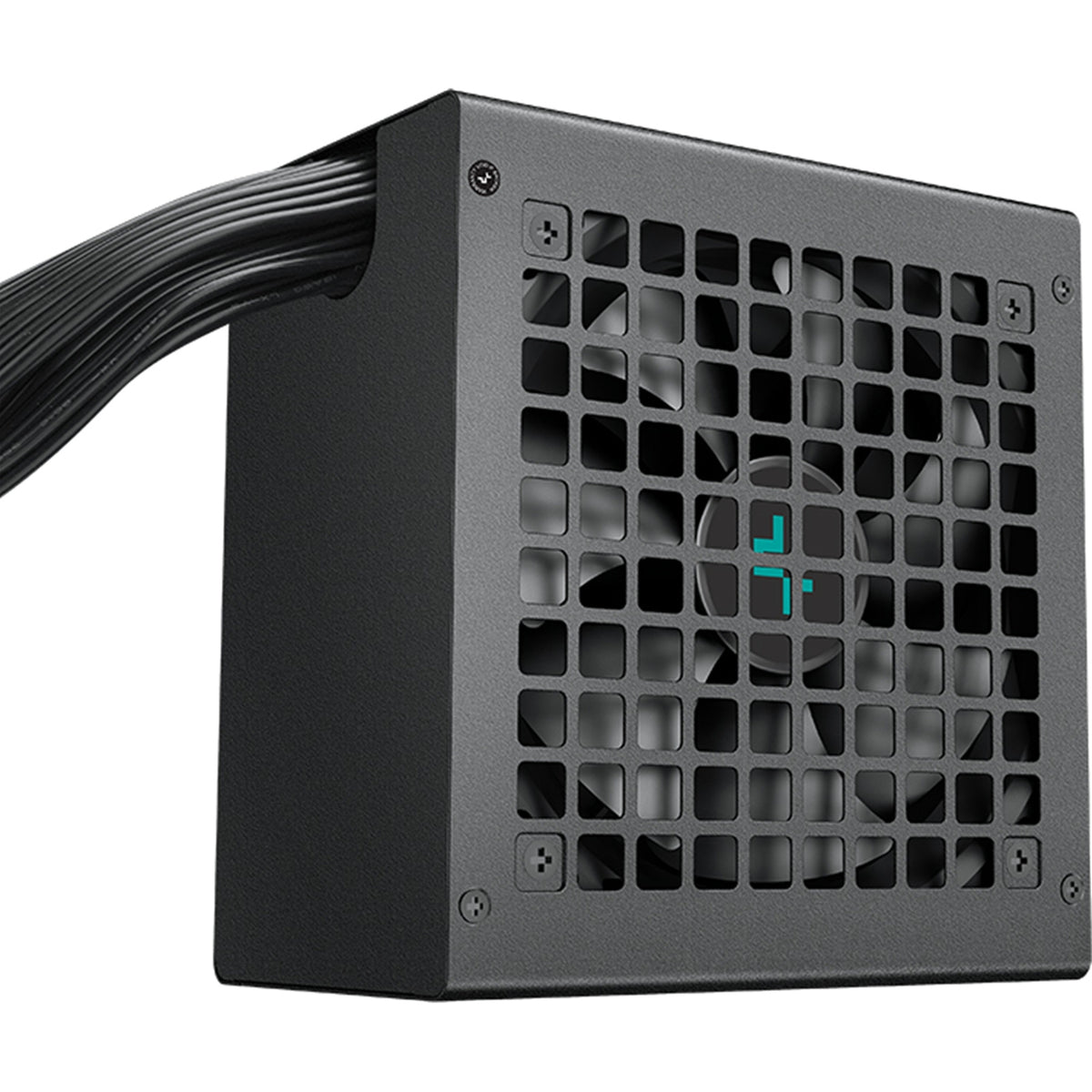

DeepCool PL750D 750W ATX12V V3.1 Power Supply Unit
The DeepCool PL750D is a 750W non-modular power supply unit (PSU) built to the Intel ATX12V V3.1 standard. Designed for reliability and efficiency, it features a 120 mm hydro-bearing fan for effective cooling and carries an 80 PLUS Bronze certification, delivering at least 85% energy efficiency under typical (50%) load.
Key Features
- 750W non-modular PSU
- Intel ATX12V V3.1 compliant
- 80 PLUS Bronze efficiency (≥85% at 50% load)

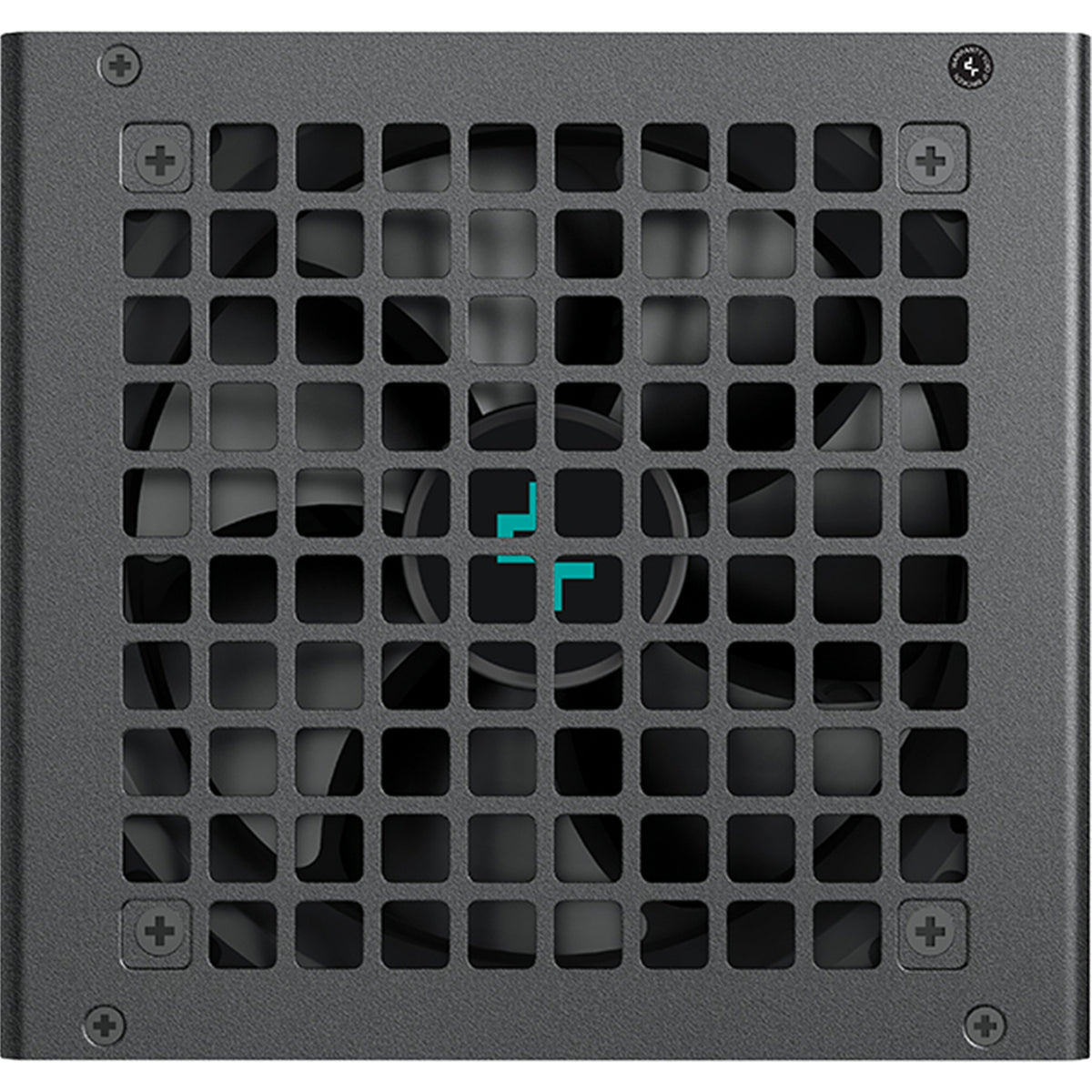

- 120 mm hydro-bearing cooling fan
- Active PFC + DC to DC topology
- Chinese electrolytic capacitors
- Comprehensive protection suite
- 16AWG 12VHPWR cable for next-generation GPUs
- 5-year limited warranty
Specifications
| Category | Details |
|---|---|
| Form Factor | ATX12V V3.1 |
| Dimensions | 150 mm (W) x 140 mm (L) x 86 mm (H) |
| Power Output | 750W |
| Efficiency Certification | 80 PLUS Bronze |
| Efficiency | ≥85% under typical load (50% loading) |
| Fan Size | 120 mm |
| Fan Bearing | Hydro Bearing |
| Topology | Active PFC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Hold-Up Time | ≥16 ms |
| Operating Temperature | 0°C to 40°C |
| MTBF | 100,000 hours |
Protection Features
- Over Power Protection (OPP)
- Over Voltage Protection (OVP)
- Short Circuit Protection (SCP)
- Over Temperature Protection (OTP)
- Over Current Protection (OCP)
- Under Voltage Protection (UVP)
- Surge & Inrush Protection (SIP)
- No Load Operation (NLO)
Regulatory & Environmental Compliance
- Certifications: CE, FCC, CCC, RCM, EAC, BIS, CAN ICES-003(B), NMB-003(B), TUV-RH
- Environmental: WEEE, RoHS
Connectors
- 1 x 20+4 Pin ATX (Motherboard Power)
- 2 x 4+4 Pin ATX12V (CPU Power)
- 3 x 6+2 Pin PCIe (GPU Power)
- 8 x SATA Power
- 2 x 4-Pin Molex (Peripheral Power)
- 1 x 16-Pin (12+4) 12VHPWR Connector (PCIe 5.0)
Special Features
- 16AWG 12VHPWR cable enables support for next-generation GPUs with higher power demands.
- Premium electrolytic capacitors help ensure enhanced durability and performance.
Warranty
Backed by a 5-year limited warranty, the DeepCool PL750D provides stable, reliable power delivery for both legacy and next-generation PC builds.
