DeepCool PL650D 650W 80 Plus Bronze Power Supply
The DeepCool PL650D 80 Plus Bronze Power Supply delivers stable and reliable power for mid-range to high-performance desktop systems. Designed in compliance with INTEL’s ATX 3.1 standard and equipped with a native PCIe 5.0 power connector, this PSU is ready for modern components and demanding builds.
A streamlined 120 mm hydro-bearing fan combines with 80 Plus Bronze efficiency to provide effective cooling, quiet operation, and improved energy usage. Built with high-quality electrolytic capacitors and a dual-transistor forward topology, the PL650D is engineered for long-term durability and consistent performance.
Key Features
- 650W power capacity for mid-range to high-performance systems
- INTEL ATX 3.1 compliance with native PCIe 5.0 power connector
- 80 Plus Bronze efficiency certification (≥85% efficiency under typical loads at 50% loading)
- 120 mm hydro-bearing fan for optimized cooling and low noise

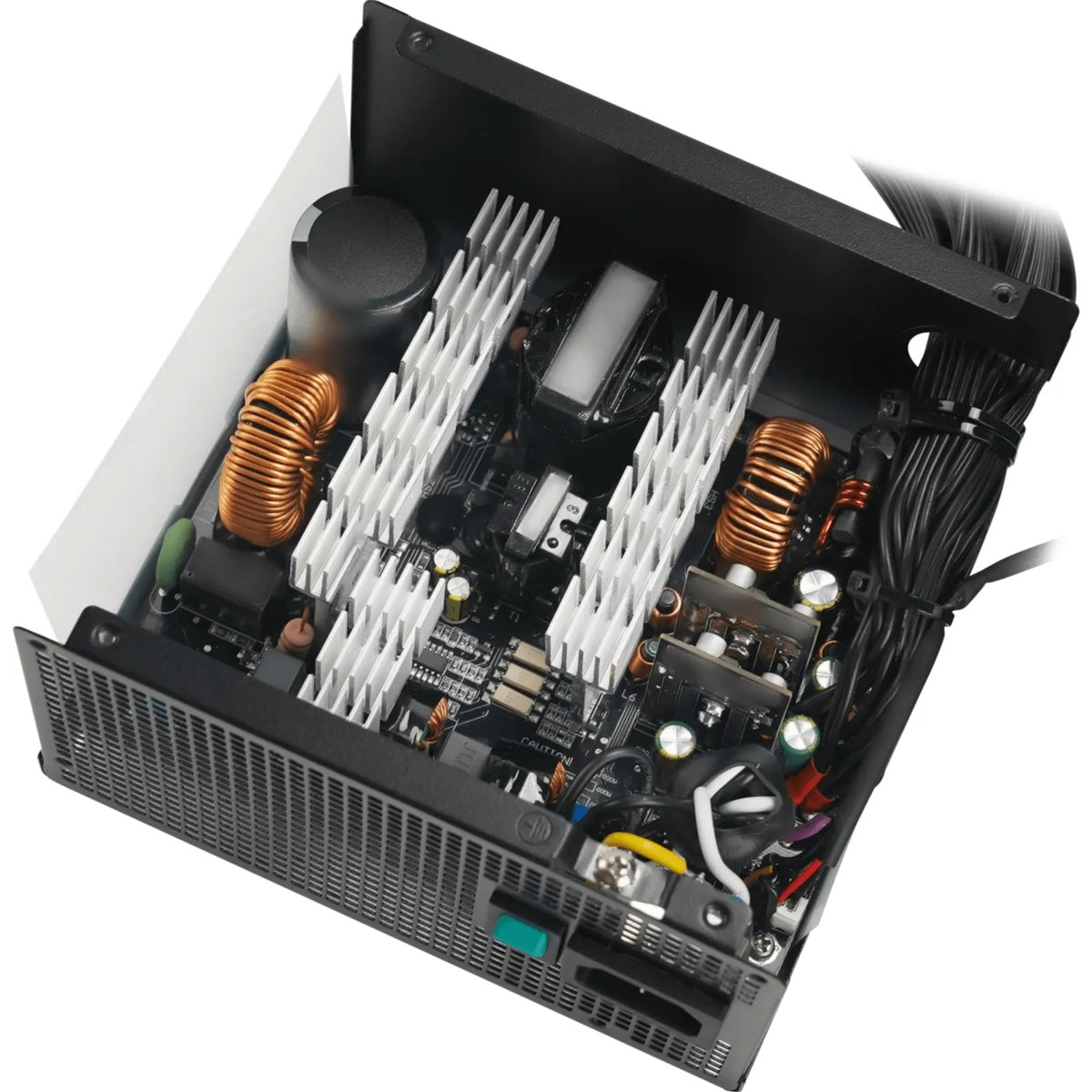

- High-grade electrolytic capacitors and dual-transistor forward topology
- Comprehensive protection features for safe, reliable operation
- 5-year warranty
Specifications
| Specification | Details |
|---|---|
| Model | PL650D |
| Colour | Black |
| Power Capacity | 650W |
| Dimensions (W x L x H) | 150 x 140 x 86 mm |
| Weight | 1.75 kg (3.86 lb) |
| Material | High-quality parts including electrolytic capacitors |
| Efficiency Certification | 80 Plus Bronze (≥85% efficiency at 50% loading) |
| Cooling | 120 mm hydro-bearing fan |
| Modular Design | Non-modular |
| Type | ATX12V V3.1 |
| Fan Bearing | HYB (Hydro Bearing) |
| Topology | Active PFC + DC to DC |
| Power Good Signal | 100–150 ms |
| Hold Up Time | ≥16 ms at full load |
| Operating Temperature | 0 – 40 °C |
| Compliance | ATX v3.1, EPS 2.92 |
| Warranty | 5 years |
Connectors
- Main Power: (20+4) Pin x 1
- CPU: (4+4) Pin x 2
- PCI-E: (6+2) Pin x 3
- SATA: x 3
- 4-Pin Peripheral: x 1
- 12VHPWR (16-Pin): x 1
Protection & Safety Features
The DeepCool PL650D includes multiple safety protections for secure, worry-free operation:
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
- OCP (Over Current Protection)
- UVP (Under Voltage Protection)
- SIP (Surge & Inrush Protection)
- NLO (No Load Operation)
With its robust feature set and solid construction, the DeepCool PL650D 650W 80 Plus Bronze PSU is a dependable choice for today’s performance-focused desktop PCs.
