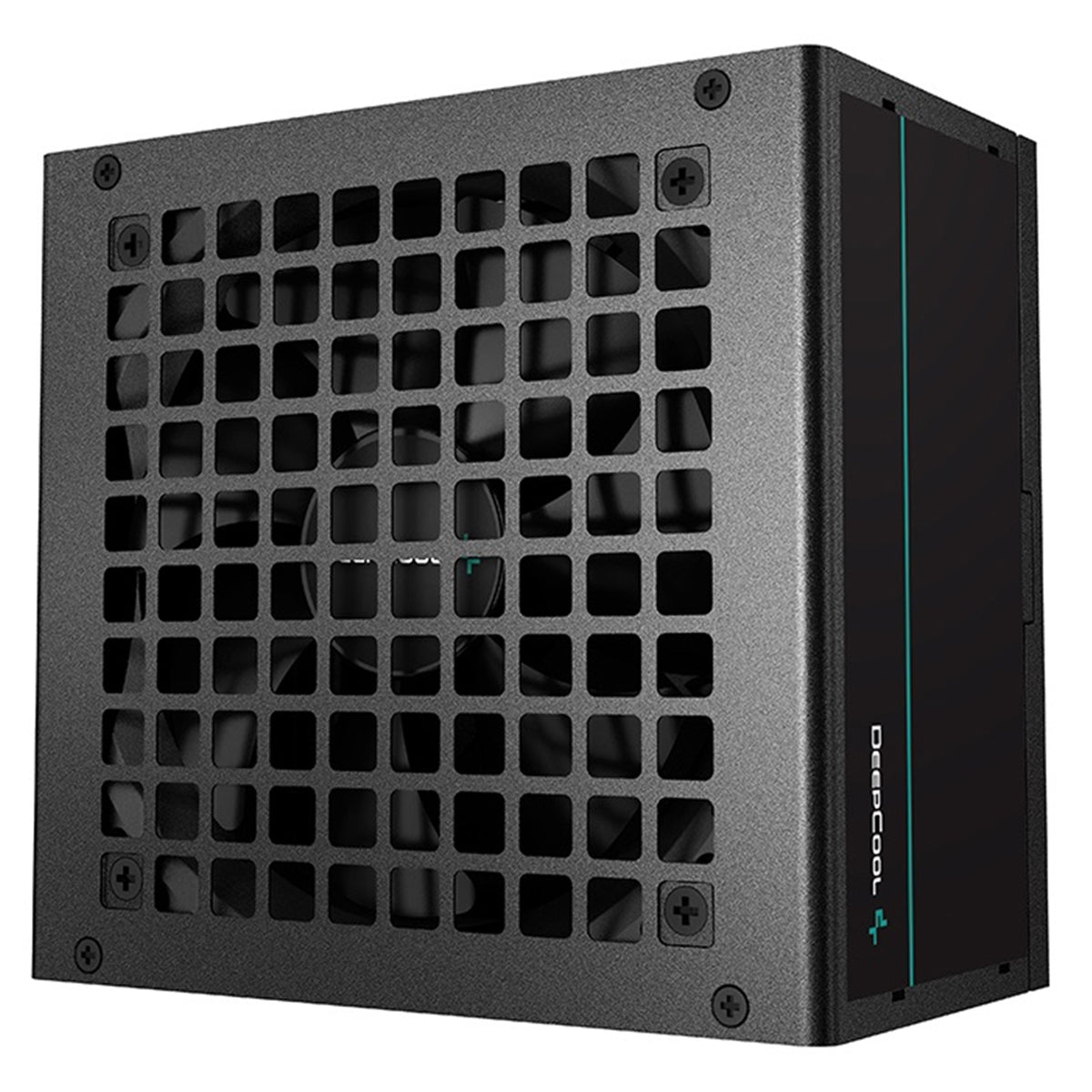

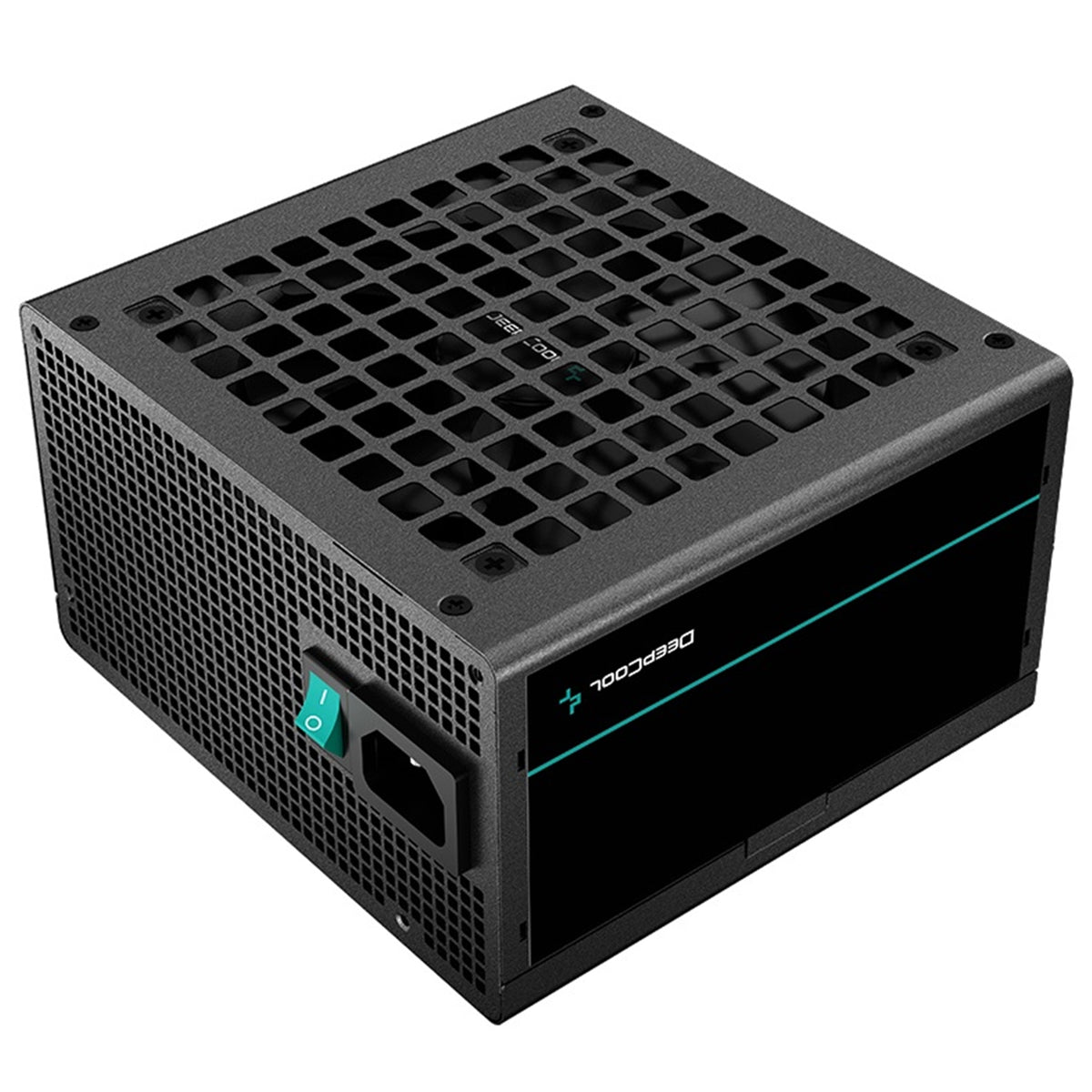

DeepCool PF400 Power Supply Unit
The DeepCool PF Series Power Supply Unit delivers safe, stable power performance with reliable 80 PLUS Standard efficiency at an affordable price point.
High Efficiency Power Delivery
- Certified for 80 PLUS 230V EU Standard efficiency
- Achieves 85% efficiency under typical 50% load
- Improved efficiency helps reduce energy waste and lower operating temperatures

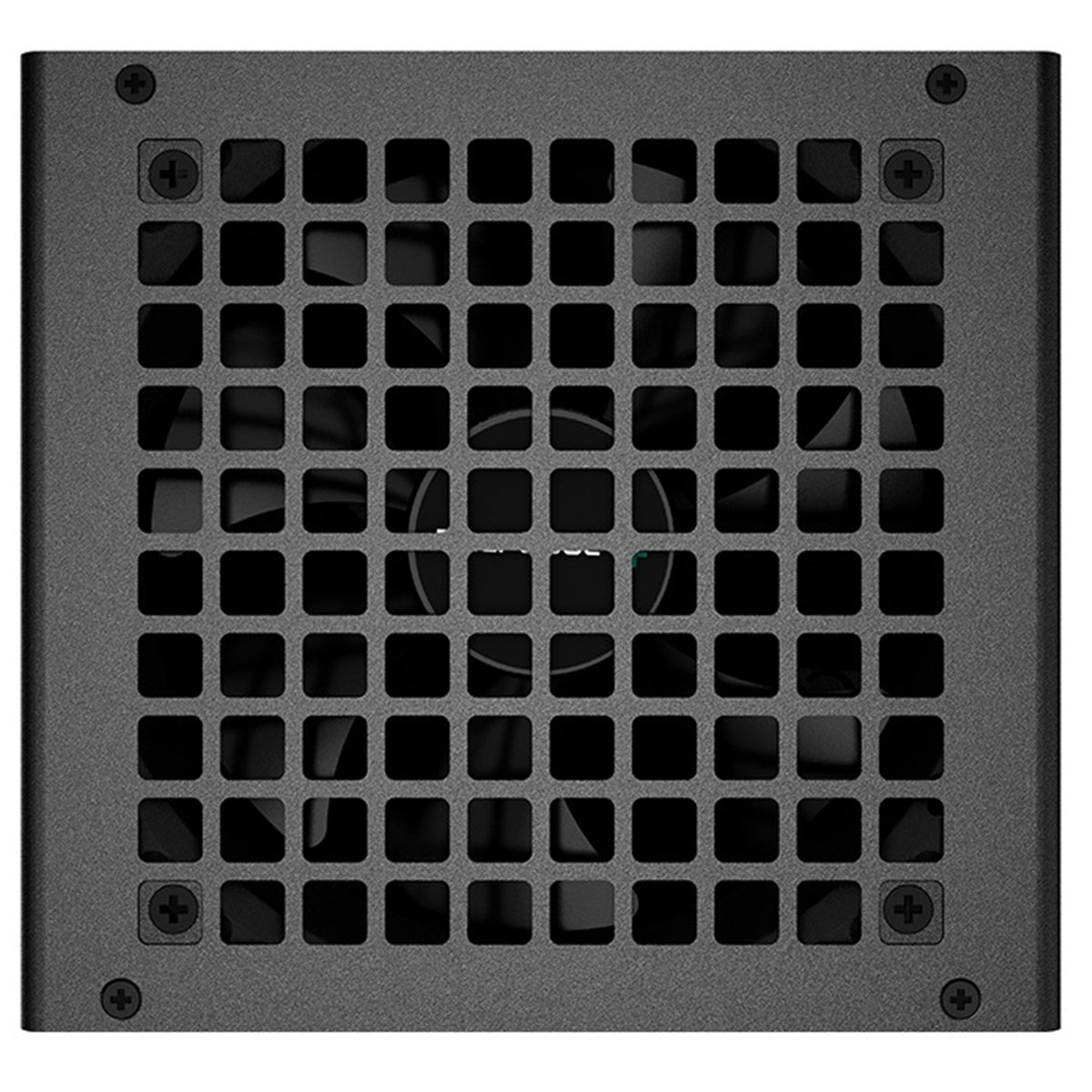

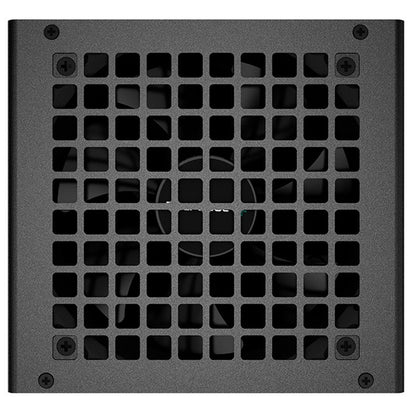

Silent Hydraulic Bearing Fan
- Equipped with a 120mm fluid (Hypro) bearing fan
- Optimally balanced for low-noise performance
- Reduced friction and vibration for improved life expectancy

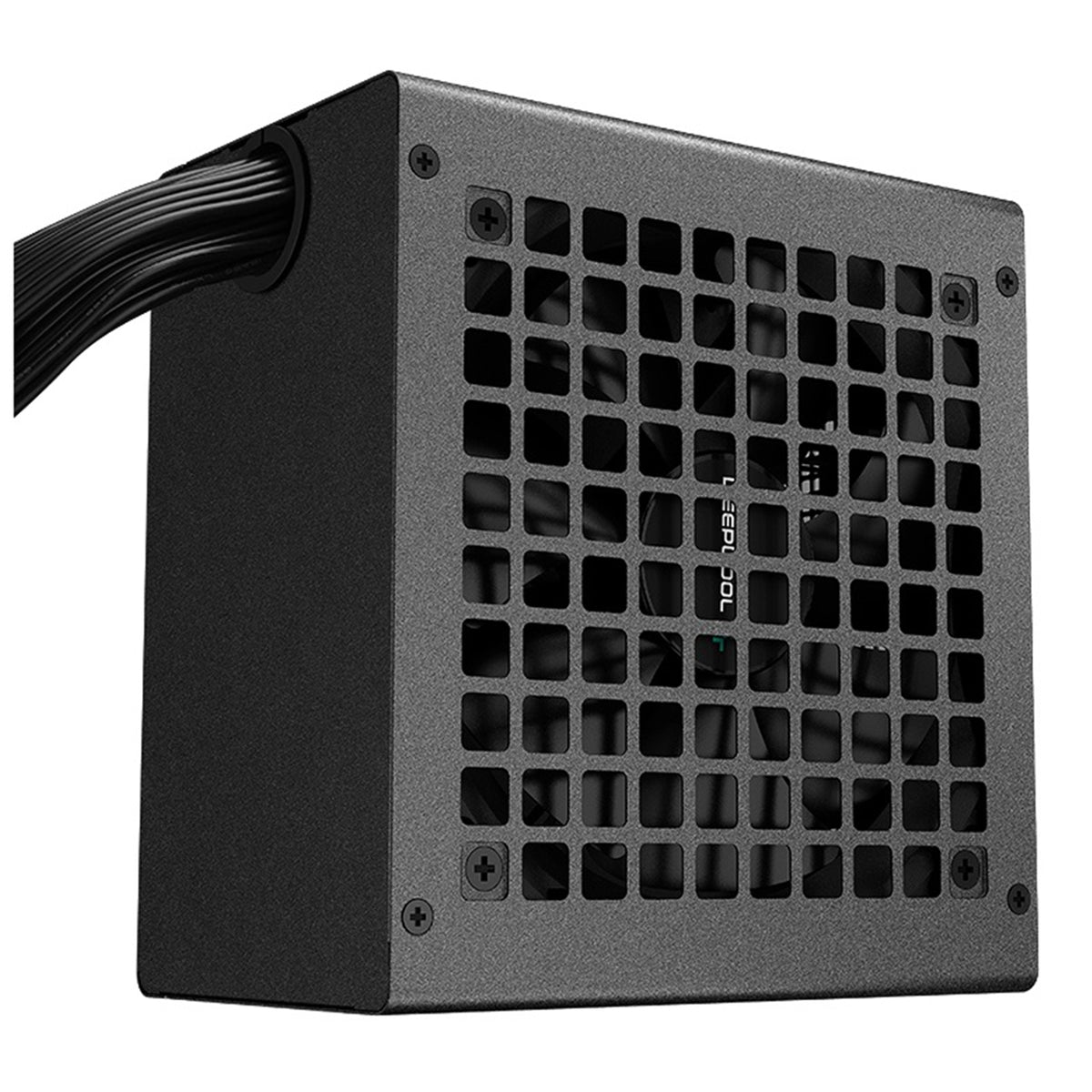

Flat Black Cables
- Stealthy flat black cables for a clean, discreet build
- Fixed, flexible design makes cable management easier
- Takes up less space inside your system
Reliable Protection
Shield your components against power-related risks with built-in protection features:
- Over Power Protection (OPP)
- Over Voltage Protection (OVP)
- Short Circuit Protection (SCP)

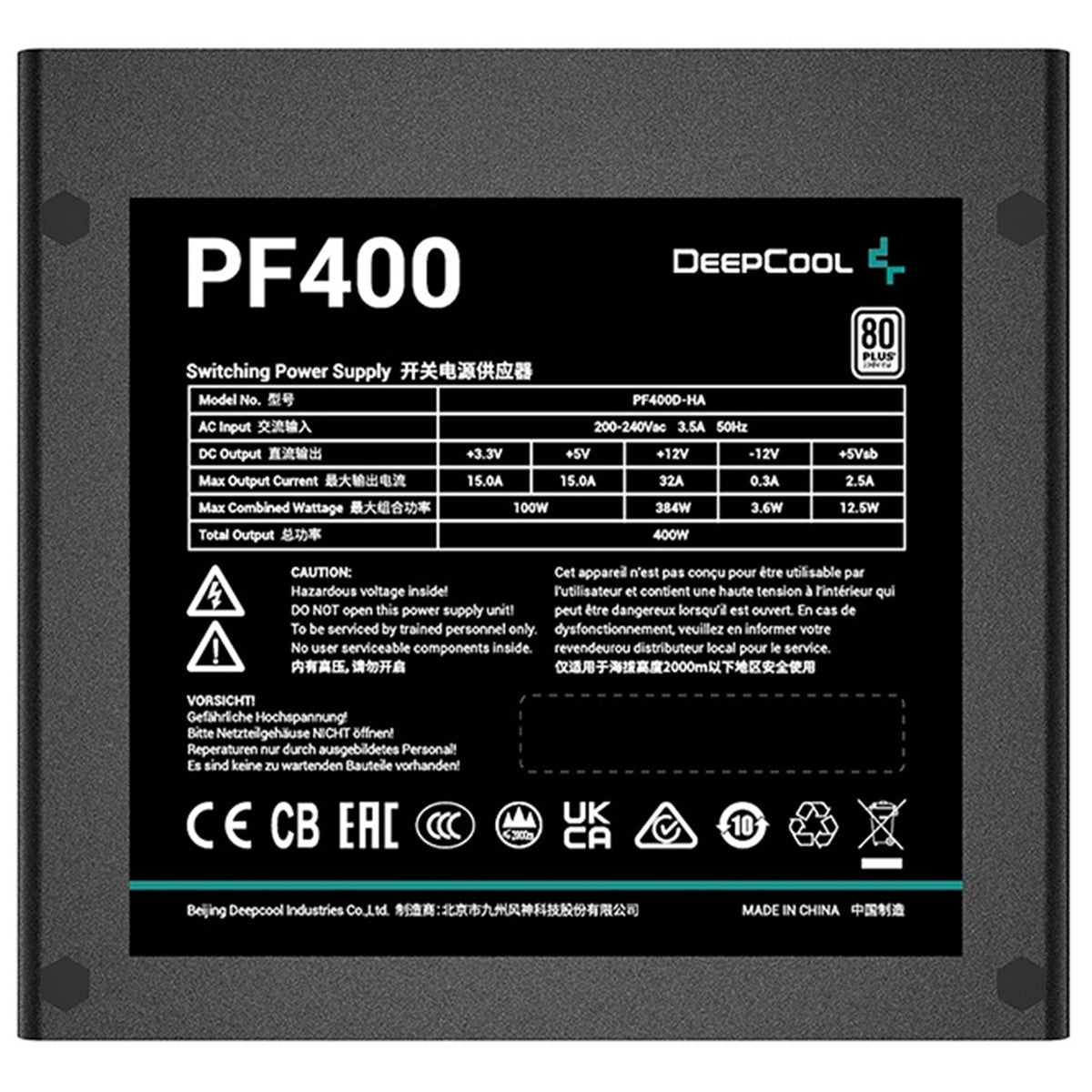

Specifications
| Specification | Details |
|---|---|
| Type | ATX12V V2.4 |
| Product Dimensions | 150 x 140 x 86 mm (W x L x H) |
| Efficiency Certification | 230V EU White |
| Fan Size | 120 mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC + Double tube forward |
| Capacitors | Taiwan bulk capacitor |
| Power Good Signal | 100–500 ms |
| Hold Up Time | ≥16 ms (75% Load) |
| Efficiency | ≥85% under typical 50% load |
| Main Power Connector | 24 (20+4) Pin x 1 |
| EPS 12V Connector | 8 (4+4) Pin x 1 |
| PCI-E Connector | (6+2) Pin x 2 |
| SATA Connectors | 3 |
| 4-Pin Peripheral | 1 |
| Protection | OPP / OVP / SCP |
| Operating Temperature | 0–40°C |
| Regulatory | CB / CCC / CE / UKCA / EAC / RCM |
| ErP Regulation | ErP 2010 |
| MTBF | 100,000 Hours |
