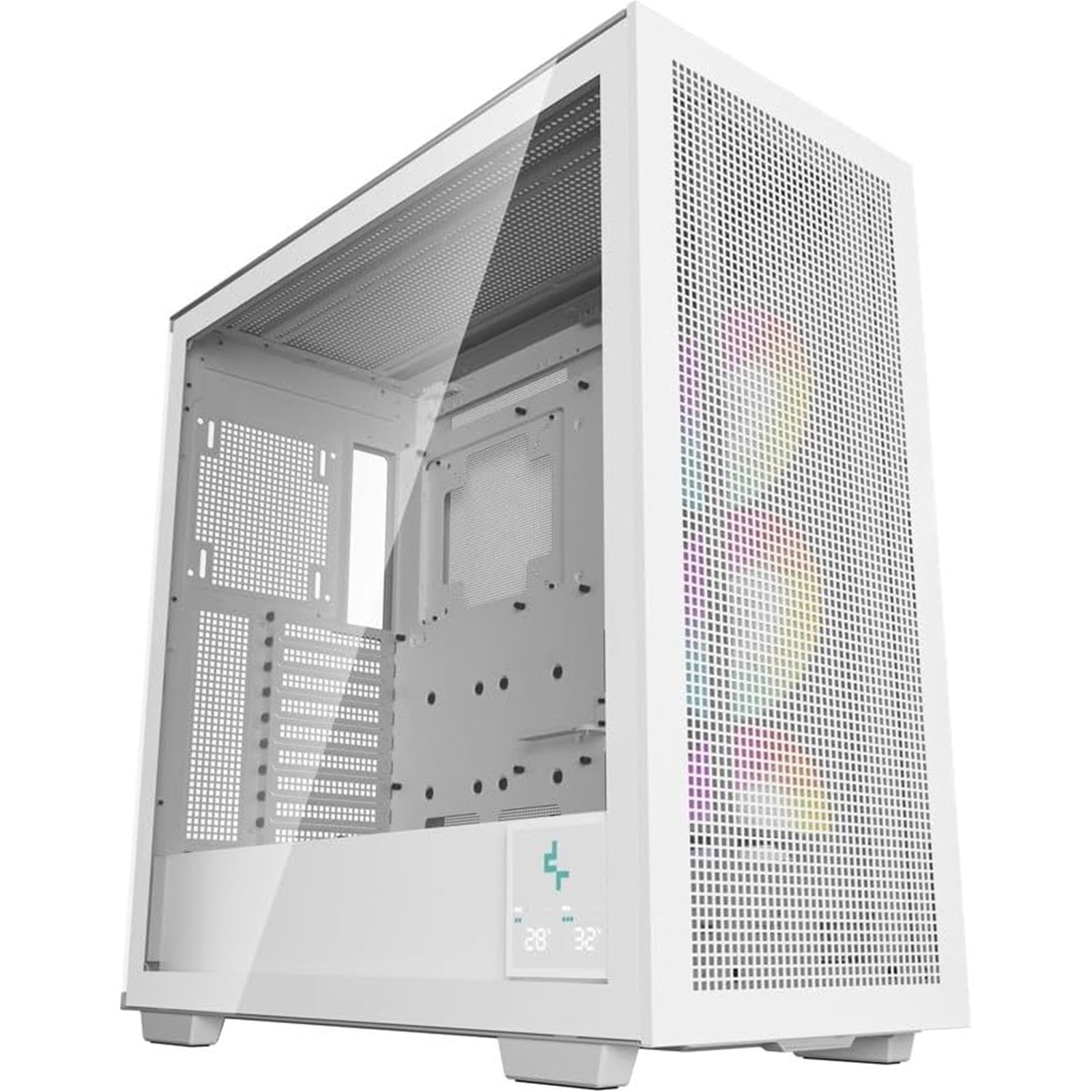

DeepCool MORPHEUS WH ATX+ Modular PC Case
Modularity takes a bold new direction with the DeepCool MORPHEUS WH, an internally reconfigurable ATX+ chassis designed for both DIY modders and casual PC enthusiasts. With extensive compatibility, a spacious interior, and advanced cooling support, this case offers a highly flexible foundation for high-performance builds.
A New Take on Modularity
Transform your system layout without replacing your case. The MORPHEUS WH lets you easily switch between:
- Classic single-chamber configuration
- Dual-chamber layout
All necessary parts are included to swap between configurations, along with a vertical GPU mount for added flexibility and visual impact.
Airflow at Another Level
The MORPHEUS WH is engineered for high airflow from every angle:
- High-airflow panels on the front, right, top, bottom, rear, and PSU shroud top
- High-flow mesh filters on the front, top, and bottom to help keep dust out
This open, ventilated design ensures abundant airflow to high-powered, heat-generating components.
Extensive Cooling Capability
Unlock extreme cooling potential with flexible fan and radiator support:
- Mount up to 13 x 120mm or 140mm fans
- Or install up to 6 x 200mm fans
- Highly modular fan rails make complex configurations achievable
For liquid cooling, the MORPHEUS WH supports up to three 420mm radiators simultaneously, with 420mm mounting options at the:
- Front
- Top
- Bottom
- Side of the motherboard tray
Integrated Trinity ARGB Fans
Pre-installed inside the MORPHEUS WH is a trinity fan unit:
- 3 x 140mm ARGB fans combined into a single 420mm module
- Only one set of PWM and ARGB cables required
This design delivers bright ARGB lighting while greatly simplifying cable management.
Maximum Compatibility
The ATX+ form factor of the MORPHEUS WH is built for broad component support:
- Supports E-ATX, ATX, M-ATX, and Mini-ITX motherboards
- GPU compatibility up to 480mm in length
- CPU cooler height support up to 195mm in single-chamber configuration
- Multiple 420mm radiator support for advanced liquid cooling setups
Dual Real-Time Digital Display
Free up desk space by moving system monitoring into the case:
- Built-in dual display for real-time CPU and GPU temperatures and usage
- Simple app installation and a free USB 2.0 header get the display running
Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
Technical Specifications
| Specification | Details |
|---|---|
| Product Dimensions | 528 x 250 x 551 mm (L x W x H) |
| Net Weight | 15.5 kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | Mini-ITX / M-ATX / ATX / E-ATX |
| Front I/O Ports | USB 3.0 x 4, Audio x 1, Type-C x 1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 + 1 |
| Expansion Slots | 9 slots |
| Pre-Installed Fans | Side: 1 x 420mm ARGB (trinity fan unit) |
| Fan Support (Front) | 3 x 120 / 3 x 140 / 2 x 180 / 2 x 200mm |
| Fan Support (Top) | 3 x 120 / 3 x 140 / 2 x 180 / 2 x 200mm |
| Fan Support (Side) | 3 x 120 / 3 x 140mm |
| Fan Support (Bottom) | 3 x 120 / 3 x 140 / 2 x 180 / 2 x 200mm |
| Fan Support (PSU Shroud) | 3 x 120 / 3 x 140mm |
| Fan Support (Rear) | 1 x 120 / 1 x 140mm |
| Radiator Support (Front) | 120 / 140 / 240 / 280 / 360 / 420mm |
| Radiator Support (Top) | 120 / 140 / 240 / 280 / 360 / 420mm |
| Radiator Support (Side) | 120 / 140 / 240 / 280 / 360 / 420mm |
| Radiator Support (Bottom) | 120 / 140 / 240 / 280 / 360 / 420mm |
| Radiator Support (Rear) | 120 / 140mm |
| CPU Cooler Height Limit | 195 / 132mm |
| GPU Length Limit | 480mm |
| Power Supply Type | ATX PS2 (maximum length: 180mm) |
The DeepCool MORPHEUS WH combines advanced modularity, extensive cooling options, and high-end hardware compatibility, making it a powerful and adaptable platform for your next PC build.
