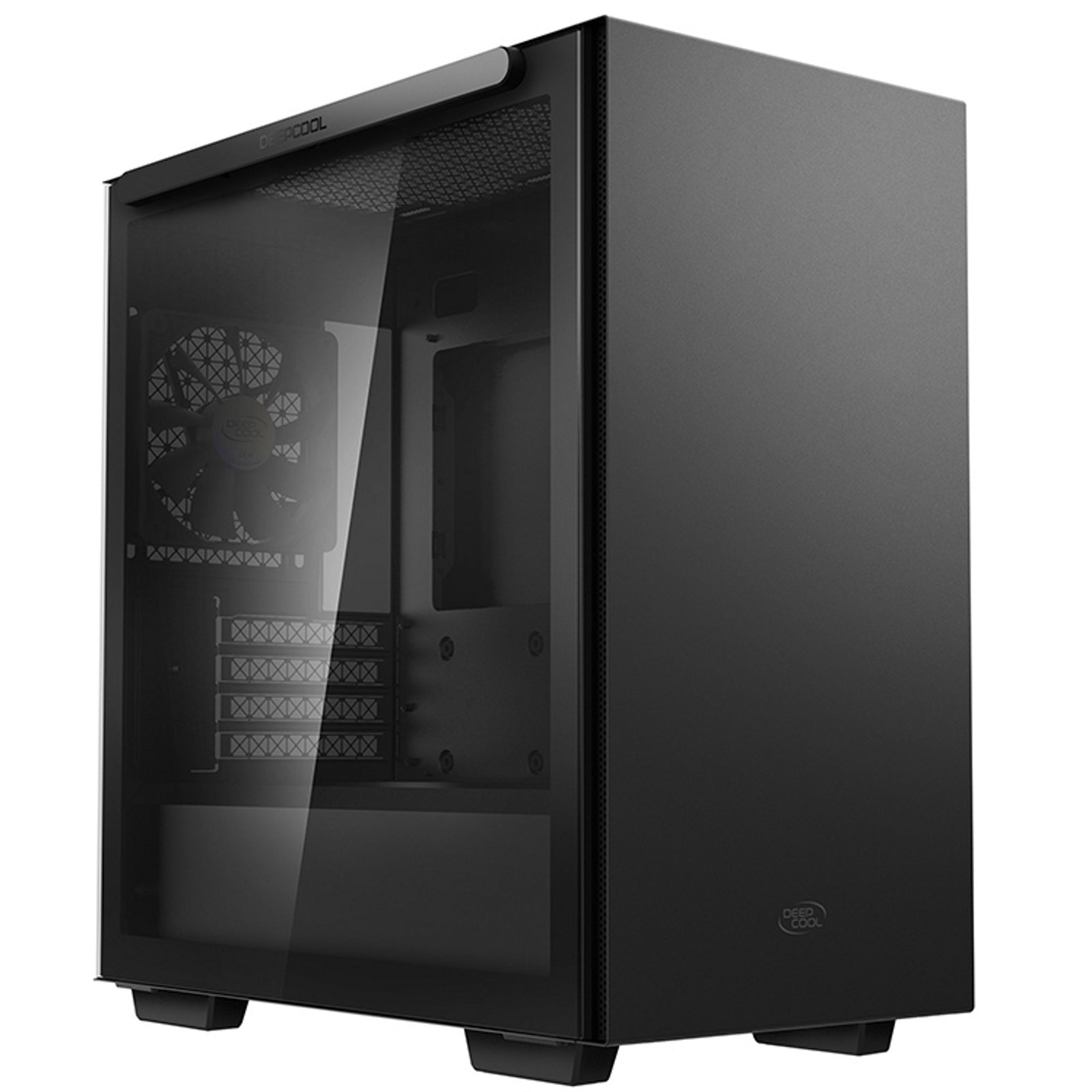

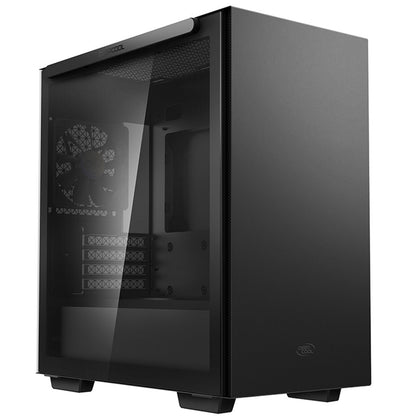

DeepCool MACUBE 110 Micro-ATX Case – Refined Minimalism, Maximum Cooling
The MACUBE 110 is a sleek micro-ATX case designed with clean, refined minimalism and everyday practicality in mind. Its magnetic tempered glass side panel offers a clear view of your build, while the compact micro tower form factor helps you create a tidy, space-efficient system without sacrificing performance.
Key Features
-
Refined Minimalist Design
Clean lines and a compact footprint for a modern, unobtrusive look. -
Magnetic Tempered Glass Side Panel
Easily showcase your components with a refined, magnetic tempered glass panel. -
Excellent Cooling Potential
- Supports up to six 120mm or four 140mm cooling fans
- Supports radiators up to 280mm on the top and front
- Includes a pre-installed 120mm DC rear fan
-
Up to 165mm CPU cooler height clearance, accommodating high-end air coolers such as the ASSASSIN III
-
Flexible Storage & PSU Space
- Removable HDD drive cage to create extra clearance for a longer PSU or larger radiator
-
Convenient internal drive bay layout for both 3.5" and 2.5" storage
-
Smart, Tool-Less Convenience
- Adjustable GPU holder included for added support
-
Push-pin SSD holder for easy, tool-less installation
-
Optimized Airflow
Ventilation channels on the front and top direct fresh air to all components, aided by the mesh top panel for improved airflow.
Specifications
General
| Specification | Detail |
|---|---|
| Form Factor | Micro Tower |
| Motherboard Support | Micro ATX, Mini-ITX |
| Colour | Black |
| Materials | ABS, SPCC, Tempered Glass |
Drive Bays
| Type | Quantity |
|---|---|
| Internal 3.5" | 2 |
| Internal 2.5" | 2 |
| External 3.5" | 0 |
| External 5.25" | 0 |
Power Supply
| Specification | Detail |
|---|---|
| Power Supply Support | ATX PS2 |
Front I/O Panel
| Port | Quantity |
|---|---|
| USB 3.0 | 2 |
| Audio | 1 |
Expansion
| Specification | Detail |
|---|---|
| Expansion Slots | 4 |
Cooling Fan Compatibility
| Position | Supported Fans |
|---|---|
| Front | 3 × 120mm / 2 × 140mm |
| Top | 2 × 120mm / 2 × 140mm |
| Rear | 1 × 120mm DC fan (pre-installed) |
Liquid Cooler Compatibility
| Position | Supported Radiator Sizes |
|---|---|
| Front | 120 / 140 / 240 / 280 |
| Top | 120 / 140 / 240 / 280 |
| Rear | 120 |
Clearances
| Component | Limit |
|---|---|
| CPU Cooler Height | 165mm |
| VGA Length | 320mm |
| PSU Length | 160mm |
| Cable Management | 20mm |
Dimensions & Weight
| Type | Measurement |
|---|---|
| Product Dimensions (L×W×H) | 400mm × 225mm × 431mm |
| Packaging Dimensions (L×W×H) | 470mm × 288mm × 470mm |
| Net Weight | 6.2kg |
| Gross Weight | 7.3kg |
The DeepCool MACUBE 110 combines minimalist aesthetics with strong cooling options, convenient features, and a compact footprint, making it an ideal choice for clean, modern micro-ATX builds.
