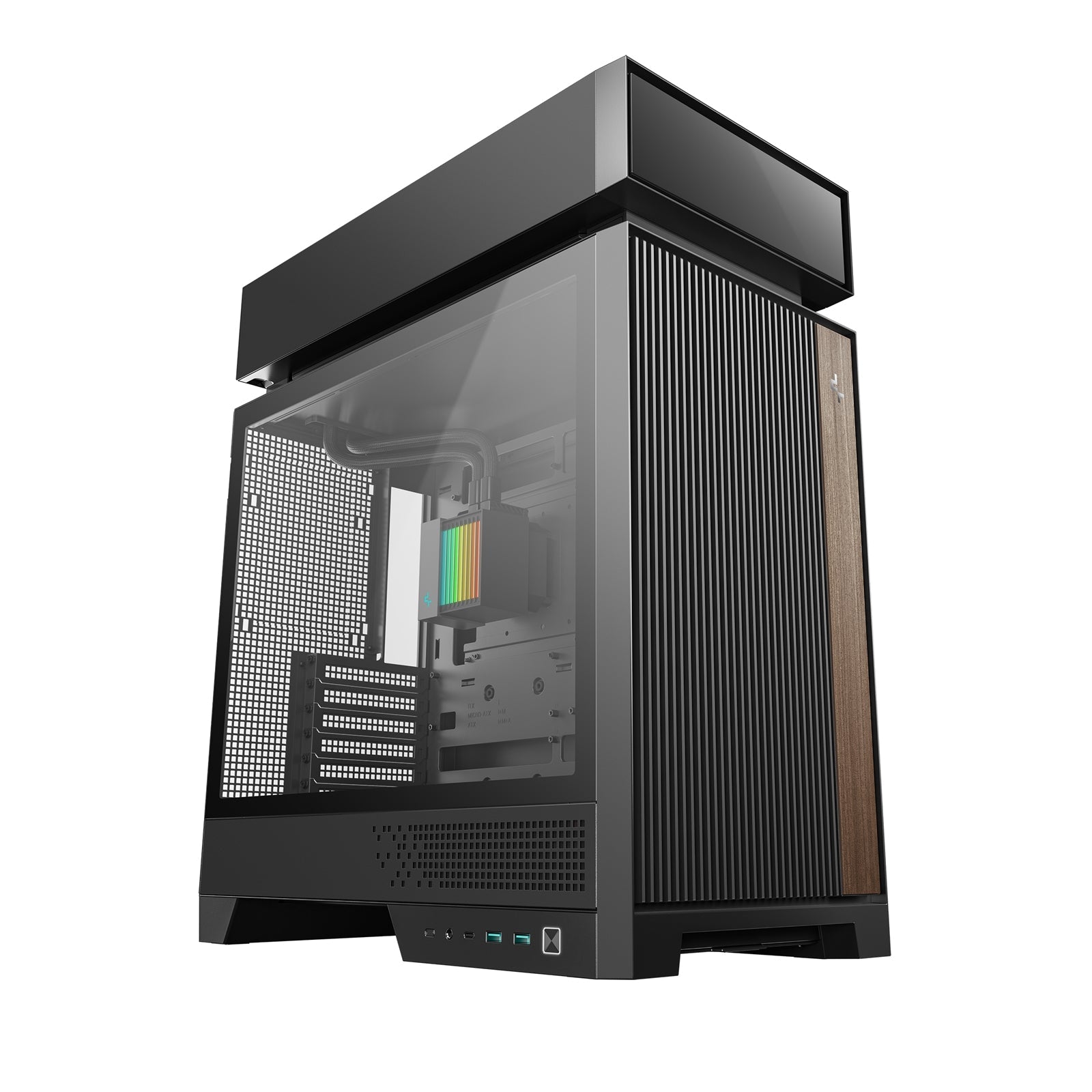

DeepCool CL6600 Split-Chamber Mid-Tower ATX Case with 360mm ARGB Liquid Cooler
The DeepCool CL6600 reimagines PC case design for the liquid-cooling era. With a modular split-chamber layout, advanced pre-installed 360mm ARGB liquid cooler, and dual bottom ARGB fans, it delivers strong thermal performance while showcasing a clean, modern aesthetic.
Split-Chamber Design for Optimized Airflow
Split for Perfect Flow
The CL6600 features a modular split-chamber structure that physically separates key thermal zones. By placing the radiator in its own dedicated chamber, it creates independent airflow paths for heat-generating components, helping reduce heat buildup and cross-interference so the entire system can run more efficiently.
Modern Aesthetics with Natural Accents
Balance in Layers
A raised top chamber reshapes the overall silhouette and keeps internal space organized. Vertical grille bars at the front offer natural ventilation and add a strong visual rhythm, while real wood provides an organic contrast to the clean, modern design.
The wood grain pattern may vary depending on the actual product.
Pre-Installed High-Performance Cooling
Ready to Handle More
The CL6600 comes equipped with premium cooling hardware out of the box:
- Pre-installed 360mm ARGB Liquid Cooler
- Advanced pump with adjustable speeds from 2500–3400 RPM, enabling a balance between high efficiency and quieter operation.
- Triple high-performance Fluid Dynamic Bearing (FDB) fans on the radiator provide steady, reliable airflow.
-
DeepCool short-tube design helps keep the main chamber neat and visually open.
-
Includes 2 × FL12R SE ARGB Fans (Bottom)
- Dual reverse-blade fans positioned low to pull in fresh air without crowding your build.
Wide Cooling Flexibility
Maximize cooling potential with broad support for liquid and air configurations:
- Support for 360mm AIOs
- Support for up to eight 120mm fans in total
- Mounting options above the radiator for:
- 3 × 120mm fans, or
- 2 × 140mm fans
- Supports push-pull configuration (fan–radiator–fan) above the radiator
Build-Friendly Interior Layout
Build with Confidence
The CL6600 offers generous space for high-end components and future upgrades:
- GPU support up to 413mm (up to 388mm with front fan installed)
- CPU air coolers up to 175mm in height
- Standard ATX PS2 power supplies up to 160mm in length, plus support for SFX/SFX-L
- Back-connect motherboard support
- 7 expansion slots for added flexibility
Specifications
Case Specifications
| Item | Specification |
|---|---|
| Product Dimensions | 457.5 × 235 × 533.5 mm (L × W × H) |
| Net Weight | 11.82 kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / ATX (Rear Connector) / Micro-ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 × 2, Gen2 Type-C × 1, Audio/Mic × 1 |
| 3.5" Drive Bays | 2 + 1 |
| 2.5" Drive Bays | 1 + 1 |
| Expansion Slots | 7 slots |
| Pre-Installed Fans | Bottom: 2 × 120mm ARGB (Reverse Blade) |
| Fan Support (Top) | 3 × 120mm / 2 × 140mm |
| Fan Support (Front) | 2 × 140mm |
| Fan Support (Rear) | 1 × 140mm / 1 × 120mm |
| Fan Support (Bottom) | 2 × 120mm |
| Radiator Support (Top) | Pre-installed 360mm |
| Radiator Support (Front) | NA |
| Radiator Support (Rear) | 120mm |
| CPU Cooler Height Limit | 175mm |
| GPU Size Limit | 413mm / 388mm (with front fan) |
| Power Supply Type | ATX PS2 (maximum length: 160mm) / SFX / SFX-L |
Radiator & Pump
| Item | Specification |
|---|---|
| Radiator Dimensions | 402 × 120 × 27 mm |
| Radiator Material | Aluminum |
| Tube Length | 250 mm |
| Pump Dimensions | 118 × 80 × 76 mm |
| Pump Speed | 2500–3400 RPM ±10% |
| Pump Connector | 4-pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.29 A |
| Pump Power Consumption | 3.48 W |
Fans
| Item | Specification |
|---|---|
| Fan Dimensions | 120 × 120 × 25 mm |
| Fan Speed | 500–2500 RPM ±10%, 0 RPM < 5% PWM |
| Fan Airflow | 73.41 CFM |
| Fan Air Pressure | 4.69 mmAq |
| Fan Noise | ≤ 35.63 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.3 A |
| Fan Power Consumption | 3.6 W |
Lighting
| Item | Specification |
|---|---|
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin (+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.7 W (Pump) |
The DeepCool CL6600 brings together a modular split-chamber design, pre-installed 360mm ARGB liquid cooling, and extensive hardware compatibility, making it a strong foundation for modern, visually striking PC builds.
