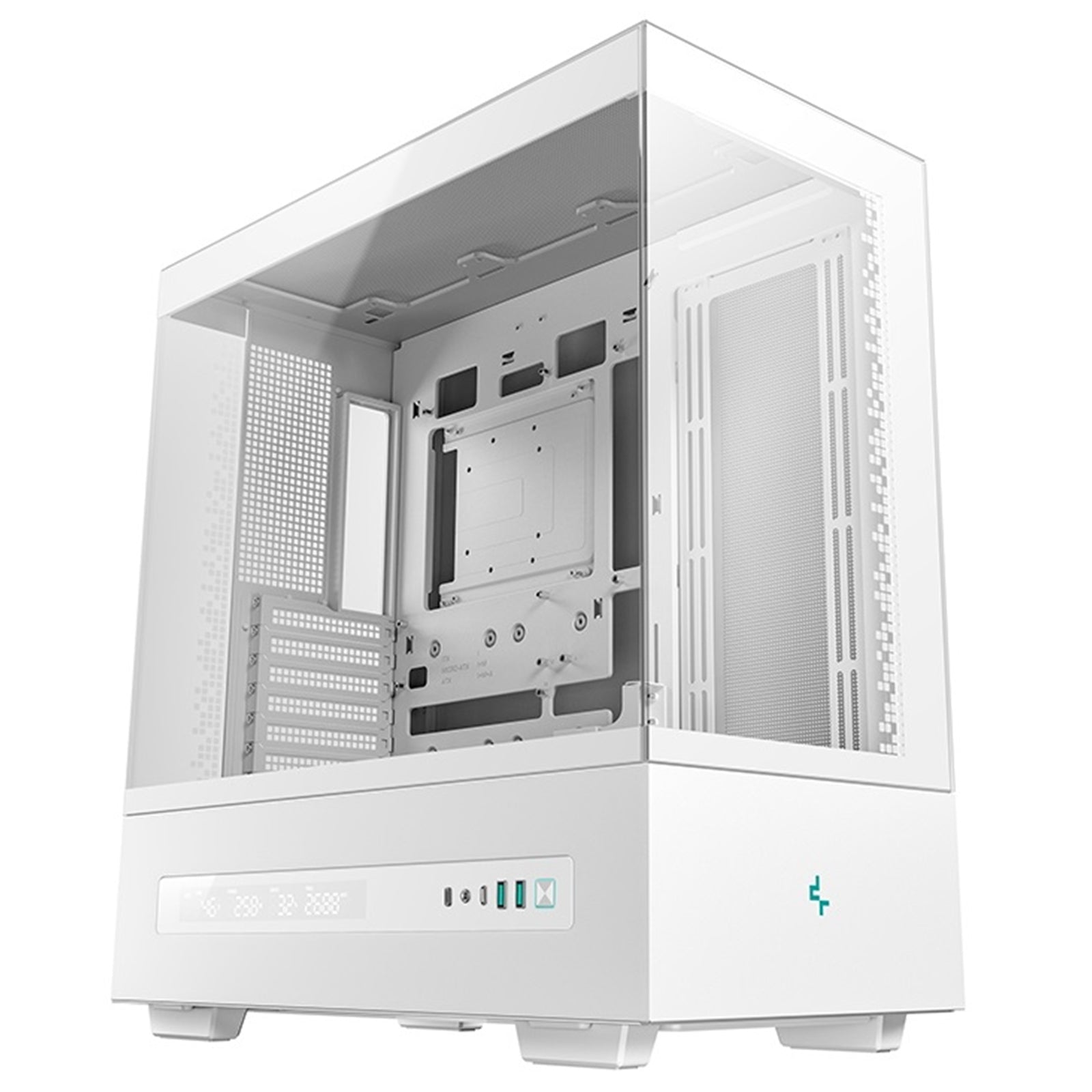

DeepCool CH690 Digital White ATX Mid-Tower Case
The DeepCool CH690 Digital White ATX Case is designed with a focus on beauty, adaptability, and personalization. Its semi-glass side panel provides an expansive view of your installed components, showcasing your build with a clean, modern aesthetic.
For users seeking enhanced performance, the rear of the case supports DIY modifications. The semi-glass panel can be replaced with a mesh panel and fan bracket to improve horizontal airflow, giving builders more control over cooling optimization.
An integrated light strip slot allows you to add light strips and create an immersive gaming atmosphere, blending visual flair with functional design for a truly personalized setup.
Key Features
- Semi-glass panel for a wide view of internal components
- DIY-friendly rear design supporting mesh panel and fan bracket replacement
- Enhanced horizontal airflow potential with optional modifications
- Integrated light strip slot for customizable lighting and gaming ambience
- Clean white finish and mid-tower form factor for versatile ATX builds
Specifications
| Specification | Details |
|---|---|
| Model Number | R-CH690-WHNNA0D-G-1 |
| Case Type | Mid-Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Dimensions (L x W x H) | 552mm x 332mm x 589mm |
| Net Weight | 9.8 kg |
| Materials | ABS, SPCC, Tempered Glass |
| Front I/O Ports | 2 x USB 3.0; 1 x USB Type-C (Gen 2); 1 x HD Audio/Mic |
| Drive Bays | 1 x 3.5"; 2 x 2.5" |
| Expansion Slots | 8 |
| Pre-Installed Fans | None |
| Fan Support (Top) | 3 x 120mm / 3 x 140mm |
| Fan Support (Side) | 3 x 120mm / 3 x 140mm |
| Fan Support (PSU Shroud) | 3 x 120mm / 3 x 140mm |
| Fan Support (Rear) | 1 x 120mm / 1 x 140mm |
| Radiator Support (Top) | 120mm / 140mm / 240mm / 280mm / 360mm / 420mm |
| Radiator Support (Side) | 120mm / 140mm / 240mm / 280mm |
| Radiator Support (PSU Shroud) | 120mm / 240mm / 360mm |
| CPU Cooler Height Limit | 182mm |
| GPU Length Limit | 450mm |
| Power Supply Type | ATX PS2 (maximum length: 180mm) |
| Warranty | 1 Year |
