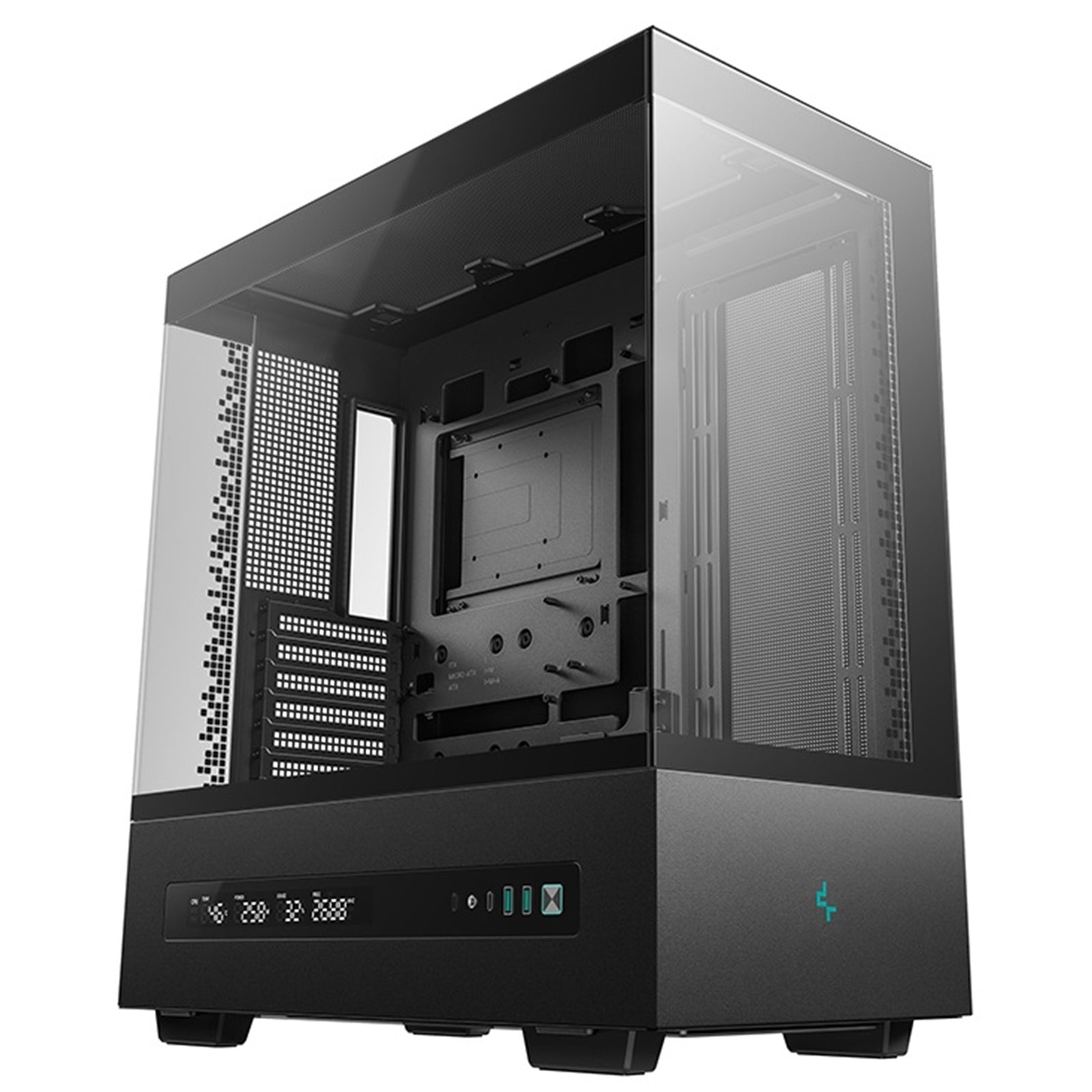

DeepCool CH690 Digital Black ATX Mid-Tower Case
The DeepCool CH690 Digital Black ATX Case is engineered for both visual impact and flexible configuration. With a semi-glass side panel that showcases your components and versatile cooling options, it delivers a refined foundation for a personalized PC build.
Stunning Semi-Glass Side Panel
- Semi-glass panel provides a wide, unobstructed view of internal components
- Designed to highlight your hardware and create a clean, modern look
Customizable Airflow and DIY Modifications
- Rear of the case supports DIY modifications
- Option to replace the semi-glass panel with a mesh panel and fan bracket
- Enhances horizontal airflow for users who prioritize performance
Immersive Lighting Options
- Integrated light strip slot supports the installation of light strips
- Create an immersive gaming atmosphere and tailor lighting to your style
Specifications
| Feature | Details |
|---|---|
| Model Number | R-CH690-BKNNA0D-G-1 |
| Case Type | Mid-Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Dimensions (L × W × H) | 552mm × 332mm × 589mm |
| Net Weight | 9.8 kg |
| Materials | ABS, SPCC, Tempered Glass |
| Front I/O Ports | 2 × USB 3.0 1 × USB Type-C (Gen 2) 1 × HD Audio/Mic |
| Drive Bays | 1 × 3.5" drive bay 2 × 2.5" drive bays |
| Expansion Slots | 8 |
| Pre-Installed Fans | None |
Fan Support
| Location | Fan Support |
|---|---|
| Top | 3 × 120mm / 3 × 140mm |
| Side | 3 × 120mm / 3 × 140mm |
| PSU Shroud | 3 × 120mm / 3 × 140mm |
| Rear | 1 × 120mm / 1 × 140mm |
Radiator Support
| Location | Radiator Sizes Supported |
|---|---|
| Top | 120mm / 140mm / 240mm / 280mm / 360mm / 420mm |
| Side | 120mm / 140mm / 240mm / 280mm |
| PSU Shroud | 120mm / 240mm / 360mm |
Clearance & Compatibility
| Component | Limit / Type |
|---|---|
| CPU Cooler Height | Up to 182mm |
| GPU Length | Up to 450mm |
| Power Supply Type | ATX PS2 (maximum length: 180mm) |
Warranty
- Warranty: 1 Year
