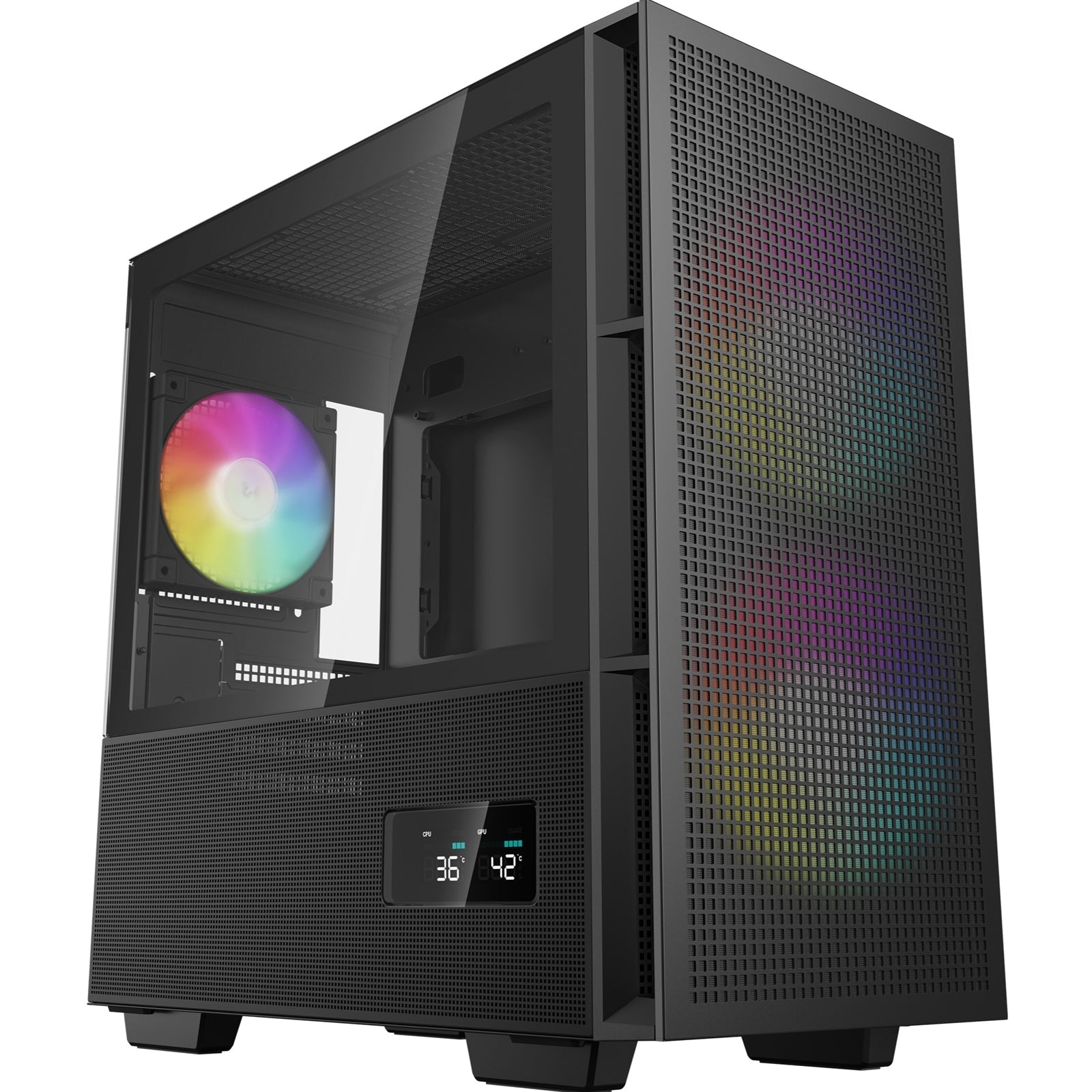

CH360 DIGITAL High Airflow Micro-ATX Case
A BREATH OF FRESH AIR
The CH360 DIGITAL is engineered for exceptional airflow from every angle. From the high-airflow front panel to the hybrid tempered glass side panel, cool air is consistently available to support modern, power-hungry components.
Hybrid Airflow Glass Side Panel
A unique tempered glass and mesh hybrid side panel delivers:
- A crystal-clear view into the heart of your system
- Additional ventilation for modern GPUs
- A functional yet elegant design that balances aesthetics and performance
Real-Time Dual-Status Digital Display
Keep critical system information in sight with the integrated double-status digital screen:
- Monitor CPU and GPU temperatures and utilization
- Choose to display CPU or GPU metrics, or both (automatically switches between temperature and utilization every 5 seconds)
- Simple-to-use software provides easy control over display statuses
Maximum Cooling Capacity
The CH360 DIGITAL offers a wide range of cooling configurations, including:
- Support for up to a 360 mm radiator at the front
- Two pre-installed 140 mm ARGB front fans
Flexible mounting options give you the freedom to create the cooling setup you need.
Wide Component Compatibility
Build confidently with support for a broad range of modern components:
- CPU coolers up to 165 mm in height
- GPUs up to 320 mm in length
- PSUs up to 160 mm in length
Bigger, Brighter, Better Cooling
Pre-installed fans are optimized for airflow and clearance:
- Front: Two luminous PWM-enabled 140 mm ARGB fans bring abundant fresh air into the chassis
- Mounted outside the main compartment to provide extra GPU clearance
- Helps maintain a compact overall footprint
- Rear: One 120 mm ARGB fan exhausts internal case heat
Stress-Free Building Experience
Designed for easy assembly and maintenance:
- Magnetic hybrid side panel with optional security screw
- Magnetic air filters for quick cleaning
- Integrated GPU support arm
- Removable hard drive cage
- 26 mm of cable management space behind the motherboard tray
These thoughtful features make building and living with your PC more convenient.
Convenience at Arm’s Reach
Everyday connectivity is close at hand with the front I/O panel, featuring:
- 1 × USB 3.0 port
- 1 × Type-C port
- 1 × hybrid audio port
Product Specifications
| Category | Details |
|---|---|
| Dimensions (L × W × H) | 428 × 215 × 431 mm |
| Net Weight | 6 kg |
| Materials | ABS, SPCC, Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX |
Front I/O Ports
| Port | Quantity |
|---|---|
| USB 3.0 | 1 |
| Audio | 1 |
| Type-C | 1 |
Drive Bays
| Size | Quantity |
|---|---|
| 3.5" | 2 |
| 2.5" | 2 + 1 |
Expansion & Compatibility
| Feature | Specification |
|---|---|
| Expansion Slots | 4 slots |
| CPU Cooler Height Limit | 165 mm |
| GPU Length Limit | 320 mm |
| Power Supply Type | ATX PS2 |
| PSU Max Length | 160 mm |
Pre-Installed Fans
| Position | Configuration |
|---|---|
| Front | 2 × 140 mm ARGB |
| Rear | 1 × 120 mm ARGB |
Fan Support
| Position | Supported Sizes |
|---|---|
| Front | 3 × 120 mm / 2 × 140 mm |
| Top | 2 × 120 mm / 2 × 140 mm |
| Rear | 1 × 120 mm |
| PSU Shroud | 2 × 120 mm |
Radiator Support
| Position | Supported Radiator Sizes |
|---|---|
| Front | 120 / 140 / 240 / 280 / 360 mm |
| Top | 120 / 140 / 240 mm |
| Rear | 120 mm |
Identification
| Code Type | Value |
|---|---|
| EAN | 6933412774693 |
| P/N | R-CH360-BKAPE3D-G-1 |
